METRA A-Pillar 8-Gang Switch Panel System

METRA

Write a Review
SKU:
M-JP-APS-JK

Description

METRA A-Pillar 8-Gang Switch Panel System

This 8-gang switch panel system features vehicle-specific brackets, making it a custom solution for 2007-2018 Jeep® Wrangler JK. The included replacement A-pillar cover mounts the water-resistant switch panel vertically, and two types of adapters are provided to fit the panel to Jeep Wrangler JK interiors. This versatile panel can handle all types of 12V DC accessories and allows users to control up to 8 different auxiliary LED lights or electrical devices. An included sheet of 50 decals is designed to fit the vertical orientation of the panel and customize it accordingly, with blue LED backlighting to illuminate the switches. The compact under-hood control box is rated IP68 and easily affixes to OE mounting locations along with the resettable 60-amp circuit breaker using two included vehicle-specific brackets. There are two 30-amp, two 20-amp, two 10-amp, and two 5-amp circuits that can be programmed to latching (on/off) or momentary. T-SPEC’s V10 fully tinned OFC marine-grade power and ground cables are included to power the controller for maximum reliability.

Features:

  • Fits 2007-2018 Jeep® Wrangler JK
  • 8 circuits can be programmed to latching (on/off) or momentary: (2) 30A, (2) 20A, (2) 10A, and (2) 5A
  • Backlit blue LED buttons
  • Input voltage: 12-24V DC
  • Power handling: 600W-1200W
  • Maximum current: 60A
  • Panel material: Die-cast aluminum
  • Control box material: Die-cast aluminum with ABS plastic cover
  • IP rating: IP68
  • Operating temperature: -40?F to 302?F
  • Panel size: 4.53“x0.59“x2.60”
  • Controller box size: 7.48“x1.34“x4.13”
  • 1-year warranty

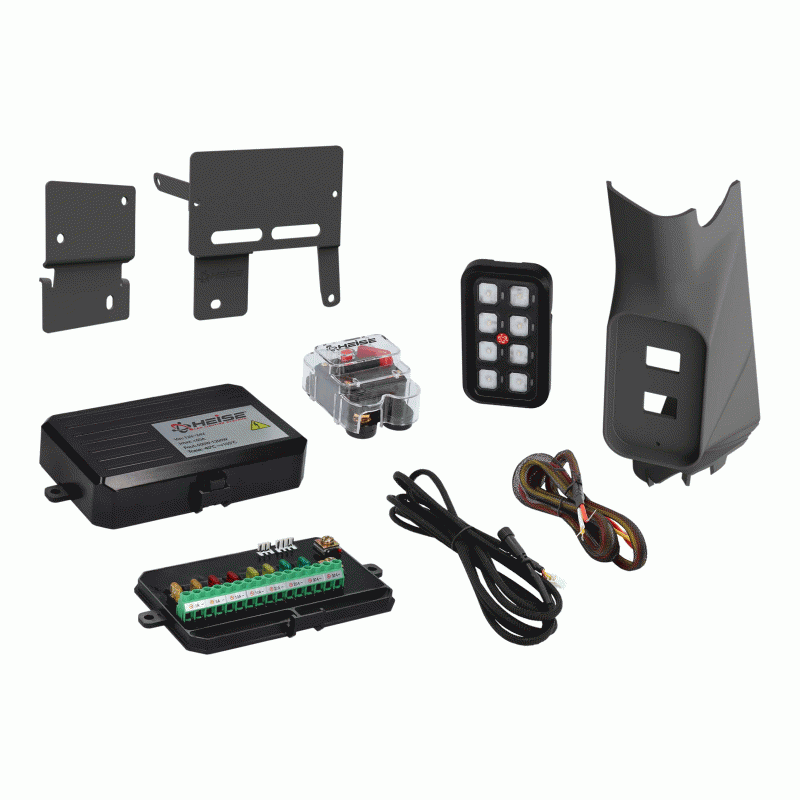

Kit Includes:

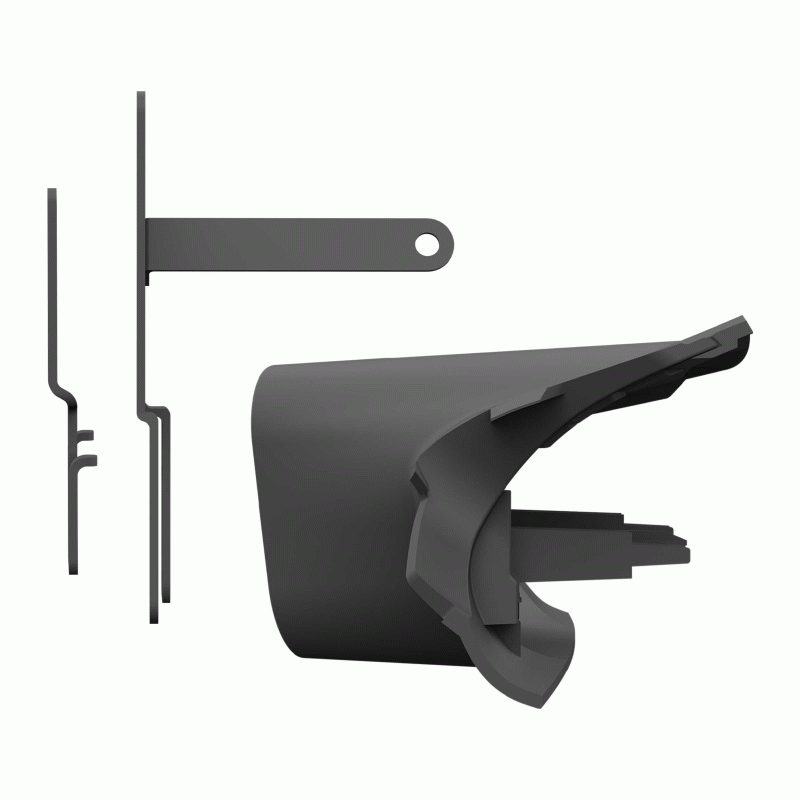

  • Water-resistant 8-gang switch panel with A-pillar bracket
  • IP68 controller with vehicle-specific engine bay mounting bracket
  • 60A circuit breaker with OE-style mounting bracket
  • 6’ marine-grade T-SPEC power wire
  • 2’ marine-grade T-SPEC power wire
  • 1’ marine-grade T-SPEC ground wire
  • (6) Spare fuses
  • (50) Custom labeling decals
  • Mounting hardware

Extra Information

Brand:
METRA
