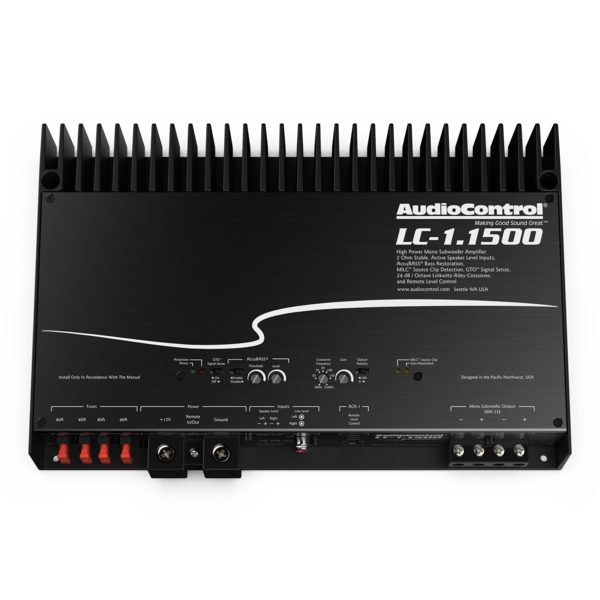

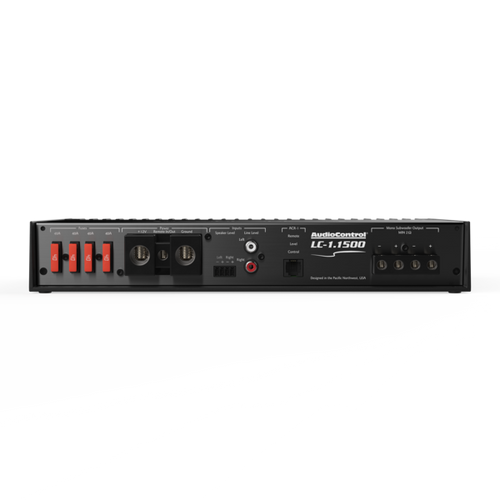

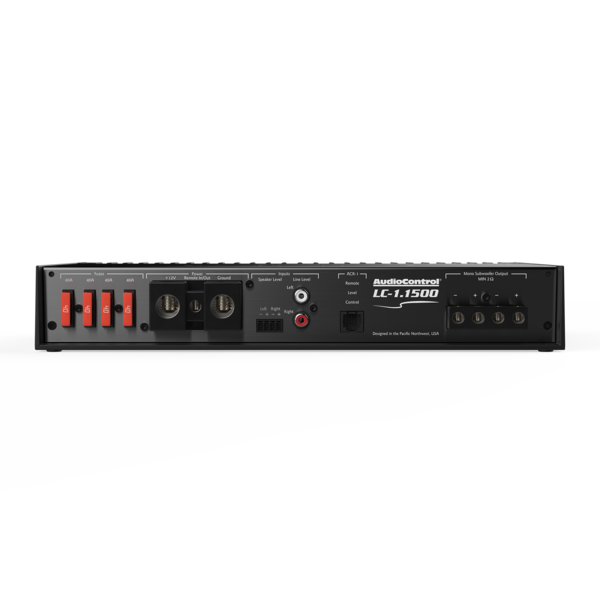

AUDIOCONTROL LC-1.1500 Mono 1500 watt Amplifier with LC2i
Features:
- Subwoofer amplifier with patented AccuBASS®
- 1500 watts @ 2 ohms
- 850 watts @ 4 ohms
- AccuBASS® Processing
- MILC™ Maximum Input Level Control (Patent Pending)
- GTO™ Signal Sense
- 24 dB/octave Linkwitz-Riley Alignment crossover
- Speaker level and preamp inputs
- Optional ACR-1 assignable remote control
- Solid One-Piece Aluminum Chassis
Specifications:
Inputs
Preamp Inputs: 2 balanced
Input Voltage Range: 500 mV – 6 Vrms
Speaker Level Inputs: 2
Speaker Level Input Voltage Range: 3 V – 40 Vrms
Outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ω – 850 W RMS
2 Ω – 1500 W RMS
Performance
- Frequency Response: 10 Hz – 30 kHz
- Signal to Noise: 102 dBa, Ref 850 W @ 4 Ohm
- Damping Factor: 670 at 10 V, 4 Ohm Output, 100 Hz
- THD+N: < 0.01%
- Minimum Power / Ground Wire Gauge: 0 AWG wire
- Fuse Rating: 4 x 40 A
- Crossover: 24 dB/octave Linkwitz-Riley, Adjustable From 30 Hz – 230 Hz
- PFM Subsonic Filter: 24 Hz
Weights & Dimensions
Dimensions: 12″W x 7.95″D x 2.1″H
Weight: 7.2 lbs (3.3 kg)
What's in the box: LC-1.1500, Speaker connectors, Fuses, Manual, Warranty
