Description

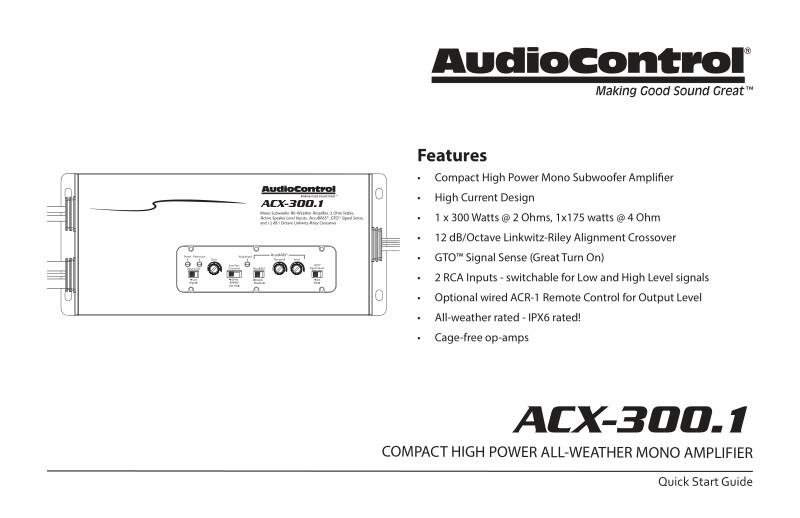

AUDIOCONTROL ACX-300.1 300 Watt Mono Amplifier All-Weather
Features:
- 1 x 300 watts @ 2 ohms
- 1 x 175 watts @ 4 ohms
- IPX6 Rated
- AccuBASS® bass management
- GTOTM Signal Sense
- High and low input modes
- Linkwitz-Riley Crossover
- Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)
Specifications:
Inputs
Preamp/Speaker Level Inputs: 2
Input Voltage Low: 500 mV – 6 Vrms
Input Voltage Range High: 1 Vrms – 12 Vrms
Outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ω – 175 W x 1 RMS
2 Ω – 300 W x 1 RMS
Performance
- Frequency Response: 26 Hz – 22 kHz
- Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
- THD+N: < 0.05%
- Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
- IP Rating: IPX6
General
Recommended Fuse Rating: 30A
Weights & Dimensions
Dimensions: 9.0″W x 3.875″D x 2.25″H
Weight: 7.2 lbs. (3.3 kg)
What's in the box: ACX-300.1, Manual, Warranty
