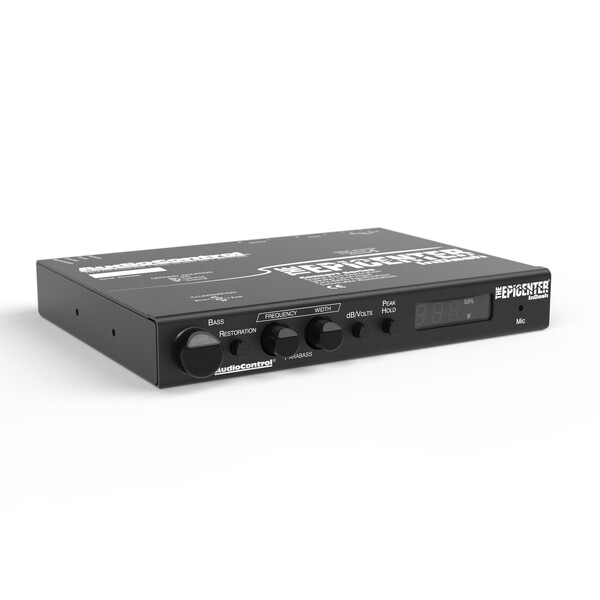

AUDIOCONTROL The Epicenter InDash
Features:
- AudioControl unique bass restoration circuit
- SPL display up to 160 dB
- Battery Voltage indicator
- Speaker level inputs
- Para-BASS Controls
- Balanced differential inputs
Specifications:
Inputs
Preamp Inputs: 1 (2 channels)
Maximum Input Level: 15Vrms
Speaker Level Inputs: 1 (2 channels)
Input Impedance: 10kΩ
Outputs
Preamp Outputs: 1 (2 channels)
Maximum Output Level: 13.5Vrms
Output Impedance: 160Ω
Performance
Total Harmonic Distortion: 0.003%
Frequency Response: 10Hz-100kHz
Signal to Noise: 110dB
Balanced Input Noise Rejection: 60dB
Microphone SPL range: 70 dB-SPL to 160 dB-SPL
Control
Remote In
General
Power Supply: High Headroom PWM Switching
Current Draw: 285mA
Recommended Fuse Rating: 1A
Weights & Dimensions
Dimensions: 6.75”W x 5”D x 1”H
Weight: 2lbs (0.9kg)
What's in the box: The Epicenter InDash, Power and Speaker Connectors, Manual, Warranty
