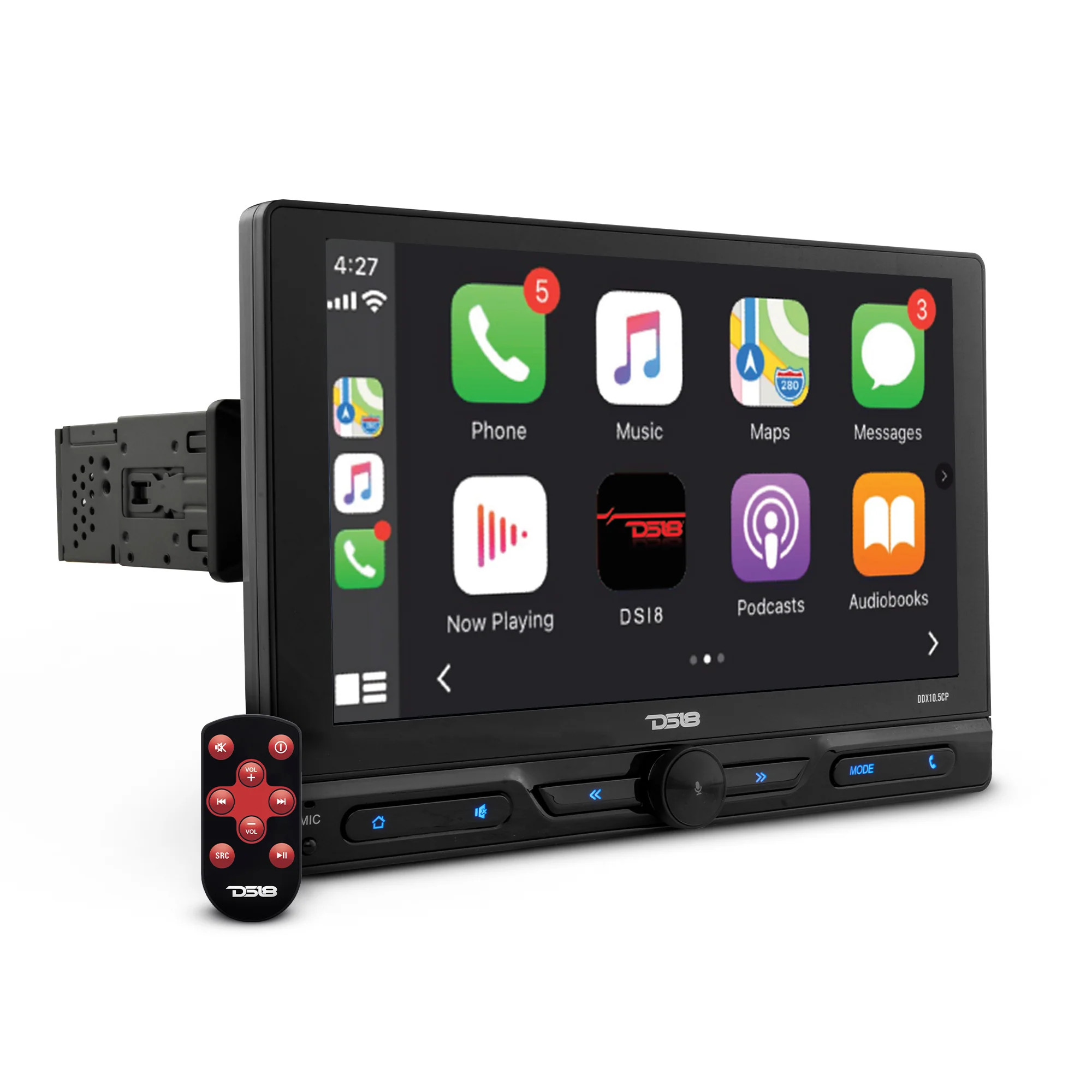

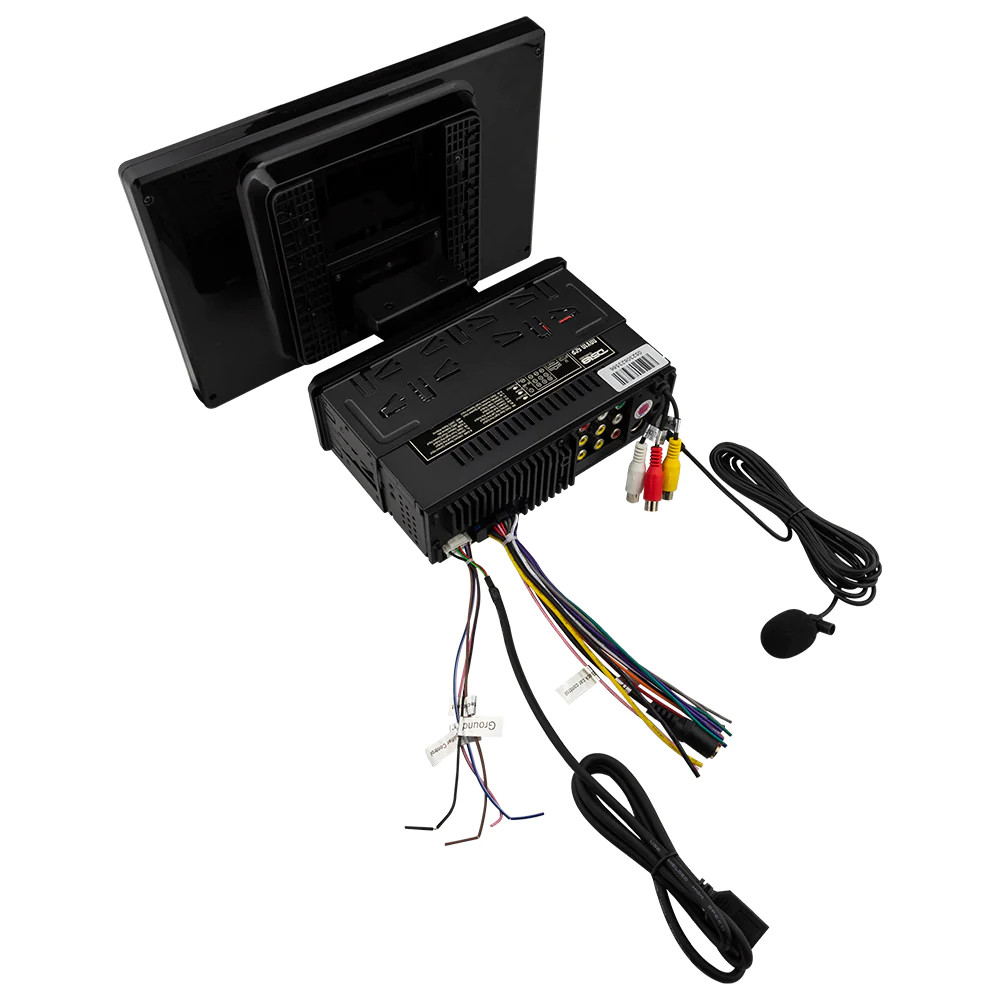

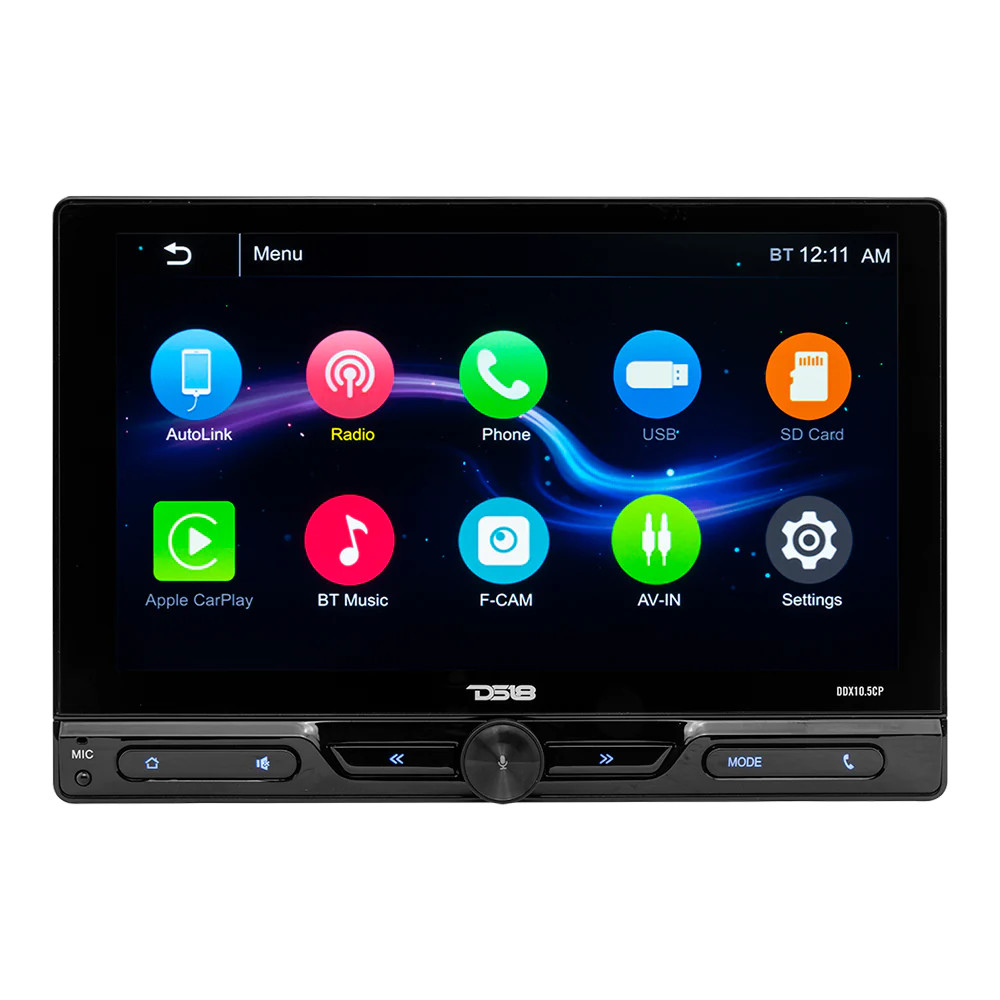

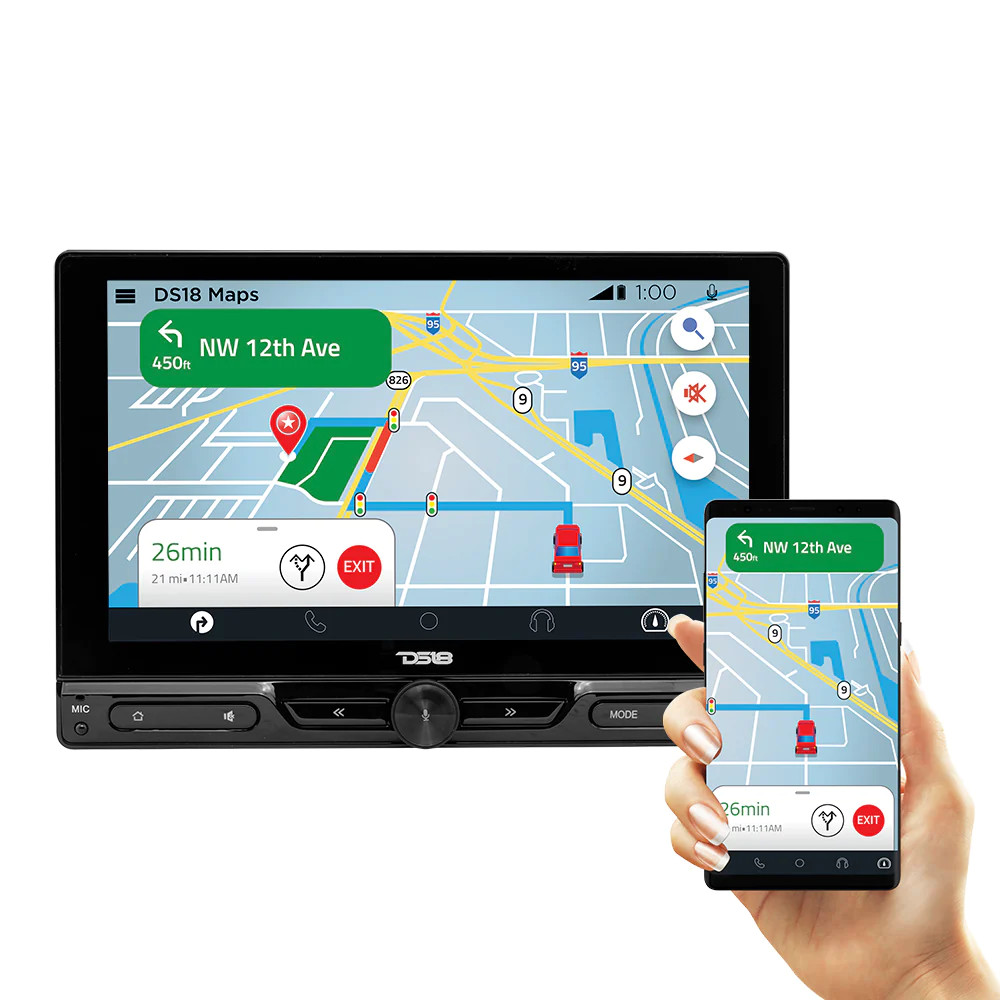

DS18 10.5" TOUCHSCREEN MECHLESS DOUBLE DIN RECEIVER WITH APPLE CARPLAY, BLUETOOTH & MIRROR LINK

SPECS

SKU
DDX10.5CP
Rated power source
14.4V DC (10.8V to 15V operation)
Maximum Current Consumption
15 Amp
Dimensions (W x H x D)
Chassis: 178mm x 50mm x 115mm Bezel frame: 170mm x 46mm x 5mm Screen Frame: 266mm x 180mm
Weight
4.5Lb

DISPLAY

Screen Size / Aspect Ratio
10.5 inch / Wide 16:9
Pixels
1280 x 720
Display Type
IPS / Full HD / Capacitive Touch Screen
Temperature Operation
-20C to +60C (14F to 140F)

AUDIO

Maximum Power Output
45W X 4 Ch / 4 ohm
Continuous Power Output
15W x 4 Ch / 4 ohm
Pre-output Level
4 Volts (Front, Rear, Subwoofer)

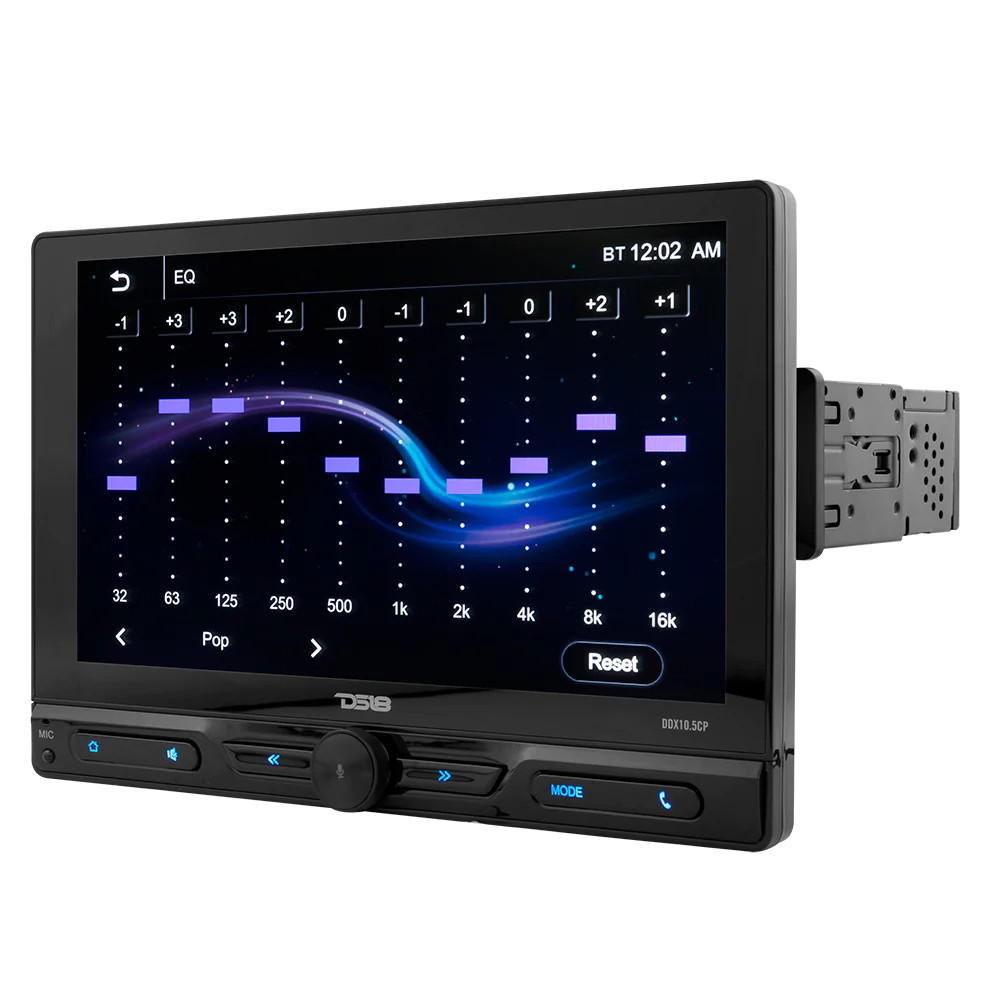

Equalizer
10 bands (32hz, 63hz, 125hz, 250hz, 500hz, 1khz, 2khz, 4khz, 8khz, 16khz)
Gain
+/- 6dB
Audio Control
Volume / Balance / Fader /Loudness

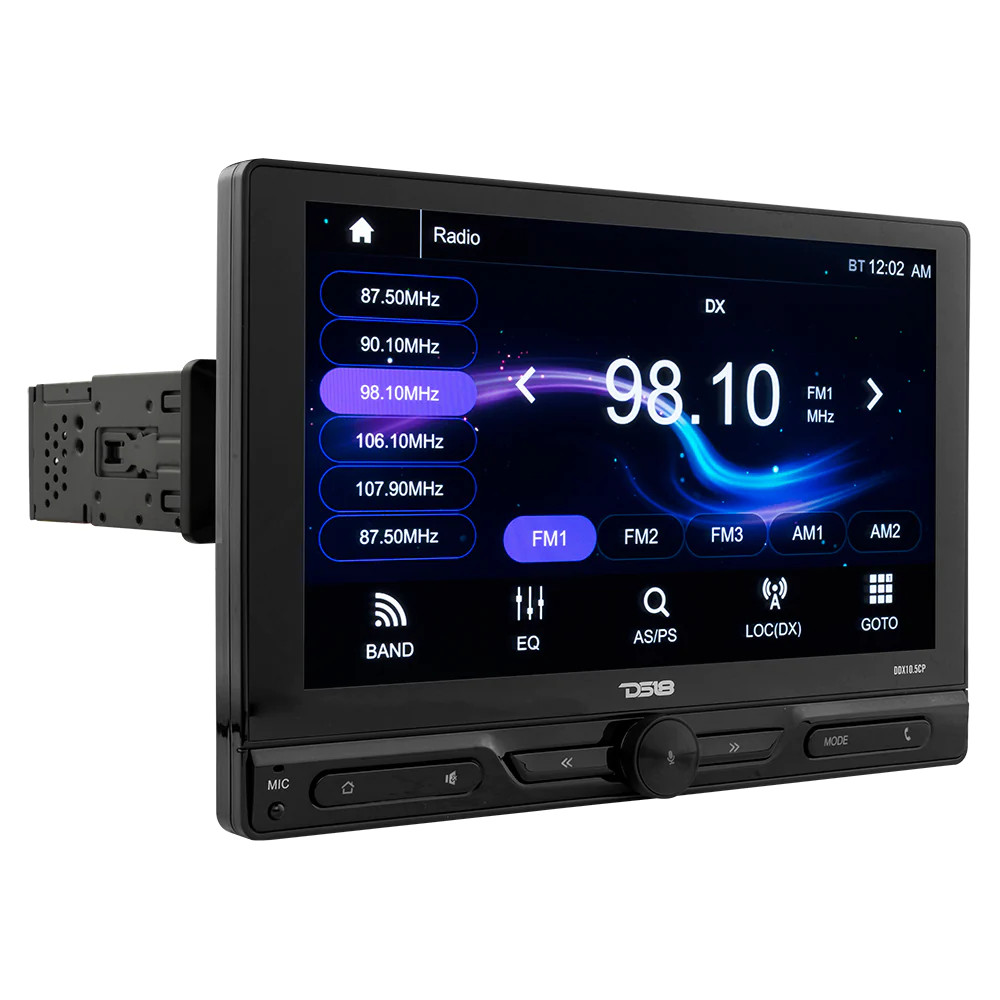

TUNER

Frequency Range
FM: 87.5 ~ 107.9 KHz AM: 530 ~ 1710 KHz
Presets Memory
30 Stations (18 FM/12 AM)
Region
Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)
Sensitivity Adjustment
LOC (On/Off) / ST (On/Off)
RDS
Yes (Radio Data System)

USB / SD PLAYER / CONNECTIVITY

Type / Class
V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported
RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
Resolution Supported
1080P Video
Memory Size Reader
up to 64 Gb
Max Current Supply
1.5 Amp (USB)
Number of USB Ports
2 (1 x Front, 1 x Rear)
Bluetooth Version / Services
V5.1/ Audio Streaming / Hands Free calls
Camera Input
RCA Analog Video up to HD 720p (Front/Rear)

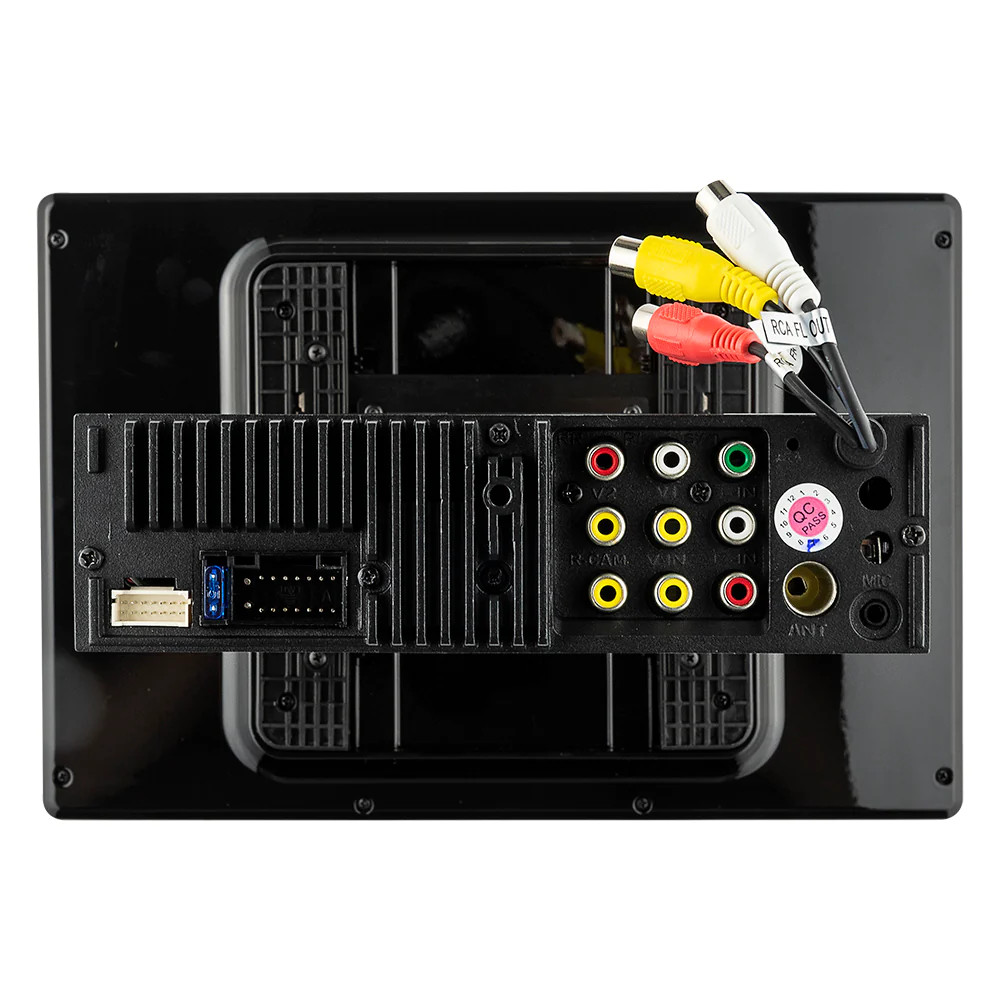

Video Output
Dual RCA (1 Volt/75 ohm)
A/V Aux Input
Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio
Microphone
3.5mm Jack external MIC Input
Remote Control
Frontal IR Receptor / Wired (3.5mm jack) Input
