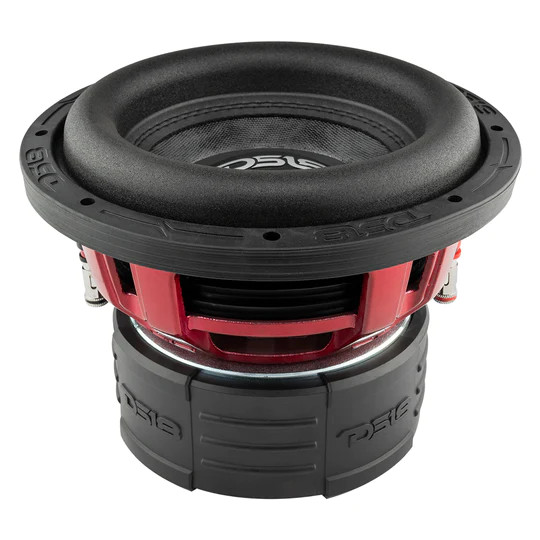

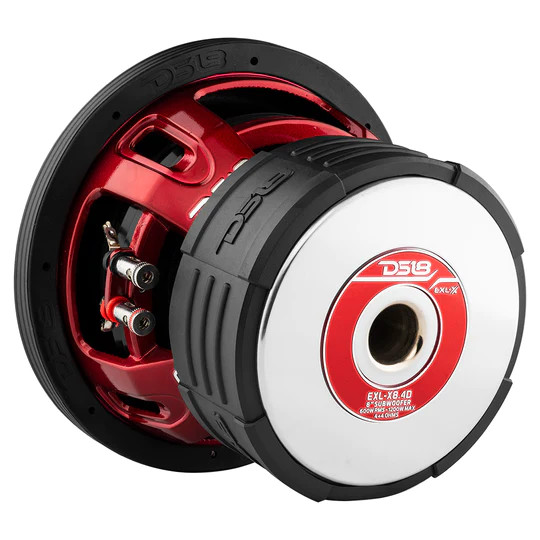

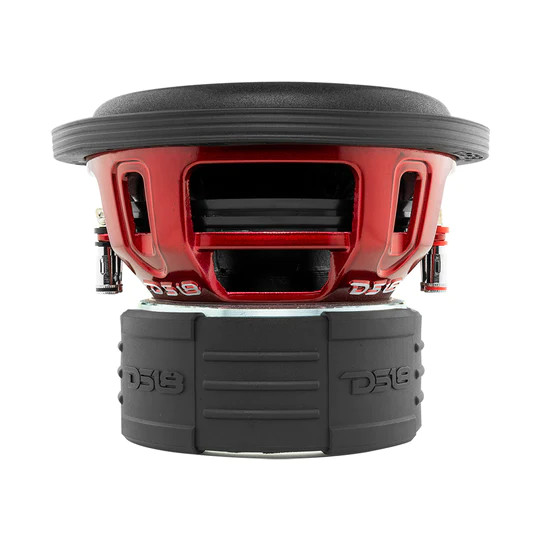

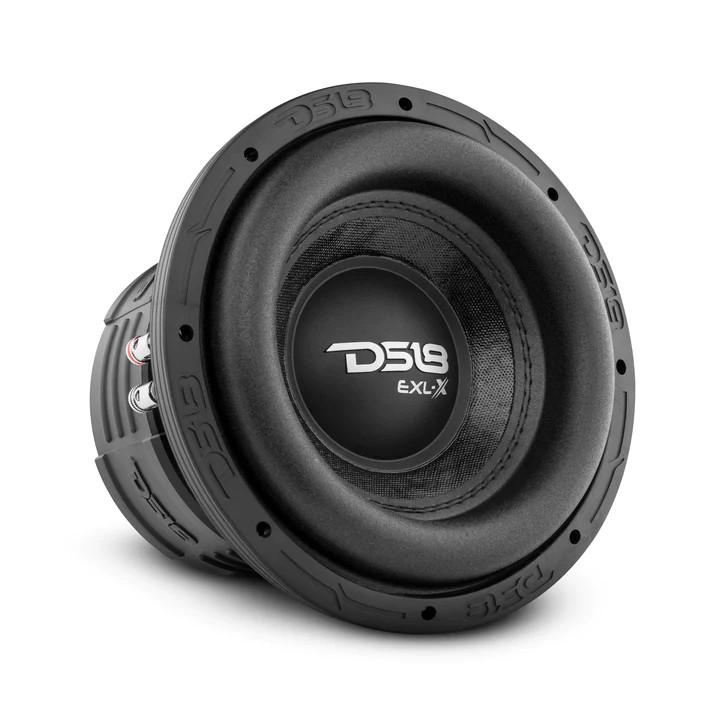

DS18 EXL SERIES 8" 1200W DUAL 4 OHM SUBWOOFER

SPECS

SKU
EXL-X8.4D
Nominal Diameter
8" / 203.2mm
Nominal Impedance
4+4 ohms
RMS Power Handling
600W
Maximum Power Handling
1200W
Sensitivity (1w/1m)
89dB
Frequency Response
38Hz-1KHz
Recommended Lo Pass Crossover
100Hz

MOTOR

Voice Coil Diameter
2.5" / 63.5mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Non Pressed Paper + Glass fiber
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
130 oz
Displacement Volume
N/A

THIELE & SMALL PARAMETERS

Equivalent Volume
2.8L / 0.098ft3
Free Air Resonance
70Hz
Mechanical Factor
5.206
Electrical Factor
0.803
Total Factor
0.696
Moving Mass
103.36g
Compliance
0.053mm/N
Bl Factor
9.5
Voice Coil Inductance
1.394mH
Diaphragm Area
193.59cm2
DC Resistance
3.2+3.2 ohm
Efficiency Bandwidth Product
87.1

RECOMMENDED ENCLOSURES

Sealed Internal Volume
0.3ft3
Sealed Box Output Response
60Hz
Ported Internal Volume
0.5ft3
Port Size *Square (W x H x Long)
1" x 8" x 10.56" / 25 x 203 x 268mm
Port Tuning Frequency
55Hz
Ported Box Output Response
42Hz

MEASUREMENTS

Overall Diameter
8.58" / 218mm
Overall Depth
6.61" / 168mm
Front Mount Baffle Cutout
7.36" / 187mm
Mounting Depth
5.51" / 140mm
Motor Diameter
6.1" / 155mm
Gross Single Unit Weight (lb)
16.5
Dimensions W x L x H (Inches)
9.25 x 9.25 x 7.5
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
33.5
M/C Dimensions W x L x H (Inches)
19.25 x 10.25 x 8.5
