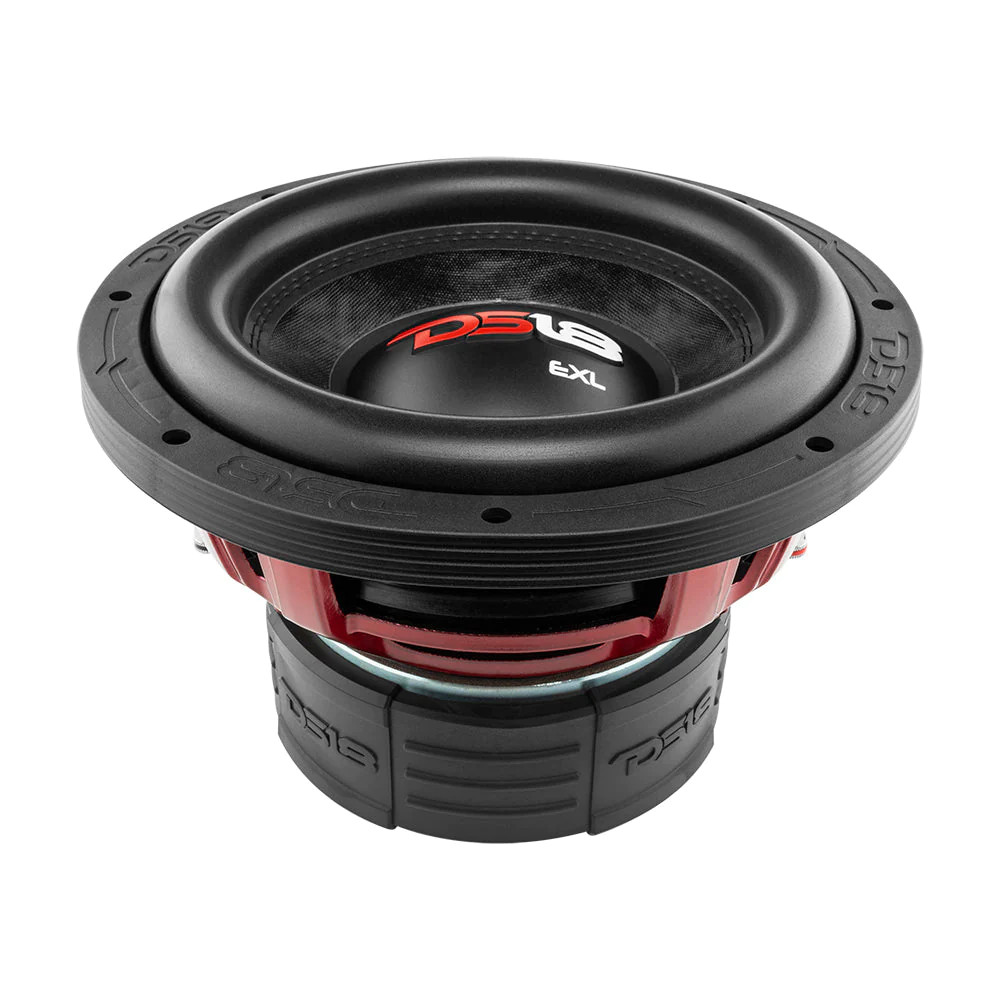

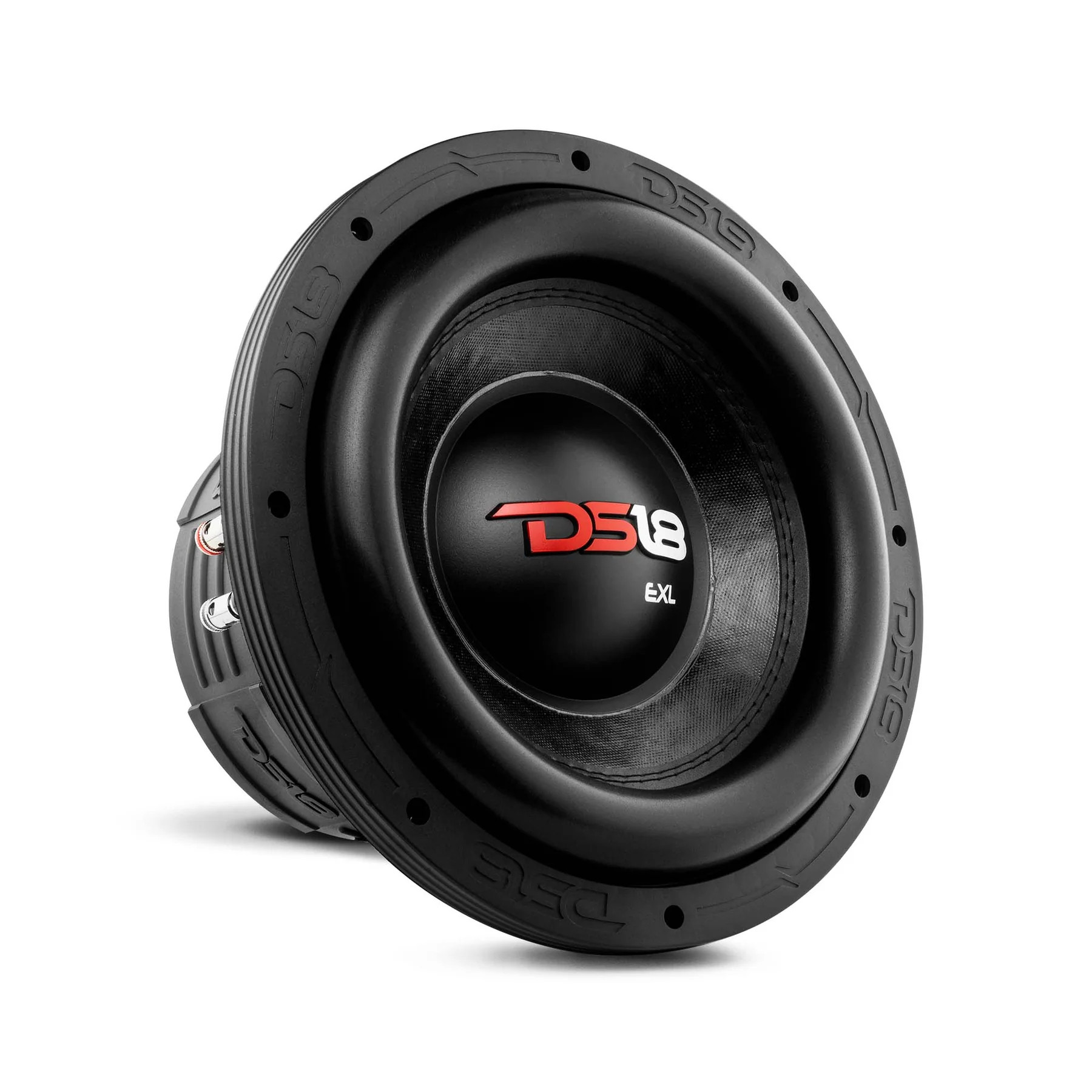

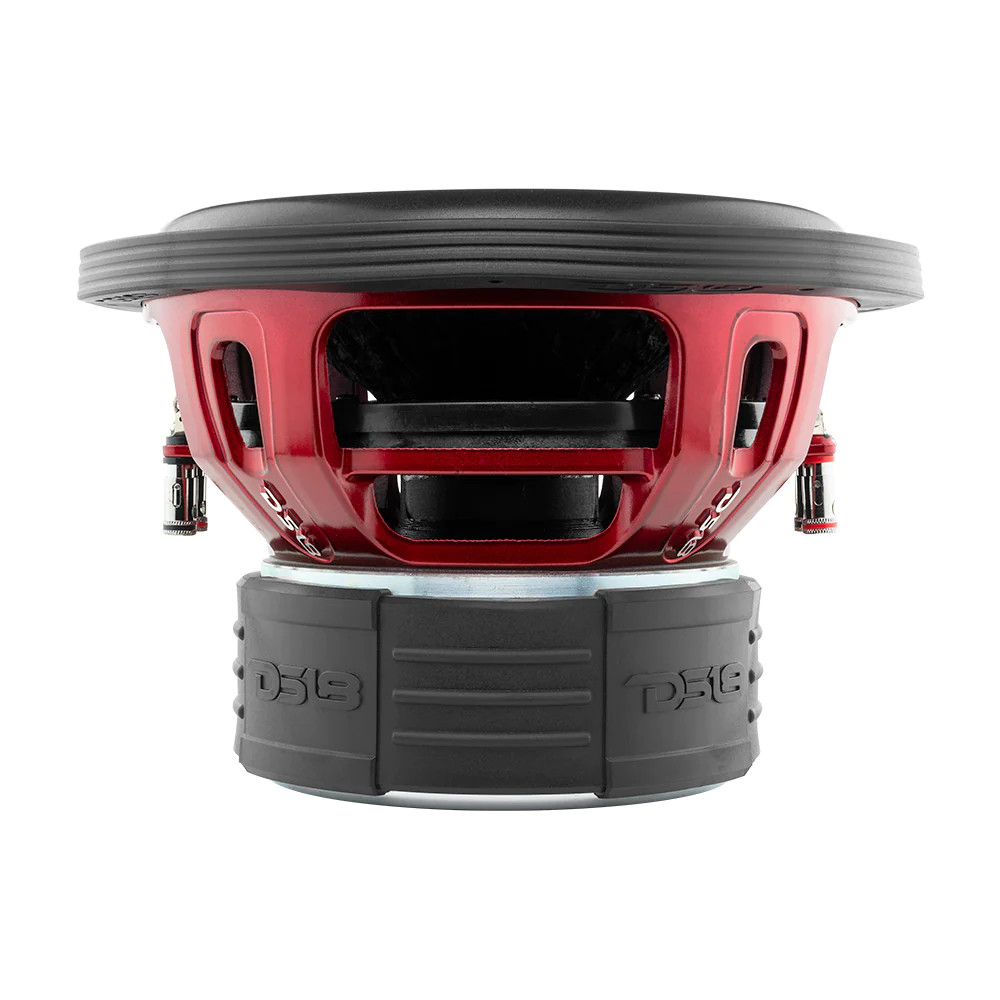

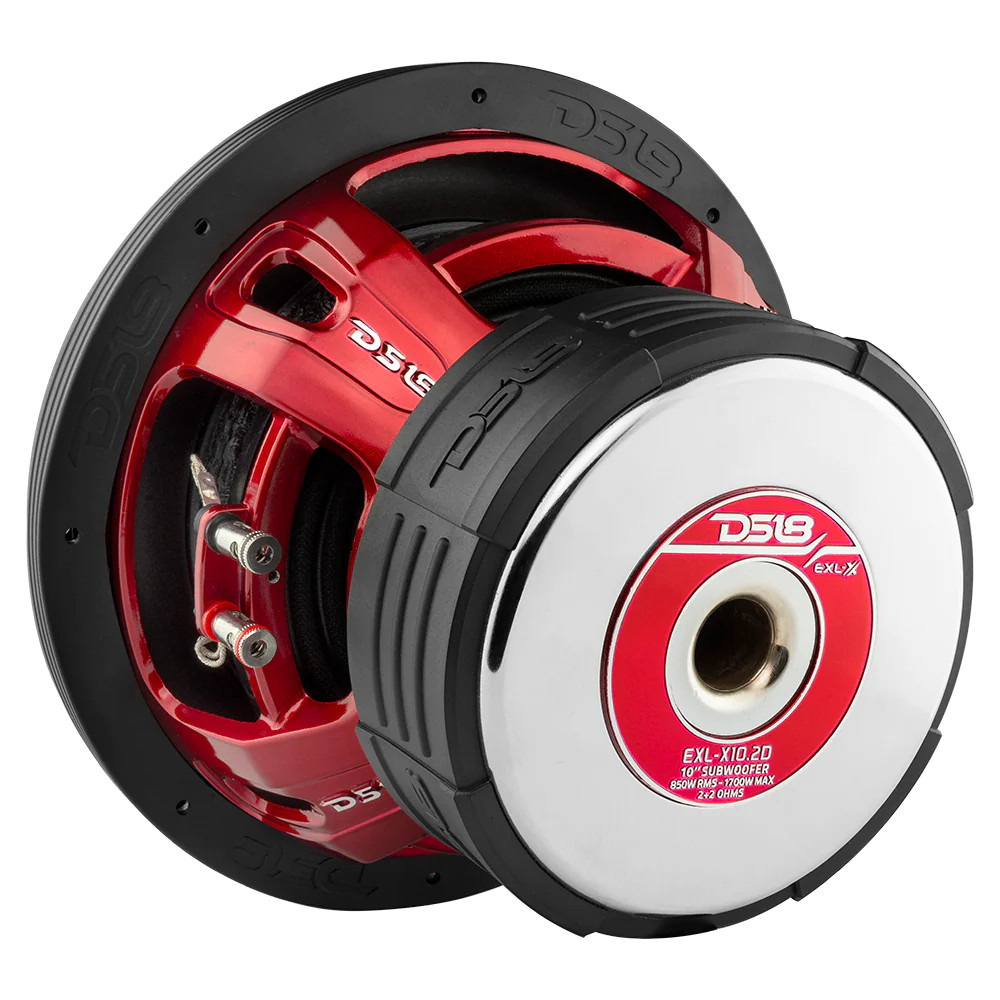

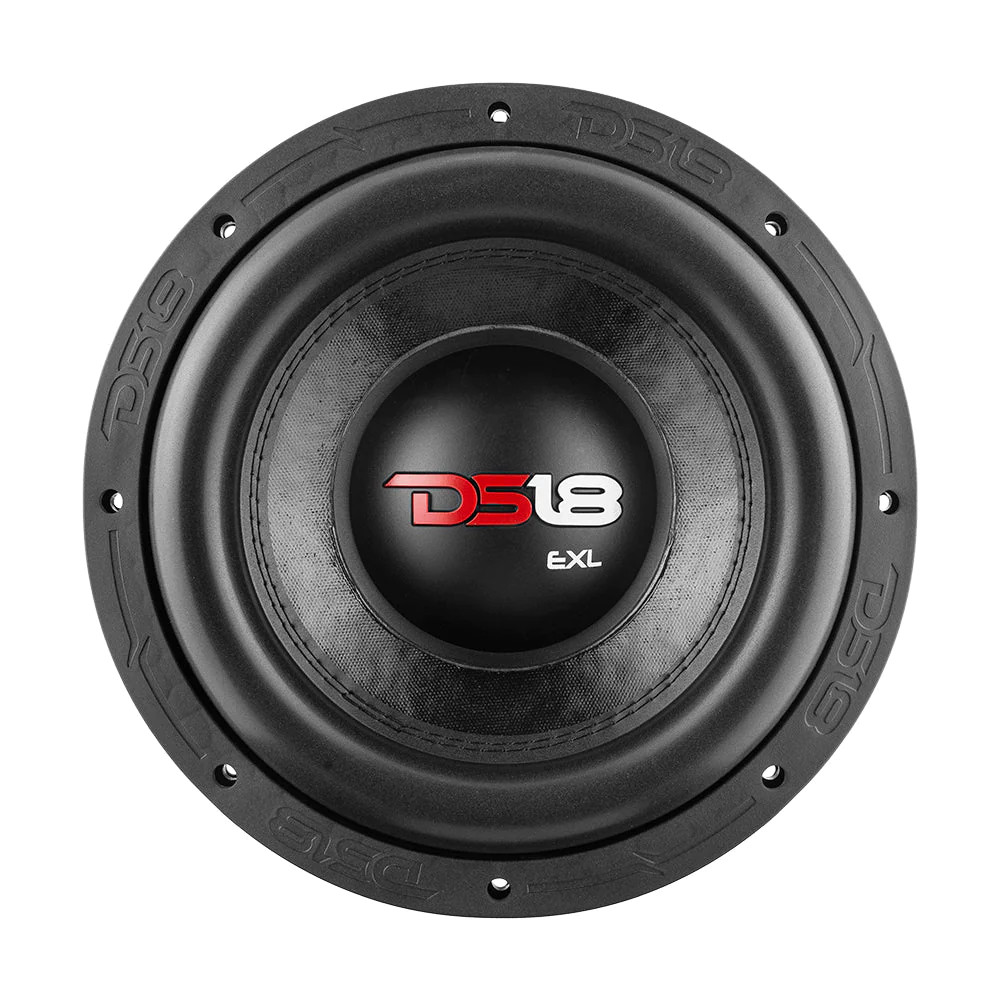

DS18 EXL X SERIES 1700W DVC 10" DUAL 2 OHM SUBWOOFER

SPECS

SKU
EXL-X10.2D
Nominal Diameter
10" / 254mm
Nominal Impedance
2+2 ohms
RMS Power Handling
850W
Maximum Power Handling
1700W
Sensitivity (1w/1m)
88.7dB
Frequency Response
35Hz-1.2Khz
Recommended Lo Pass Crossover
110Hz

MOTOR

Voice Coil Diameter
2.57" / 65.2mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Non Pressed Paper + Glass fiber
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
2 x 90 oz
Displacement Volume
2.3L / 0.081ft3

THIELE & SMALL PARAMETERS

Equivalent Volume
5.73L / 0.2ft3
Free Air Resonance
55Hz
Mechanical Factor
6.982
Electrical Factor
0.802
Total Factor
0.719
Moving Mass
219.32g
Compliance
0.034mm/N
Bl Factor
26.733
Voice Coil Inductance
24.14mH
Diaphragm Area
346.36cm2
DC Resistance
2+2 ohm
Efficiency Bandwidth Product
68.57

RECOMMENDED ENCLOSURES

Sealed Internal Volume
9.91L / 0.35ft3
Sealed Box Output Response
60Hz
Ported Internal Volume
21.23L / 0.75ft3
Port Size *Square (W x H x Long)
1.62" x 9.52" x 19.4" / 41.3 x 242 x 493mm
Port Tuning Frequency
48Hz
Ported Box Output Response
38Hz

MEASUREMENTS

Overall Diameter
10.9" / 276mm
Overall Depth
7.48" / 190mm
Front Mount Baffle Cutout
9.4" / 239mm
Mounting Depth
6.29" / 160mm
Motor Diameter
7" / 180mm
Gross Single Unit Weight (lb)
25.5
Dimensions W x L x H (Inches)
12.25 x 12.25 x 9.5
Quantity of Units in Master Carton
1
Gross Master Carton Weight (lb)
25.5
M/C Dimensions W x L x H (Inches)
12.25 x 12.25 x 9.5
