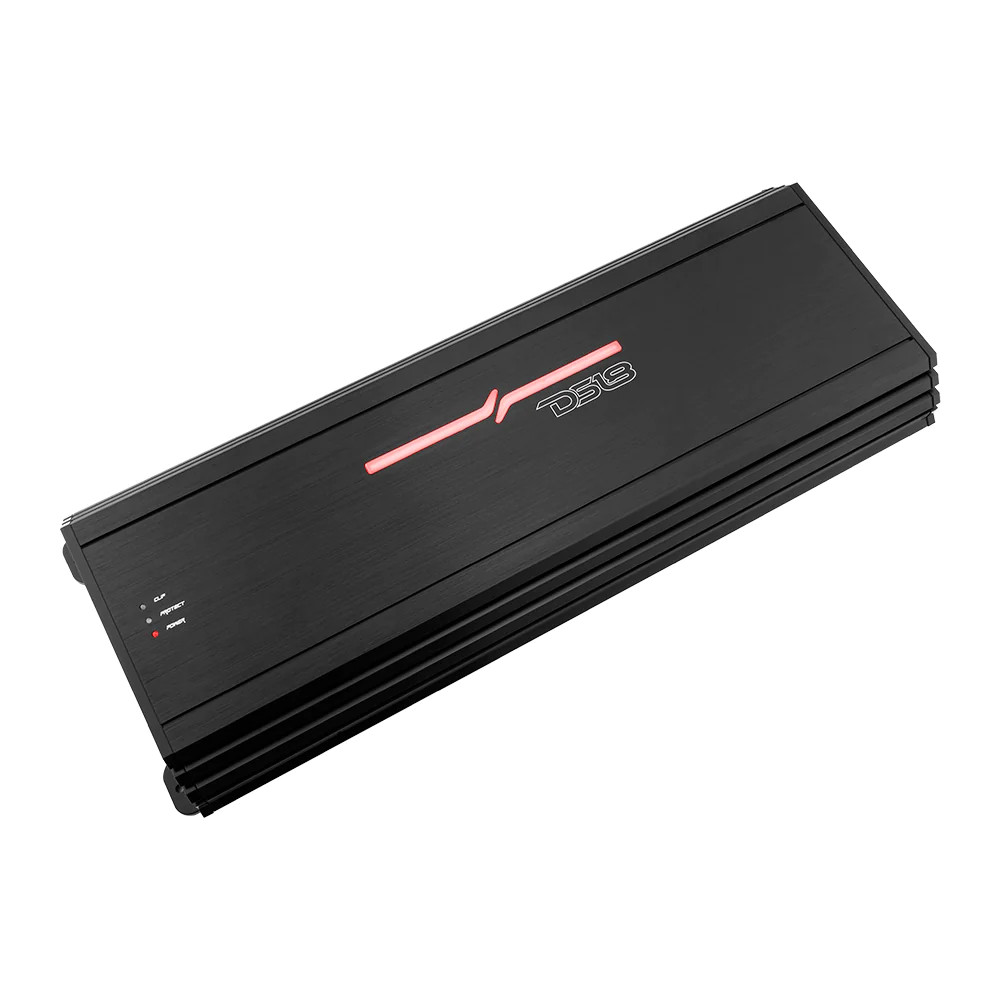

DS18 ZR Class D 1-Channel Amplifier 2000 Watts Rms

SPECS

SKU
ZR2000.1D
Total Watts (Peak)
6000W
RMS Power @ 4 Ohm
800W
RMS Power @ 2 Ohm
1300W
RMS Power @ 1 Ohm
2000W

AUDIO

Frequency Response
10-220Hz
Signal to Noise Ratio
>95dB
Efficiency @ 4 Ohm
80%
Damping Factor
220
Input Impedance
20K ohm
Channel Separation
N/A
Total Harmonic Distortion (THD)
0.01%
Low Level Input Range
0.2-6V
High Level Input
Yes

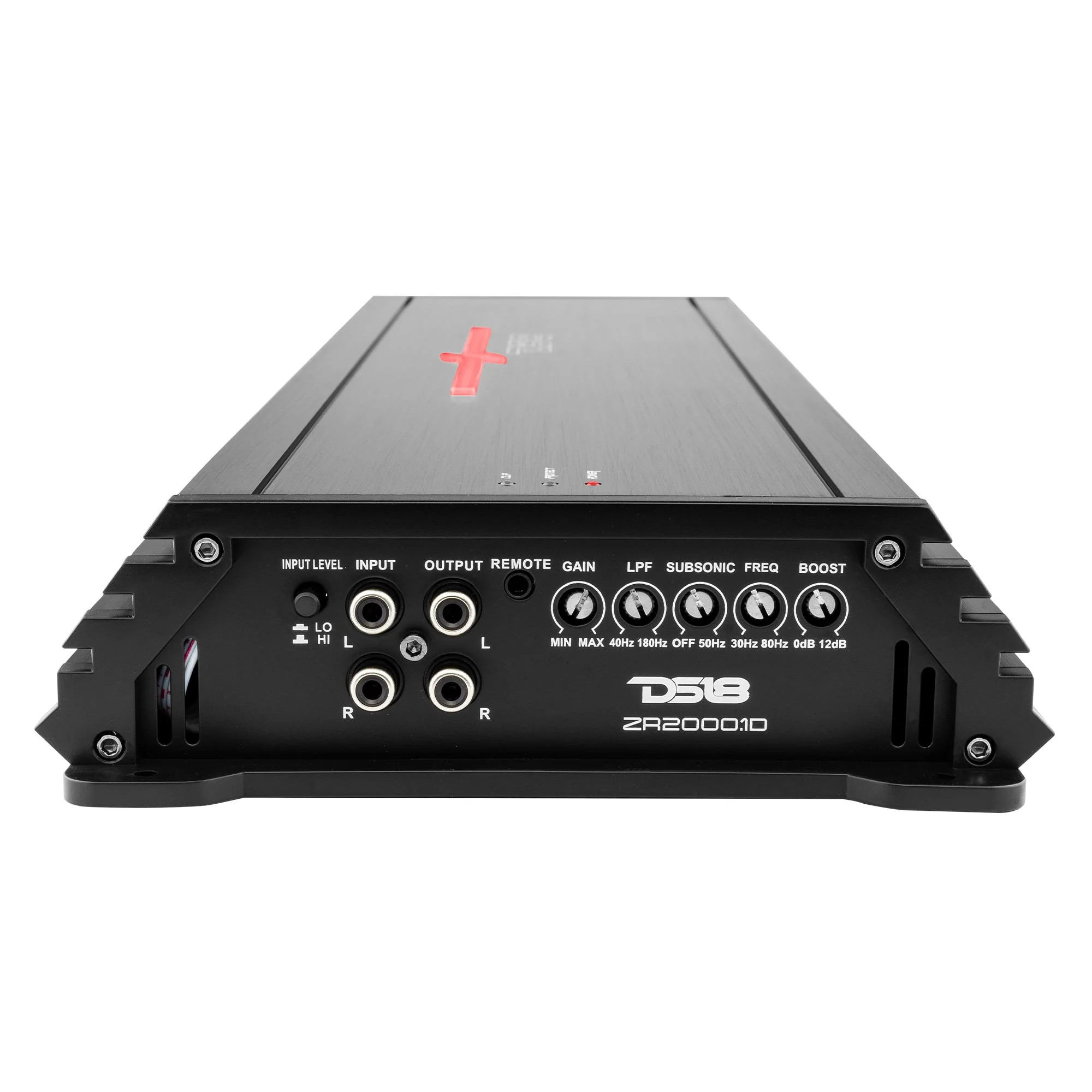

Selectable X-Over
LPF Fixed
X-Over Filter Range
40-180Hz
Bass Boost Range
0-12dB
Bass Boost Frequency
30-80Hz
Infrasonic Filter
10-50Hz
Phase Selector
No

FEATURES

Amplifier Class
Digital
Amplifier Type
Monoblock Subwoofer
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Clipping/protect/power

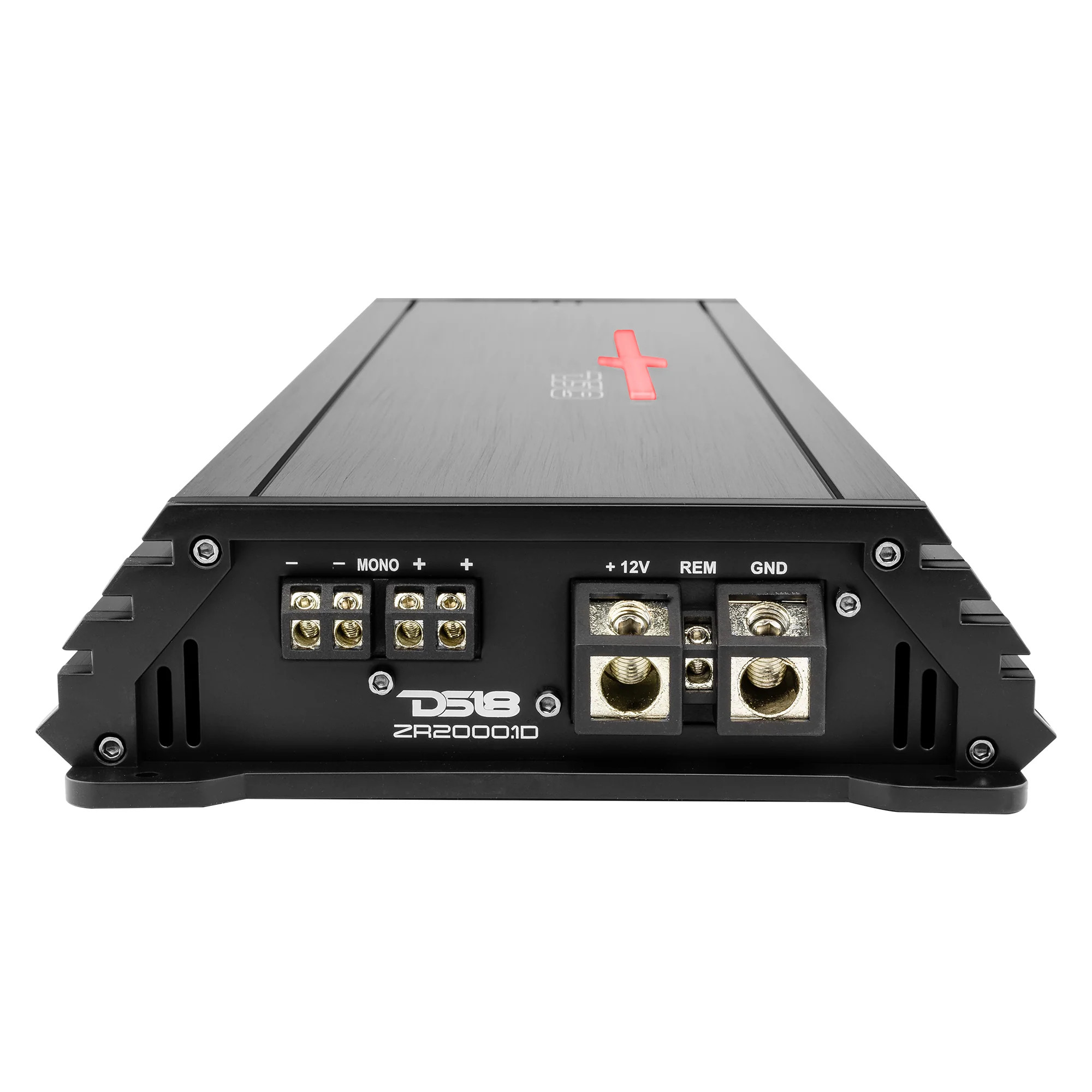

Power Input Terminal Size
0 GA
Fuse Size
200 A

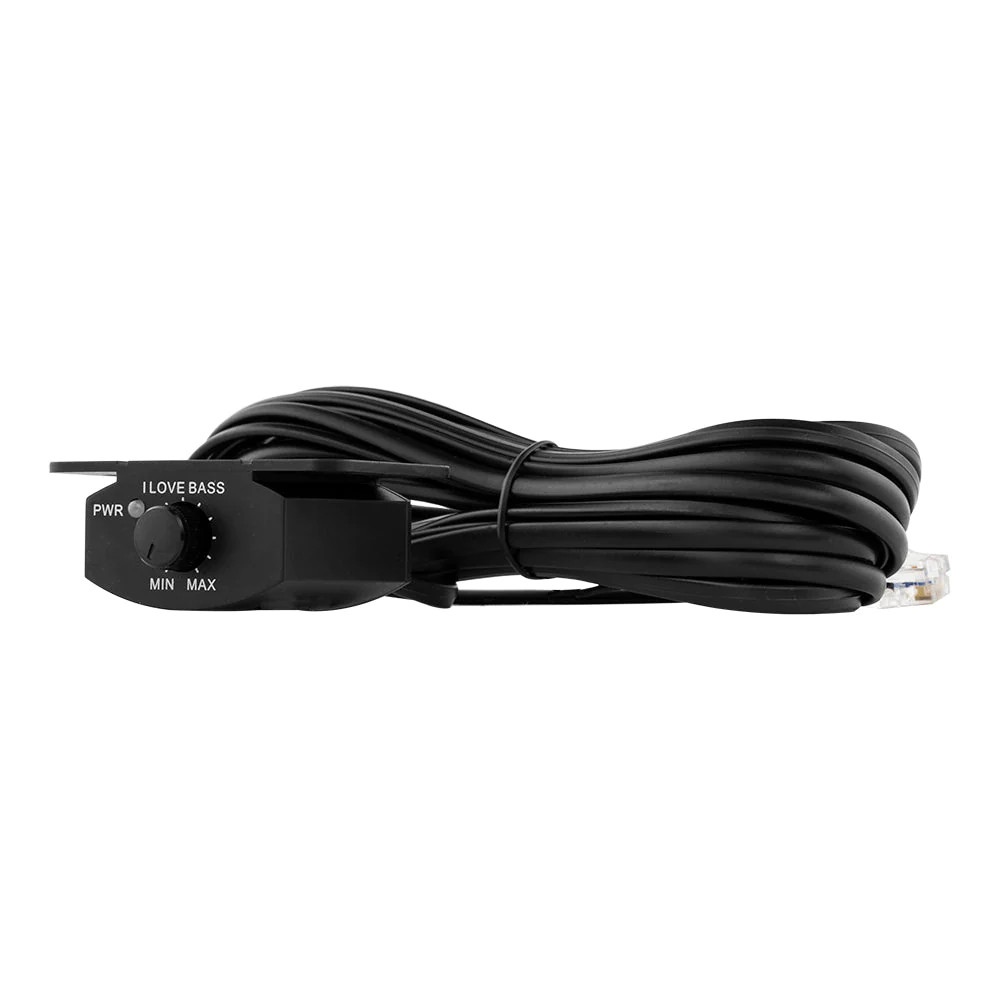

Remote Level Control
Yes / Dash Mount
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes <9 / >16 Volts
Clipping Protection
Yes
Body Color / Finish
Black Aluminum Brush

MEASUREMENT

Overall Length
19.13" / 486mm
Overall Wide
7.24" / 184mm
Overall Height
2" / 53mm
Heatsink Length
17.75" / 451mm
Gross Single Unit Weight
8.1Lb
