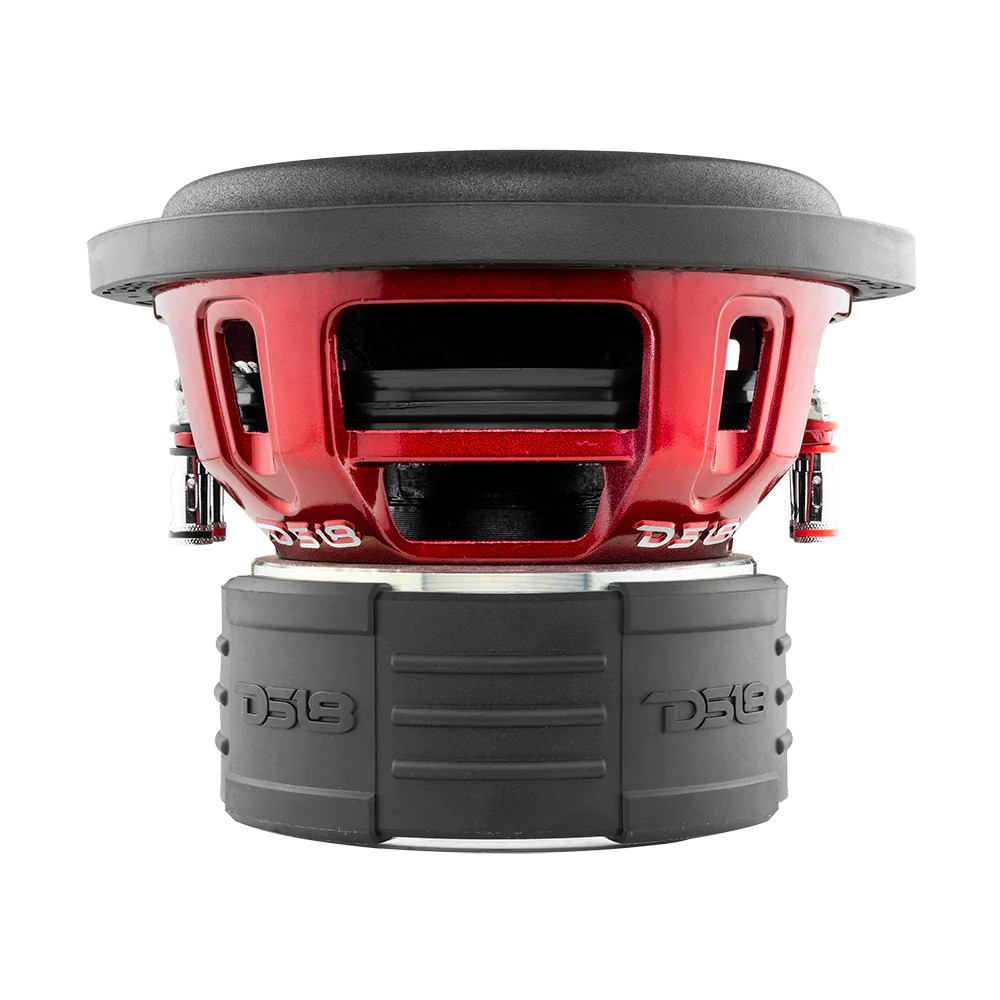

EXL Red Frame 8" 1200 Watts Subwoofer Dvc 2-Ohms

SPECS

SKU
EXL-X8.2D
Nominal Diameter
8" / 203.2mm
Nominal Impedance
2+2 ohms
RMS Power Handling
600W
Maximum Power Handling
1200W
Sensitivity (1w/1m)
89dB
Frequency Response
38Hz-1KHz
Recommended Lo Pass Crossover
100Hz

MOTOR

Voice Coil Diameter
2.5" / 63.5mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Non Pressed Paper + Glass fiber
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
130 oz
Displacement Volume
N/A

THIELE & SMALL PARAMETERS

Equivalent Volume
2.5L / 0.088ft3
Free Air Resonance
70Hz
Mechanical Factor
6.852
Electrical Factor
0.987
Total Factor
0.993
Moving Mass
163.24g
Compliance
0.025mm/N
Bl Factor
21.4
Voice Coil Inductance
11.21mH
Diaphragm Area
193.59cm2
DC Resistance
2+2 ohm
Efficiency Bandwidth Product
70.9

RECOMMENDED ENCLOSURES

Sealed Internal Volume
0.3ft3
Sealed Box Output Response
60Hz
Ported Internal Volume
0.5ft3
Port Size *Square (W x H x Long)
1" x 8" x 10.56" / 25 x 203 x 268mm
Port Tuning Frequency
55Hz
Ported Box Output Response
42Hz

MEASUREMENTS

Overall Diameter
8.58" / 218mm
Overall Depth
6.61" / 168mm
Front Mount Baffle Cutout
7.36" / 187mm
Mounting Depth
5.51" / 140mm
Motor Diameter
6.1" / 155mm
Gross Single Unit Weight (lb)
16.5
Dimensions W x L x H (Inches)
9.25 x 9.25 x 7.5
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
33.5
M/C Dimensions W x L x H (Inches)
19.25 x 10.25 x 8.5
