Description

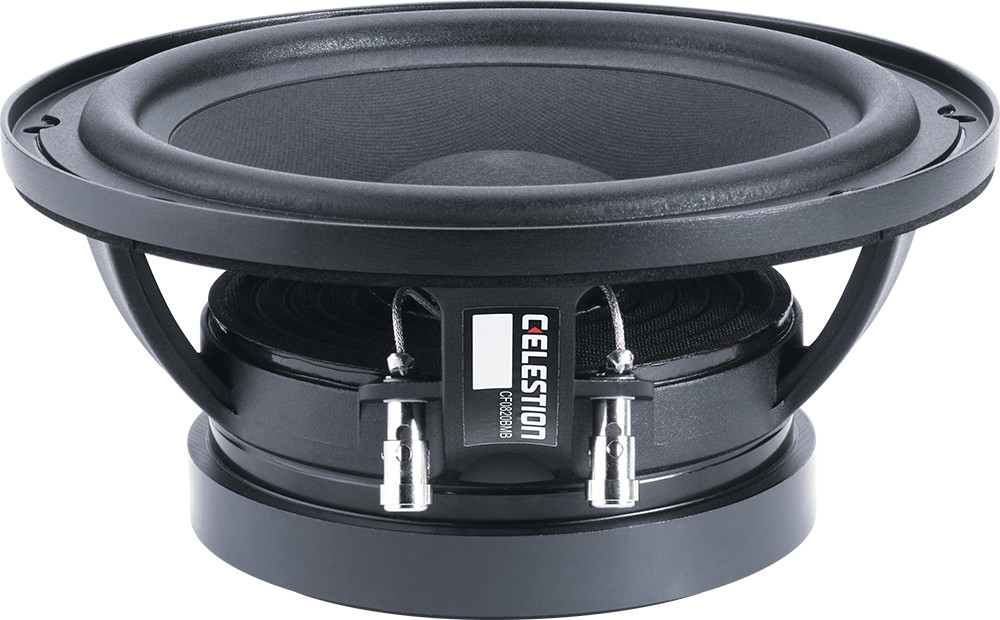

CELESTION 8" MID BASS PRO AUDIO SPEAKER
- Balanced airflow venting provides enhanced cooling
- Half-roll elastomer surround

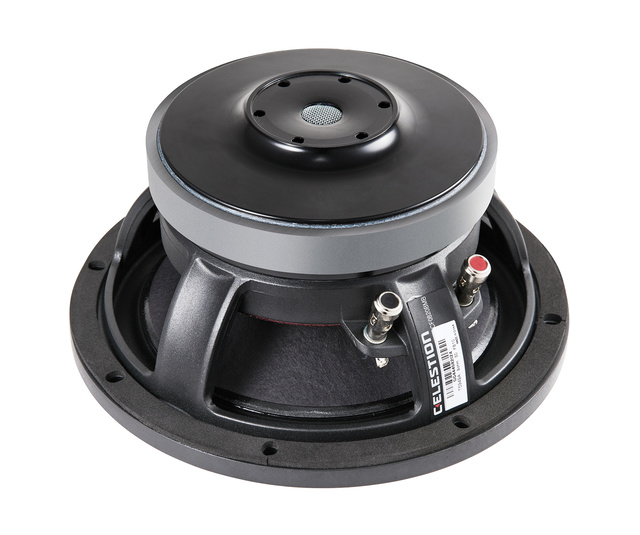

The Celestion CF0820BMB is purpose built for bass and mid-bass applications. Perfectly suited to two-way systems, it packs an impressive amount of low end for such a compact driver. CF0820BMB features a 2”/50mm multi-layer voice coil providing 250Wrms (AES standard) power handling and 93dB sensitivity with an output frequency range of 50Hz to 6 kHz. The half roll elastomer surround enables greater stability at extremes of excursion, along with improved modal distribution for reduced distortion. Balanced Airflow Venting (BAV) increases airflow around the coil and inner magnet assembly to provide enhanced cooling, preventing sensitivity loss through thermal compression.
The Celestion CF0820M is a dedicated midrange driver designed for straightforward three-way systems, horn-loaded or line array applications. The driver delivers 250Wrms (AES standard) power handling and 98dB sensitivity, with an output frequency range of 150Hz to 6 kHz. CF0820M features a copper sleeved pole to reduce inductive rise for improved HF performance. The low profile aluminium chassis enables close packing in applications where multiple drivers are required, while an inverted dust cap enables the close positioning of a phase plug where horn-loading is required.
