Description

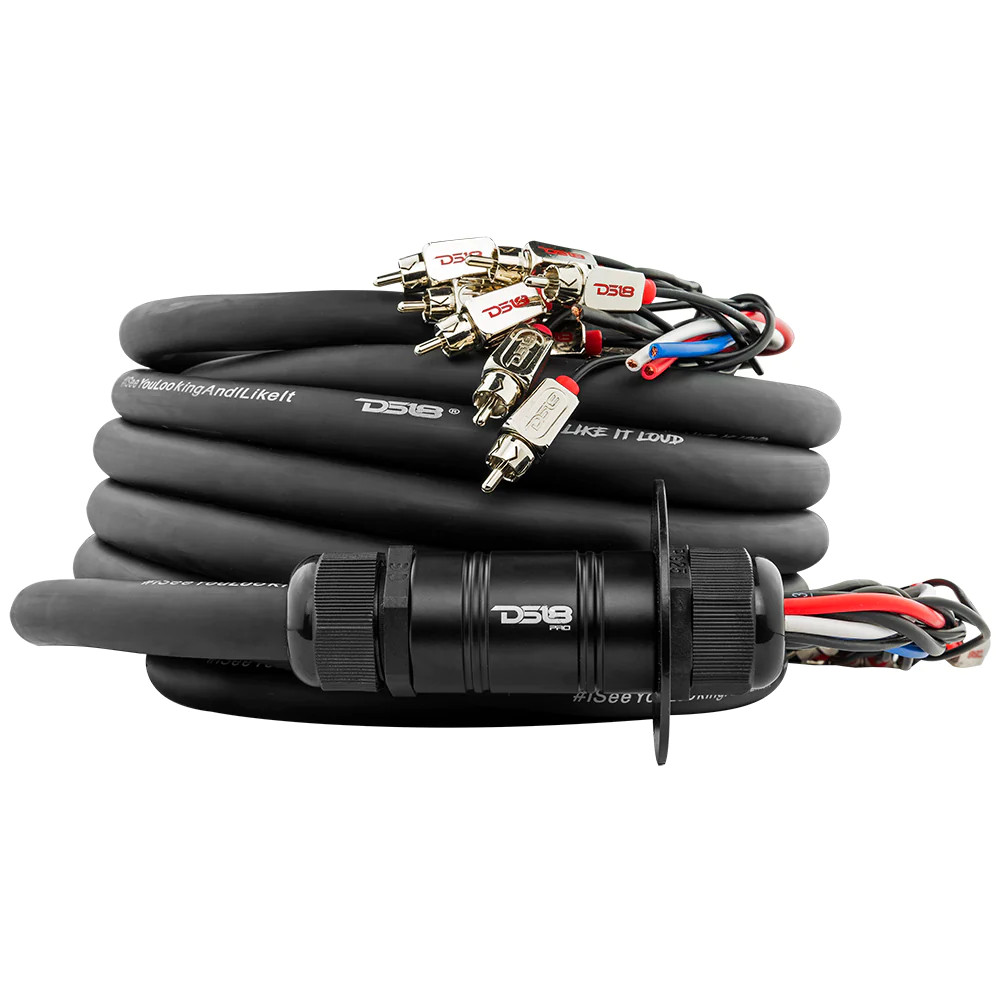

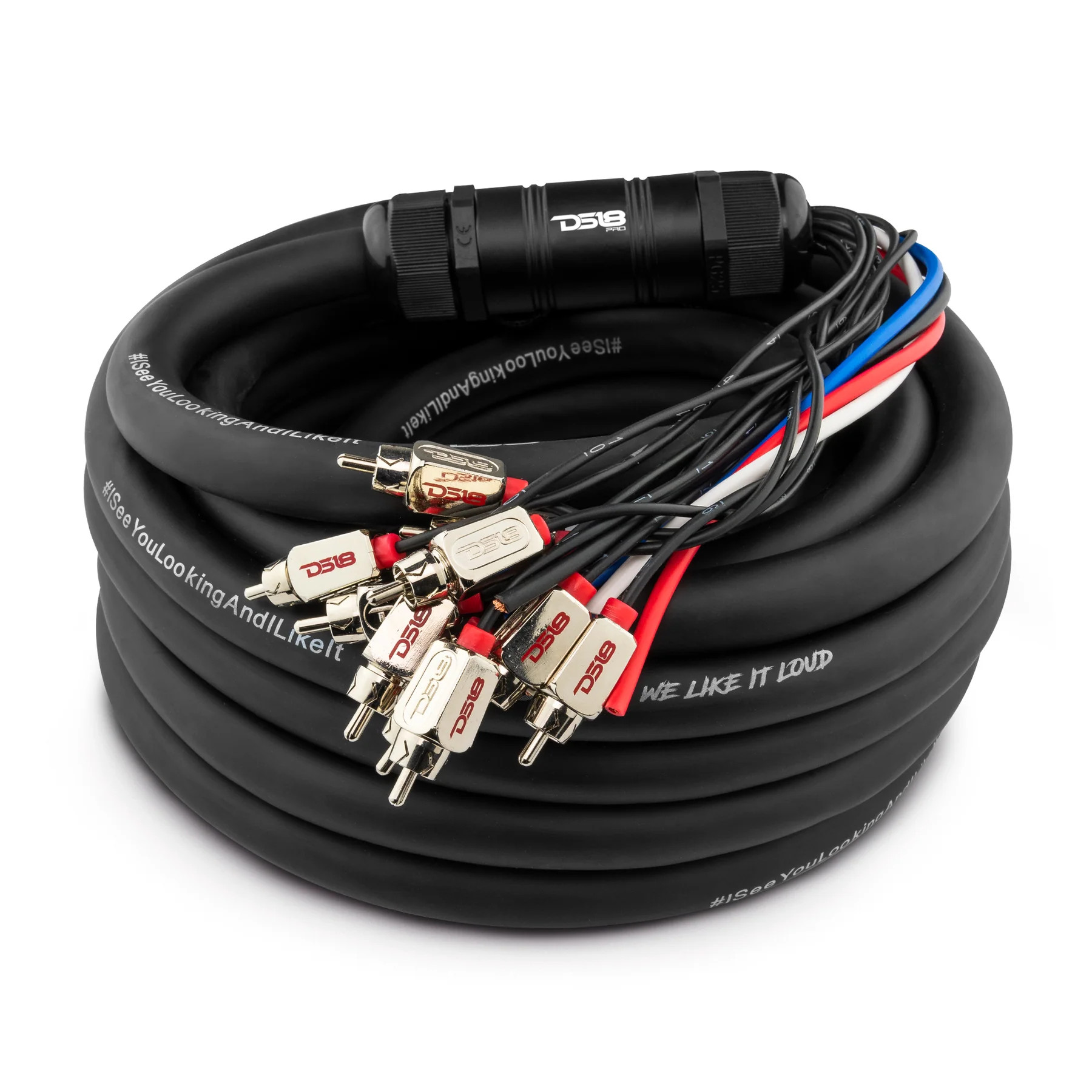

DS18 SNAKE MEDUSA 10 CHANNEL RCA & 4 12GA OFC POWER WIRE - 50 FEET
| FEATURES | |
| Type | Multicore (Medusa / Snake) Audio Wire |
| Size / Length | 50 ft / 9.1m |
| Number of Audio Channels (RCA) | 10 |
| Number of Power Circuits (Single Wire) | 4 |
| Recommended Maximum Amperage (13.8 Volts / 2% Drop) | Up to 6 Amps (Each Circuit) |
| RCA WIRES | |
| RCA Type | Tiffany Style |
| RCA Plug Material | Metal |
| RCA Plug Size (WxL) | 12.4mm x 25mm (only body no tips) |
| Conductor Material | Copper 100% oxygen free |
| Nominal Outside Diameter (Wire) | 2.7mm |
| Shield Type / Material / Color | Twisted / PVC Black |
| POWER / LIGHTS / REMOTE WIRES | |
| Type | Single Conductor |
| Conductor Material | Copper 100% oxygen free |
| Numbers of Threads | 105 |
| Size of the Thread | 0.21mm |
| Nominal Outside Diameter | Ø4mm |
| Section Area | 3675mm2 |
| Gauge | 12 AWG |
| Shield Type / Material / Color | PVC Red / Black / Blue / White |
