SPECS

SKU
NXL-X6TPNEO/WH
Nominal Diameter
6.5 inch
Nominal Impedance
4 Ohm
RMS Power Handling
150W
MAX Power Handling
450W
Sensitivity (1w/1m)
93 dB
Frequency Response
70 Hz - 21 KHz
Recommended HI Pass Crossover
90Hz

Body / Features

Enclosure Material
Injection PC+ABS
Marine Grade Type
IP65+UV Stable
RGB LED
Integrated LED-RGB Speaker Lighting Integrated LED-RGB Acrylic Ring Lighting and LED-RGB Back Logo with 6 Core Wires for Lighting and Speaker

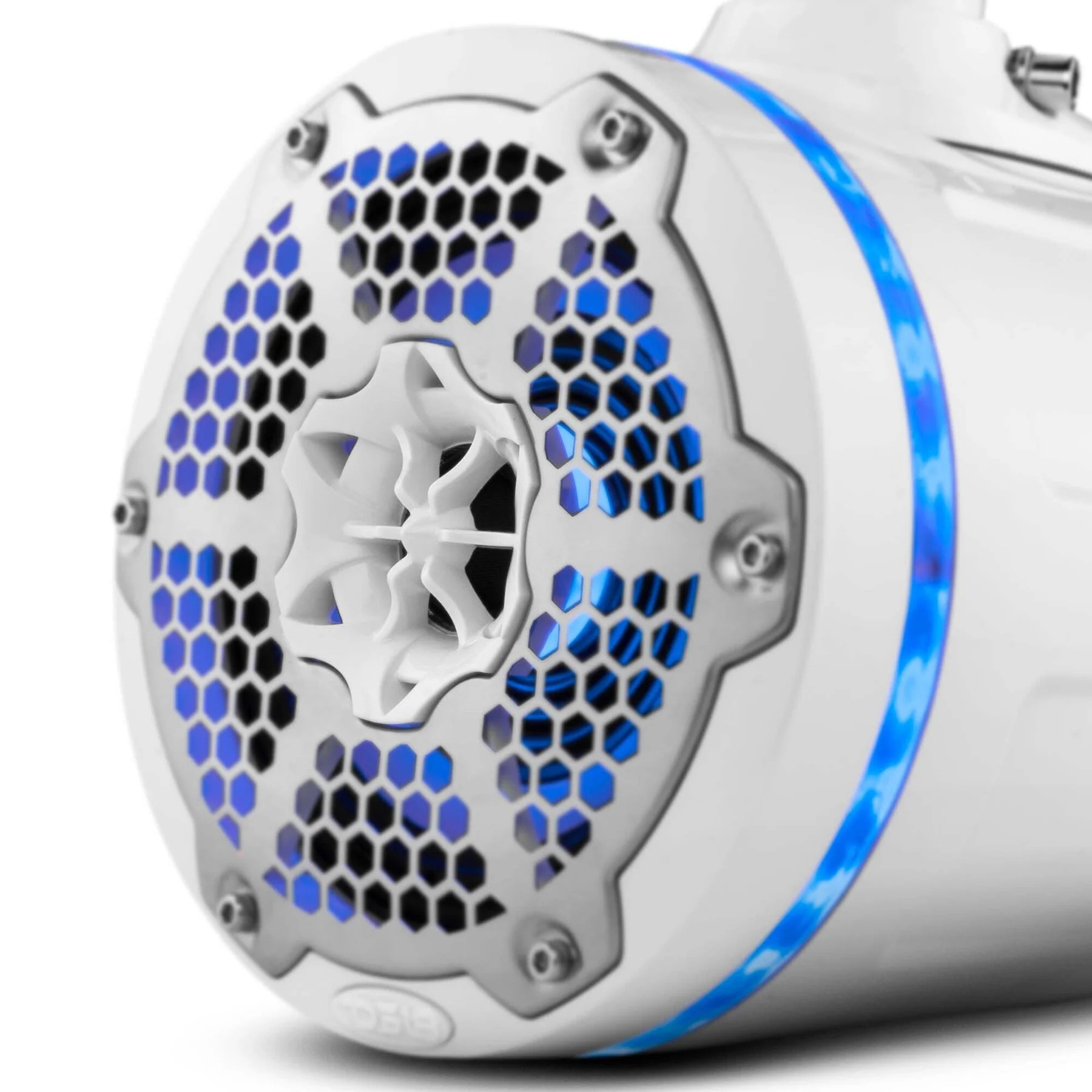

Grill Type
ABS+316 Stainless Metal Mesh
Pair
Yes

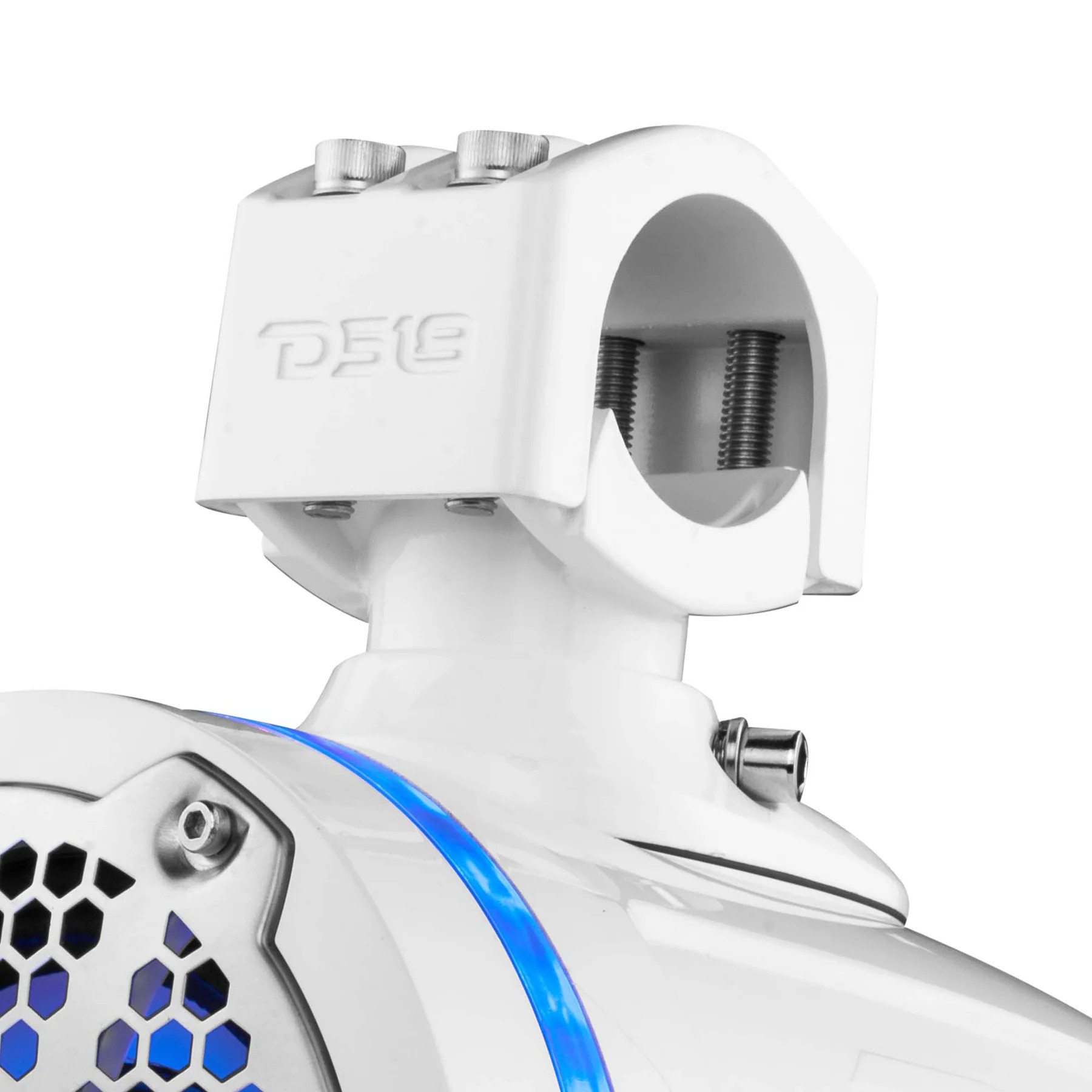

Clamps
Die-Cast Adjustable (1"~2") 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware(Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue)
Front Logo
Yes, can be rotated for correct angle display
Rear Logo
Yes, Radiator Fixed position
Finish
Matte Black / Gloss White / Gloss Red

Woofer Specifications

Voice Coil Diameter
1.5 inch
Cone Material
Waterproof Compress Paper + Carbon Fiber
Surround Material
Soft PC Damping Glued
Basket Material
PC Injection Molded Composite
Magnet Material
Neodymium
Magnet Grade
N40H
Passive Radiator
Yes, 3.5" With LED RGB Light

Tweeter Specifications

Voice Coil Diameter
1 inch
Type
Compression Driver with CNC Solid Aluminum Horn
Diaphragm Material
PEN
Magnet Material
Neodymium
Crossover
12dB with Over Power Protection

Thiele & Small Parameters

Equivalent Volume Vas
8.5 L
Excursion (one way) Xmax
3 mm
Free Air Resonance Fs
75 Hz
Total Factor Qts
0.783

Speaker Measurement

Overall Diameter
6.93" / 176.1mm
Overall Depth
11.33" / 287.8mm
Overall Height
10.7" / 271.7mm
