Description

16-Piece Chasing LED Strip Kit

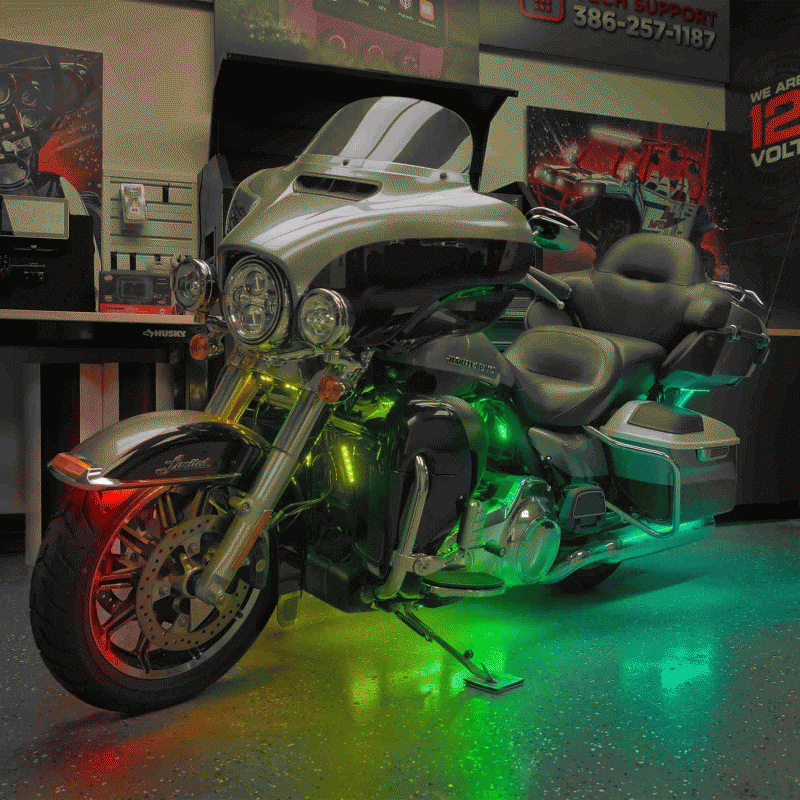

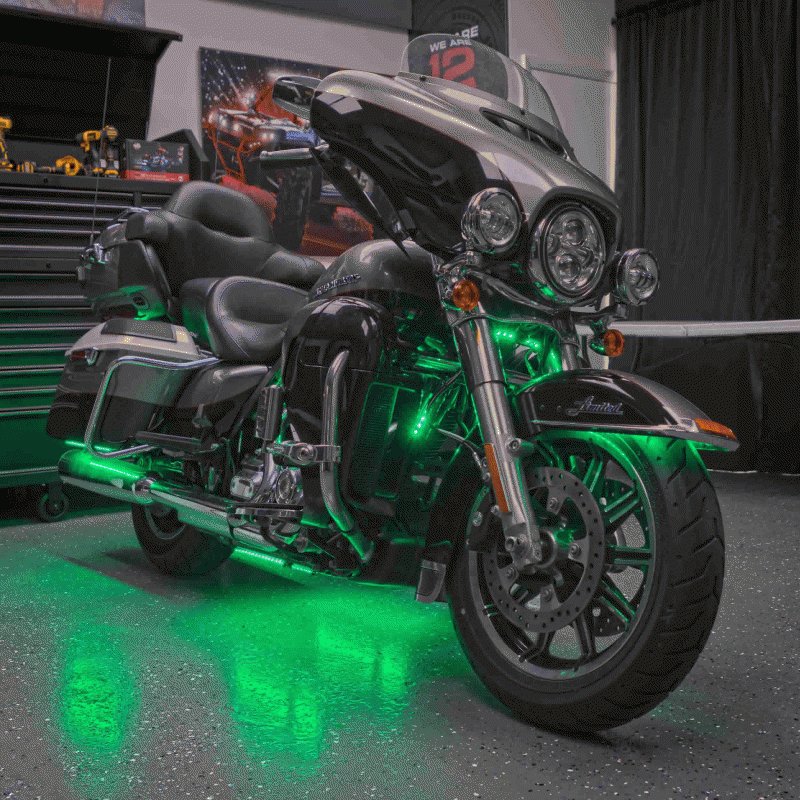

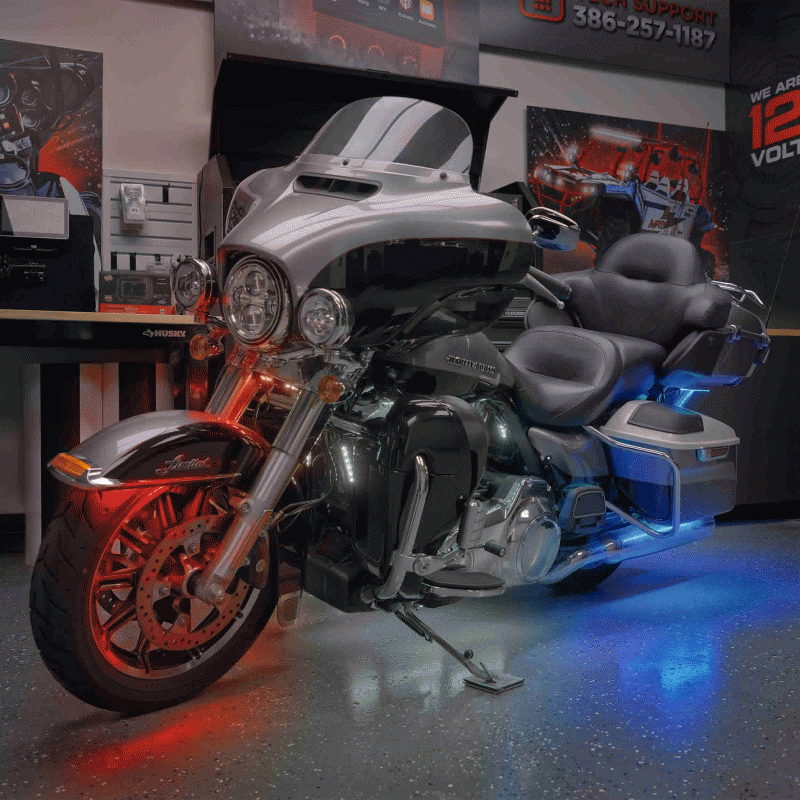

This 16-piece chasing LED light strip kit includes chasing lighting strips that are cut to fit 1998-2022 Harley-Davidson® Touring models. The strips are IP68-rated to be water-resistant and feature a 3M double-sided backing. Addressable LEDs allow them to be individually controlled for personalized colors, chasing light patterns, and more via a mobile smartphone app when paired with the included Heise Connect controller. There is also a setting to turn all lights red when braking, allowing riders to be seen from a distance and raising awareness of the motorcycle’s presence on the road.

16-piece kit is completely plug-n-play with OE-style connections
Water-tight, labeled connectors for easy installation
Rated IP68
Lights controlled via the free downloadable Heise Connect app for smart devices
Pre-wired trigger control for brake lights to add extra visibility
Pre-wired LED strips for triple tree, front fender, down tubes, gas tank, back engine, lower frame, saddlebags, and Tour Pak®
1-year warranty on LED strips and RGB controller

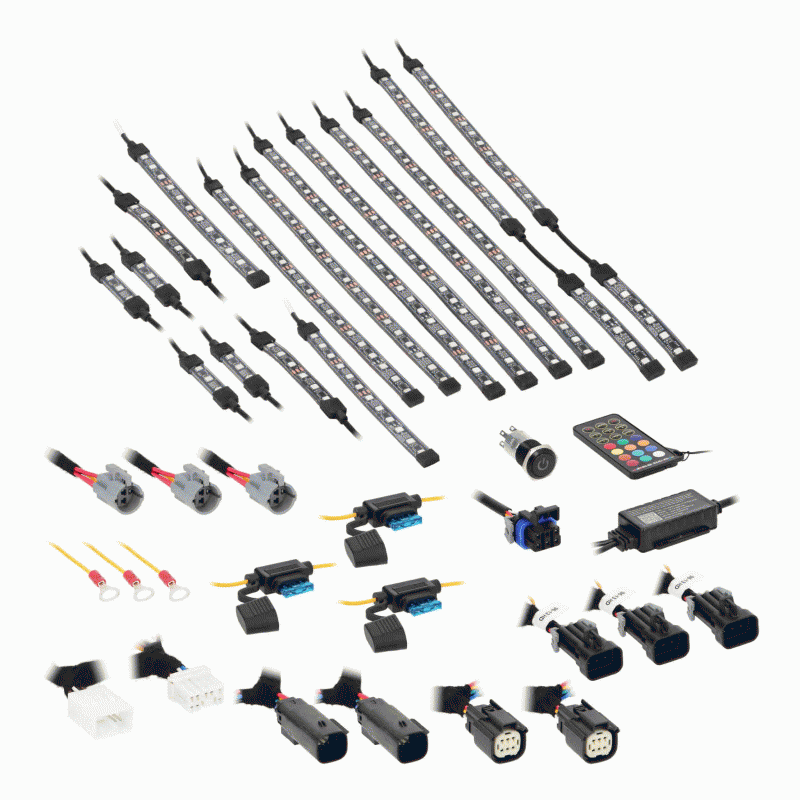

Kit Includes:

(16) 5050 Chasing LED strips with 3M adhesive backing
RF card remote and Heise Connect Chasing Controller included

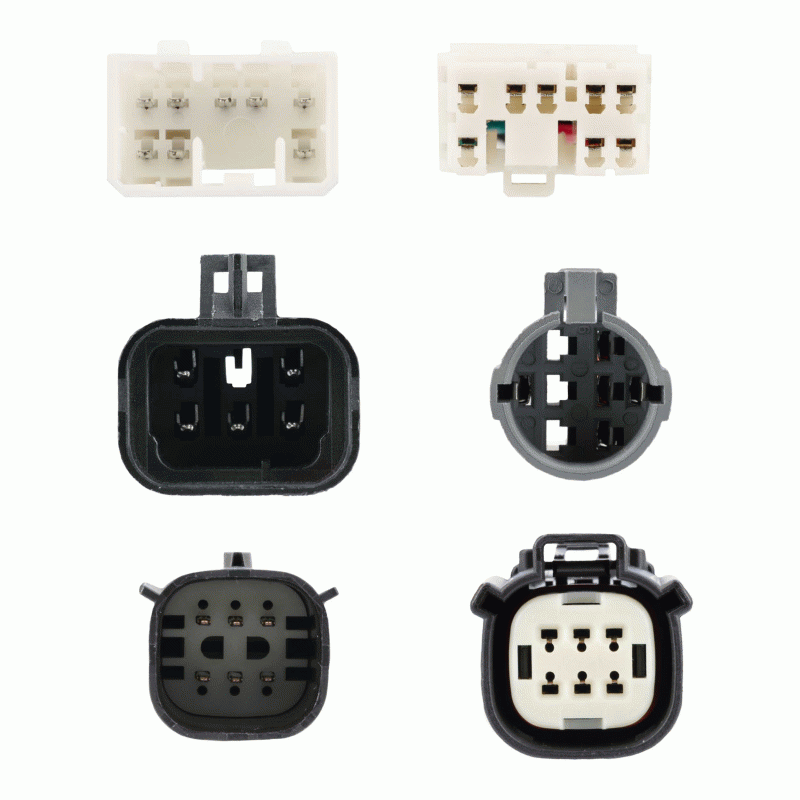

Vehicle-specific plug-n-play rear lighting T-harnesses: 1996-2013 Harley-Davidson® 8-pin OE plug, 2010-2013 Harley-Davidson® 6-pin OE plug, and 2014-up* Harley-Davidson® 6-pin OE plug
Independent on/off switch to operate LED lights with the ignition off

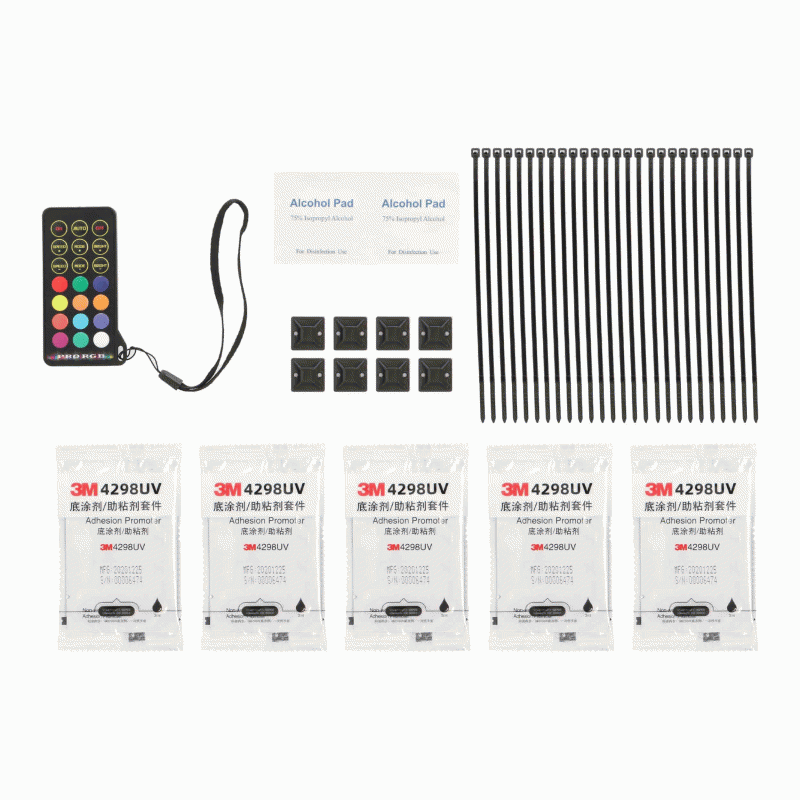

Alcohol prep pads, adhesive promoter, zip ties, and Instructions included

Note: LED strips will not adhere to any surface that has been treated with a ceramic coating. Either select alternate locations that are not treated, or enlist a professional to remove the ceramic coating from mounting locations before installation.

Heise Connect Chasing Controller

This controller is specifically designed to work with Heise Chasing LEDs, making customization and control of these products easy. It features two wireless control options; an included remote control or using the Heise Connect downloadable app for smartphone or tablet. Users can easily group multiple controllers through the app. This product works with all pre-existing Heise Chasing products.

Addressable LED controller
170+ color-changing patterns
Turn signal function (both left and right)
Brake function
DIY pattern function
Music sync function
App controlled (Heise Connect app) or via the included RF card remote
Max load 10A
Water-resistant Heise connector

Heise Connect App
The Heise Connect app allows users to remotely control Heise LED lighting products from the palm of their hand. The app automatically connects via Bluetooth® and detects the type of control box connected to the app; RGB, RGBW, or Chasing, allowing groups of all products to be used and controlled within the same mobile app. A selectable color wheel lets users choose from 16 million RGB color options and a true white light color option available with RGBW products. Users can also select from 24 pre-programmed patterns for RGB and RGBW and 170+ pre-programmed moving patterns for Chasing. There is also a DIY pattern option for Chasing products that allows for selecting up to 16 colors and 3 motion effects. The app also features independent left and right turn signal triggers, a brake trigger, and a music sync function.
