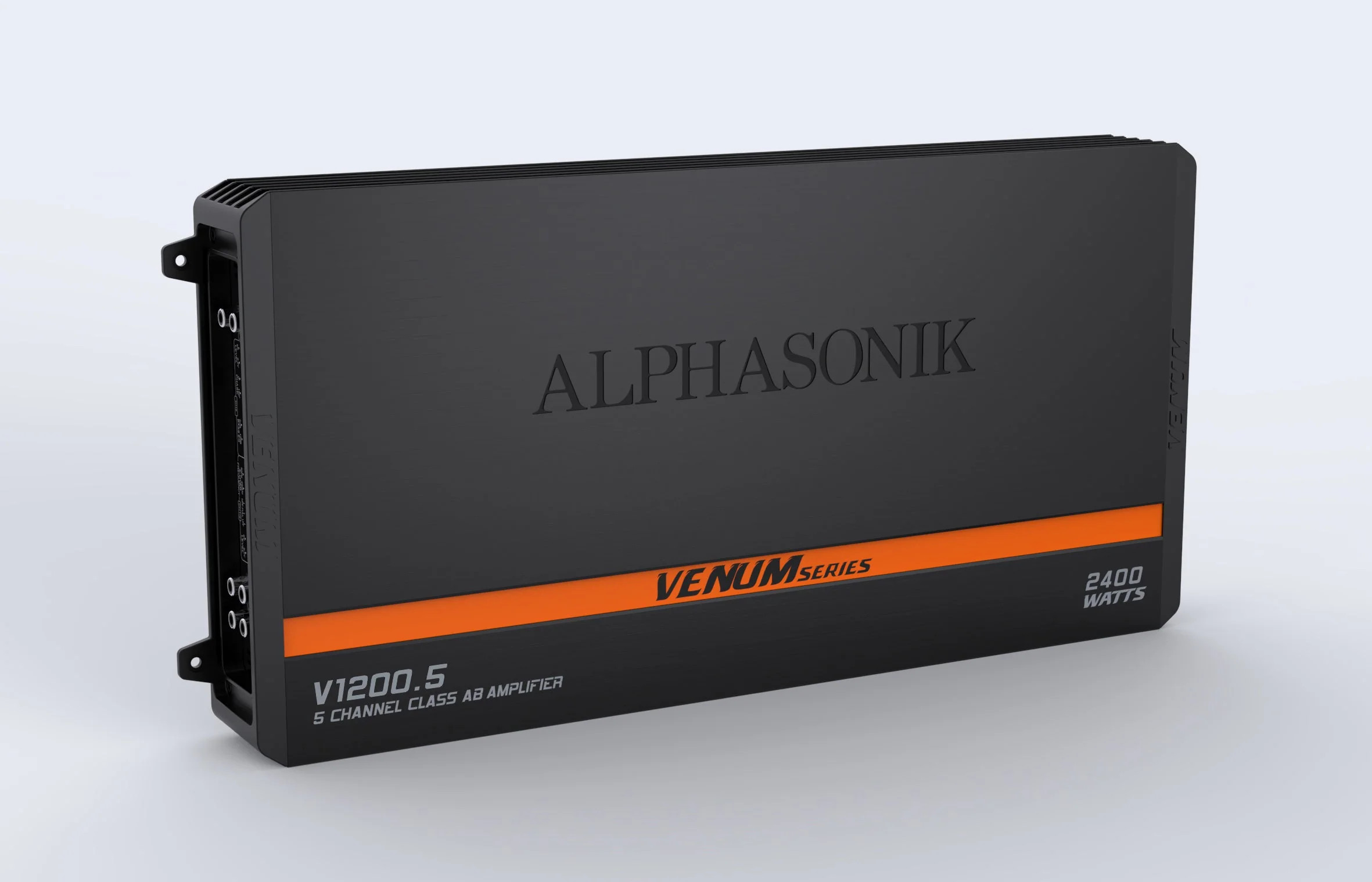

ALPHASONIK 2,400 Watts VENUM Series 5 Channel Amplifier
Description

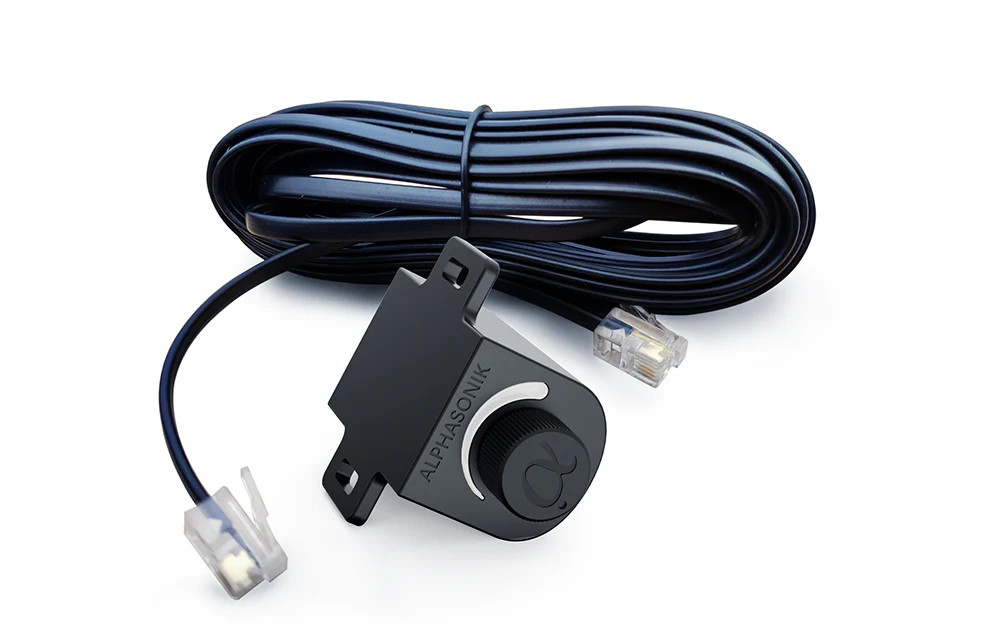

Alphasonik V1200.5 Venum Series 2400 Watts Max 5-Channel Car Amp w/ 4Way Protection Circuitry Class-AB Amplifier Bass Boost Control Knob Included
SPECS
- 4 X 75W + 1 X 300W @ 4 OHM
- 4 X 150W + 1 X 600W @2 OHM
- 2 X 300W + 1 X 300W @ 4 OHM BRIDGED
- DIM 9.2" X 2.3" X 18.3"
- NICKLE PLATED TERMINALS
- LOW LEVEL INPUTS
- VARIABLE BASS BOOST: 0DB - +12DB
- MIL SPEC DOUBLE - SIDED GLASS EPOXY FR CIRCUIT BOARD
- 4 WAY PROTECTION CIRCUITRY:
- THERMAL, SHORT CIRCUIT, OVERLOAD AND DC OFFSET
- VARIABLE LOW-PASS CROSSOVER: 50HZ - 250HZ
- VARIABLE HIGH-PASS CROSSOVER: 50HZ - 250HZ
- ADJUSTABLE INPUT SESITIVITY: 200mV - 6V
- FREQUENCEY RESPONSE: 10HZ - 45KHZ
- 45Hz BASS BOOST: 0 - 12DB
- S/N RATIO:>90DB
- THD: 0.10%
