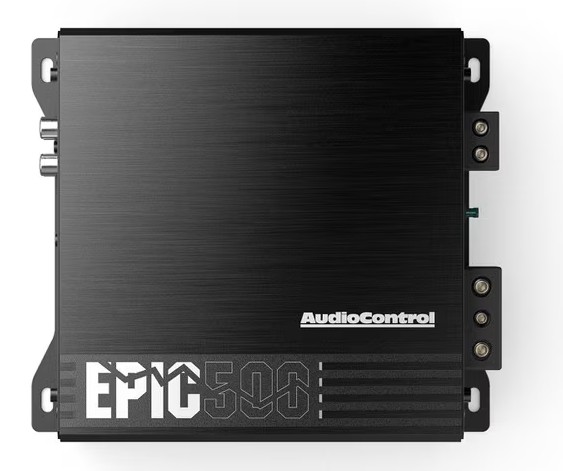

AudioControl EPIC Series Monoblock 500 Watt Amplifier
The AudioControl EPIC Series 500 Watt RMS Monoblock Amplifier delivers powerful, heart-pounding bass in a compact, thermally efficient design, all at an affordable price. Perfectly paired with The Epicenter Bass Restoration Processor (sold separately), it enhances your bass experience to new levels. This amplifier offers exceptional sound quality for the price and is the only AudioControl amplifier to include a bass knob for easy control.

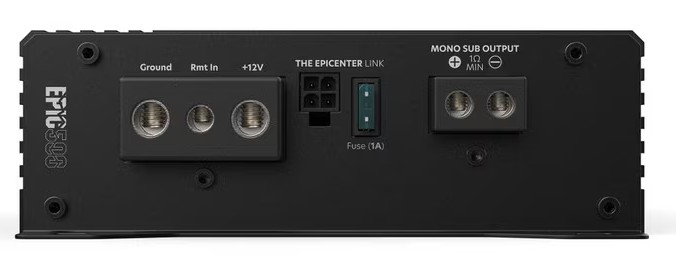

The Epicenter Link provides a direct connection for power, ground, and remote turn-on to The Epicenter bass restoration processor, streamlining the installation process and maintaining a clean wiring aesthetic.
FEATURES
• Compact High-Power Class D Monoblock Amplifier
• High-Current Design – 1Ω Stable
• Smart Auto-Reset Protection Circuit
• 12 dB/octave Linkwitz-Riley Variable Low Pass Filter
• 12 dB/octave Variable Subsonic Filter
• EPICBoost™ Variable Frequency Bass Boost
• ACR-E Remote Level Control Included
• Solid Power/Speaker Terminals with Hex Screws
• Built for THE EPICENTER®
SPECIFICATIONS
INPUTS
- Line-Level Inputs: 500mV – 12V RMS
OUTPUTS
- Continuous Power (RMS) @ 14.4V, <1% THD
- 1 x 250 Watts @ 4 ohms
- 1 x 350 Watts @ 2 ohms
- 1 x 500 Watts @ 1 ohm
- 1 x 1000 Watts @ 2 ohms Bridged (Strapped)
Remote Level Control
- Included
WEIGHTS & DIMENSIONS
- DIMENSIONS: 6.1″ W x 5.9″ L x 2.01″ H
PERFORMANCE
- Frequency Response (+/- 1 dB): 10 Hz – 190 Hz
- S/N Ratio: 94 dBa, Ref 400 Watts @ 4 ohms
- Power / Ground Wire Gauge: 4 AWG
- Recommended Fuse Rating: 80 Amps
- Low Pass Filter: 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz
- Subsonic Filter: 12 dB/octave Linkwitz-Riley, Off to 50 Hz
- EPIC Boost: Frequency Center: 30 Hz to 80 Hz, Gain: 0 to 12 dB
- Speaker Terminal Wire Gauge: 8 AWG
- Strapable: Yes
- Epicenter Link: Yes
IN THE BOX: EPIC500, Wrench, Screws, ACR-E Remote Level Control and Cable, The Epicenter Link (1m Harness), Manual, Warranty
