Description

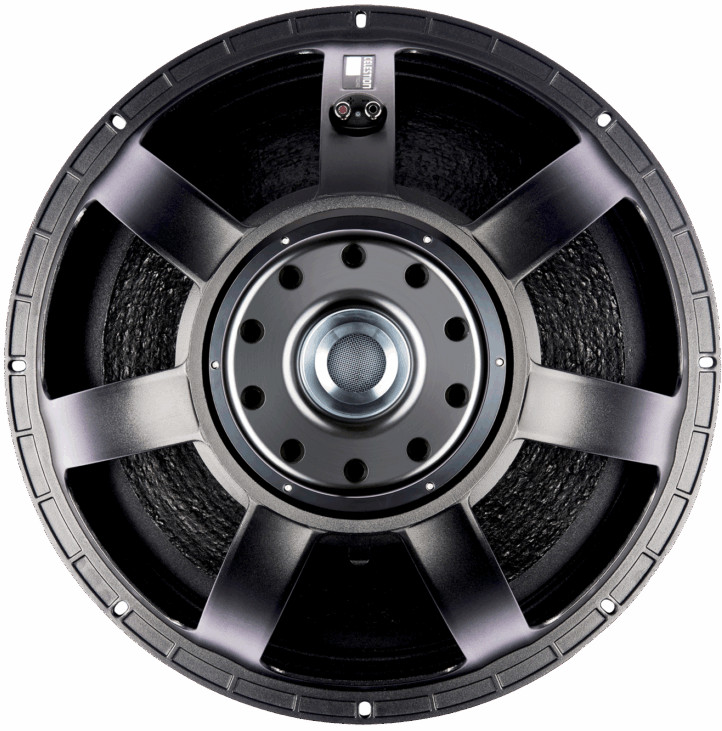

CELESTION 24-inch cast aluminum chassis neodymium magnet low frequency loudspeaker
- Advanced temperature control using 3-channel tuned venting system provides highly efficient cooling across the frequency band
- Voice coil typically operates at up to 80°C lower temperature than other leading drivers in this class
- Polysiloxane laminated double suspension provides much greater stability and improved cone displacement symmetry
- Lead-out wires precision woven into suspension minimizes excess motion and reduces fatigue
- Double-sided, weatherproof cone coating enhances durability
Specifications
5000W
Continuous power rating
98dB
Sensitivity
6in
Voice coil diameter
Nominal diameter
610mm / 24in
Power rating
2500W
Continuous power rating
5000W
Rated impedance
4Ω, 8Ω
Sensitivity
98dB
Frequency range
20-200Hz
Chassis type
Cast aluminium
Magnet type
Neodymium
Voice coil diameter
152mm / 6in
Voice coil material
Round copper
Former material
Glass fibre
Cone material
Glass loaded cellulose, water-resistant coating front & back
Surround material
Triple roll, cloth sealed
Suspension
Triple, polysiloxane-laminated
Gap height (Hg)
15mm / 0.59in
VC winding height (Hvc)
45mm / 1.77in
Parameters
Sd
2239cm2 / 347in2
Fs
27Hz
Mms
717.2g / 25.3oz
Qms
10.89
Qes
0.312
Qts
0.303
Re
3.17Ω
Vas
344.5l / 12.17ft3
BI
35.23Tm
Cms
0.048mm/N
Rms
11.089kg/s
Le (at 1kHz)
2.05mH
Xmax
18.75mm / 0.73in
Xmech
74mm / 2.91in
Efficiency η0
2%
Mounting Information
Overall diameter
627mm / 24.7in
Overall depth
280mm / 11in
Cut-out diameter
571mm / 22.5in
Mounting hole dimensions
8.5x9mm / 0.33x0.35in
Number of mounting holes
8
Mounting hole PCD
596.3-606mm / 23.47-23.86in
Flange & gasket thickness
21mm / 0.83in
Unit weight
22kg / 48lb
