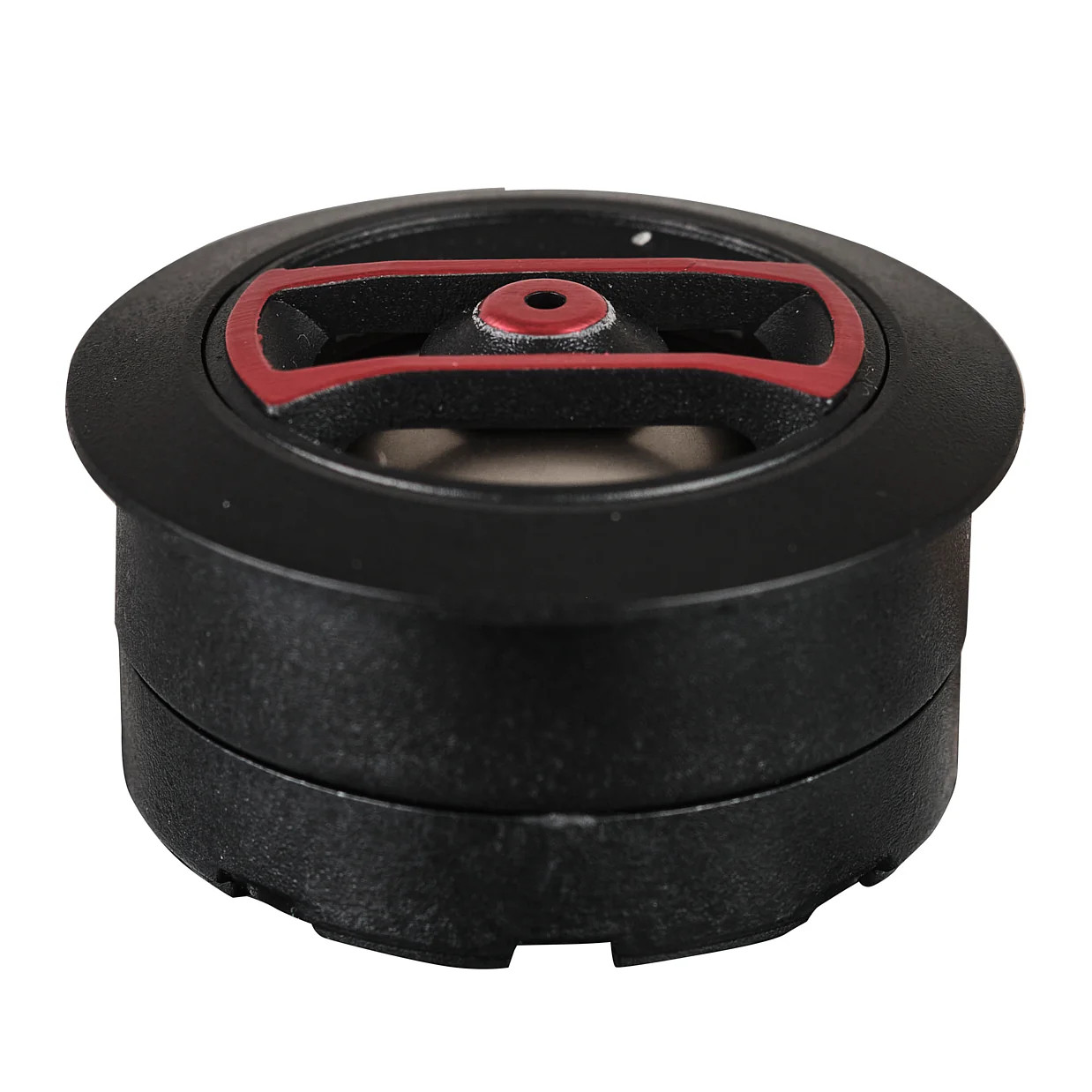

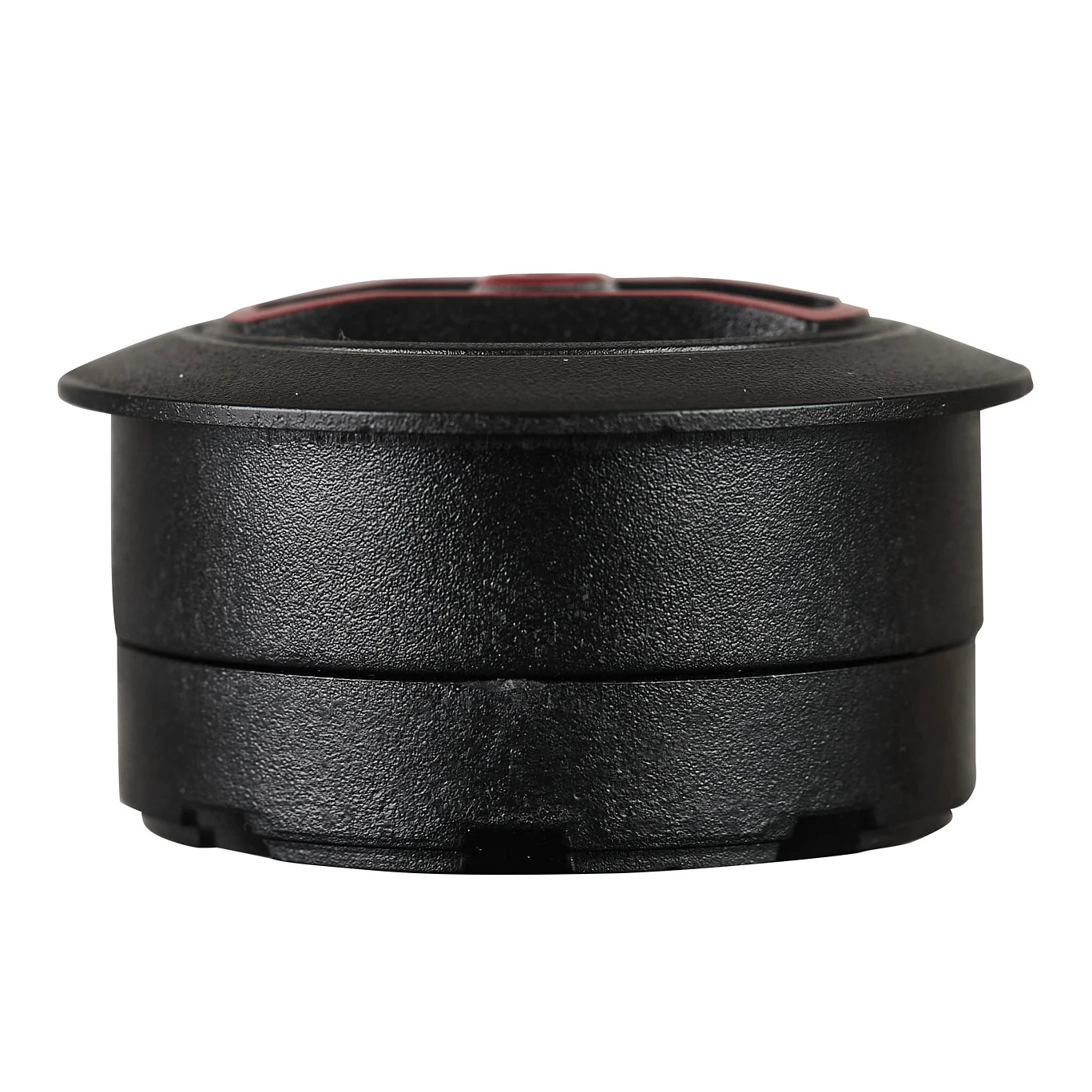

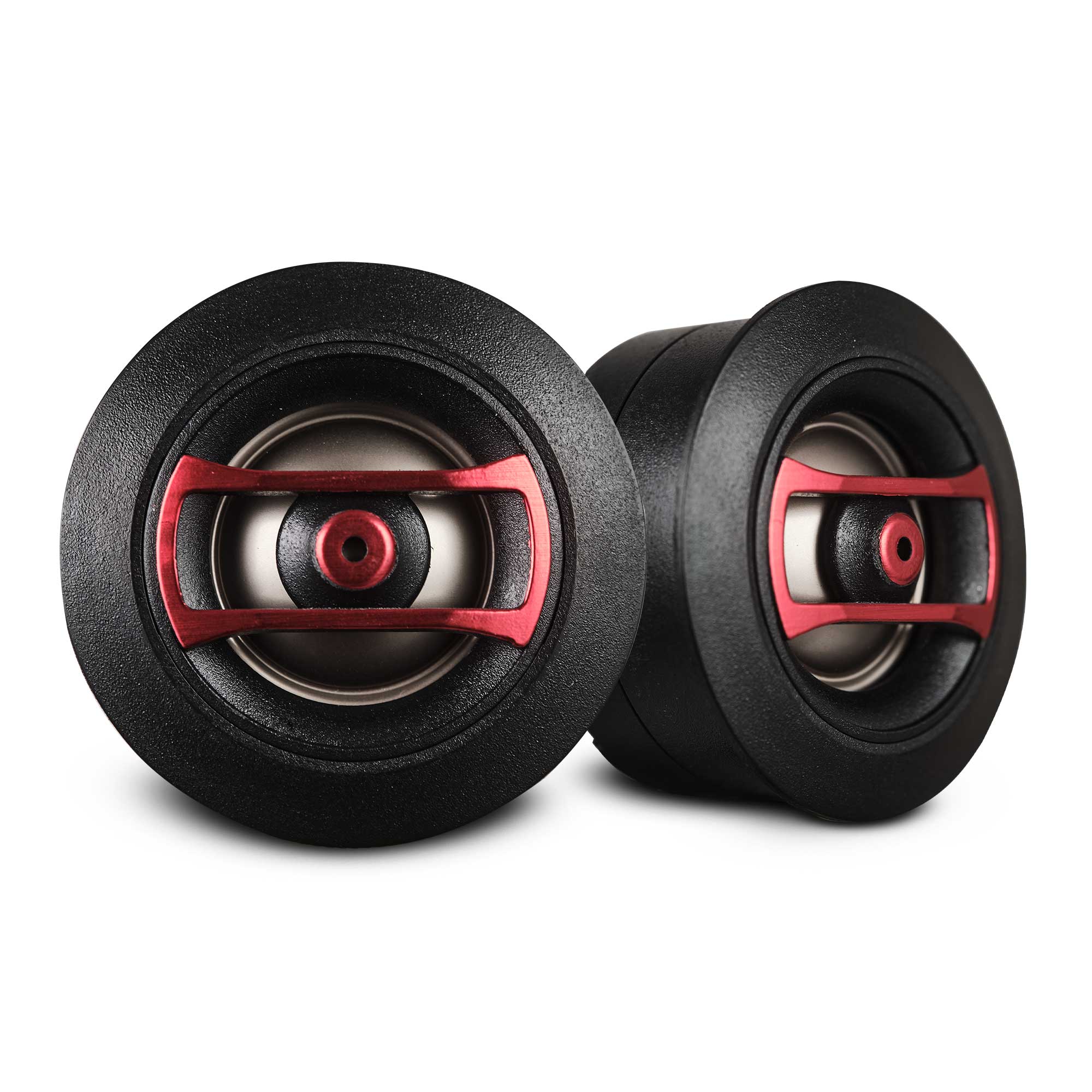

DS18 1.3" MULTI-MOUNT PEI MINI DOME TWEETERS WITH 0.8" VOICE COIL - 4 OHM - 60 WATTS

General Specifications

SKU
SQT1
Nominal Diameter
1.3" / 33mm
Nominal Impedance
4 ohms
AES Power handling
15W
Program Power handling
30W
Peak Power handling
60W
Sensitivity (1w/1m)
92dB
Frequency Response
1KHz-20KHz
Recommended HI Pass Crossover
3KHz
Pair / Single
Pair
Body Color / Material
Black / ABS

Motor

Voice Coil Diameter
0.8" / 20.4mm
Voice Coil Former Material
KSV
Winding Material
Copper
Diaphragm Material
PEI
Magnet Material
Neodymium (N38H)
Magnet Weight
1.16 Oz

Measurements

With Flush Mount Adapter
Overall Diameter: 1.75" / 45mm
Overall Depth: 1" / 25mm
Front Mount Baffle Cutout: 1.6" / 40mm
Mounting Depth: 0.75" / 20mm

With Angle Surface Mount Adapter
Overall Diameter: 1.3" / 33.5mm
Overall Height: 1" / 26.7mm

Without adapter
Overall Diameter: 1.3" / 33.5mm
Overall Heig
