Description
DS18 2.3" Neodymium Super Bullet Tweeter with 1" Aluminum Voice Coil & Digital LED Lights
Key Features
- 2.3" Super Bullet Tweeter
- MAX Power: 200 Watts
- RMS Power: 100 Watts
- Impedance: 4 Ohm - 102dB
- High-Performance Neodymium Magnet
- Digital LED Lights with Transparent Polycarbonate Body
Specifications
SKU
PRO-TW7LD
Nominal Diameter
2.3" / 58.4mm
Nominal Impedance
4 ohm
AES Power Handling
50W
Program Power Handling
100W
Peak Power Handling
200W
Sensitivity (1w/1m)
102 dB
Frequency Response
4K - 20KHz
Recommended Hi Pass Crossover
4Khz
Body / Features
Pair or Single
Single
Body Material
Transparent Polycarbonate
Body Color / Finish
Translucid LED Illuminated
Bullet Material
Transparent Polycarbonate
Digital LED Integrated
YES with 3.2ft input Wire
Digital LED Chip Type
1815S
Digital LED Connection Type
Addressable 12VDC
Motor
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCA
Diaphragm Material
Aluminum
Magnet Material
Neodymium
Magnet Weight
Measurement

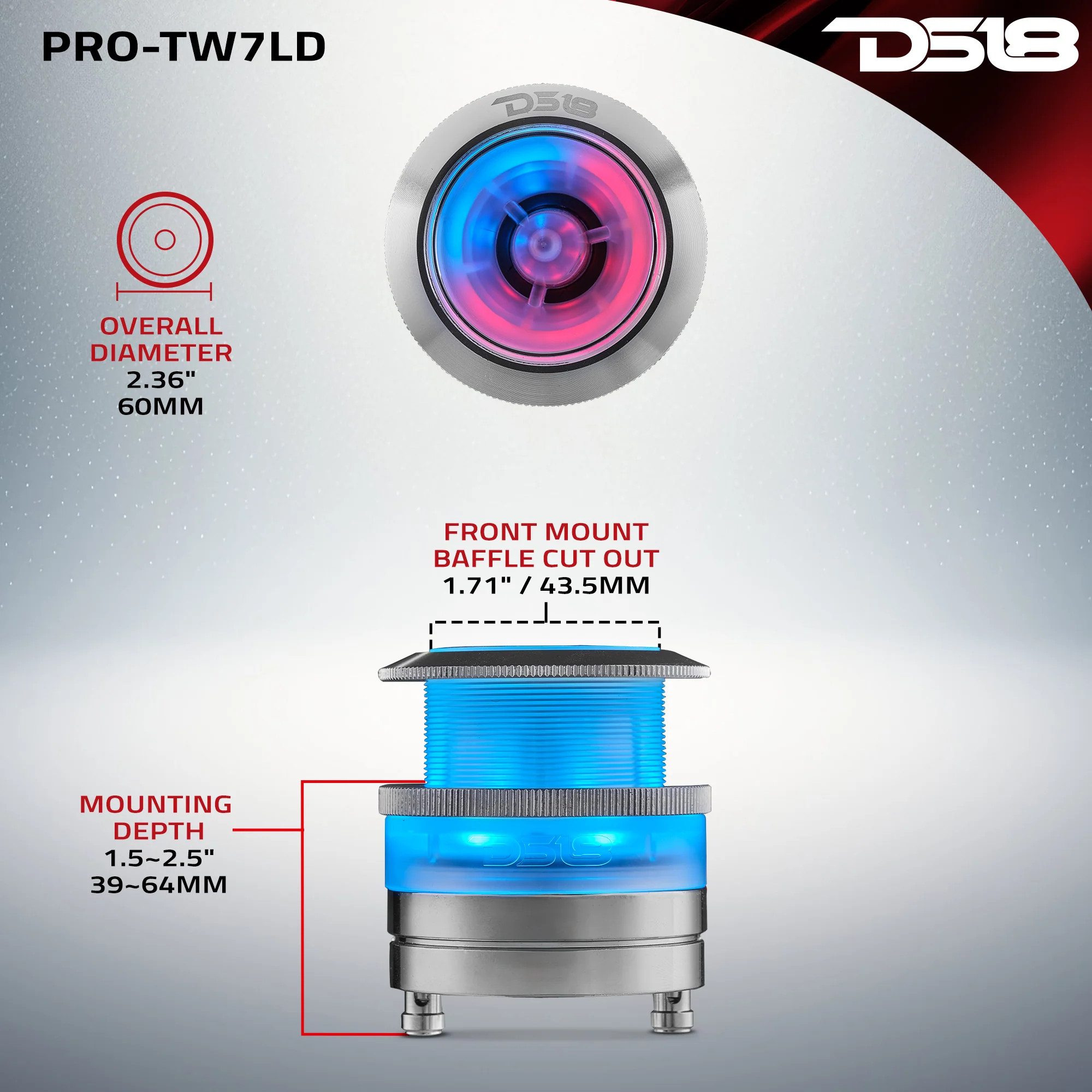

Overall Diameter
2.36" / 60mm
Overall Depth
2.72" / 69.2mm
Front Mount Baffle Cutout
1.71" / 43.5mm
Mounting Depth
1.5~2.5" / 39~64mm
Magnet Diameter
2.28" / 58mm
Product Overview
DS18 PRO-TW7LD

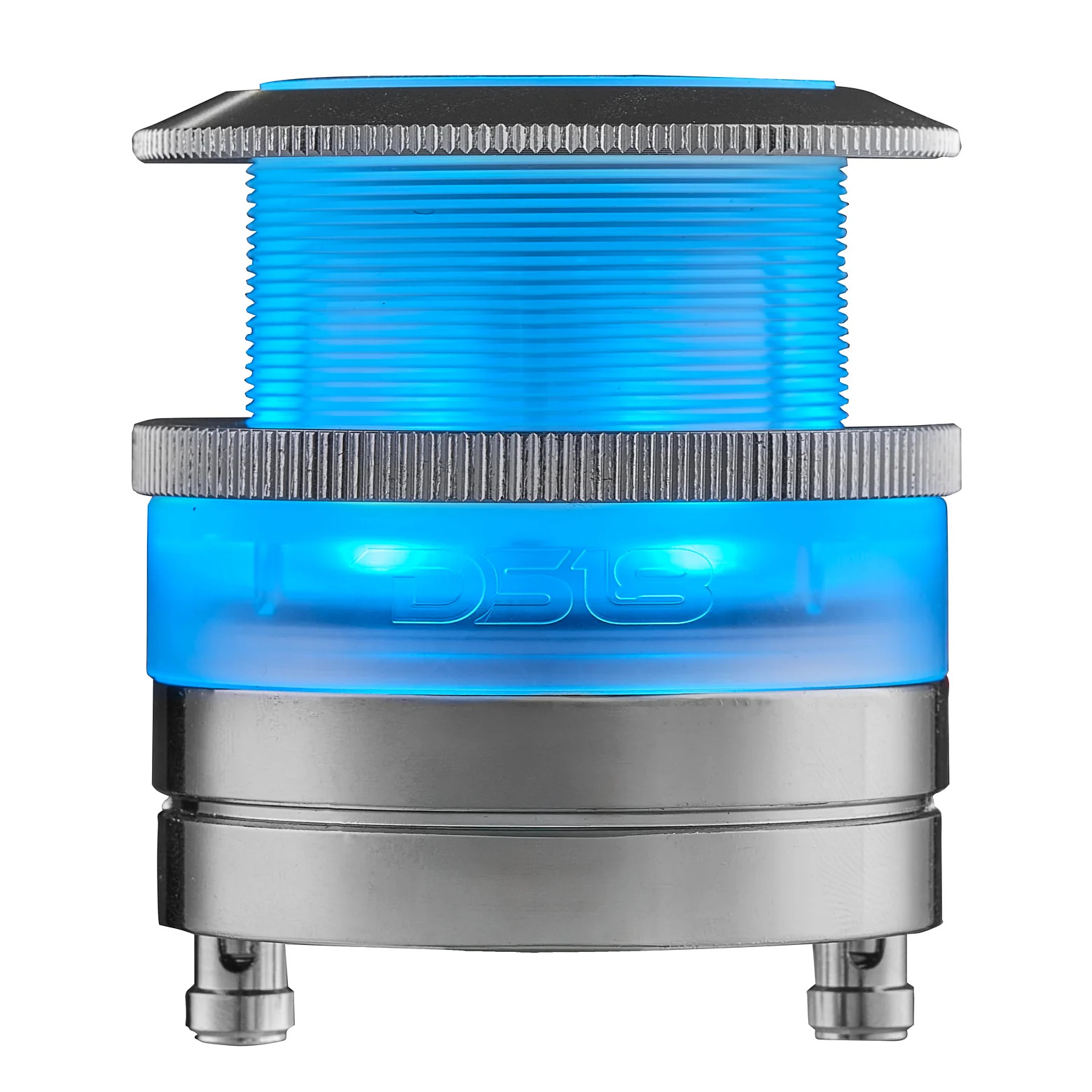

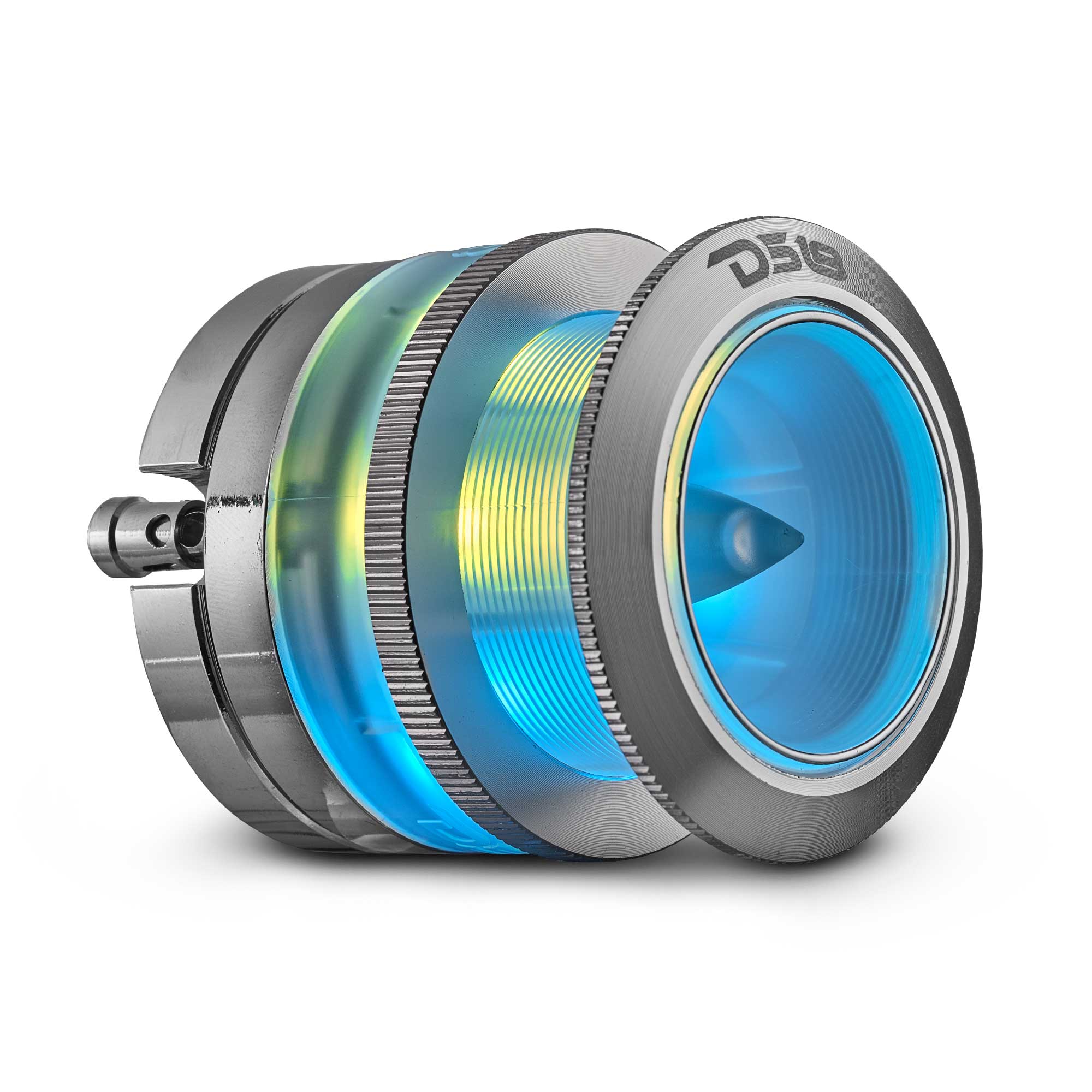

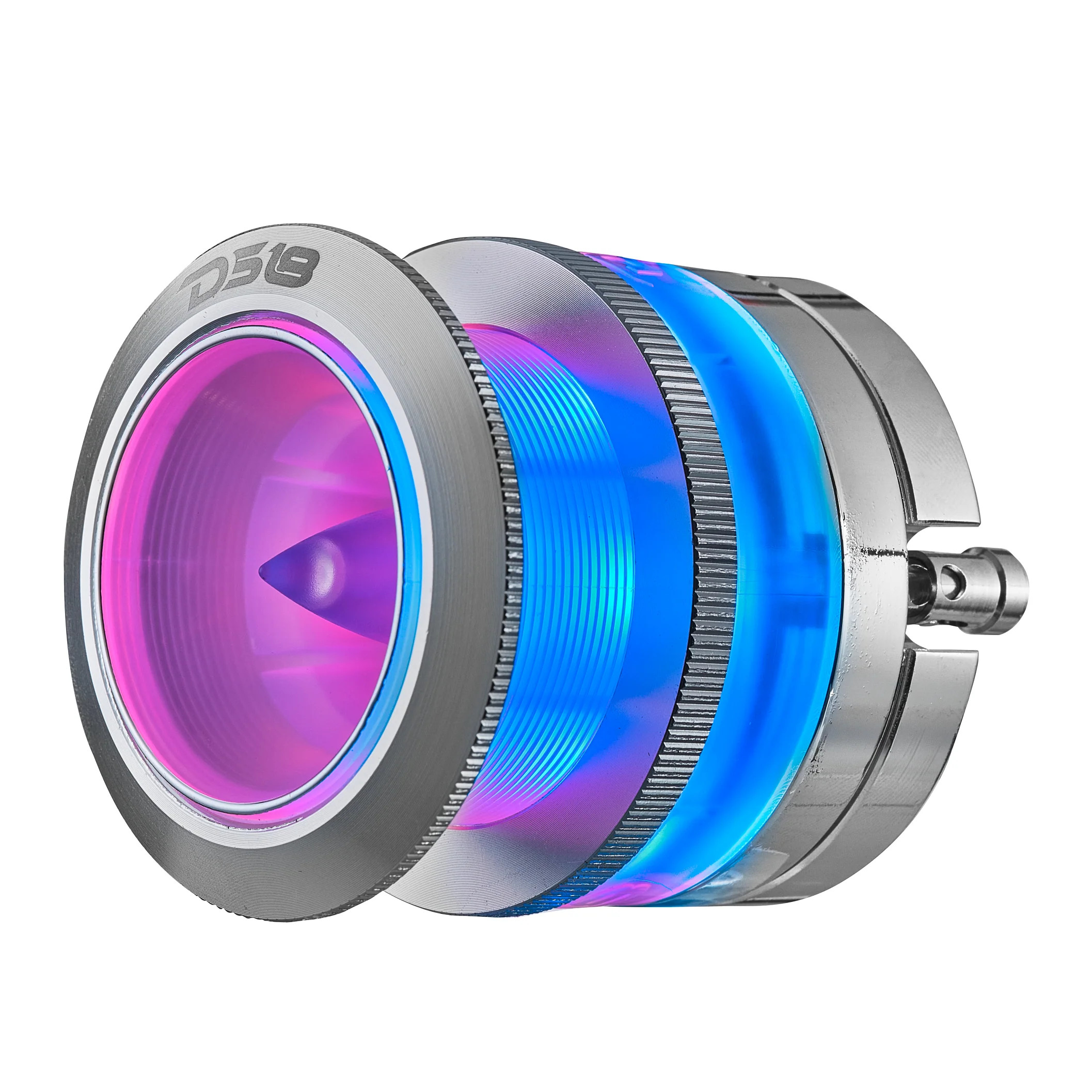

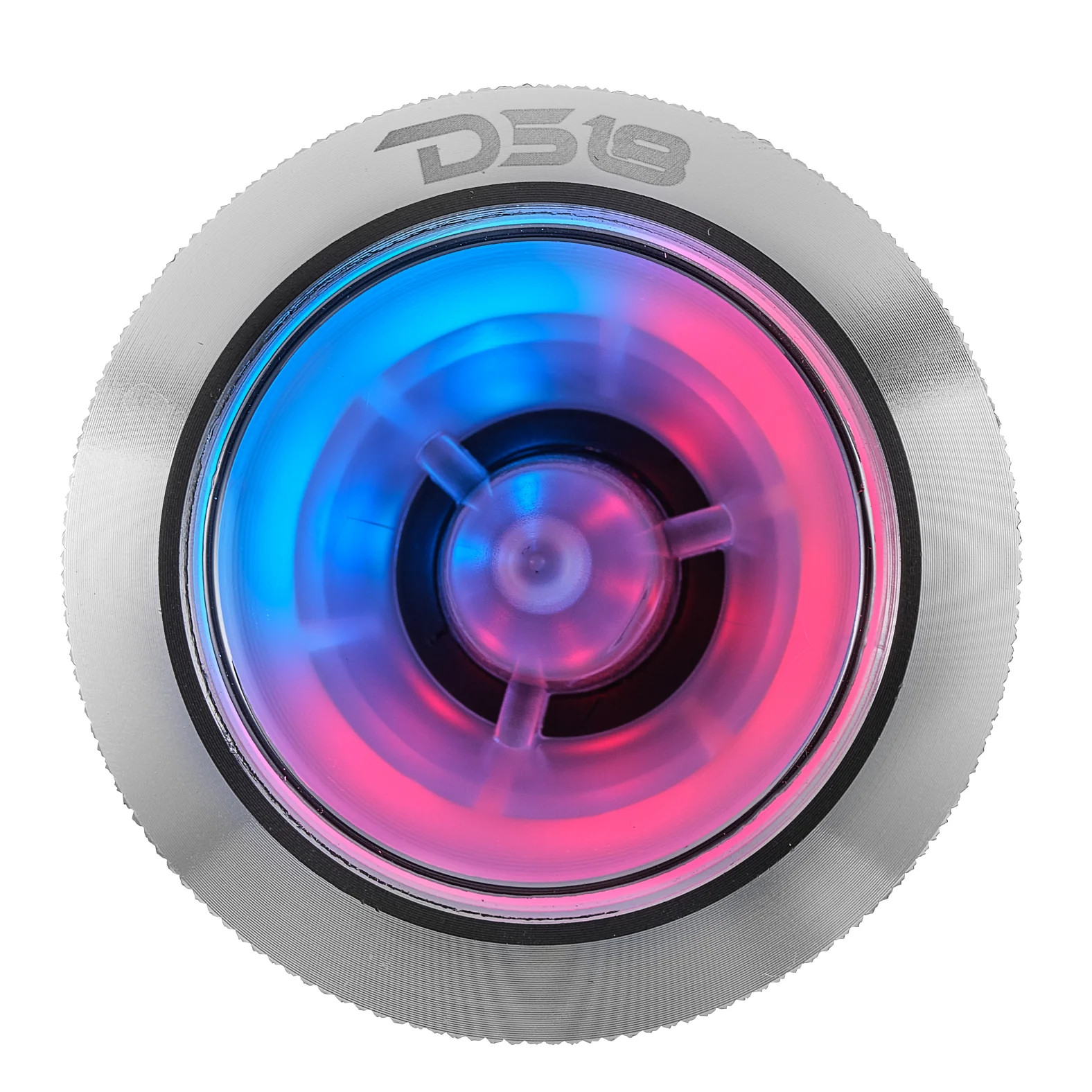

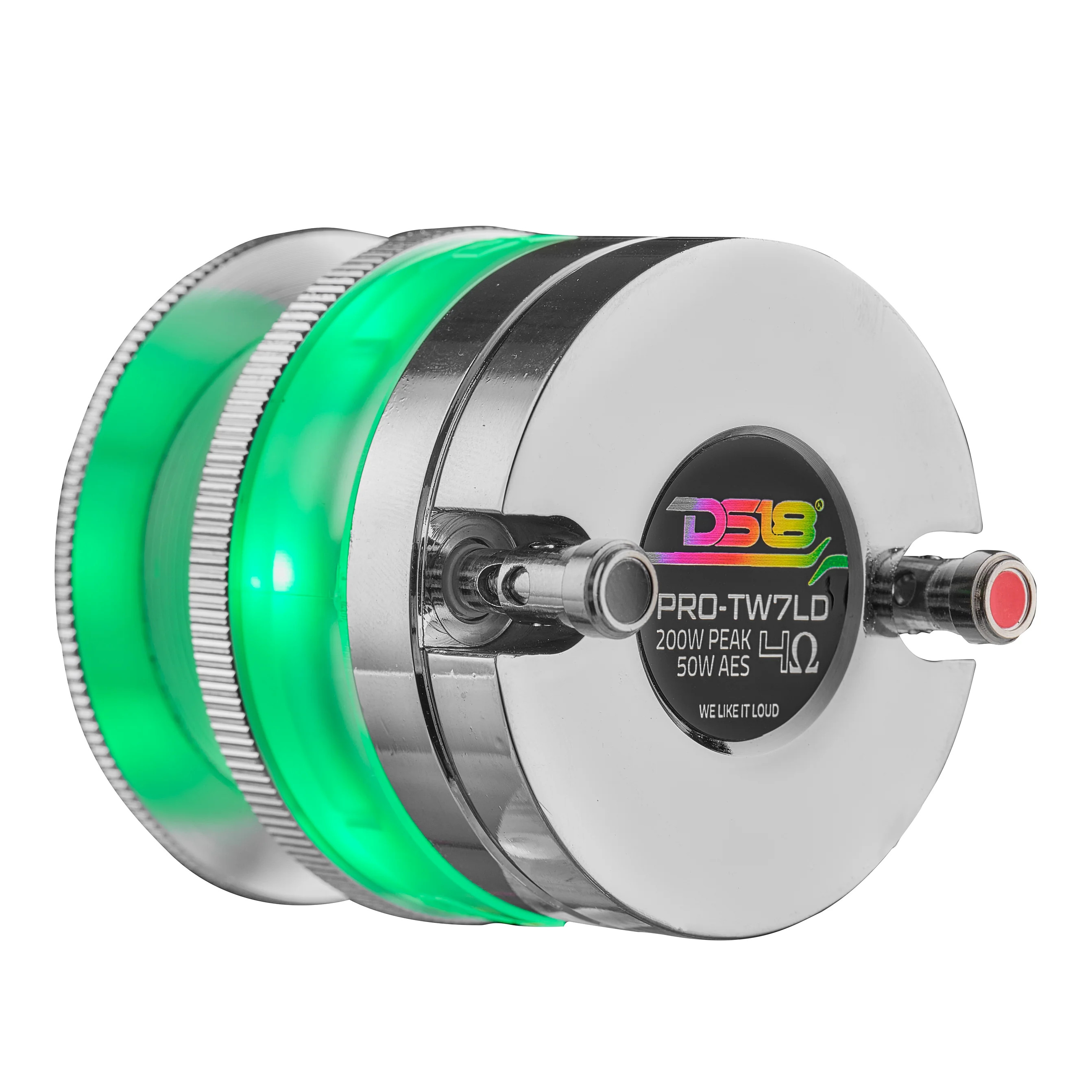

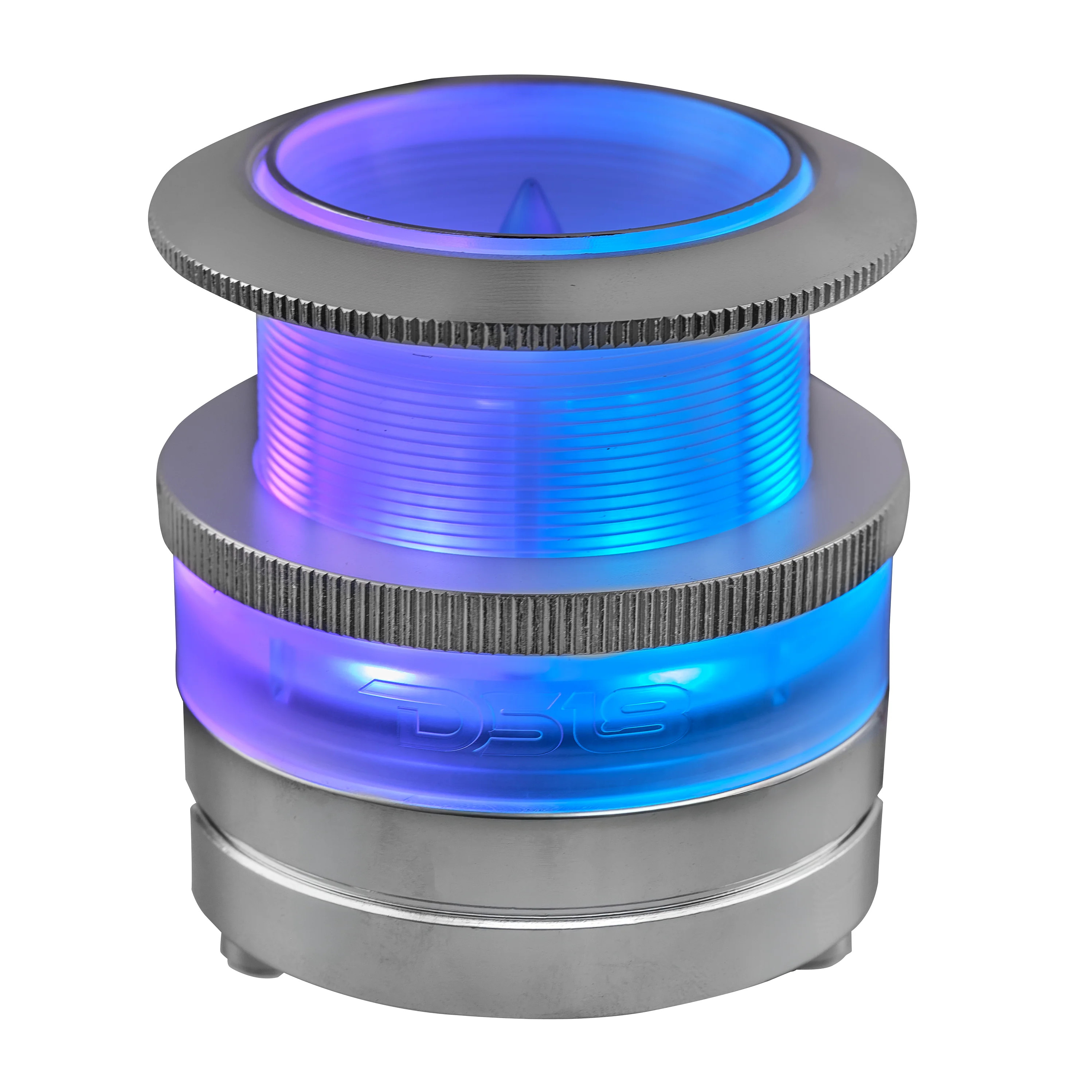

2.3" Neodymium Super Bullet Tweeter with 1" Aluminum Voice Coil & Digital LED Lighting
DS18’s PRO-TW7LD is the pinnacle of audio performance: this 2.3" neodymium super bullet tweeter is engineered for pitch perfect high-frequency clarity.
Crystal-Clear Highs
The PRO-TW7LD delivers distortion-free highs thanks to its robust 1-inch aluminum voice coil tuned at 4-ohms. With a high sensitivity of 102dB, this tweeter cuts through noise effortlessly, for crisp, powerful sound that stands out in any venue.
High-Performance Neodymium Magnet
Powered by a premium neodymium magnet, the PRO-TW7LD maximizes efficiency while maintaining lightweight durability. With handling up to 50W AES power, 100W RMS power, and 200W peak power: this tweeter delivers relentless performance without compromise.
Dynamic Digital LED Lighting
Illuminate your audio setup with integrated digital LED lighting, adding a customizable visual flair to match your style. The transparent polycarbonate bullet design not only enhances durability but also creates a striking visual effect, making your system both sound and look outstanding. Pair with the optional LC-DRM module (sold separately) to curate a lighting setup that matches your vibe.
Compact & Versatile
Designed for seamless integration, the PRO-TW7LD features a compact mounting depth and pre-wired LED input, making installation quick and hassle-free across multiple setups. Upgrade your car, motorcycle, or custom build with this high SPL tweeter for guaranteed power and precision.
Take your sound system to the next level with the DS18 PRO-TW7LD.
