Description

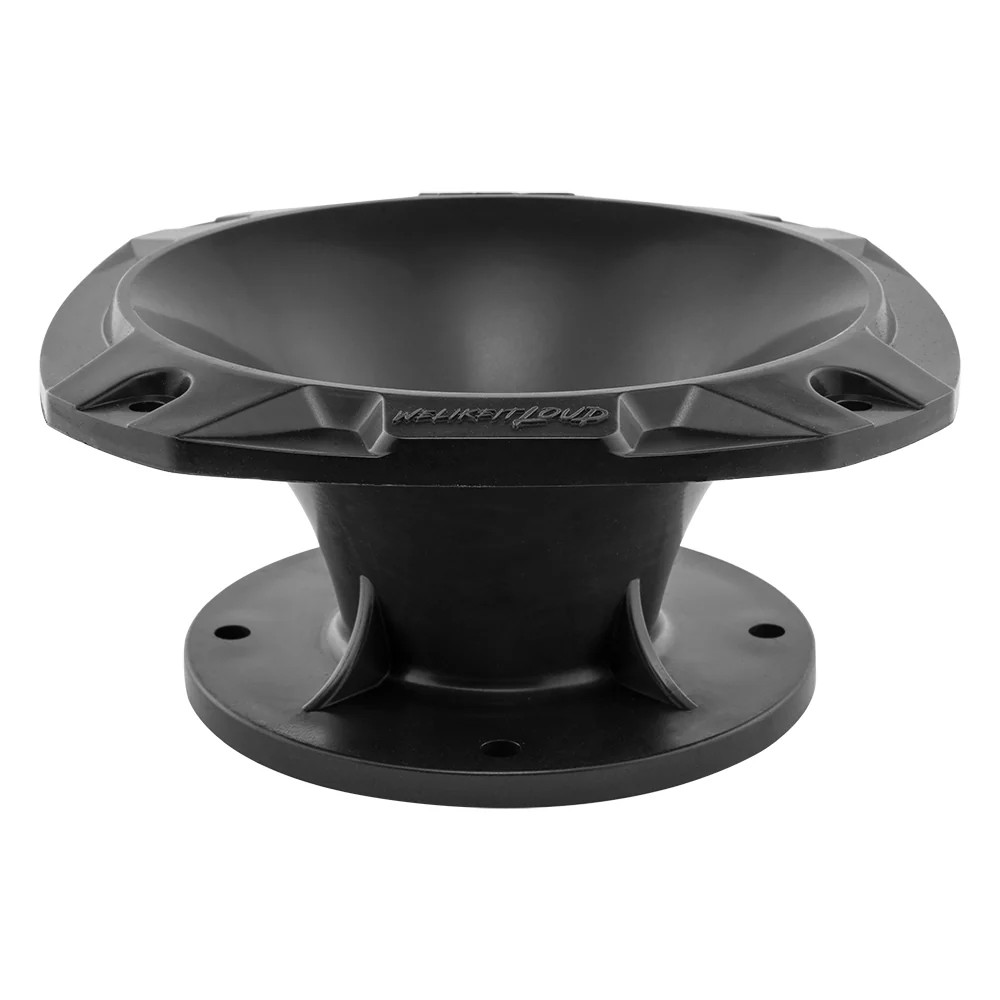

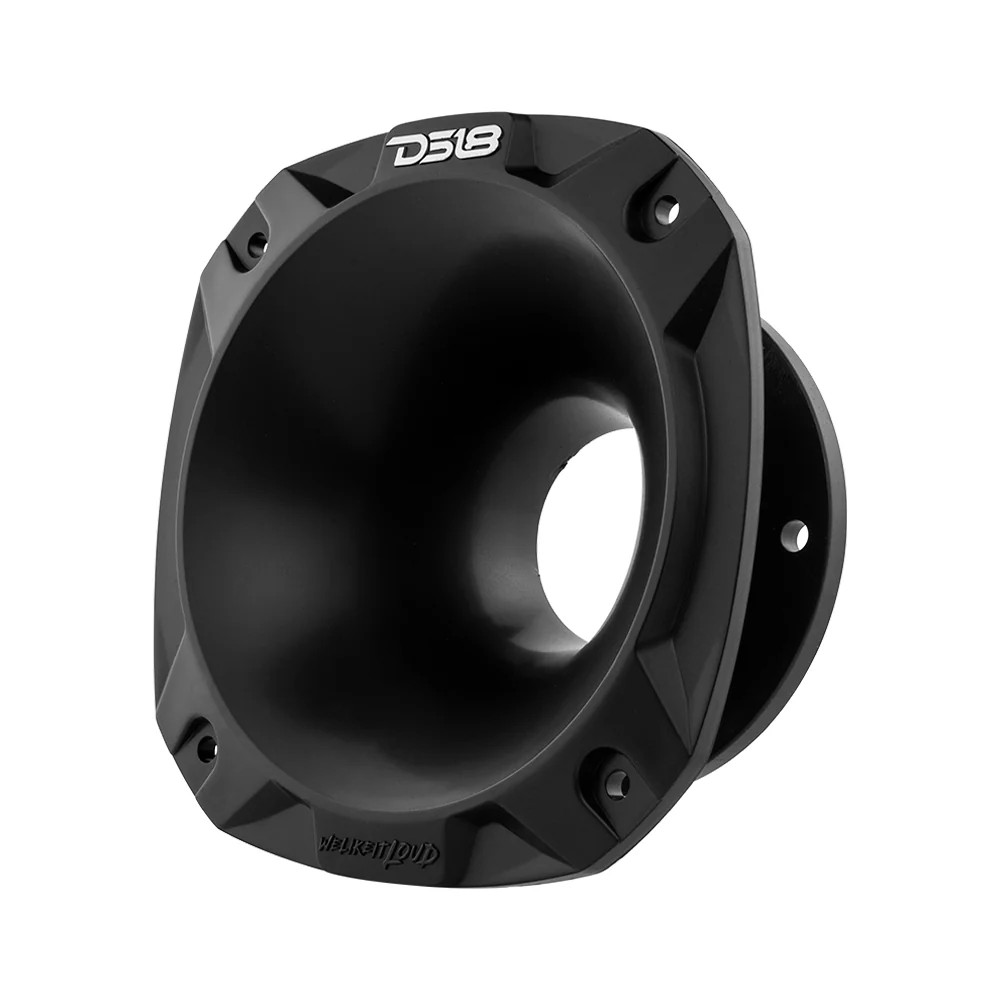

DS18 2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn
Key Features
- 2" Bolt On Horn
- 57° Sound Coverage
- Shallow
- 2.61" Depth
- Plastic
SPECS
SKU
PRO-HP52
Nominal Diameter
6.5" / 165mm
Throat Diameter
2" / 50.8mm
Installation Type
Bolt-On
Sound Coverage
57° Rounded
Body Material
Plastic ABS
Color
Black - Chrome Blue - Chrome Gold - Chrome Red - Chrome Red/White
DIMENSIONS
Overall Diameter
6.4" / 162.5mm
Overall Depth
2.96" / 75.2mm
Mounting Depth
2.61" / 66.3mm
Mounting Hole Diameter
5.43" / 138mm
Bolt Pattern (Horn)
6.33" / 161mm x 4-0.21" / 5.5mm
Bolt Pattern (Driver)
4" / 102mm x 4-0.26" / 6.8mm
SHIPPING INFO
Gross Single Unit Weight (lb)
0.5
Single Unit Box Dimensions W x L x H (Inches)
6.75 x 6.75 x 3.5
Quantity of Units in Master Carton
30
Gross Master Carton Weight (lb)
22.5
Master Carton Dimensions W x L x H (Inches)
20.75 x 13.75 x 17.75
Product Overview
DS18 PRO-HP52
2" Throat Shallow Bolt On 57° 2.61" Depth Plastic Horn
DS18’s PRO-HP52 is the latest innovation in our short-throated horn series!
Designed to deliver extreme directional sound in a compact package, this waveguide boasts a mounting depth of 2.61" and a throat diameter of 2".
Crafted from durable ABS Plastic, the PRO-HP52 offers superior resistance to corrosion and physical damage, ensuring longevity and reliability. Plus, it comes in five vibrant colors - Black, Chrome Blue, Chrome Gold, Chrome Red, and Chrome Red/White - allowing you to customize your system's look.
With its shorter style design, the PRO-HP52 saves valuable mounting depth space without compromising on volume. The 4-bolt pattern ensures compatibility with most bolt-on drivers.
Don't sacrifice valuable space for directional sound. Upgrade to DS18’s PRO-HP52 and get enhanced audio performance without compromise.
