DS18 3.8" Super Bullet Compression Tweeter 4 Ohm 1" Aluminum Voice Coil

Specifications

SKU
PRO-TWZ1
Nominal Diameter
3.8" / 96mm
Nominal Impedance
4 ohms
AES Power Handling
50W
Program Power Handling
100W
Peak Power Handling
200W
Sensitivity (1w/1m)
105 db
Frequency Response
3.15K-20Khz
Recommended Hi Pass Crossover
4KHz

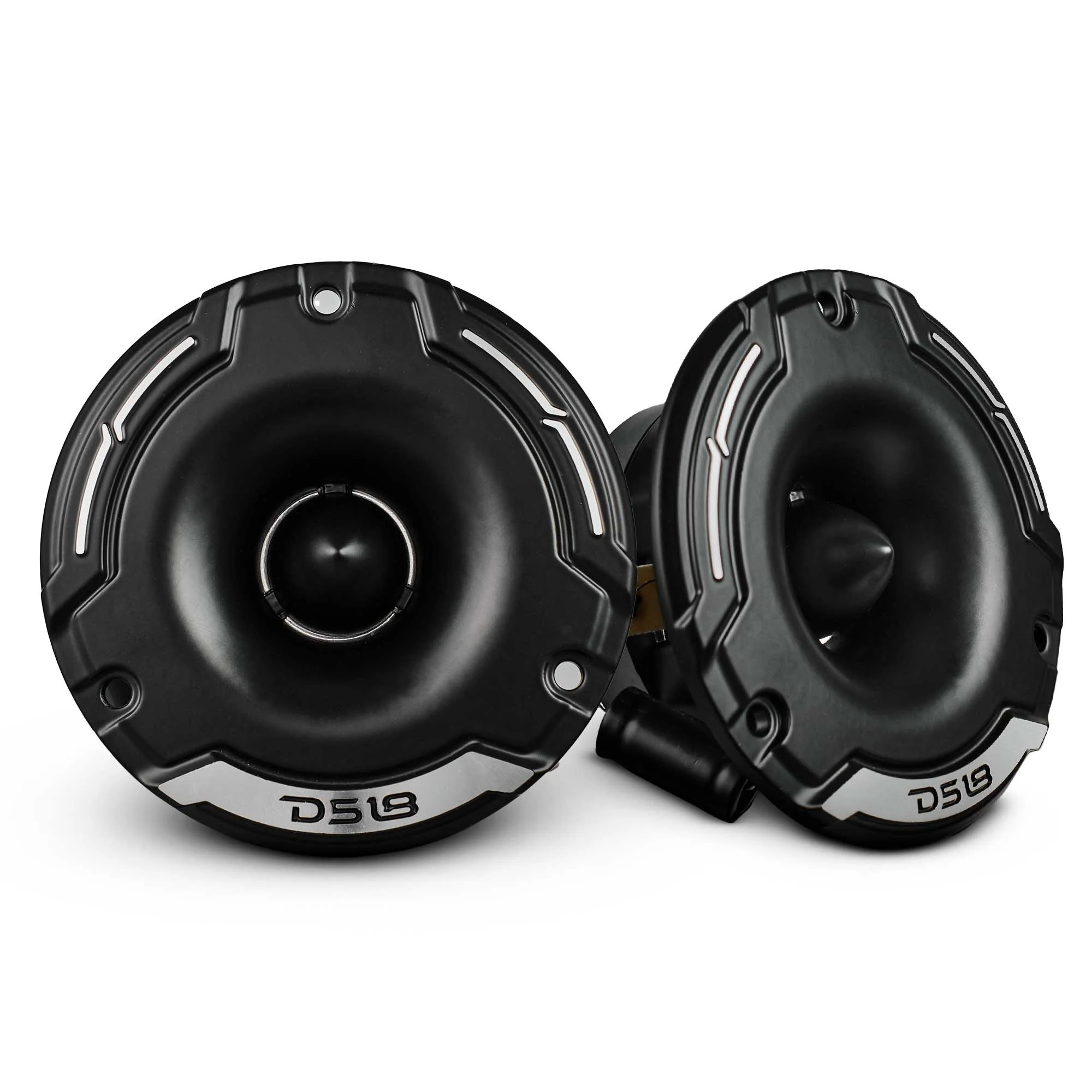

Sold In Pair or Single
Pair

Body / Features

Filter (Bass Blocker)
4.7uf
Body Material
Aluminum
Body Color / Finish
Black
Faceplate Color / Finish
Black / Machined
Bullet Material
Aluminum

Motor

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminum
Magnet Material
Ferrite
Magnet Weight
6.5 Oz

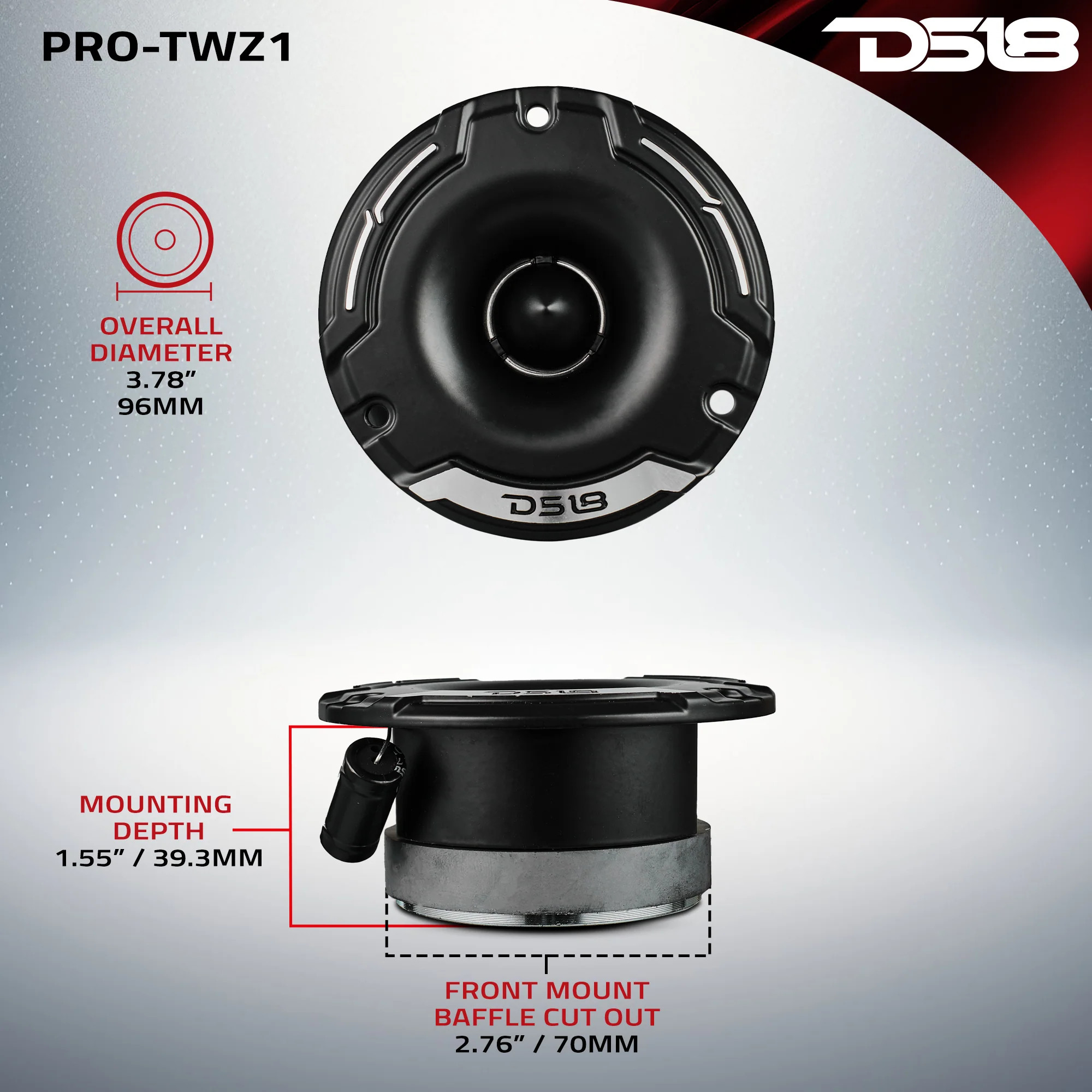

Measurement

Overall Diameter
3.78" / 96mm
Overall Depth
1.8" / 45.8mm
Front Mount Baffle Cutout
2.76" / 70mm
Mounting Depth
1.55" / 39.3mm
Motor Diameter
2.76" / 70mm
