Description

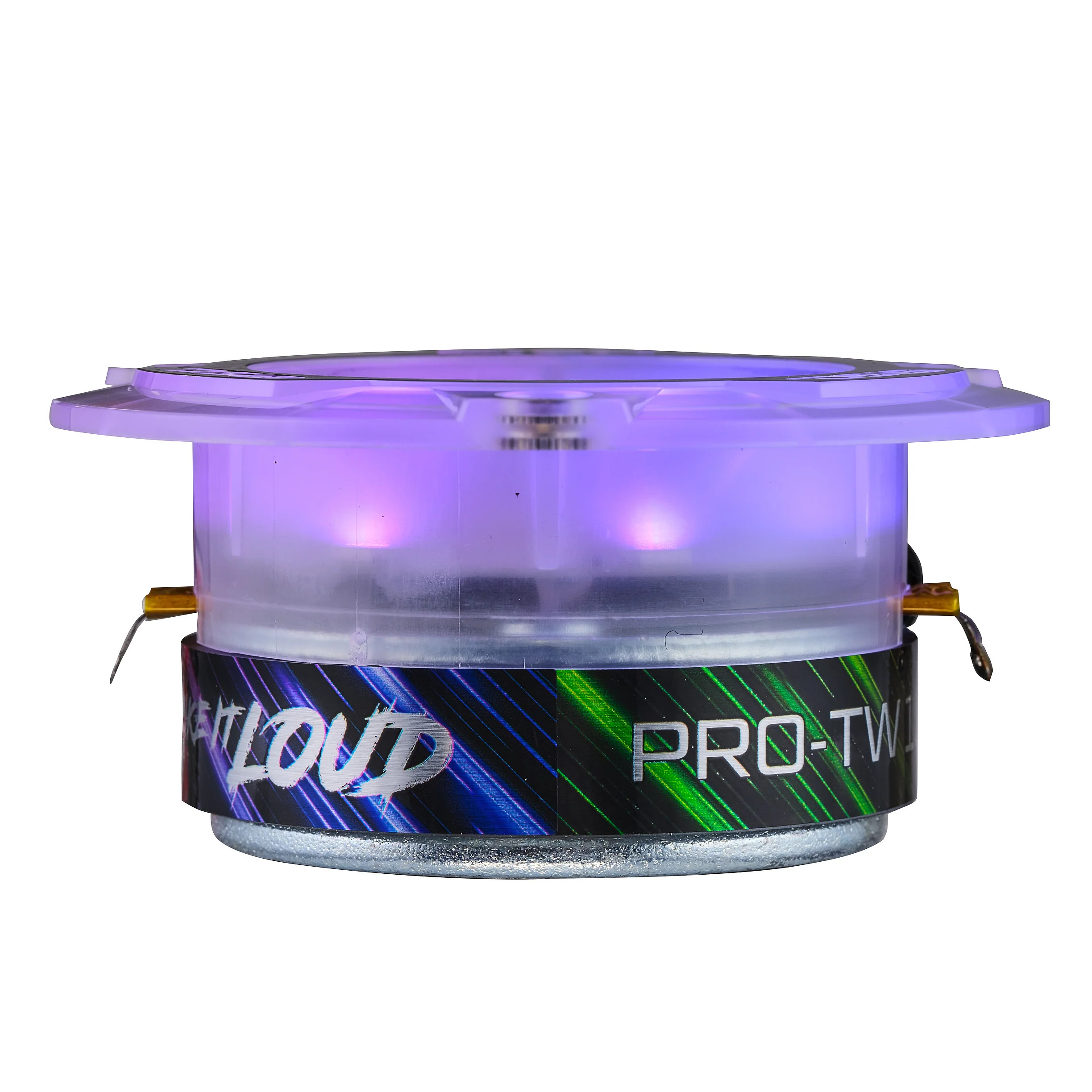

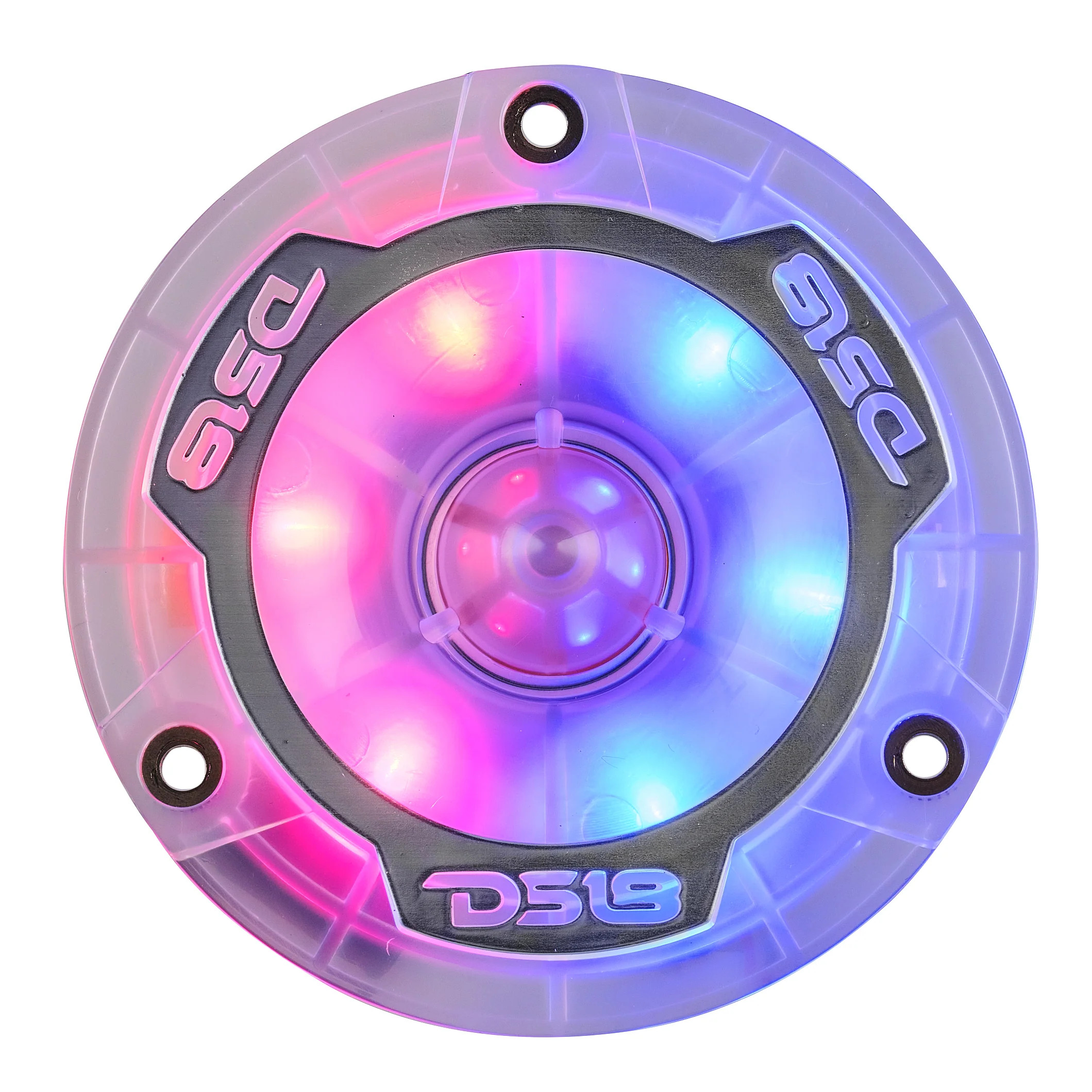

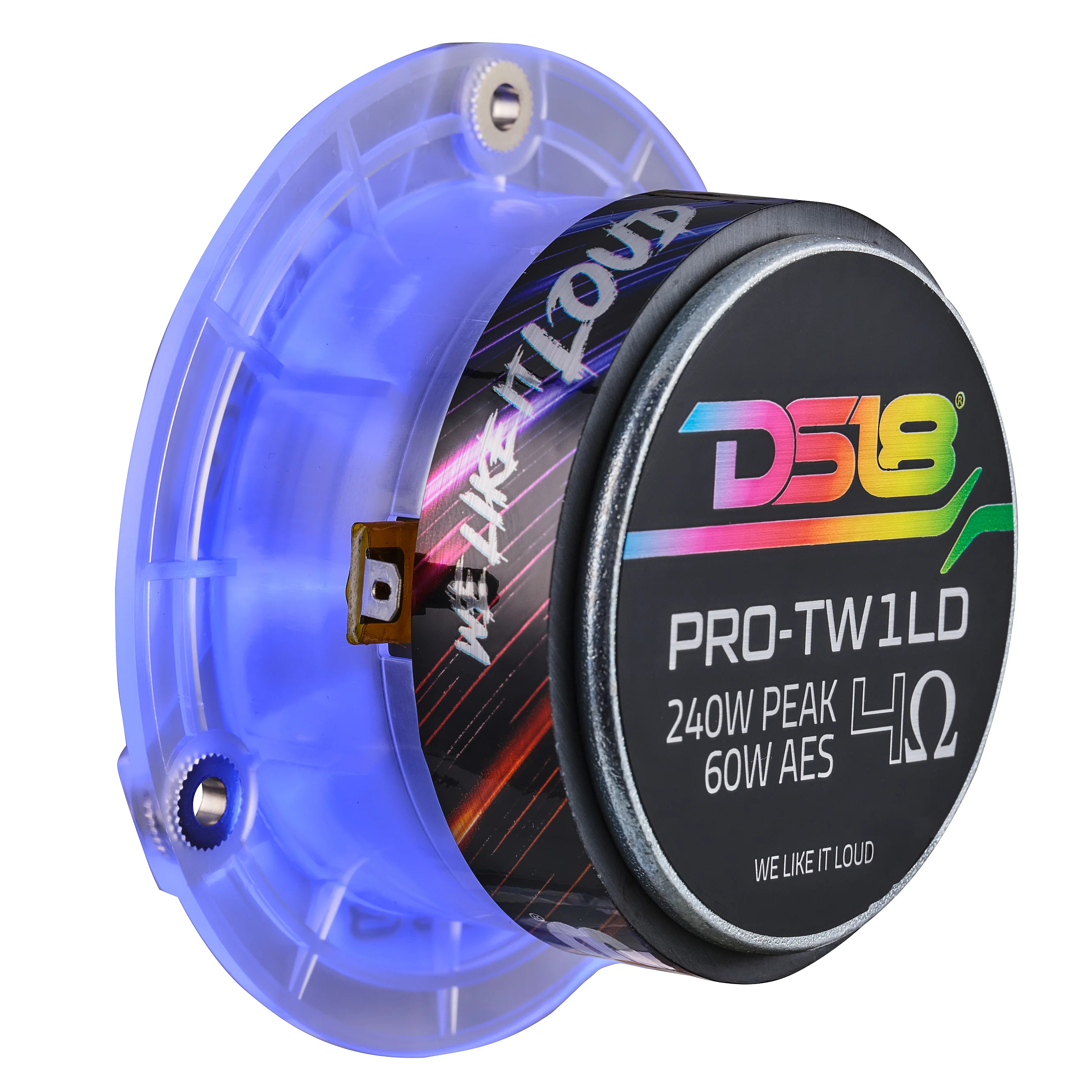

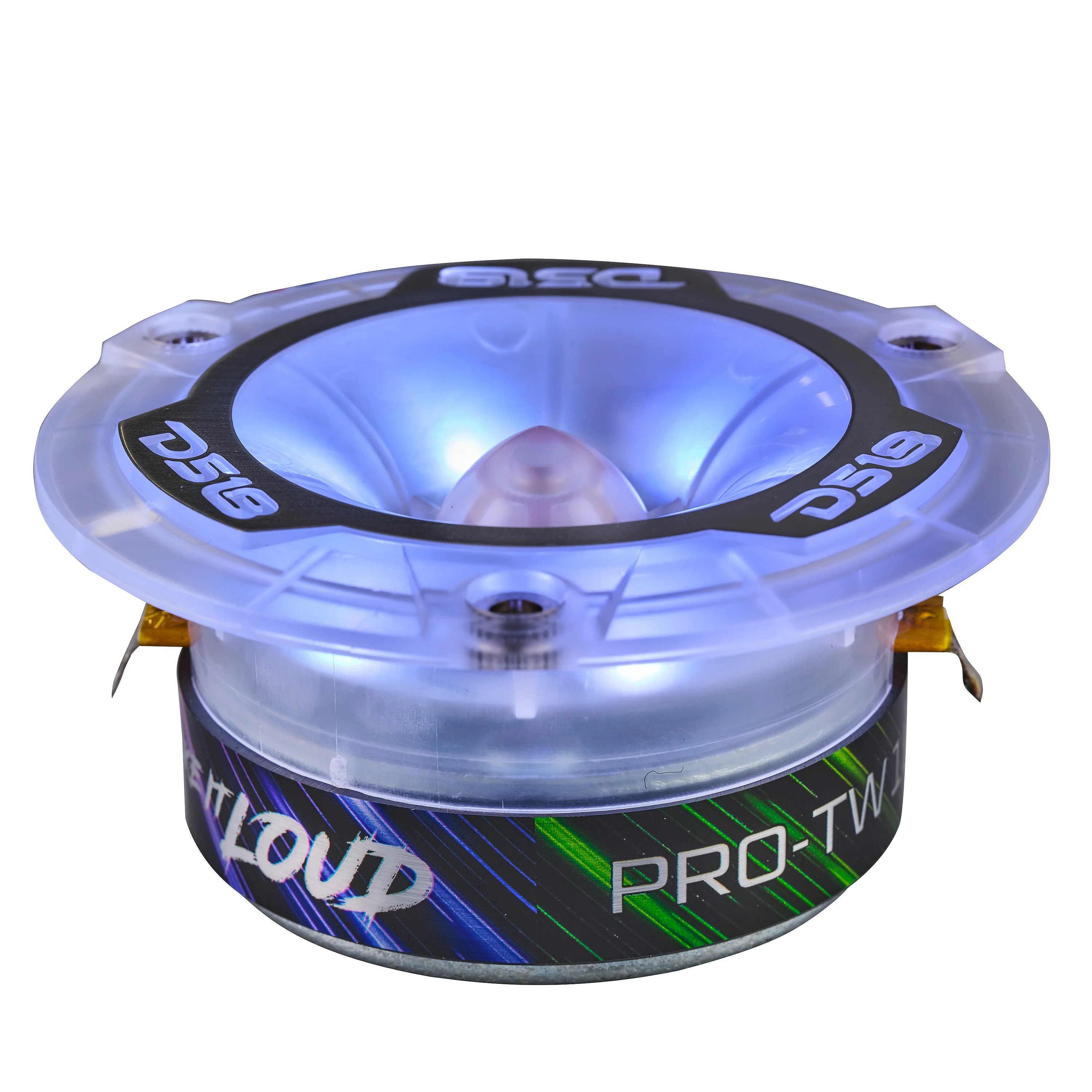

DS18 3.8" Super Bullet Tweeter with 1" Aluminum Voice Coil & Digital LED Lights
Key Features
- 3.8" Super Bullet Tweeter
- RMS Power: 120 Watts (240 Watts Peak)
- Impedance: 4 Ohm - 103dB
- Digital LED Lights
- Body Material: Transparent Polycarbonate
- Pair
Specifications
SKU
PRO-TW1LD
Nominal Diameter
3.8" / 96.5mm
Nominal Impedance
4 ohm
AES Power Handling
60W
Program Power Handling
120W
Peak Power Handling
240W
Sensitivity (1w/1m)
103 dB
Frequency Response
3.5K - 20KHz
Recommended Hi Pass Crossover
4KHz
Body / Features
Pair or Single
Pair
Body Material
Transparent Polycarbonate
Body Color / Finish
Translucid LED Illuminated
Bullet Material
Transparent Polycarbonate
Digital LED Integrated
YES with 3.2ft input Wire
Digital LED Chip Type
1815S
Digital LED Connection Type
Addressable 12VDC
Motor
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCA
Diaphragm Material
Aluminum
Magnet Material
Ferrite Y30
Magnet Weight
8 Oz

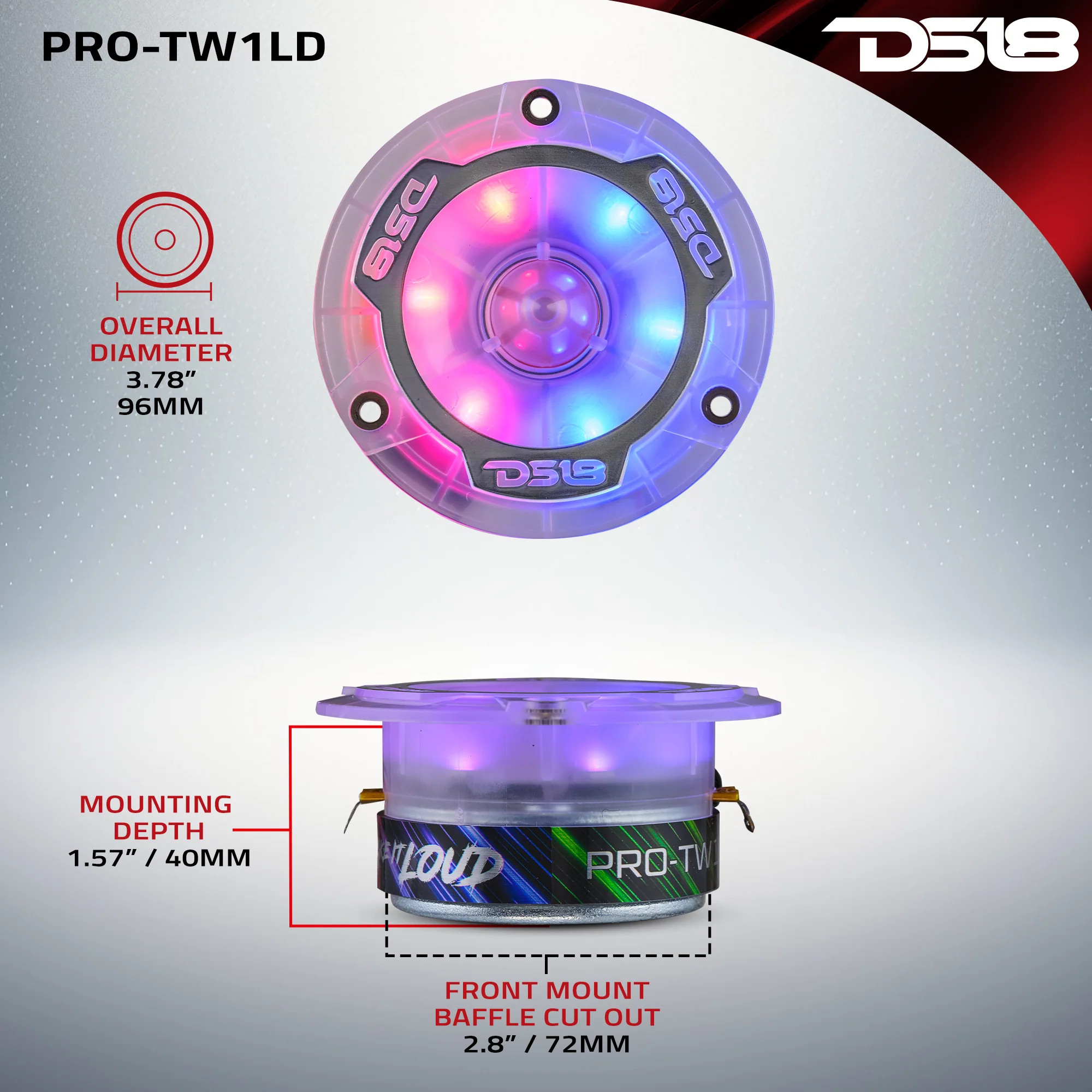

Measurement
Overall Diameter
3.78" / 96mm
Overall Depth
1.78" / 45mm
Front Mount Baffle Cutout
2.8" / 72mm
Mounting Depth
1.57" / 40mm
Magnet Diameter
2.76" / 70mm
Product Overview
DS18 PRO-TW1LD
3.8” Super Bullet Tweeter with 1” Aluminum Voice Coil & Digital LED Lighting
DS18’s PRO-TW1LD is the custom audio upgrade your setup has been waiting for: this 3.8-inch super bullet tweeter combines high SPL performance with digital style. Engineered for crisp, distortion-free highs, the PRO-TW1LD is perfect for any vehicle.
Perfect Performance
At the heart of this high-frequency tweeter is a 1-inch aluminum voice coil tuned at 4-ohms. With a sensitivity of 103dB, it delivers insanely sharp sound, even at high volumes. The ferrite magnet tweeter uses Y30 material to maintain strong, stable performance, during intense audio sessions.
Built for Power & Durability
Built to handle high SPL applications with ease, this durable yet lightweight tweeter features a transparent polycarbonate bullet design and can manage up to 60W AES, 120W RMS, and 240W peak power. The Kapton voice coil former enhances heat resistance and durability, ensuring long-lasting performance.
Show-Stopping Digital LED Lighting
What sets DS18’s PRO-TW1LD apart is its integrated Digital LED lighting. With customizable lighting that makes your setup sound and look incredible.
Perfect for Any Vehicle
Ideal for car audio systems, motorcycles, and powersports vehicles, DS18’s PRO-TW1LD is a statement to quality and style. Easy installation is guaranteed thanks to its compact size and pre-wired LED input, allowing you to easily integrate this high-frequency beast into any custom build.
Upgrade today and experience superior sound with DS18’s PRO-TW1LD!
