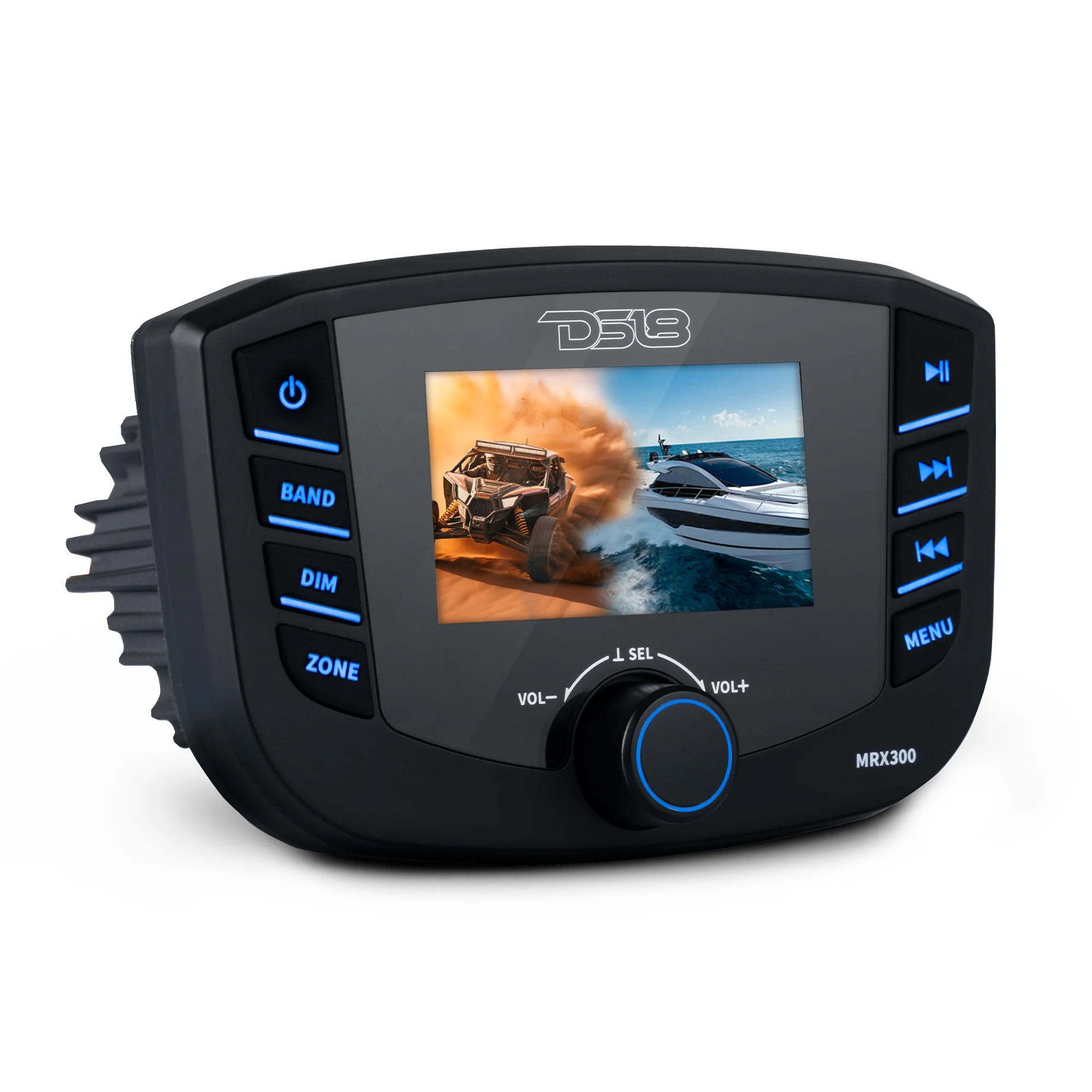

DS18 3 ZONES MARINE AND POWERSPORTS HEADUNIT - 3" | Color TFT Screen | 3 Zones | 4 volts Output | BT | RDS | 4 x 50 Watts

SPECS

SKU
MRX300
Operating Voltage
10.5 - 16 Volts
Low Voltage Warning Alert
YES (< 10.5V)
Waterproof Rating
IPX6
UV/Salt Protection
YES, B117 Salt Fog & D4329 UV Exposure Tested
Buttons
Rubber + RGB Backlit 7 Colors Selectable (Auto/White/Red/Blue/Green/Purple/Cyan/Yellow)
Screen Panel
Gorilla Glass with Wet Bonded Display
EEPROM
Yes (all settings are saved when power is disconnected)
Display Type
Thin Film Transistor (TFT) Display
Resolution
640*360 pixel, IPS

AUDIO

RMS
4 x 18W @ 4ohm, 4 x 25W @ 2ohm
Max
4 x 50W @ 2ohm
Min Load
2 ohm Stable per Channel
Frequency Response
20Hz to 20Khz
RCA Pre-Out Voltage
4.5 Volts
Output Impedance
500ohm
Equalizer
2 Bands (Bass 80Hz, Treble 12Khz)
Presets
YES (S-Bass/Vocal/Powerful/clarity)
Subwoofer Control
Level (0 to 40)
Audio Zones
3 Zones (Stereo + Subwoofer each)
Independent Zone Control
YES (Level/Tone)
Audio Input
L+R RCA (Aux Input)

TUNER

FM Frequency Range
87.5 - 108 MHz
AM Frequency Range
522 - 1620 KHz
Tuner Presets
18 FM / 12 AM
Radio Data System
YES (AF/TA/NEWS) Selectable
Frequency Range
174.928-239.200 MHz
Sensitivity
93 dB
Stereo separation
50 dB at 1 kHz
Signal/noise ratio(S/N)
65 dB

CONNECTIVITY

Bluetooth Version
5.0 + EDR
Audio Streaming
A2DP
USB Compatibility
v2.0
USB Capacity
64 Gb Max
USB Charge Capacity
2.1Amp
Audio Files Compatibility
MP3, WMA
Remote Control
Wired 3.5mm Jack Input, (Compatible with MXRC)
