Description

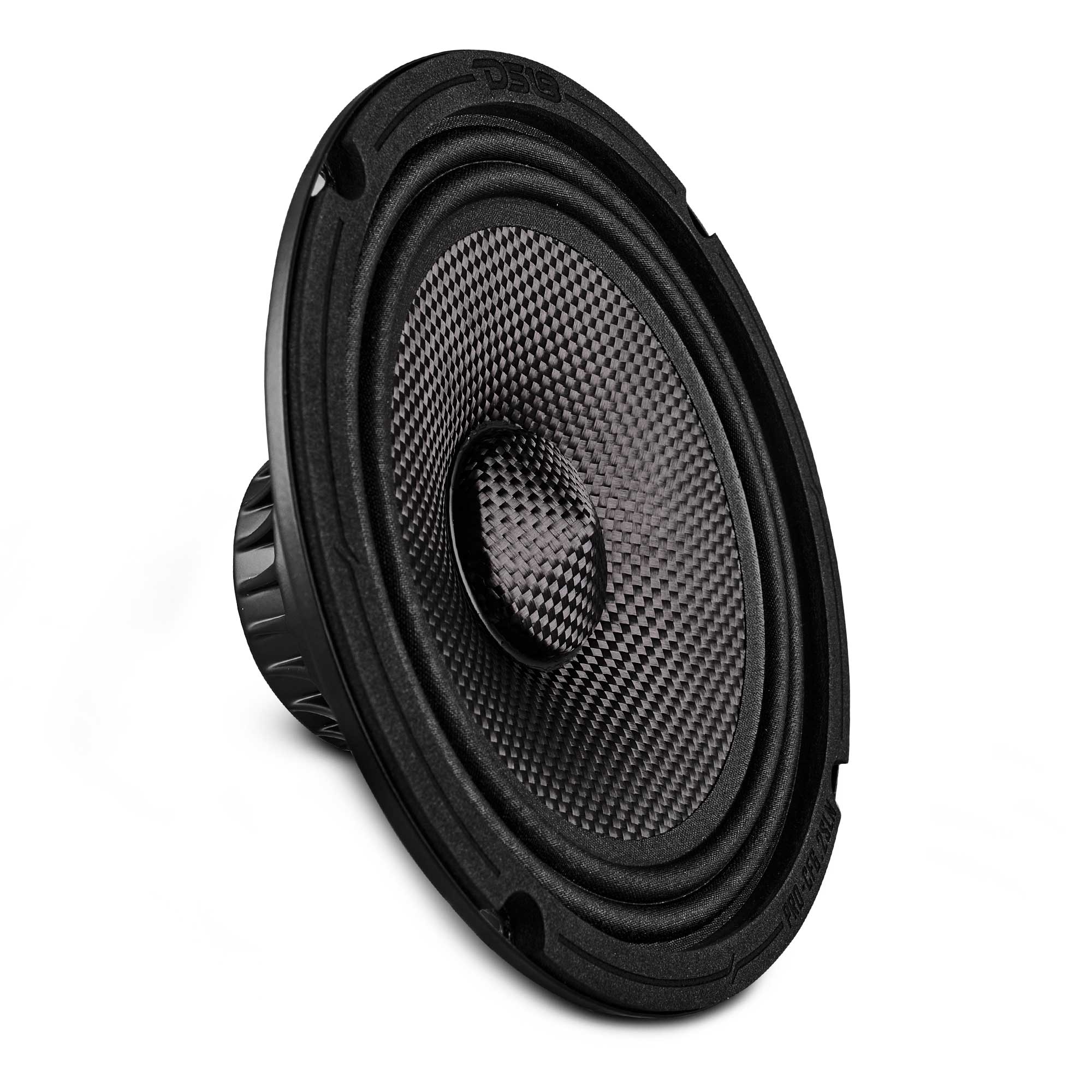

DS18 6.5" Slim Motorcycle & Motorsports Loudspeaker With Water Resistant Carbon Fiber Cone | 2-Ohm 150W RMS
SOLD AS EACH
Key Features
- 6.5" Shallow Loudspeaker
- Water Resistant Carbon Fiber Cone
- RMS Power: 150 Watts (300 Watts Peak)
- Impedance: 2-Ohm
- Ferrite Magnet
- 93dB
Specifications
SKU
PRO-CF6.2SLN
Nominal Diameter
6.5" / 165mm
Nominal Impedance
2 Ohms
RMS Power Handling
150W
MAX Power Handling
300W
Sensitivity (1w/1m)
93dB
Frequency Response
100Hz-6KHz
Recommended HI Pass Crossover
120Hz
Sold in Pair or Single
Single
Grill Included
No
Features
Demodulating Rings
Yes
Improved Heat Dissipation
Yes
Cone Shape
Curvilinear
Speaker Terminals
Spade
Motor
Voice Coil Diameter
1.5" / 38mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Water-Resistant Carbon Fiber
Dust Cap Material
Water-Resistant Carbon Fiber
Surround Material
Treated Cloth
Leads Connection Type
Crossed Spider
Basket Material
Steel
Basket Color/Finish
Glossy Black
Magnet Material
Neodymium
Magnet Weight
3.8 Oz
Thiele & Small Parameters
Equivalent Volume Vas
3.17L / 0.11ft3
Excursion (one way) Xmax
2.5mm
Free Air Resonance Fs
126 Hz
Mechanical Factor Qms
3.46
Electrical Factor Qes
0.45
Total Factor Qts
0.40
Mechanical Mass Mms
12.04g
Mechanical Compliance Cms
0.14mm/N
BL Factor BL
5.72
Voice Coil Inductance Le
0.18mH
Cone Area Sd
126.68cm?
DC Resistance Re
1.6 Ohms
Mechanical Mass w/o air Mmd
11.21g

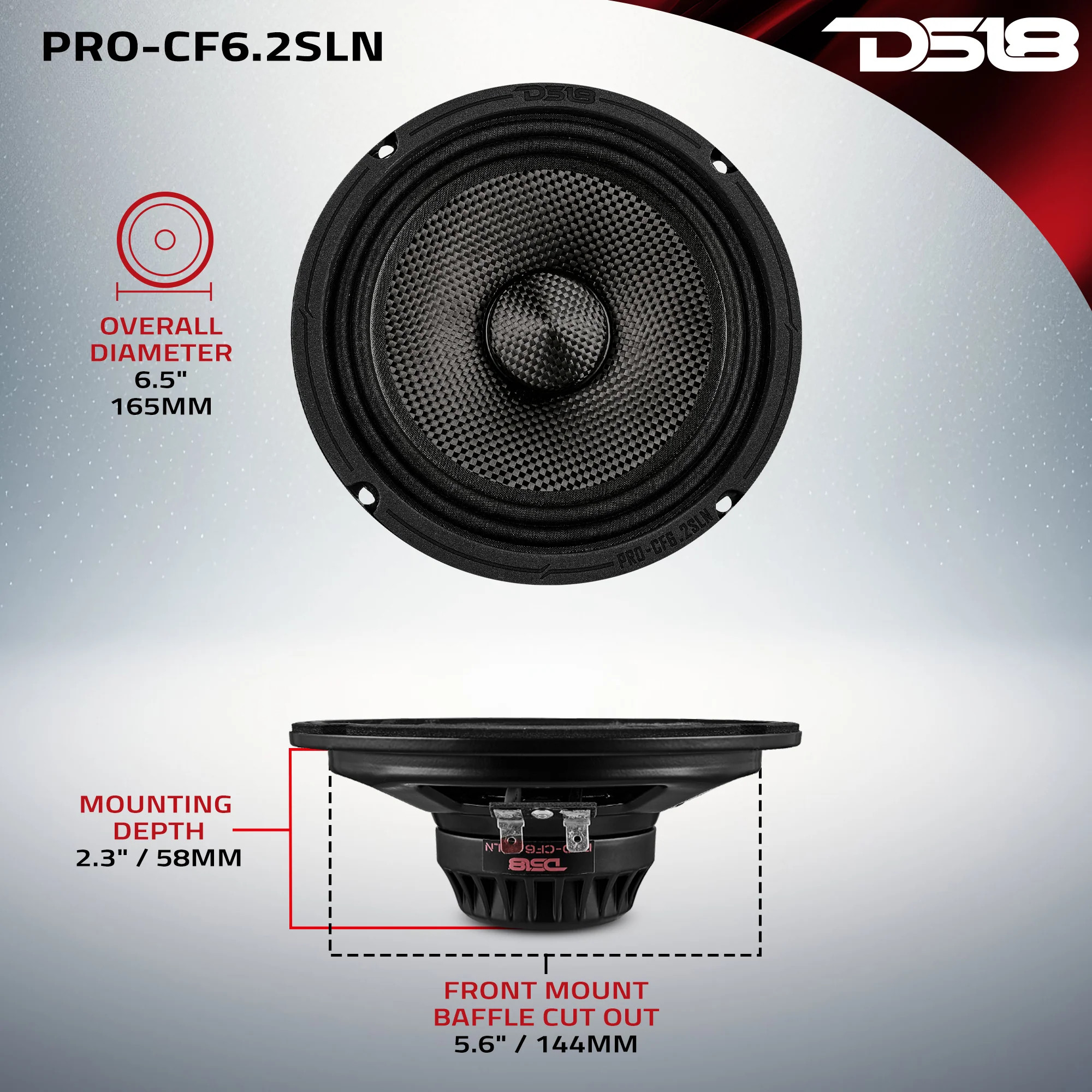

Measurement
Overall Diameter
6.5" / 165mm
Overall Depth
2.5" / 65mm
Front Mount Baffle Cutout
5.6" / 144mm
Mounting Depth
2.3" / 58mm
Motor Diameter
2.9" / 73mm
Product Overview
Get peak performance with DS18’s PRO-CF6.2SLN, the ultimate motorcycle loudspeaker designed for thrill-seekers. This 2-ohm 6.5-inch loudspeaker features a sleek, slim-profile design that fits seamlessly into motorcycles, ATVs, UTVs, and other powersports vehicles.
Crafted with a water-resistant carbon fiber cone and a robust neodymium magnet, the PRO-CF6.2SLN is built to withstand harsh outdoor conditions without compromising on sound quality. It delivers powerful sound at an impressive 150W RMS and 300W MAX. The PRO-CF6.2SLN’s high sensitivity of 93 dB guarantees your ride is filled with crisp highs and deep mids, taking your audio experience to unbelievable levels.
Featuring demodulating rings for reduced distortion and better thermal control, the PRO-CF6.2SLN offers reliability and clarity at any volume level. The speaker's curvilinear cone shape enhances sound dispersion for an immersive audio experience no matter where the road takes you. With its glossy black steel basket and spider-crossed lead connection, the PRO-CF6.2SLN not only looks great but also provides durability where you need it most.
The compact 2.3-inch mounting depth allows for easy installation in the tightest spaces, making it an ideal choice for a motorcycle audio upgrade or an ATV speaker solution.
Upgrade to the PRO-CF6.2SLN today—because your system deserves nothing less than the best!
