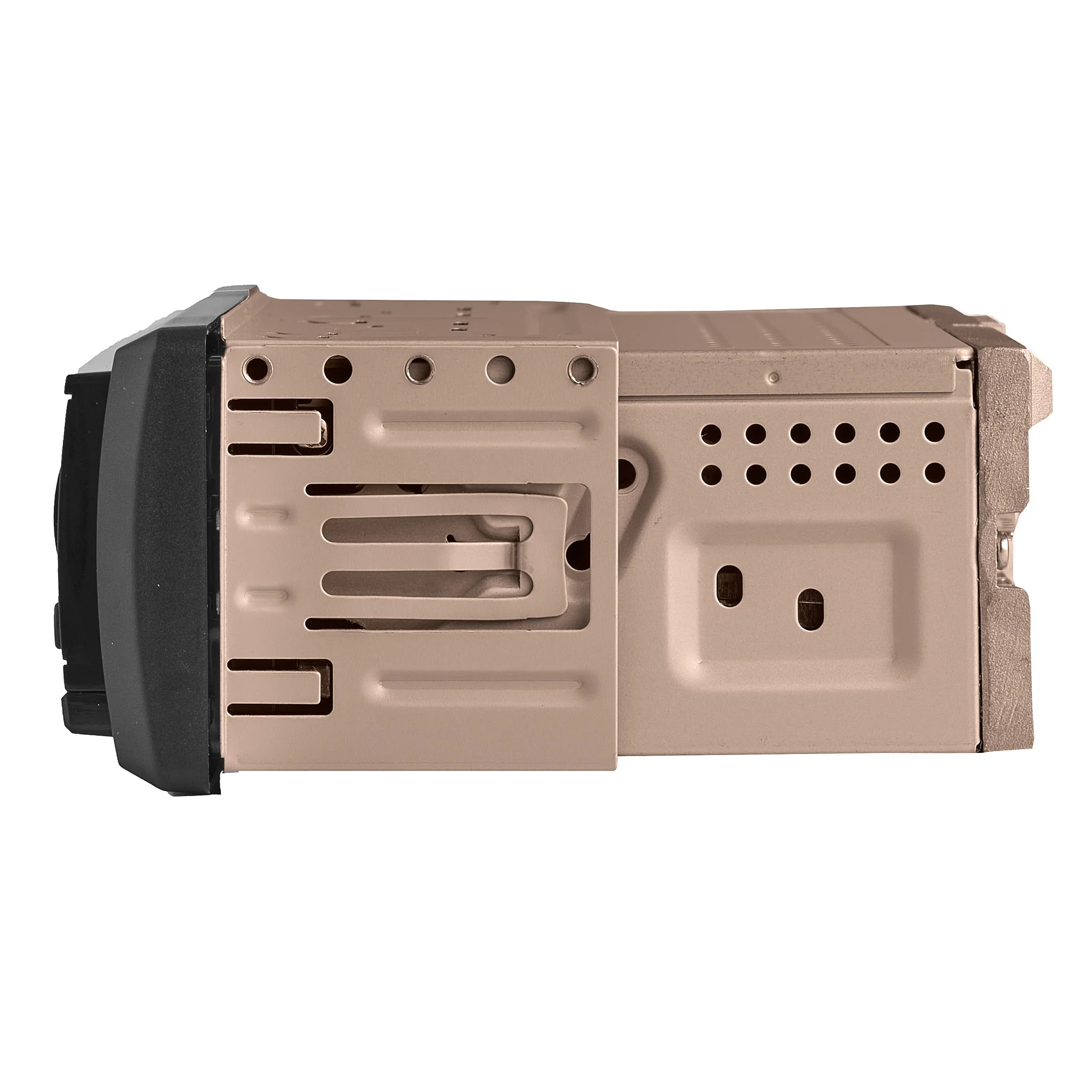

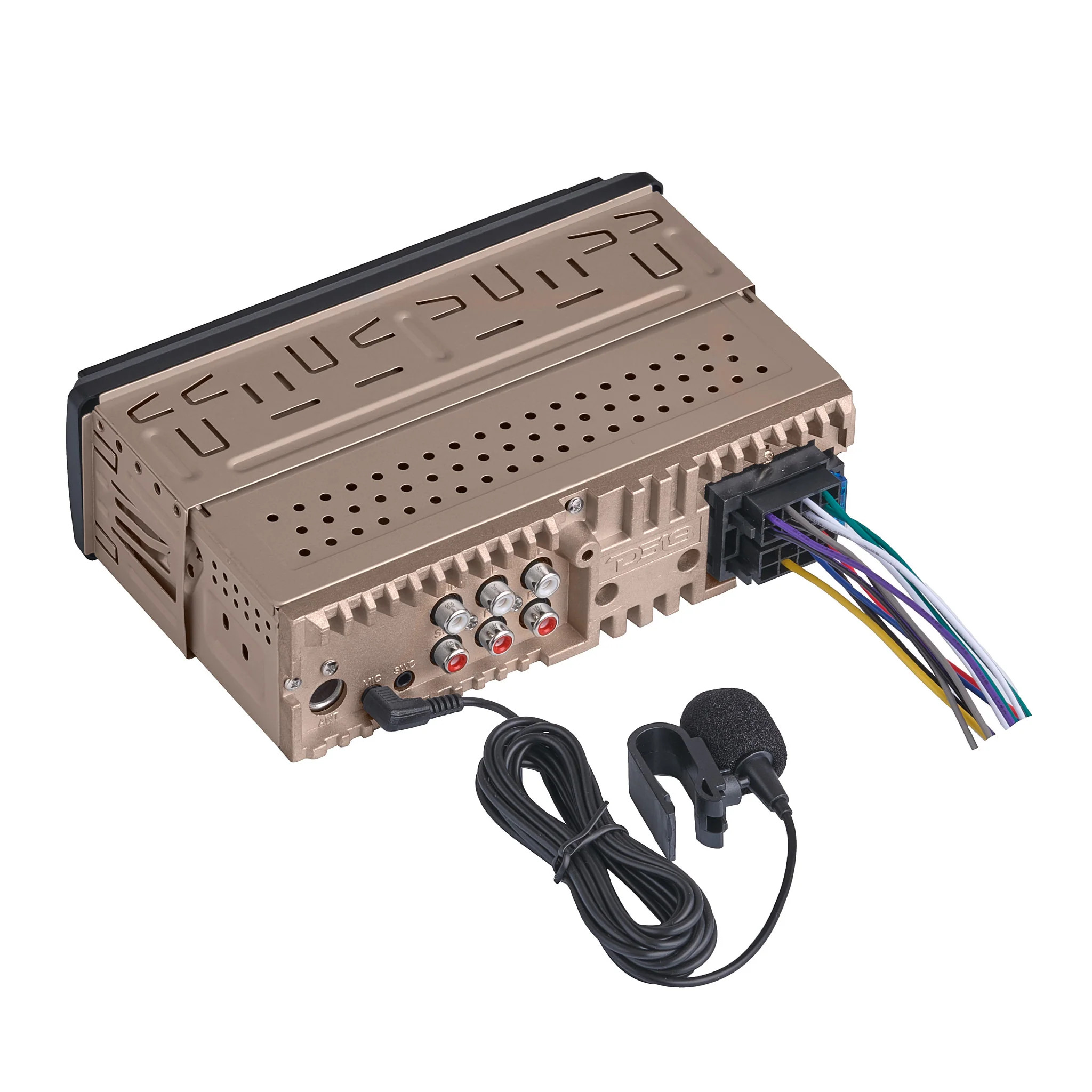

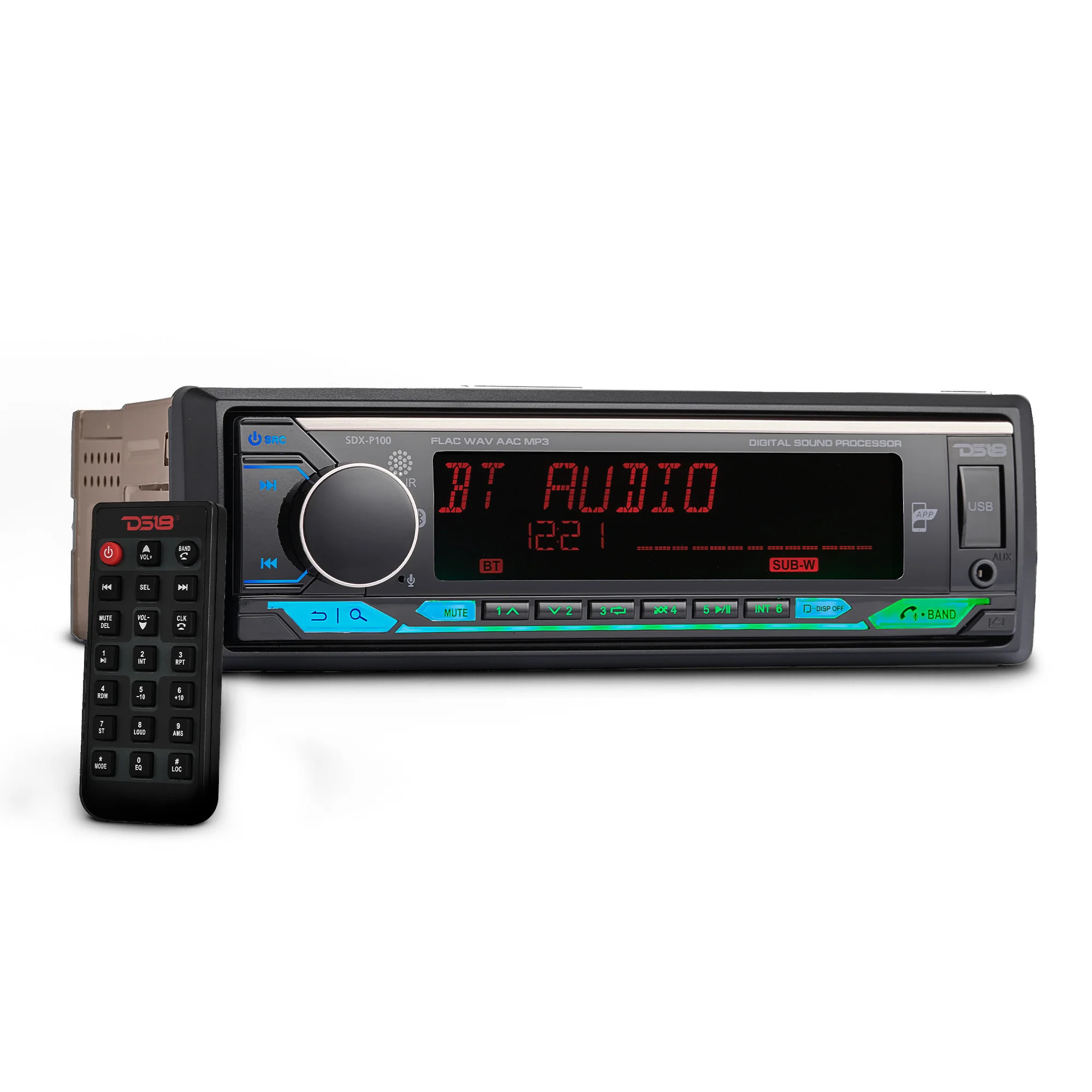

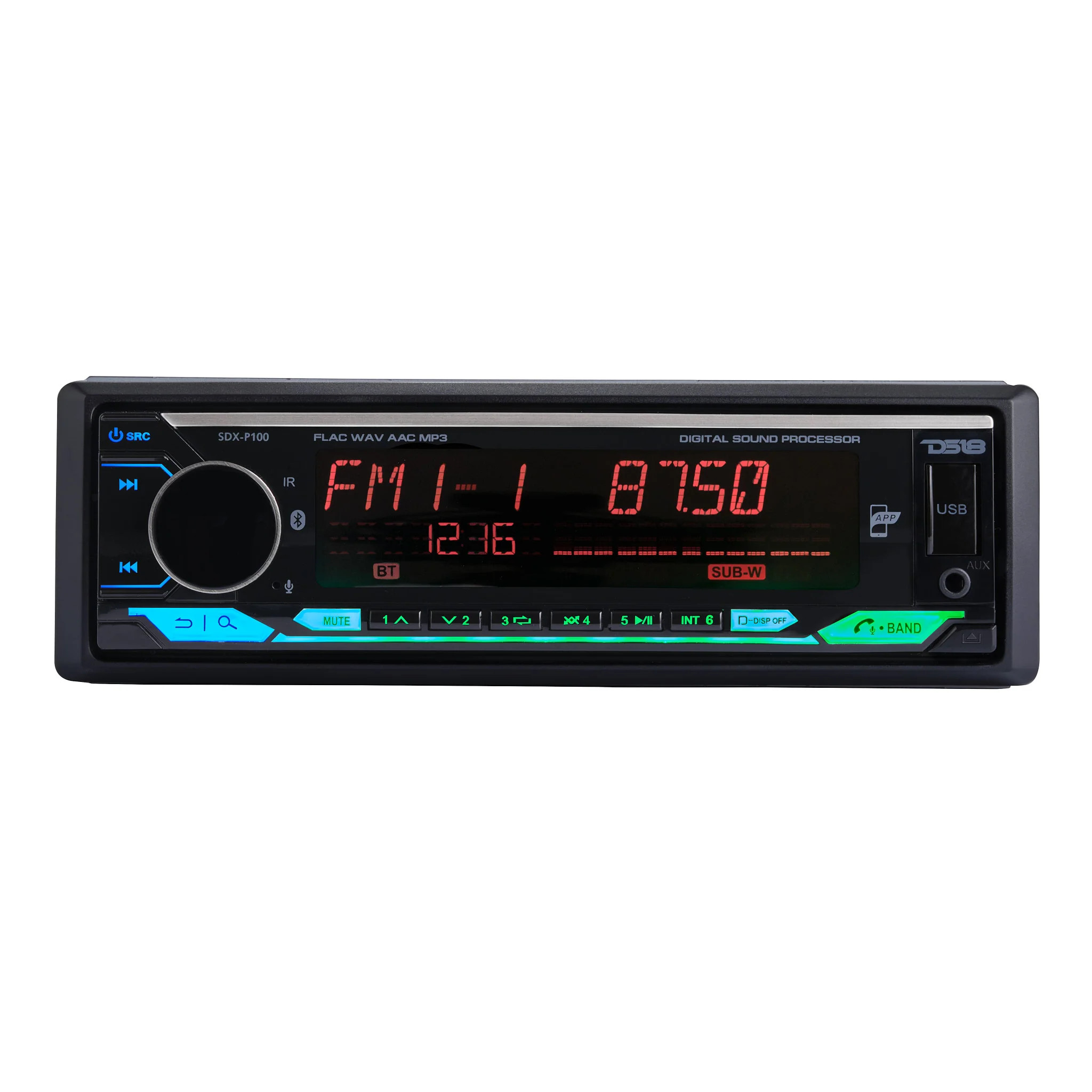

DS18 60 Watts RMS (4 x 15) Digital Media Receiver | Single Din | DSP | APP | Bluetooth Audio and Calling Head Unit | Aux Input | USB | Mechless | AM/FM Radio Receiver | 3V + 3.5V Subwoofer

SPECS

SKU
SDX-P100
Nominal DIN Size
1-DIN
Rated Power Voltage
14.4V
Voltage Operation
9.6-15 Volts
Maximum Current Consumption
15A
Temperature Operation
0~60°C / 32~140°F
Screen Size
4" / 104mm
Display Type
LCD Dots
Buttons / Controls
ABS
Backlight Illumination Type
RGB / 3 Zones
Body Material / Color / Finish
Steel / Bronze

AUDIO SPECIFICATIONS

Maximum Power Output (Peak)
4x40W
Continuous Power Output (RMS)
4x13W
Minimum Impedance
4 Ohms
Frequency Response
20Hz-20KHz
Pre-Output Level (RCA)
3V / 3.5V (Subwoofer)
Equalizer Bands
24 Bands
Equalizer Gain
+ / - 9dB
Crossover
3-Way
Crossover Slope
6 / 12 / 24 dB/Oct
Time Alignment
0~25ms / 0~850cm
Audio Control
Subwoofer Level, Fader, Balance, Loudness

TUNER & BT SPECIFICATIONS

Frequency Range (FM)
87.5 - 108.0 MHz
Frequency Range (AM)
522 - 1620 KHz
Presets Memory
18 FM / 12 AM
Region
Europe, America, Asia, Russia
Sensitivity Adjustment
Local / DX
Version
4.2
Services
Hands Free Calls, Audio Streaming, APP Remote Control
Audio Protocols
A2DP, AVRCP, HFP
Range
32ft / 10m

USB / SD PLAYER SPECIFICATIONS

Type / Class
2.0, 3.0 / FAT 16, FAT32
Format Files Supported
FLAC (16 Bit), WAV, AAC, APE, MP3
Max Memory Size Reader
64 Gb
Max Current USB Charger
1A
Number of Ports
1 (Front)

CONNECTIVITY SPECIFICATIONS

A/V Aux Input
Yes, Front 3.5mm Jack (2V Max)
Microphone
Yes, Built-In / External Mic Input
Remote Control (SWC)
Yes, 3.5mm Jack Input
Remote Control (Handset)
Yes, Card Type with Rubber Buttons
APP Control
Yes, (Android Devices)

MEASUREMENTS

Overall Width (Chassis)
7" / 178mm
Overall Height (Chassis)
1.96" / 50mm
Overall Depth (Chassis)
4" / 104mm
Overall Width (Bezel Frame)
7.4" / 188mm
Overall Height (Bezel Frame)
2.2" / 58mm
Overall Depth (Bezel Frame)
0.98" / 25mm
