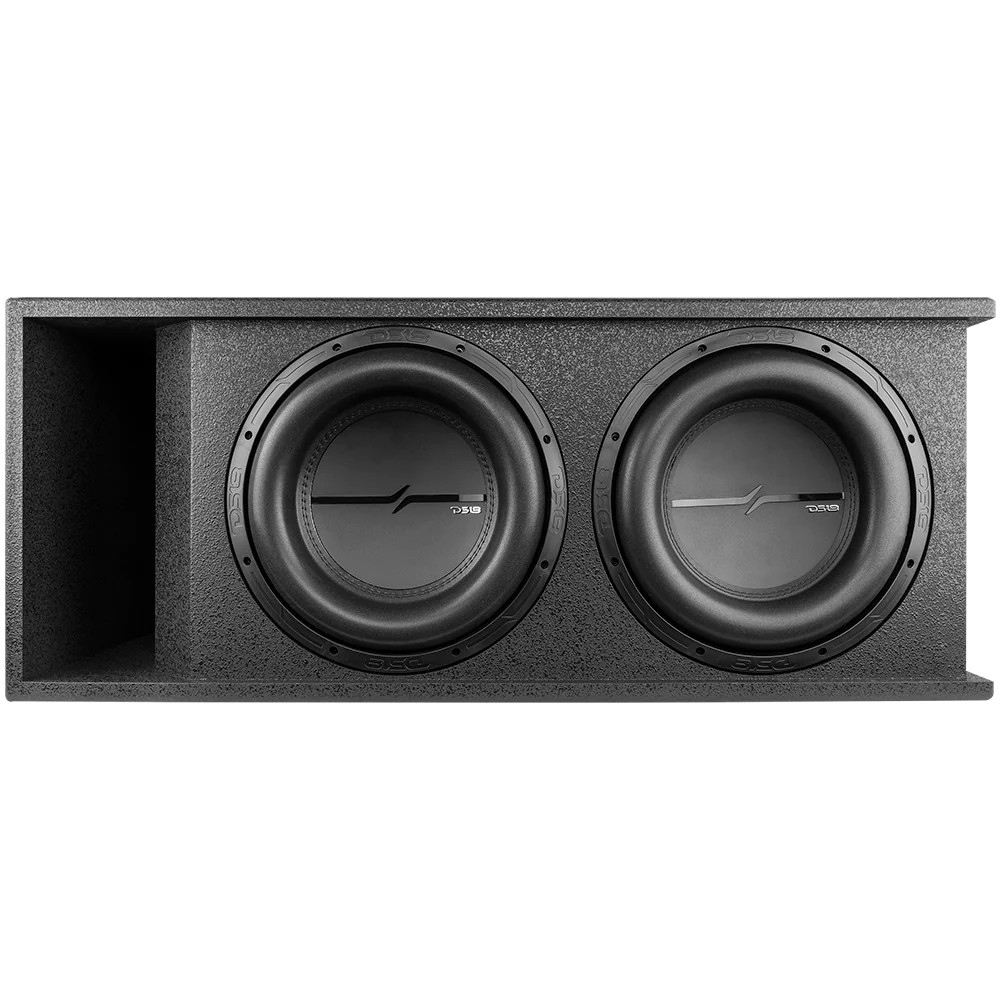

DS18 Bass Package 2 x ZXI12D4 12? Subwoofers In a Ported Rugged Box

DS18 Bass Package 2 x ZXI12D4 12? Subwoofers In a Ported Rugged Box

• ZXI Subwoofer Enclosure
• 2 X 12" ZXI12.4D
• RMS Power: 2000 Watts(4000 Watts Peak)
• Impedance: 1 Ohm ~ 93dB
• 3/4" MDF with Black Bed Liner Paint
• 29 HZ Ported Box

DOUBLE SUBWOOFER

12" DIAMETER

1 OHM

FRONT PORTED BOX

3/4 MDF

BLACK BED LINER PAINT

SPECS

SKU
ZXI-212LD.RG
Speaker Type / Size
Dual 12" Subwoofer (ZXI12.4D)
Total Impedance
1 ohm
Total RMS Power Handling
2000 W
Total MAX Power Handling
4000 W
Sensitivity (1w/1m)
93dB
Frequency Response
15-600 Hz
Recommended Lo Pass Crossover
60 HZ



SPEAKER SPECIFICATIONS

Voice Coil Diameter
3" / 76.5mm
Voice Coil Former Material
Black Aluminum
Winding Material
CCAW
Cone Material
Non Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Aluminum
Magnet Material
Ferrite
Magnet Weight
224 Oz (4X56Oz)



BOX SPECIFICATIONS

Internal Volume
141L / 5ft3
Port Tune
29Hz
Load Configuration
Parallel (Dual 4ohm Each)
Box Type
Front Ported
Box Material
3/4" / 19mm MDF
Finish Material
Black bedliner Paint
-3Db Dropping Point
24Hz



MEASUREMENT

Height
14.5" / 368mm
Width
36.22" / 920mm
Depth 1
19.7" / 500mm
Depth 2
21.65" / 550mm
Port Dimensions (W/H/Length)
3.93" x 13" x 26"

 Immerse yourself in powerful booming bass with DS18’s ZXI-212LD.RG!

The ZXI-212LD.RG is a precisely engineered enclosure, built to maximize the potential of it’s included subwoofers, the ZXI-12.4D. This front ported enclosure, with port dimensions of 1.96" x 13" x 23.2" (50 x 330 x 590 mm), ensures optimal air flow, minimizing distortion and maximizing the bass. Crafted from ¾” MDF and finished with rugged black bed liner, DS18’s ZXI-212LD.RG guarantees structural integrity and reduces resonance for powerful output.

At the heart of this beast lies the ZXI-12.4D, a single 12" subwoofer that embodies DS18’s perfect harmony between precision engineering and raw power. With a dual-ohm configuration, the ZXI-212LD.RG has an impedance of 1-OHM, and is ready to handle a thunderous 2000W of RMS power, and a staggering 4000W of MAX power handling. The ZXI-12.4D boasts an impressive sensitivity of 93 dB, ensuring every nuance of your favorite tracks is reproduced with impeccable clarity and detail. The ZXI12.4D allows you to experience the full spectrum of low frequency response, this masterpiece delivers the most efficient frequency response range from 15Hz to 60Hz. This range is even easier to feel with the included enclosures port tuning to 29Hz. With these subwoofers you’ll feel every note of all your favorite songs, immersing you in the audio like never before.

As you install the ZXI-212LD.RG in your vehicle, its dimensions of 14.5" (368mm) in height, 36.22" (920mm) in width, and 19.7" (500mm) and 21.65” (550mm) in depth seamlessly blend into your car's interior, ensuring a clean and unobtrusive installation.

Highlights

• Dual ZXI12.4D handles a thunderous 2000W of RMS power and a staggering 4000W of MAX power.
• Impeccable clarity and detail with a sensitivity of 93 dB and a frequency response range from 15Hz to 600Hz.
• 3" black aluminum voice coil for heat dissipation
• The precisely engineered enclosure with an internal volume of 141 liters (5ft³) and front-ported design
• Expertly crafted from 3/4" (19mm) MDF with a sleek black bed liner paint finish
• Optimal port dimensions of 1.96" x 13" x 23.2" (50 x 330 x 590 mm)
• Seamless integration with your vehicle's interior, with dimensions of 14.5" (368mm) in height, 36.22" (920mm) in width, and 19.7" (500mm) and 21.65” (550mm) in depth.

Great For

• Car Audio
• Pro Audio
