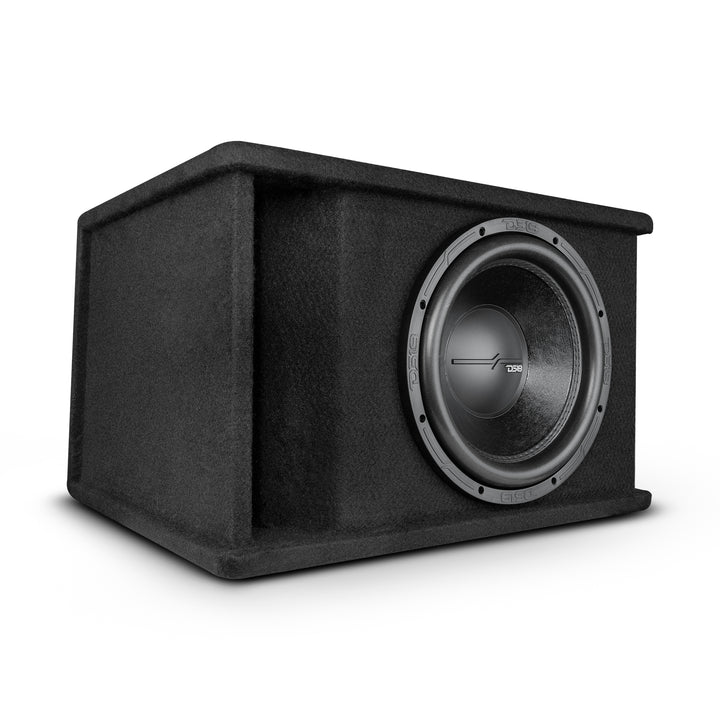

DS18 Bass Package ZR12 12" Subwoofer In a SPL Ported Box 1500 Watts

SKU
ZR112LD
Speaker Type / Size
Single 12" / 316mm
Total Impedance
1 Ohm
Total RMS Power Handling
800w
Total MAX Power Handling
1600w
Sensitivity (1w/1m)
84 db
Frequency Response
20-200 Hz
Recommended Lo Pass Crossover
70Hz

Speaker Specifications

Voice Coil Diameter
2.5" / 61.6mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Non-Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Steel
Magnet Material
Ferrite
Magnet Weight
100 Oz

Box Specifications

Internal Volume
79.3L / 2.8 ft3
Port Tune FB
29 Hz
Load Configuration
Ported Box
Box Type
Single 12"
Box Material
3/4" (19mm) MDF
Finish Material
Black Carpet
Logo
Red Stitched
-3Db Dropping Point F3
24 Hz

Measurement

Height
14.48" / 36.8 cm
Width
23.14" / 58.8 cm
Depth 1
17.71" / 45 cm
Depth 2
19.68" / 50 cm
Gross Single Unit Weight (lb)
68
Single Unit Box Dimensions W x L x H (Inches)
26.5 x 23 x 18.7
Quantity of Units in Master Carton
1
Gross Master Carton Weight (lb)
68
Master Carton Dimensions W x L x H (Inches)
26.5 x 23 x 18.7
