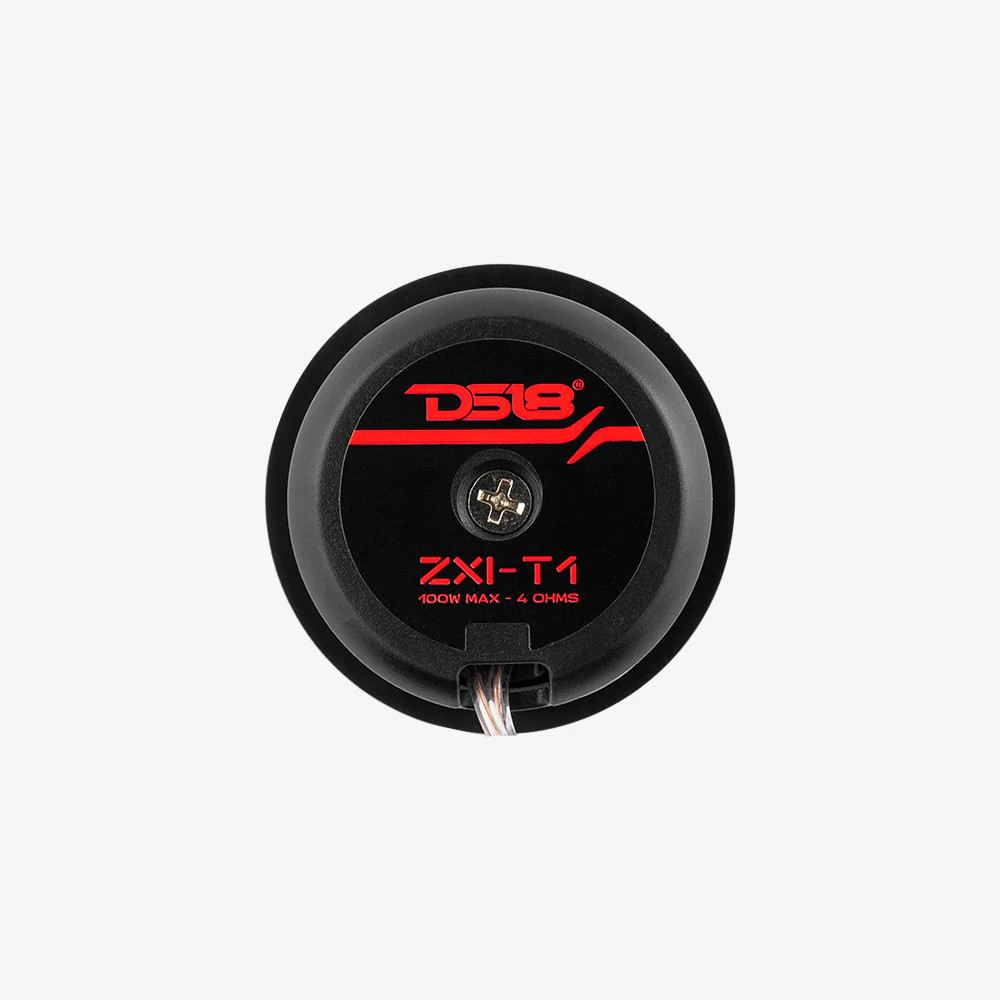

Name: DS18 ELITE Z SERIES 1.7" PEI DOME TWEETERS WITH 1" ALUMINUM VOICE COIL - FLUSH, SURFACE & ANGLE MOUNTS INCLUDED
Brand: DS18
SKU: DS-ZXI-T1
Availability: OutOfStock

Description

DS18 ELITE Z SERIES 1.7" PEI DOME TWEETERS WITH 1" ALUMINUM VOICE COIL - FLUSH, SURFACE & ANGLE MOUNTS INCLUDED

1.7" Dome Tweeter
RMS Power: 50 Watts(100 Watts Peak)
Impedance: 4 Ohm ~ 92dB
PEI Diaphragm
Neodymium Magnet
Pair

KEY FEATURES

4 OHM

1" VOICE COIL

NEODYMIUM MAGNET

PEI dome DIAPHRAGM

2 MOUNTING OPTIONS

SOLD AS PAIR

SPECS

SKU
ZXI-T1
Nominal Diameter
1.7" / 43mm
Nominal Impedance
4 OHMS
AES Power Handling
25W
Program Power Handling
50W
Peak Power Handling
100W
Sensitivity (1w/1m)
92dB
Frequency Response
1KHz-20KHz
Recommended Hi Pass Crossover
3.5KHz
Pair
Yes
Body Color & Material
Black ABS

MOTOR

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Aluminum
Winding Material
SV
Diaphragm Material
PEI
Magnet Material
Neodymium
Magnet Weight
13 g

MEASUREMENTS / WITH ANGLE SURFACE MOUNT ADAPTOR

Overall Diameter
1.89" / 48 mm
Overall Height
1.73" / 44 mm

WITH FLUSH MOUNT ADAPTOR

Overall Diameter
2.16" / 55 mm
Overall Depth
1.18" / 30 mm
Front Mount Baffle Cutout
1.89" / 48 mm
Mounting Depth
0.78" / 20 mm

WITH FLUSH MOUNT ADAPTOR

Overall Diameter
1.71" / 43.5 mm
Overall Height
1" / 27.5 mm

WITH FLUSH MOUNT ADAPTOR

Overall Diameter
2.16" / 55 mm
Overall Depth
1.18" / 30 mm
Product Weight
0.5 lbs
Product Dimensions
6.75 x 5.25 x 1.875
M/C Weight
24 lbs
M/C Dimensions
19.75 x 14.25 x 11.5
M/C QTY
40
Sold In
Pair
