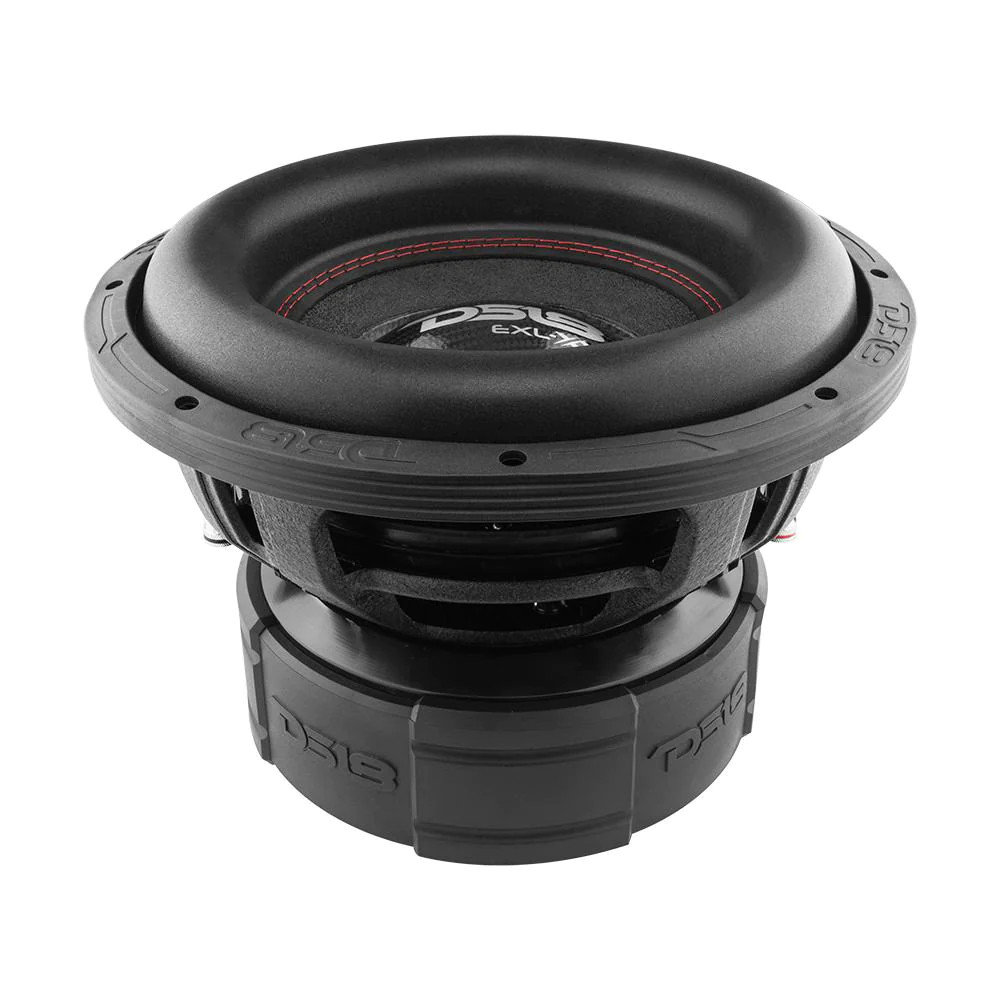

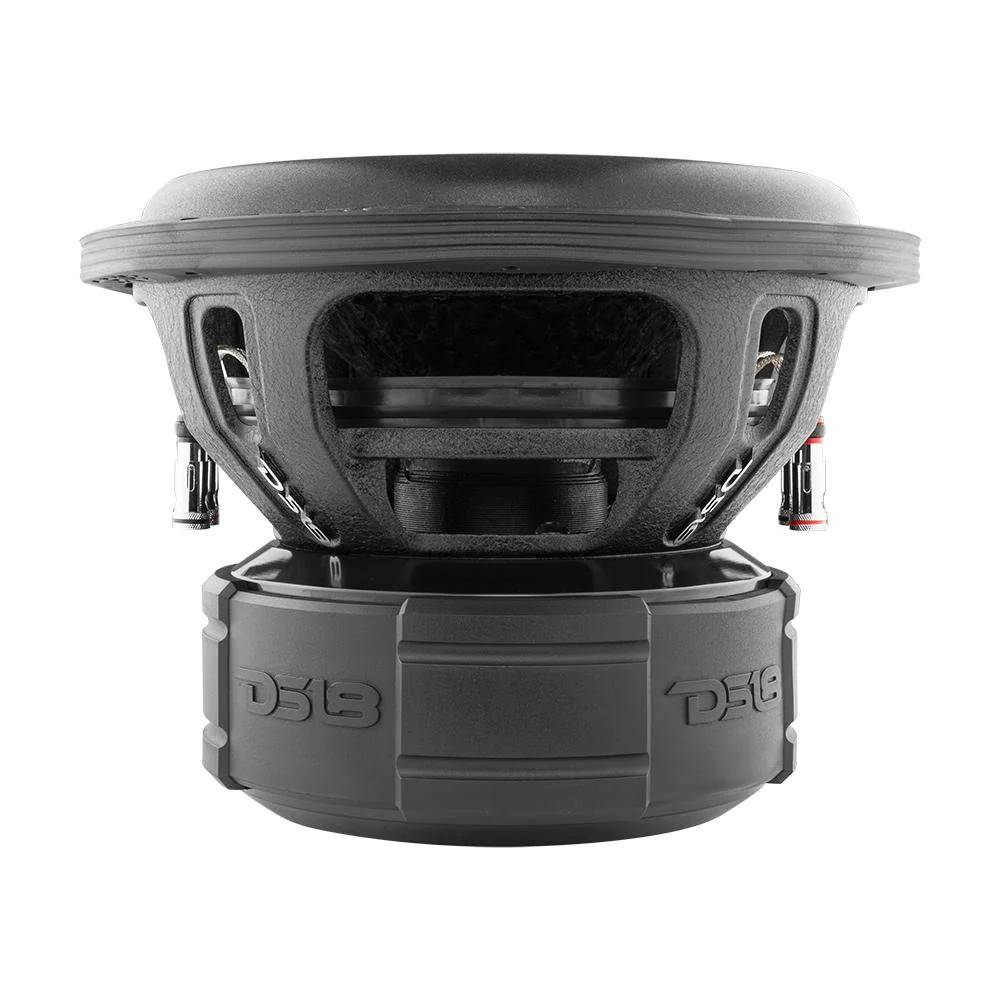

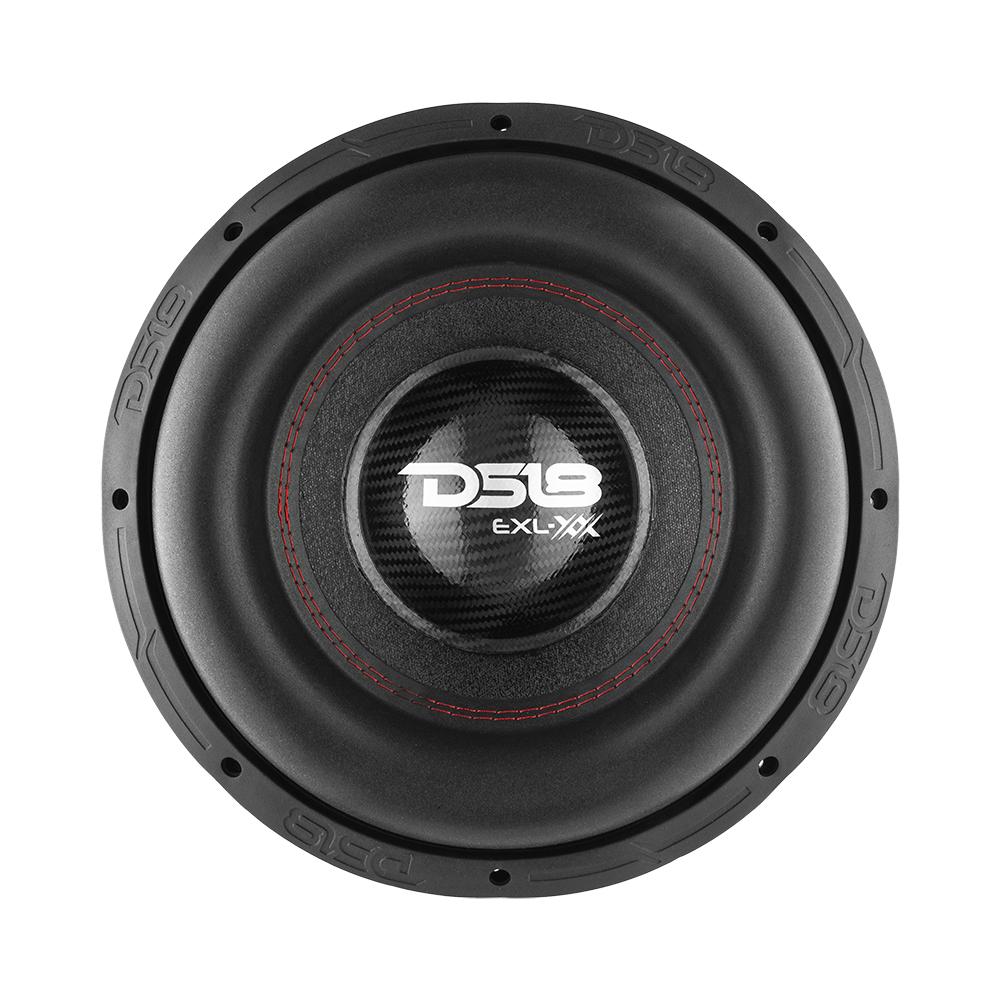

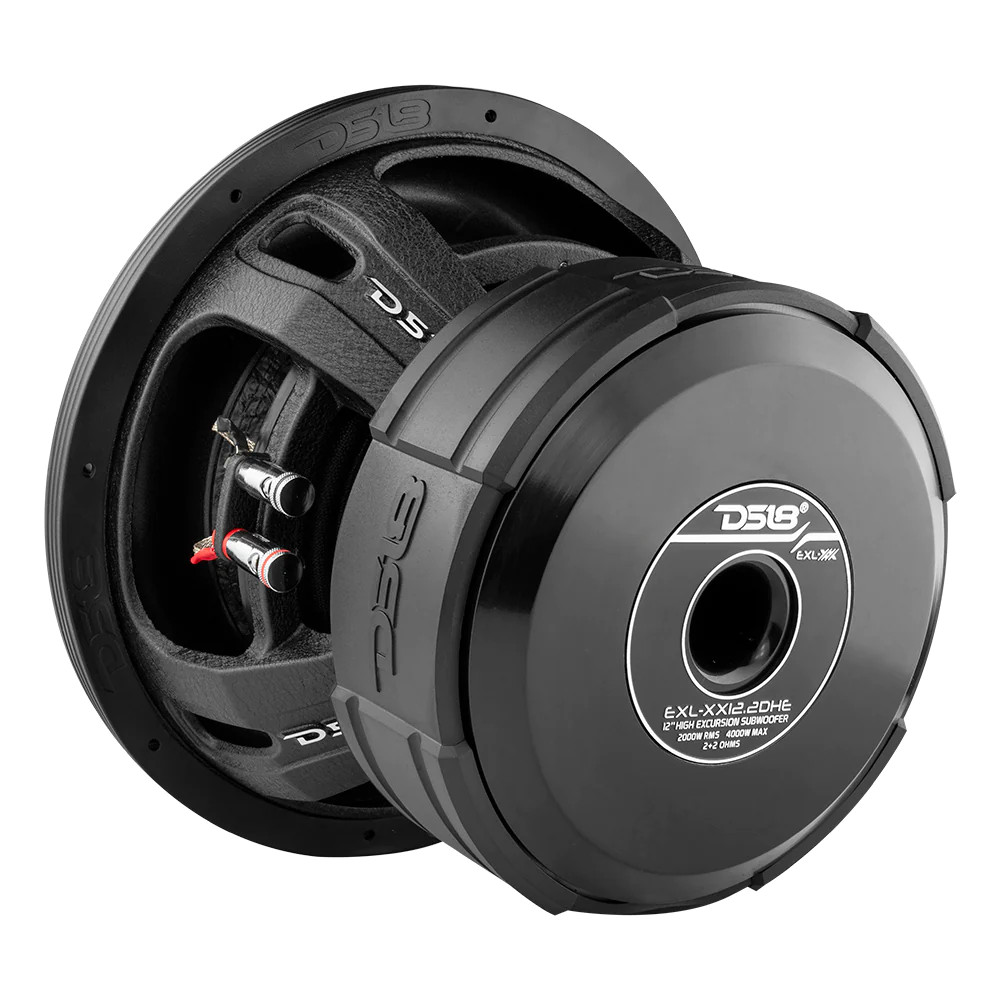

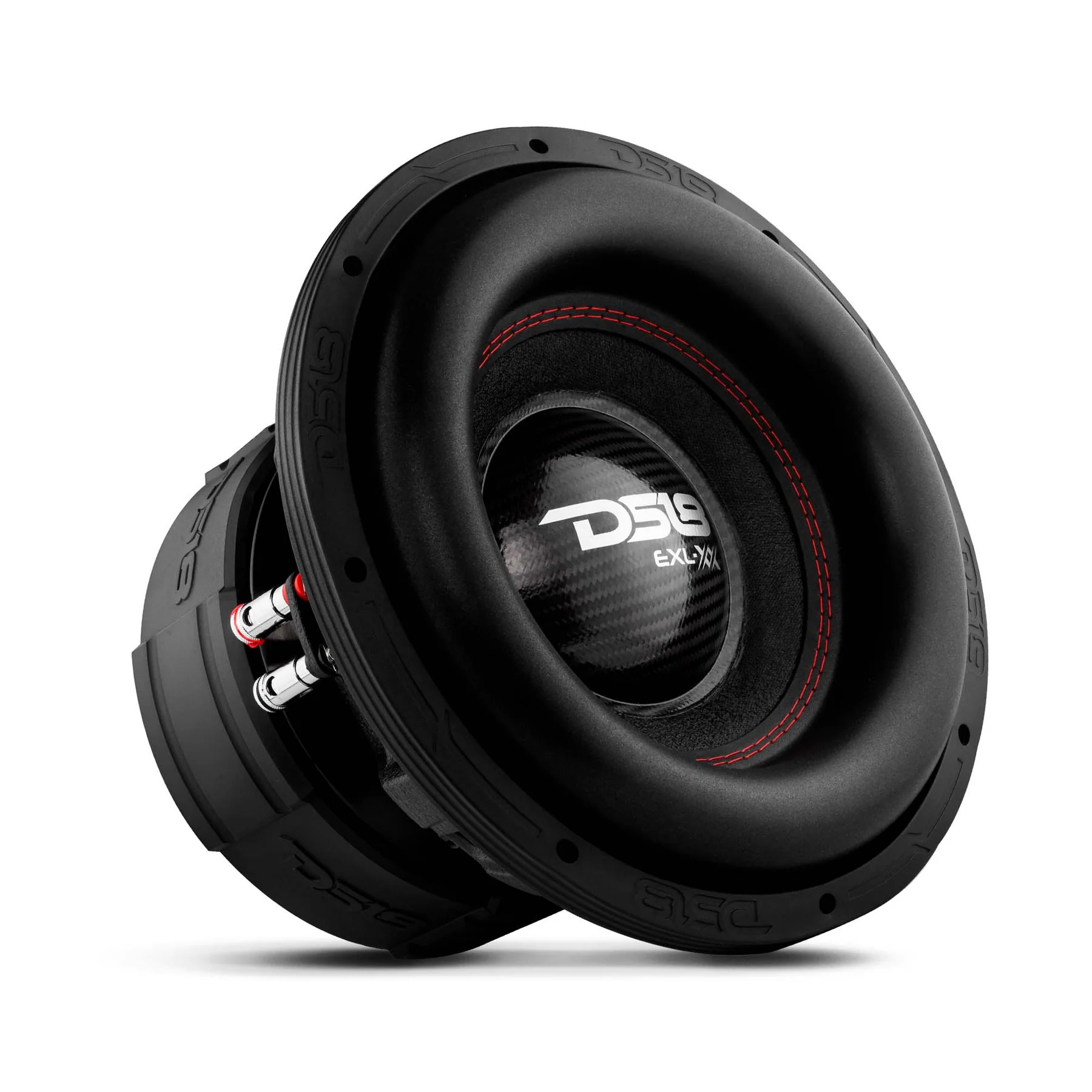

DS18 EXL HIGH EXCURSION 12" SUBWOOFER 4000W DVC, DUAL 2 OHM

SPECS

SKU
EXL-XX12.2DHE
Nominal Diameter
12"
Nominal Impedance
2+2 ohms
RMS Power Handling
2000W
Maximum Power Handling
4000W
Sensitivity (1w/1m)
87dB
Frequency Response
20-1.3K Hz
Recommended Lo Pass Crossover
80 Hz

MOTOR

Voice Coil Diameter
3" / 75.6mm
Voice Coil Former Material
Black Aluminum
Winding Material
CCAW
Cone Material
Paper
Dust Cap Material
Glass Fiber
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
306 OZ
Displacement Volume
3.26L

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
21.986L
Free Air Resonance Fs
39.8 Hz
Mechanical Factor Qms
5.128
Electrical Factor Qes
0.529
Total Factor Qts
0.468
Moving Mass Mms
302.158 g
Compliance Cms
0.025 mm/N
Bl Factor Bl
16.523
Voice Coil Inductance Le
6.9 mH
Diaphragm Area Sd
433.74 cm²
Dc Resistance Re
2 + 2 ohms
Efficiency Bandwidth Product EBP
75.2

MEASUREMENTS

Overall Diameter
12.63" / 321mm
Overall Depth
9.25" / 235mm
Front Mount Baffle Cutout
11.1" / 282mm
Mounting Depth
7.87" / 200mm
Motor Diameter
8.89" / 226mm
Gross Single Unit Weight (lb)
53.5
Dimensions W x L x H (Inches)
15 x 15 x 12.5
Quantity of Units in Master Carton
1
Gross Master Carton Weight (lb)
53.5
M/C Dimensions W x L x H (Inches)
15 x 15 x 12.5
