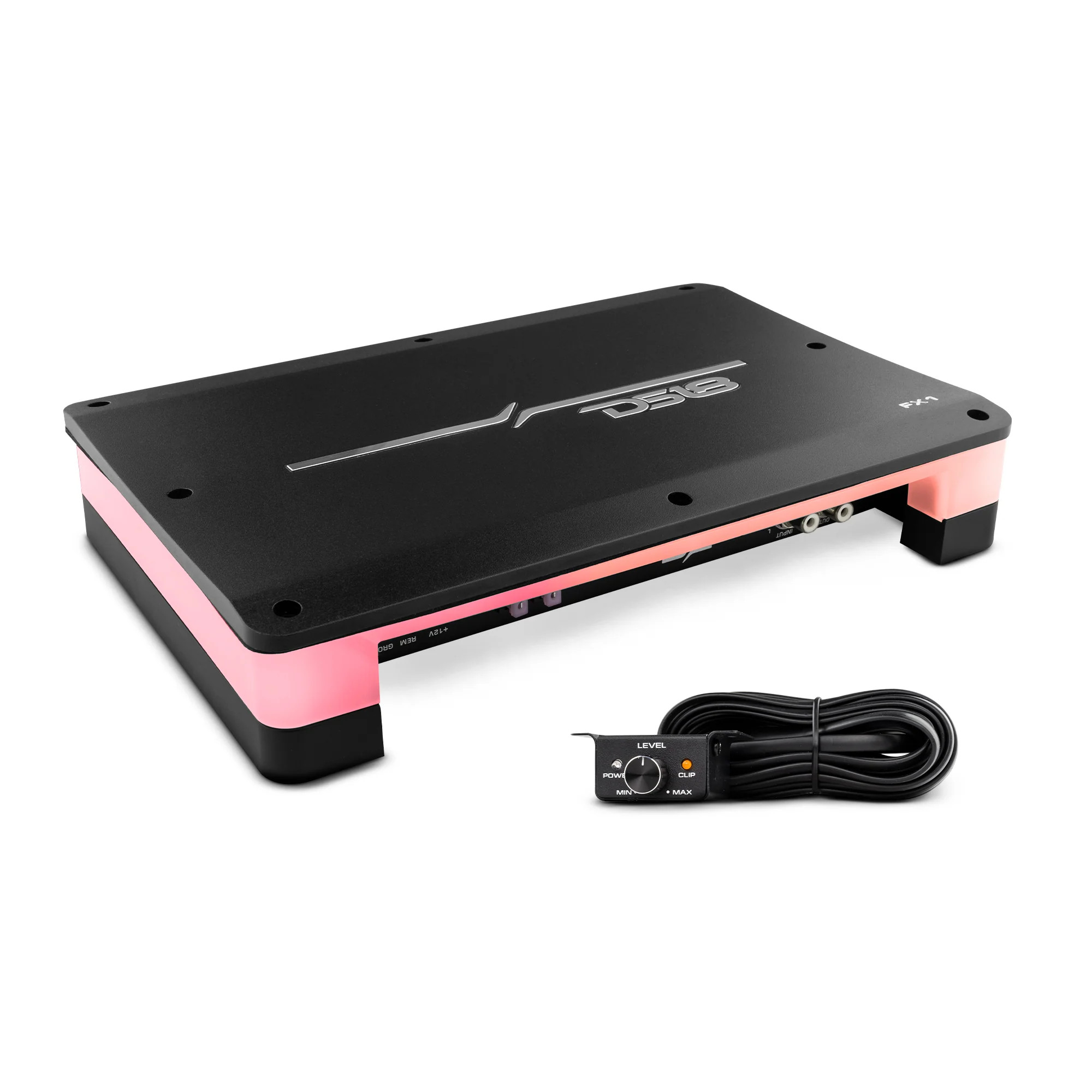

DS18 Flush Mount / Surface Mount 1 Channel Monoblock Class D Amplifier With Acrylic Cover for Custom Installation 1 X 900 Watts RMS @ 1 Ohm

SPECS

SKU
FX1
Total Watts (Peak)
2700W
RMS Power @ 4 ohm
400W
RMS Power @ 2 ohm
650W
RMS Power @ 1 ohm
900W
RMS Power @ 4 ohm Bridge
N/A

AUDIO

Frequency Response
15-250Hz
Signal to Noise Ratio
92dB
Efficiency @ 4ohm
82%
Damping Factor
75
Input Impedance
30Kohms
Channel Separation
N/A
Total Harmonic Distortion (THD)
0.08%
Low Level Input Range
0.2-10V
High Level Input
N/A
Selectable X-Over
Fixed LPF
X-Over Filter Range
50-250Hz
Bass Boost Range
0~12dB
Bass Boost Frequency
50Hz
Infrasonic Filter
10-50Hz
Phase Selector
0/180

FEATURES

Amplifier Class
Digital (D)
Amplifier Type
Monoblock / Subwoofer
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Power / Protect / Clip
Power Input Terminal Size
4 Ga
Fuse Size
80A (2x40A)
Remote Level Control
Yes
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (8.8-15.9V)
Clipping Protection
Yes
Body Color / Finish
Black Aluminum

EXTRA FEATURES

Input Channel Selectable
No

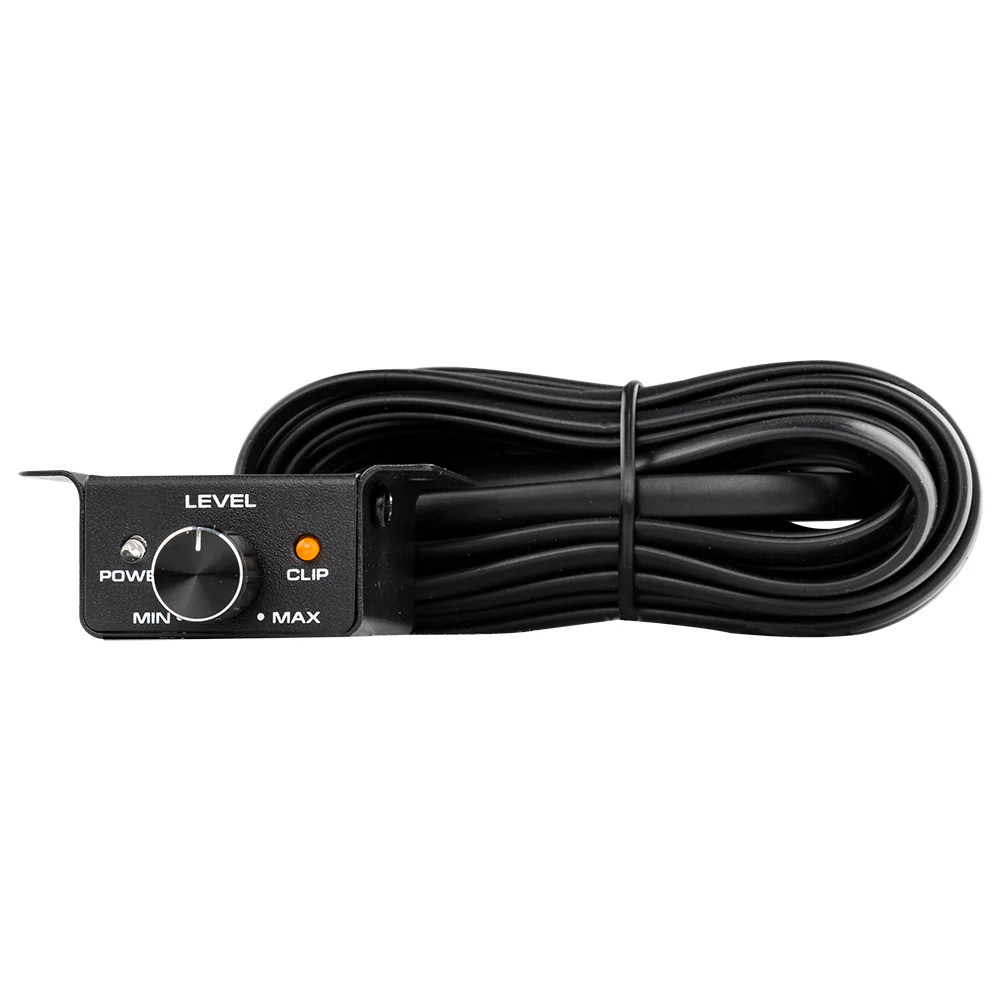

Remote Level Control with Clip Indicator and Metal Case
Yes (Included)
RCA Low Level Output
Yes
Tiffany RCA Connector
Yes
Very High Efficiency Digital Circuit Design
Yes
PCB with Anti-Corrosion Protection Coating
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Surface Mounting with Digital Chasing LED Adapter
Yes (Included)
Waterproof Rating
IPX5 (Flush Mounting)

MEASUREMENT

Body Length
9" / 228mm
Body Width
4.7" / 120mm
Overall Height
1.85" / 47mm
Heatsink Length
10.8" / 275mm
Heatsink Width
7.2" / 182mm
Mounting Hole
9.2"x5.8" / 233.7x147mm
Mounting Depth
1.5" / 39mm
Gross Single Unit Weight
2.8Kg
