POWER

Total Watts (Peak)
700W
RMS Power @ 4 ohm
2 x 100W
RMS Power @ 2 ohm
2 x 180W
RMS Power @ 1 ohm
-
RMS Power @ 4 ohm Bridge
1 x 360W

AUDIO

Frequency Response
20Hz-20Khz
Signal to Noise Ratio
>90dB
Efficiency @ 4ohm
0.94
Damping Factor
78
Input Impedance
22K
Channel Separation
55dB
Total Harmonic Distortion (THD)
0.0001
Low Level Input Range
0.25-6V
High Level Input
No

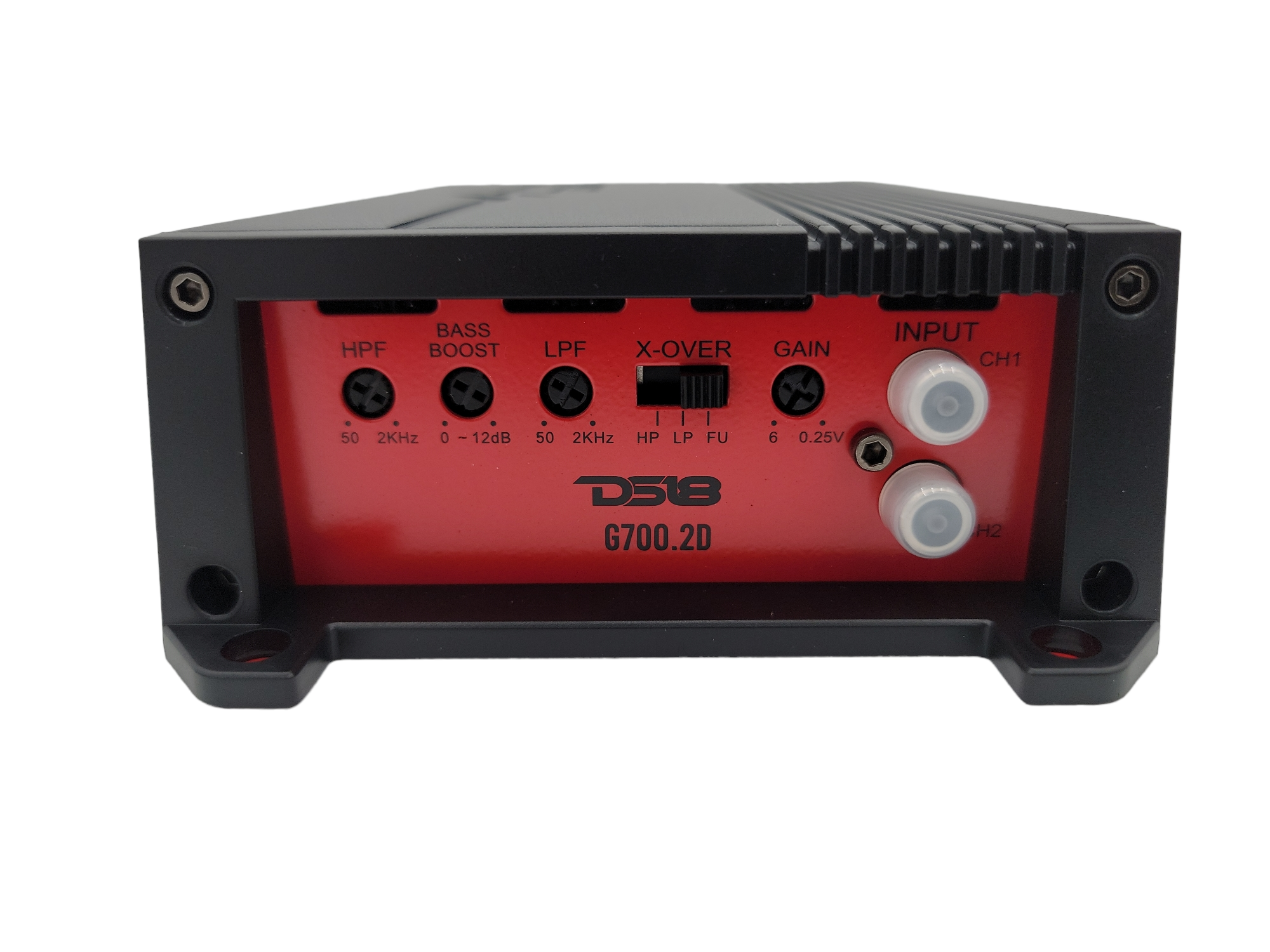

Selectable X-Over
LPF/FLAT/HPF
X-Over Filter Range
50Hz-2KHz
Bass Boost Range
0-12dB
Bass Boost Frequency
Fixed @ 45Hz
Infrasonic Filter
No
Phase Selector
No

FEATURES

Amplifier Class
Digital (D)
Amplifier Type
Full Range
Number of Channels
2CH
Minimum Impedance
2ohm St / 4ohm Bridge
Led Indicator
Power / Protection / Clip

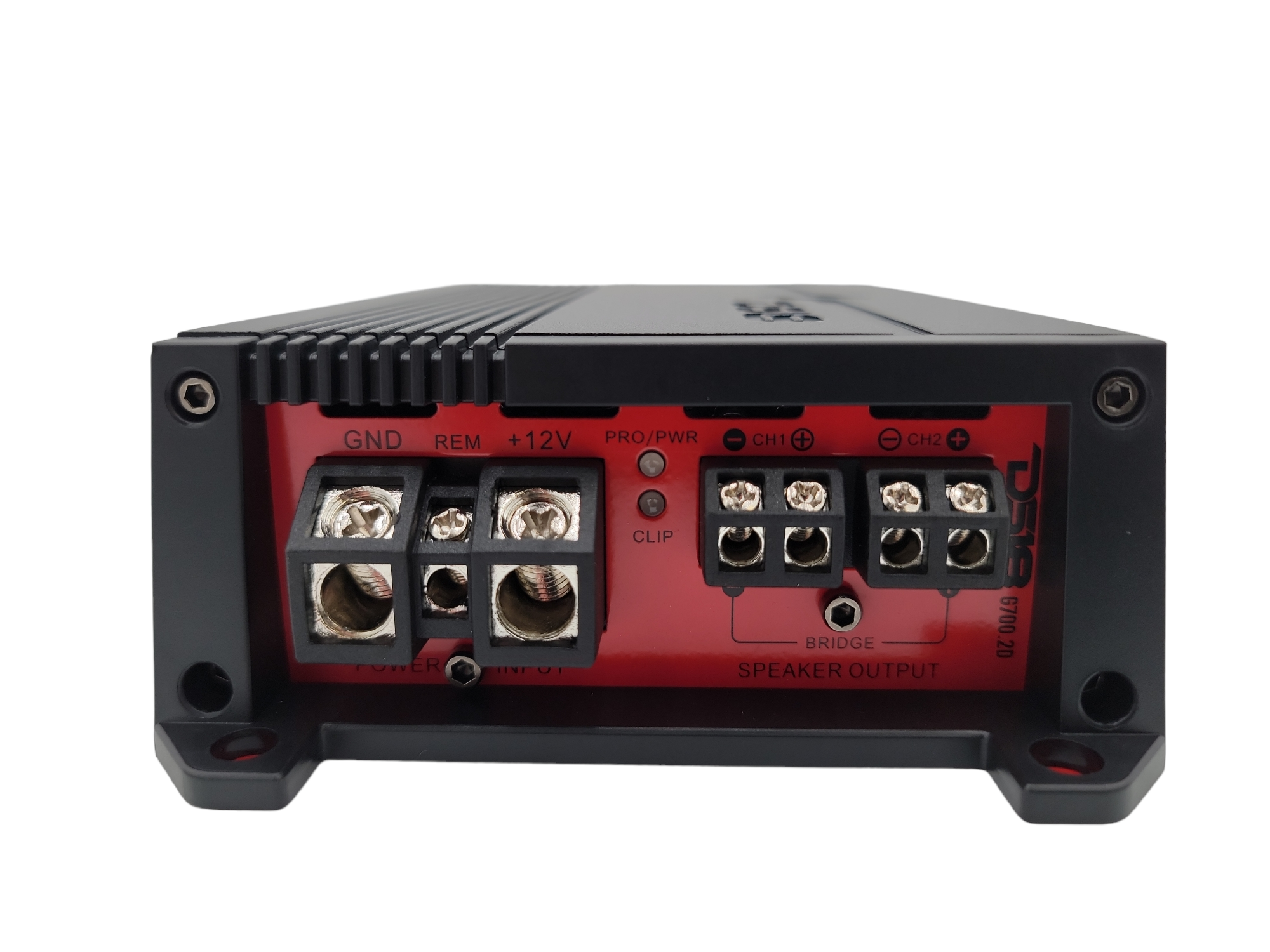

Power Input Terminal Size
4ga
Fuse Size
2 X 20A
Remote Level Control
No
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Matte black

MEASUREMENT

Overall Length
8.1" / 205mm
Overall Wide
4.72" / 120mm
Overall Height
1.96" / 50mm
Heatsink Length
6.2" / 158mm
Gross Single Unit Weight
1.2KG
