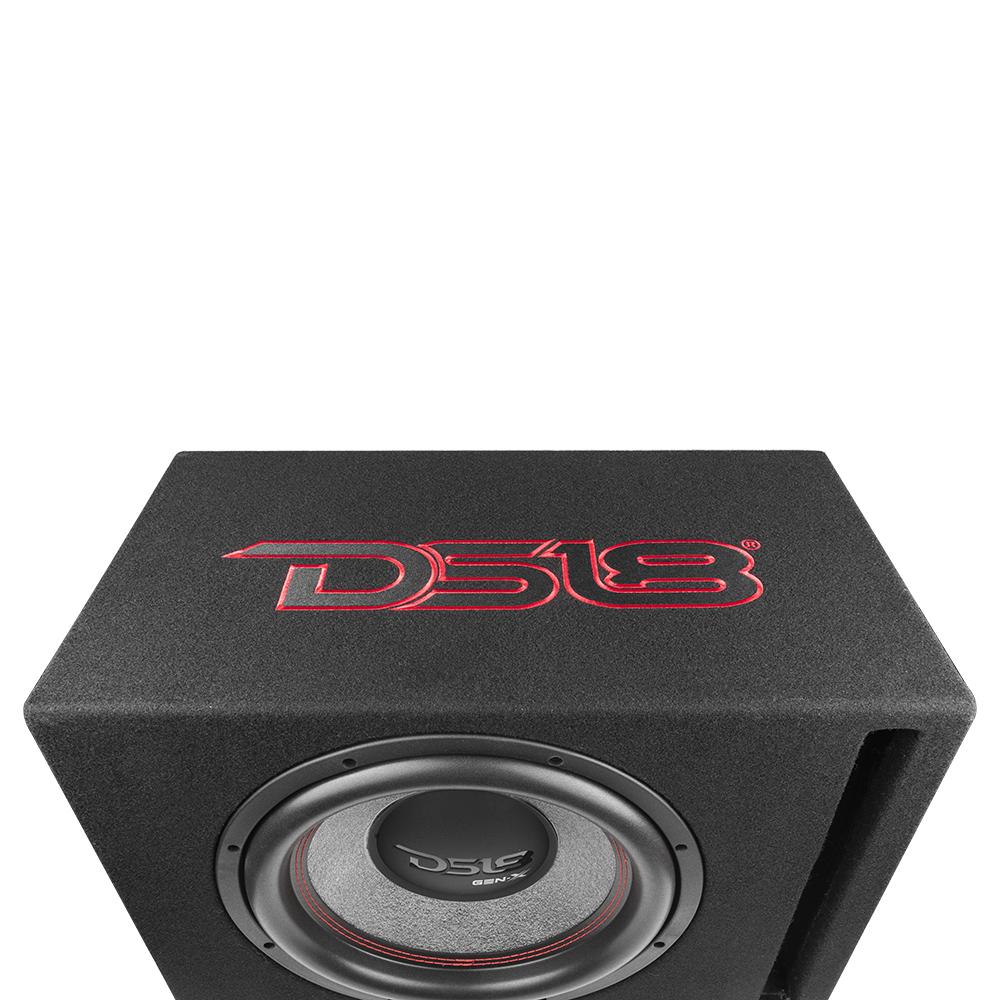

DS18 GENESIS SERIES SINGLE 12" LOADED SUBWOOFER VENTED ENCLOSURE - 450W RMS / 900W MAX

SPECS

SKU
GEN-X112LD
Speaker Type / Size
Single 12" Subwoofer (GEN-X124D)
Total Impedance
2 Ohm
Total RMS Power Handling
450W
Total MAX Power Handling
900W
Sensitivity (1w/1m)
91dB
Frequency Response
25 - 250Hz
Recommended Lo Pass Crossover
120Hz

Speaker Specifications

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Paper & Fiber Glass
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Steel
Magnet Material
Ferrite
Magnet Weight
70 Oz

Box Specifications

Internal Volume
45.3L / 1.6ft3
Port Tune (Fb)
35Hz
Load Configuration
Parallel
Box Type
Front Ported
Box Material
1/2" / 15mm MDF
Finish Material
Black Carpet
-3Db Dropping Point (F3)
29Hz

Measurement

Height
13.78" / 350mm
Width
19.68" / 500mm
Depth 1
11" / 280mm
Depth 2
14" / 356mm
Gross Single Unit Weight (lb)
40
Single Unit Box Dimensions W x L x H (Inches)
21.25 x 15.75 x 15.5
Quantity of Units in Master Carton
1
Gross Master Carton Weight (lb)
40
Master Carton Dimensions W x L x H (Inches)
21.25 x 15.75 x 15.5
