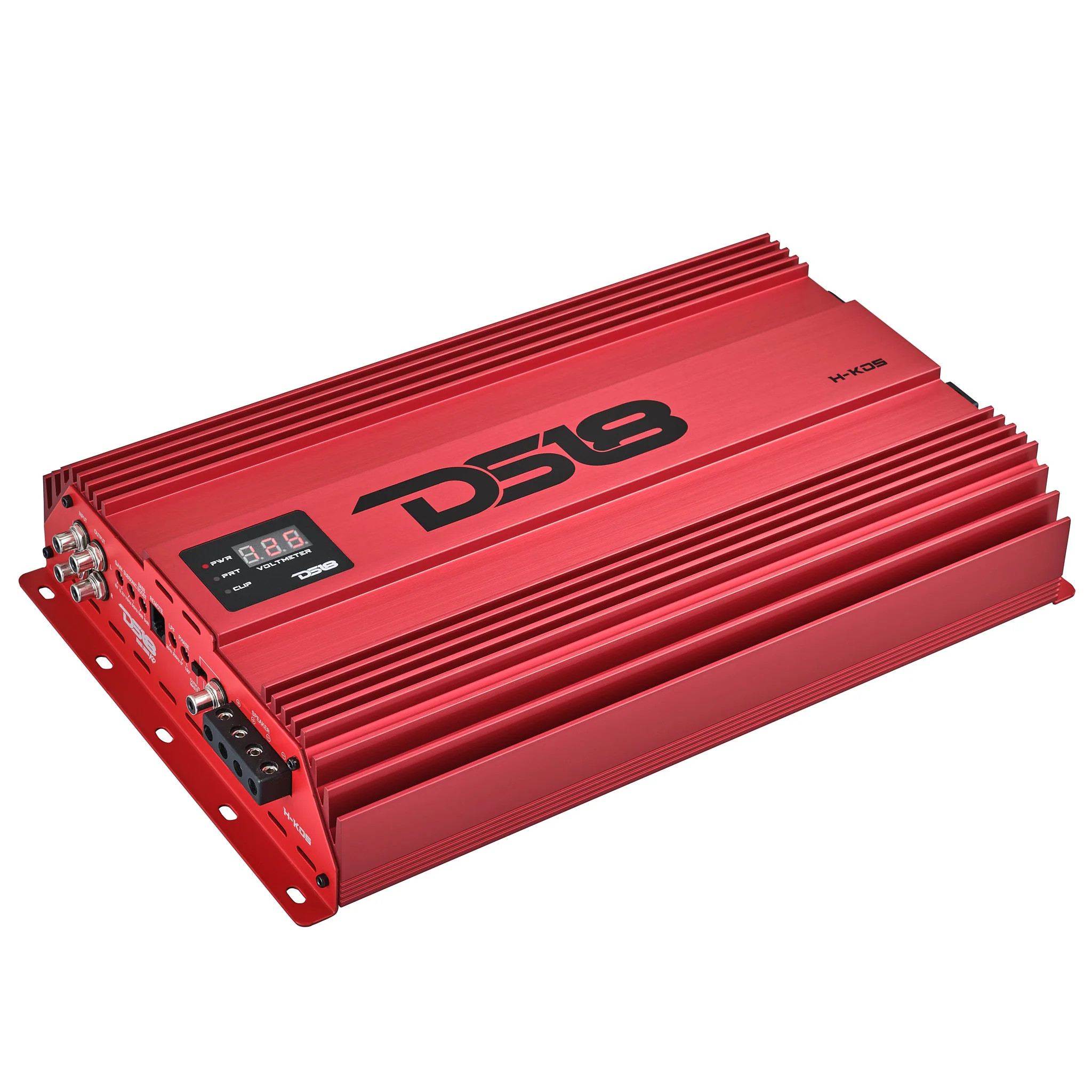

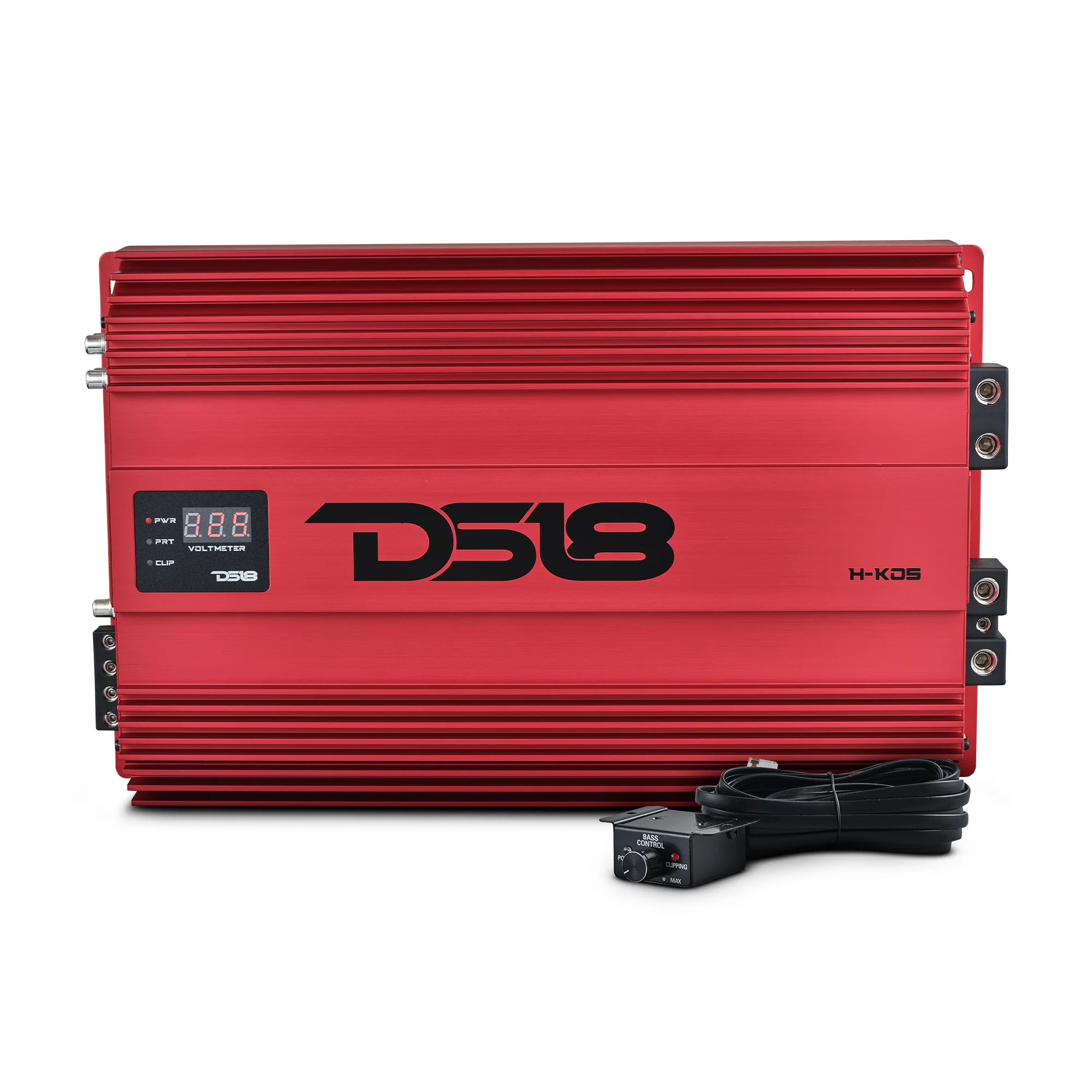

DS18 HOOLIGAN KO SPL SERIES MONO BLOCK AMPLIFIER WITH VOLTMETER AND CLIP INDICATOR 5000W RMS - KOREAN BUILT - RED

SPECS

SKU
H-KO5/RD
RMS Power @ 4 ohm
2200W
RMS Power @ 2 ohm
3500W
RMS Power @ 1 ohm
5000W
RMS Power @ 0.5 ohm
9200W (burst only)
RMS Power @ 4 ohm Bridge
N/A

Audio

Frequency Response
13Hz-300Hz
Signal to Noise Ratio
>96dB
Efficiency @ 4ohm
96%
Damping Factor
400
Total Harmonic Distortion (THD)
<0.2%

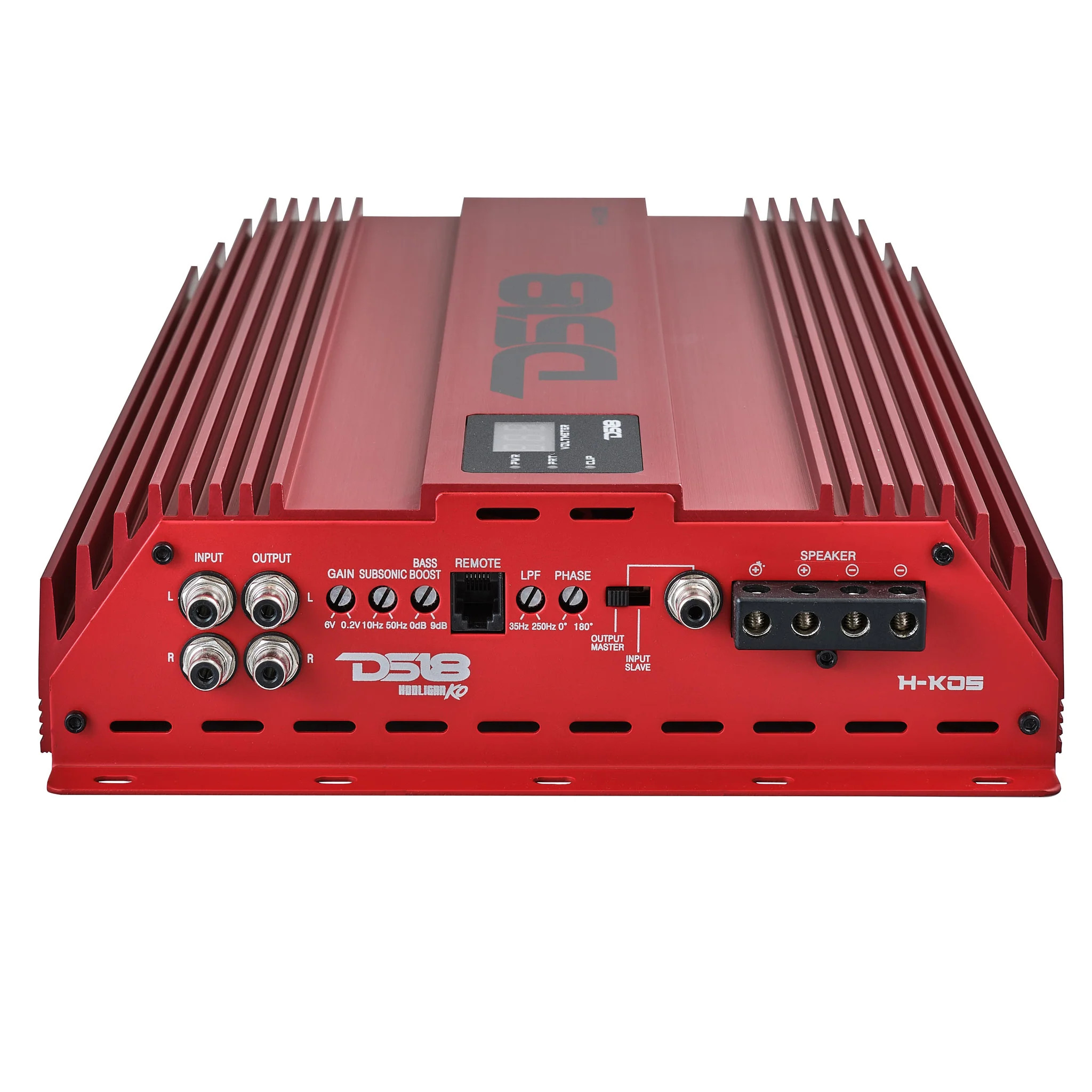

Low Level input Range
0.2-6V
Selectable X-Over
Fixed LPF
X-Over Filter Range
35-250Hz
Bass Boost Range
0-9dB
Bass Boost Frequency
45Hz
Infrasonic Filter
10-50Hz
Phase
0-180°

Features

Amplifier Class
Digital (D)
Amplifier Type
Monoblock / Subwoofer
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Power / Protect / Clip

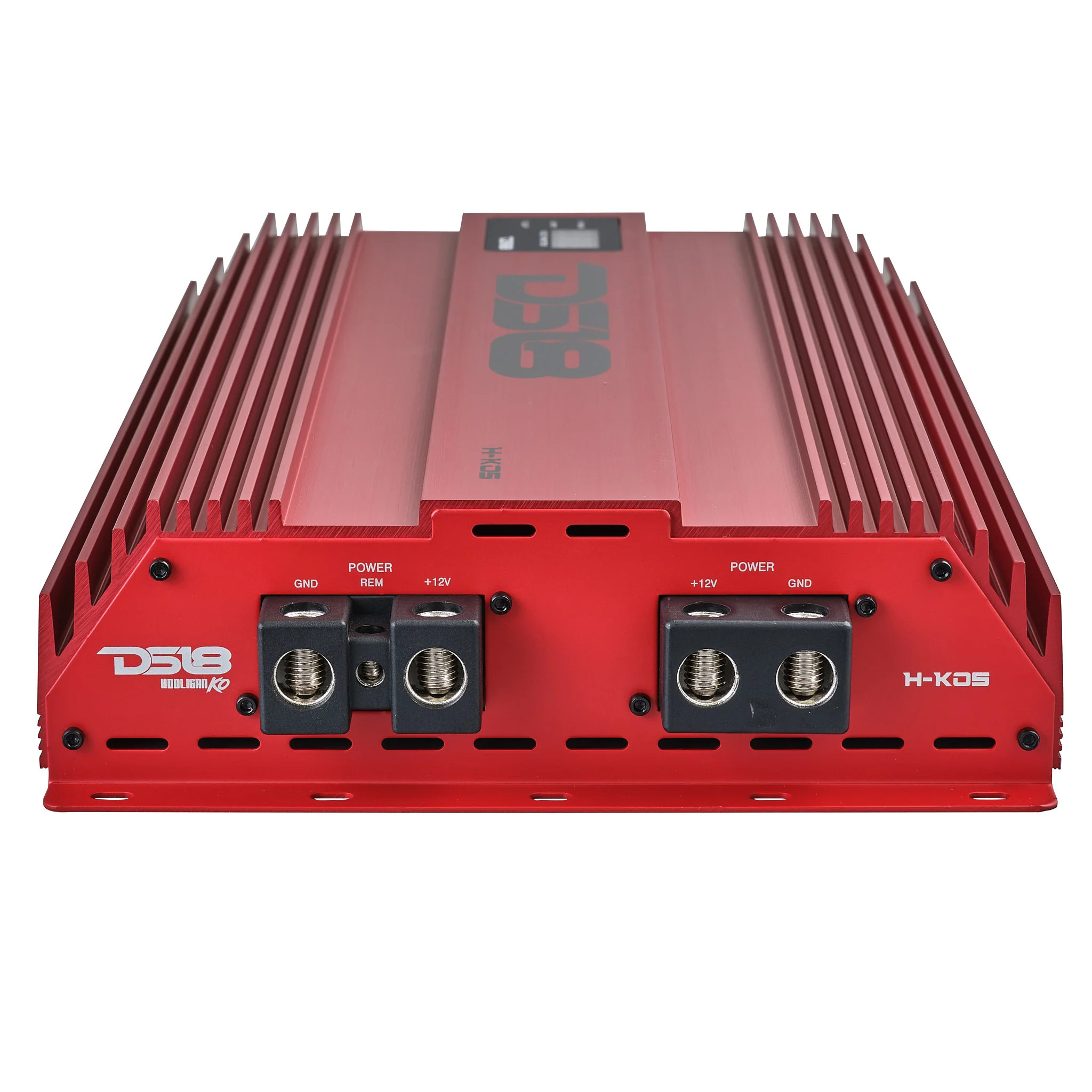

Power Input Terminal Size
2 x 1/0Ga
Fuse Size
420A
Remote Level Control
Yes (Metal Case)
Cooling Fan
Yes
Voltmeter
Yes
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Cliping Protection
Yes
Body Color / Finish
Red / Black / Titanium

Extra Features

X-Over Frequency Multiplier
No
Input Mode Selectable
No
LED Clipping indicator
Yes
Professional Tiffany RCA Connectors
Yes

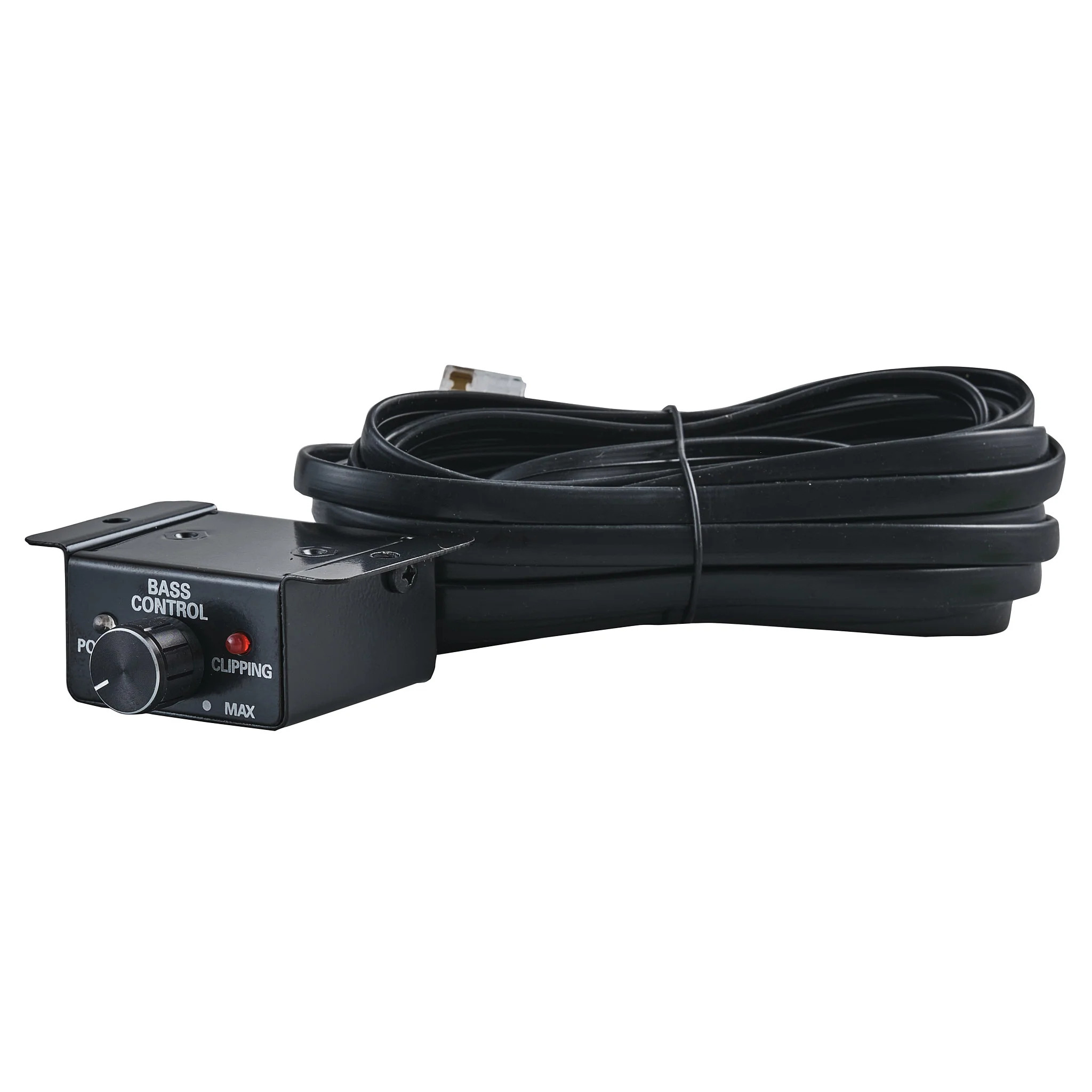

Remote Level Knob with Clip indicator
Yes
Linkable (Strap mode) Amplifier
Yes

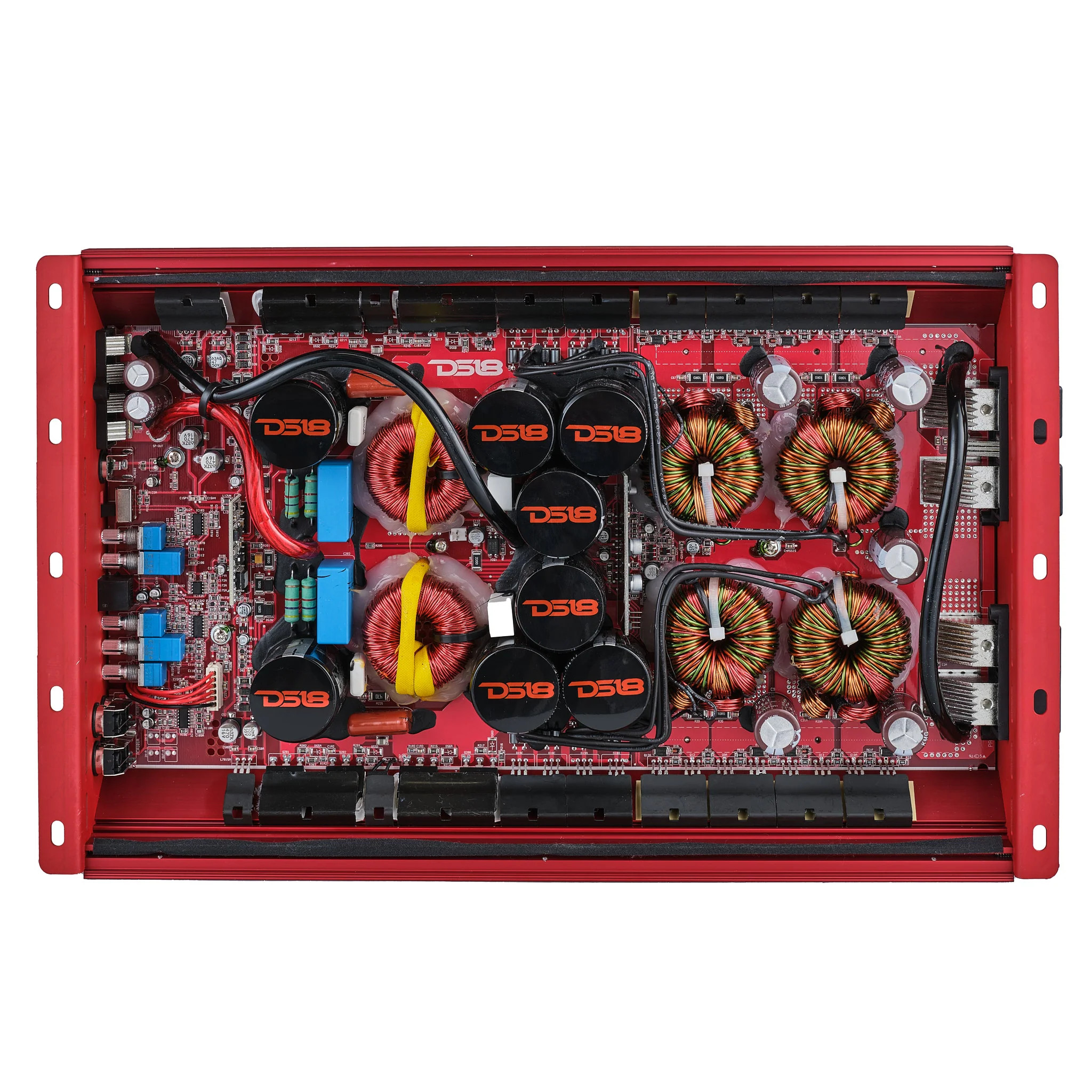

Reliable Heavy Duty Korean Board Design
Yes
Very High Efficiency Digital Circuit Design
Yes

Measurement ( mm )

Overall Lengh ( with end plate )
15.35" / 390mm
Overall Wide
9.68" / 246mm
Overall Height ( with end plate )
2.85" / 72.5mm
Heatsink Length
14.17" / 360mm
Gross Single Unit Weight
7.06kgs
