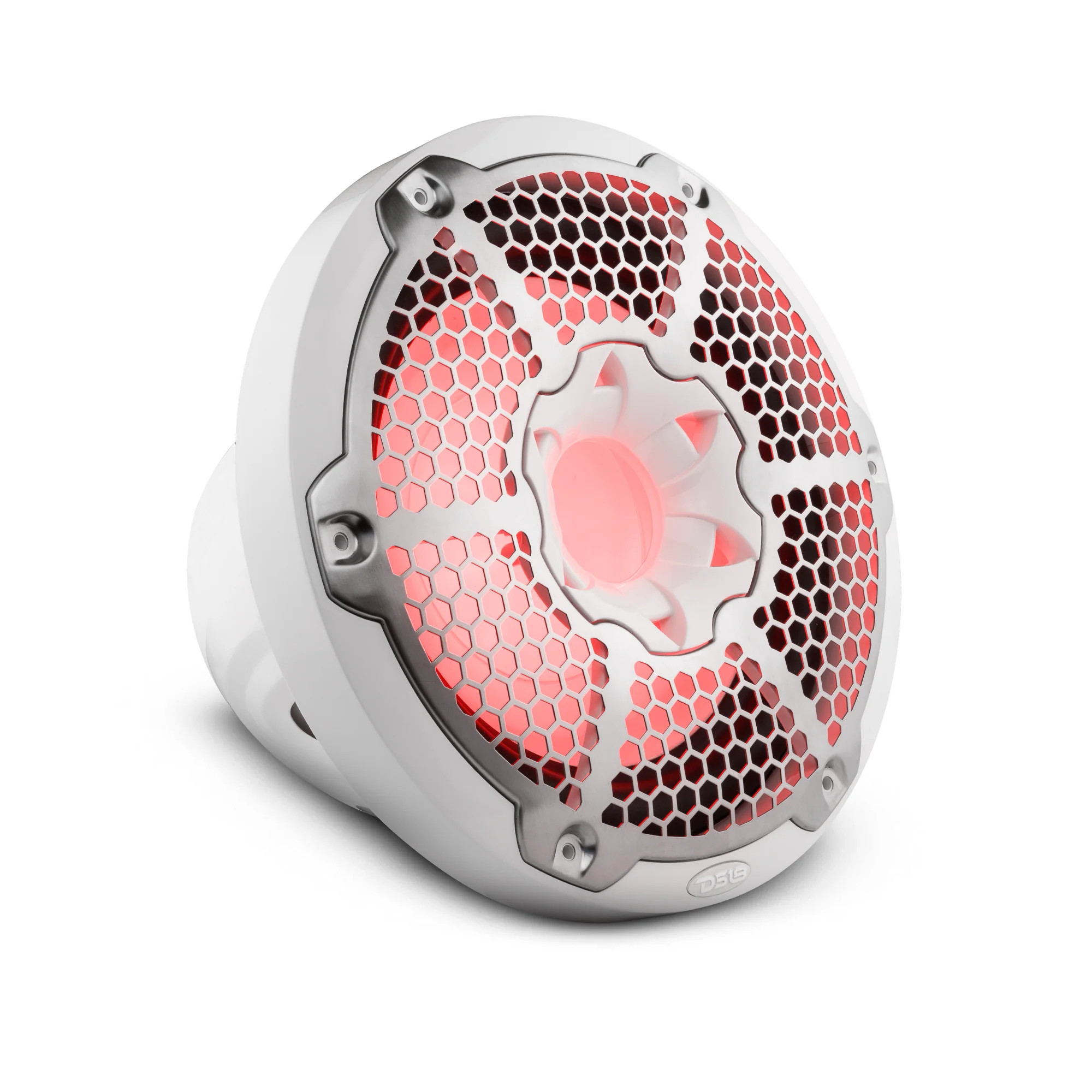

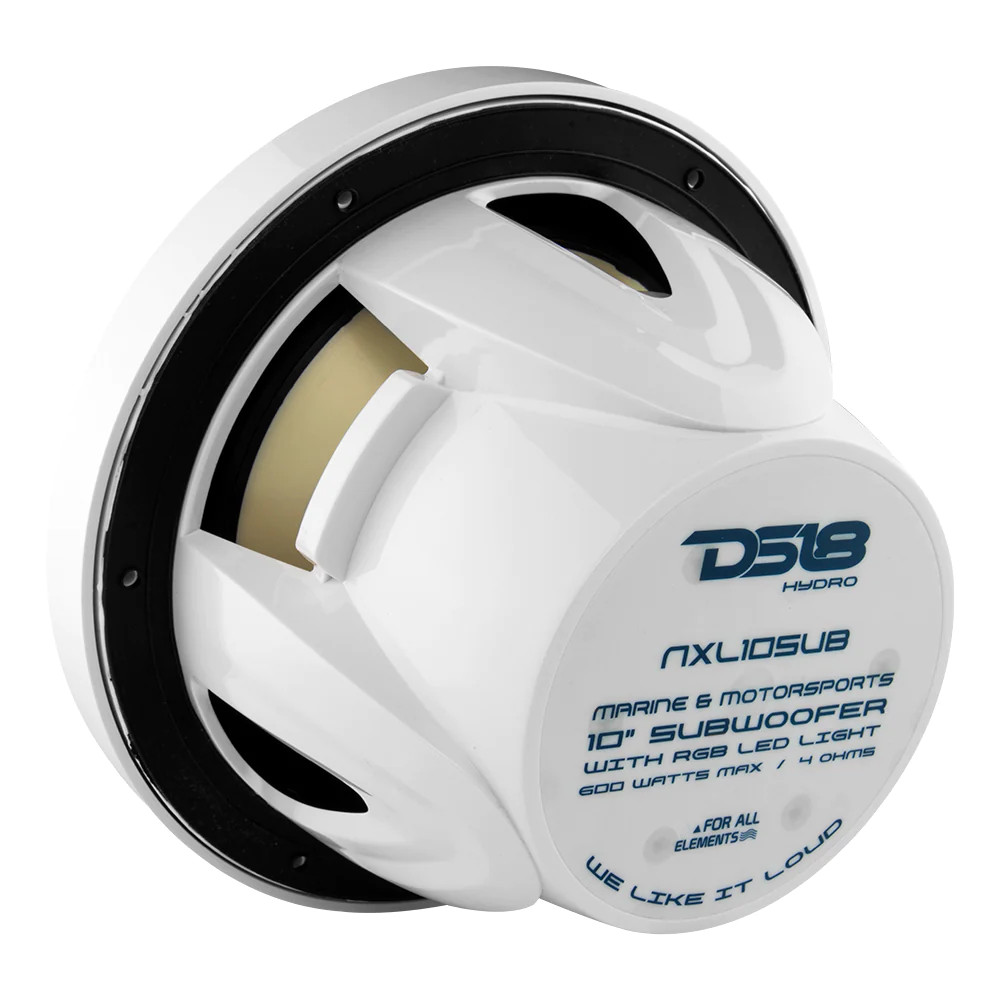

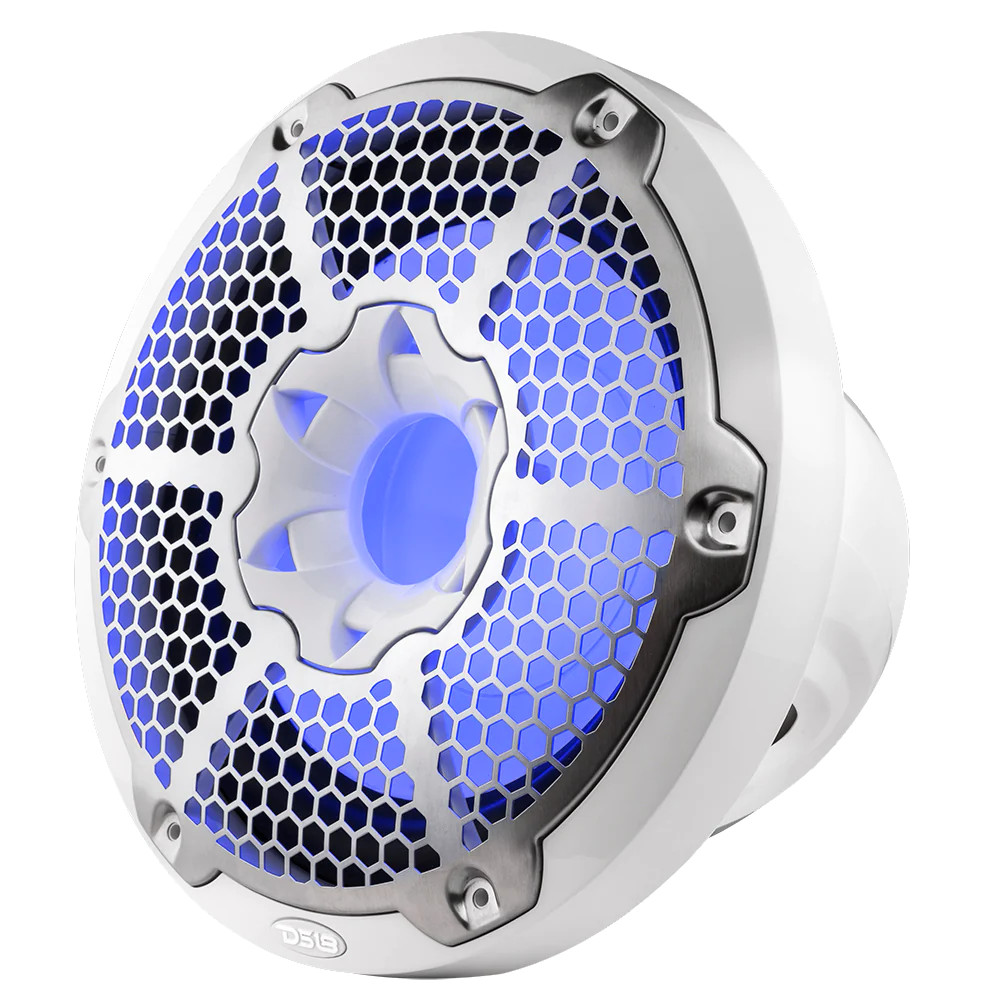

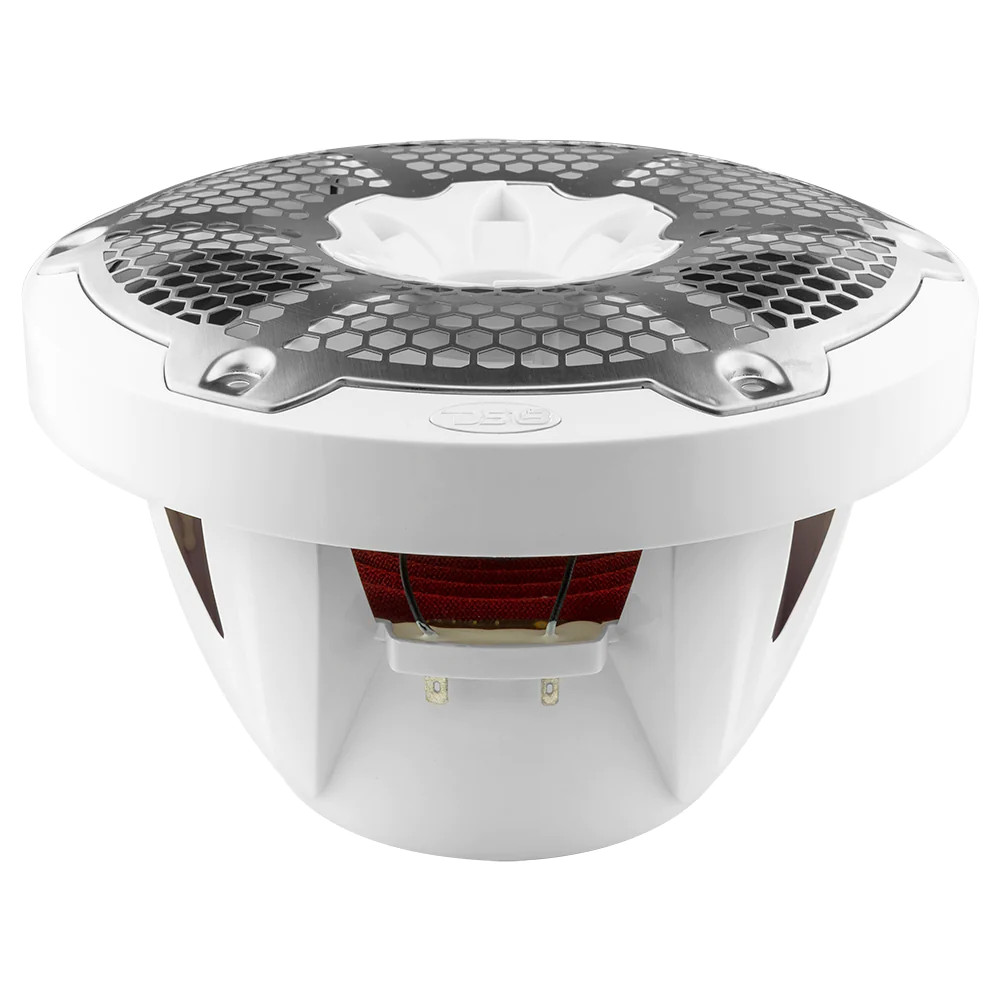

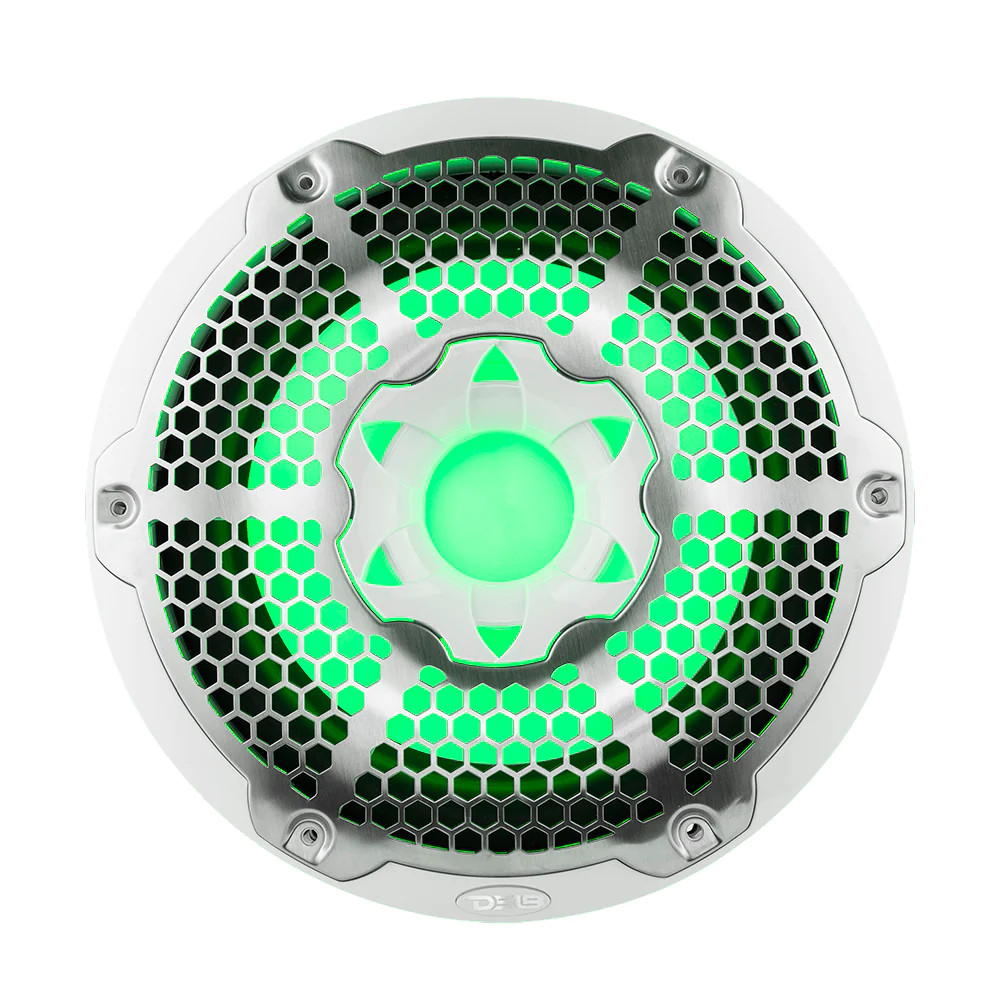

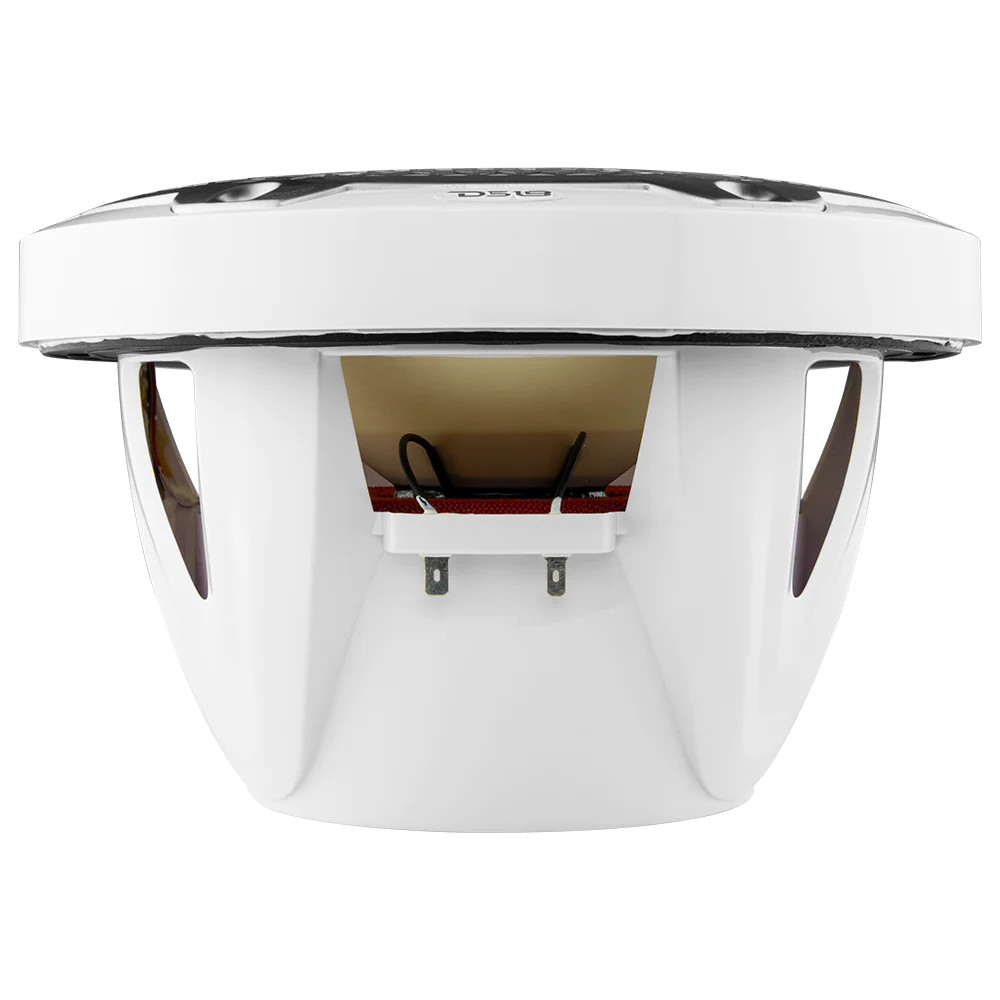

DS18 HYDRO HIGH END 10" MARINE SUBWOOFER W/ RGB LED - WHITE

SPECS

SKU
NXL-10SUB/WH
Nominal Diameter
10" / 254mm
Nominal Impedance
4 ohm
RMS Power Handing
300W
Maximum Power Handing
600W
Sensitivity (1w/1m)
89dB
Frequency Response
35-250Hz
Recommended Hi Pass Crossover

SPECS

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Basket Material
High Temp Injection Molded Composite with UV Protection coating
Magnet Weight
72 oz

THIELE & SMALL PARAMETERS

Vas
26.7L / 0.94ft3
Xmax
13mm
Fs
45Hz
Qms
8.919
Qes
0.805
Qts
0.457
Re
3.65

MEASUREMENTS

Overall Diameter
10.76" / 273.3mm
Front Mount Baffle Cutout
8.78" / 223mm
Mounting Depth
5" / 127.5mm
Overall Depth
6.73" / 171mm
Product Weight
14 lbs
Product Dimensions
13.25 x 13.25 x 8.75
M/C Weight
30 lbs
M/C Dimensions
27 x 13.75 x 9.5
M/C QTY
2
Sold In
Piece
