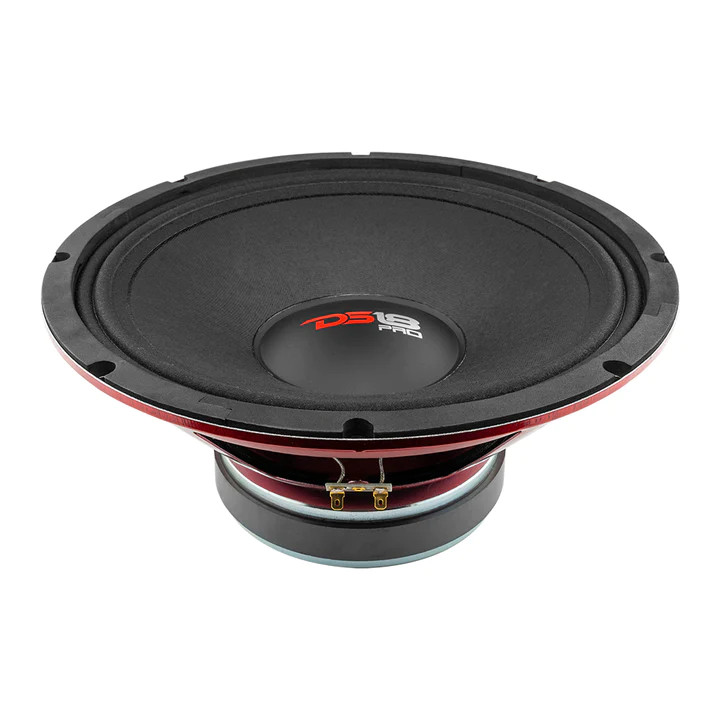

DS18 PRO 12" MID-RANGE LOUDSPEAKER 900W 8OHM

SPECS

SKU
PRO-X12M
Nominal Diameter
12" (308 mm)
Nominal Impedance
8 ohms
RMS Power Handing
450 Watts
Maximum Power Handing
900 Watts
Sensitivity (1w/1m)
97.5 dB
Frequency Response
63.5Hz-11.3KHz
Recommended Hi Pass Crossover
100Hz

SPECS

Voice Coil Diameter
2.5 (65.5 mm")
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
60 oz

THIELE & SMALL PARAMETERS

Vas
23.78 LTR
Xmax
10.5 mm
Fs
64.6 Hz
Qms
2.2
Qes
0.485
Qts
0.392
Re
5.2 ohms

MEASUREMENTS

Overall Diameter
12.12" / 308mm
Front Mount Baffle Cutout
10.9" / 278mm
Mounting Depth
4.96" / 126mm
Overall Depth
5.35" / 136mm
Product Weight
11.5 lbs
Product Dimensions
12.875 x 12.875 x 5.75
M/C Weight
48.5 lbs
M/C Dimensions
26.25 x 13.5 x 12.25
M/C QTY
4
Sold In
Piece
