Description

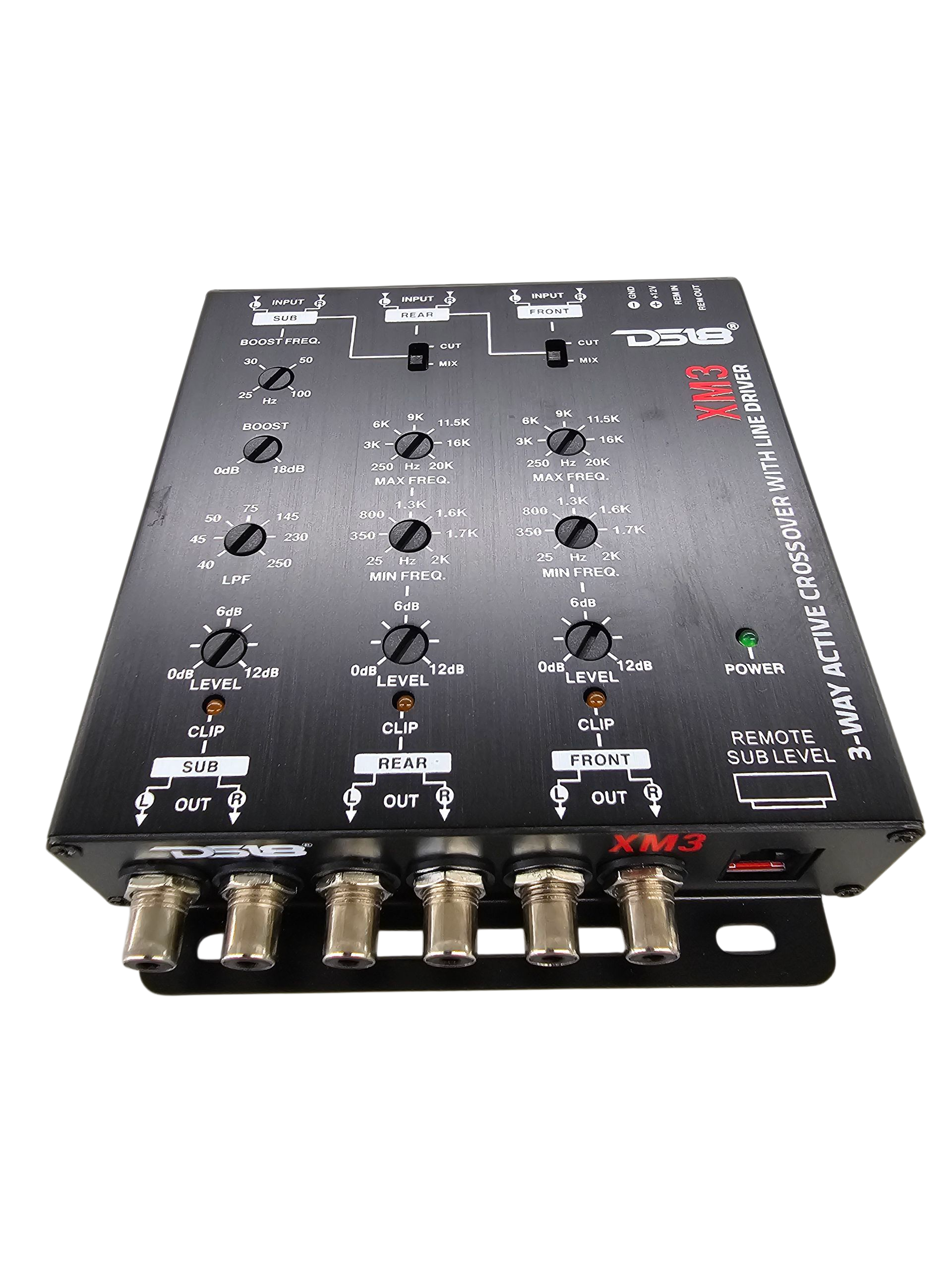

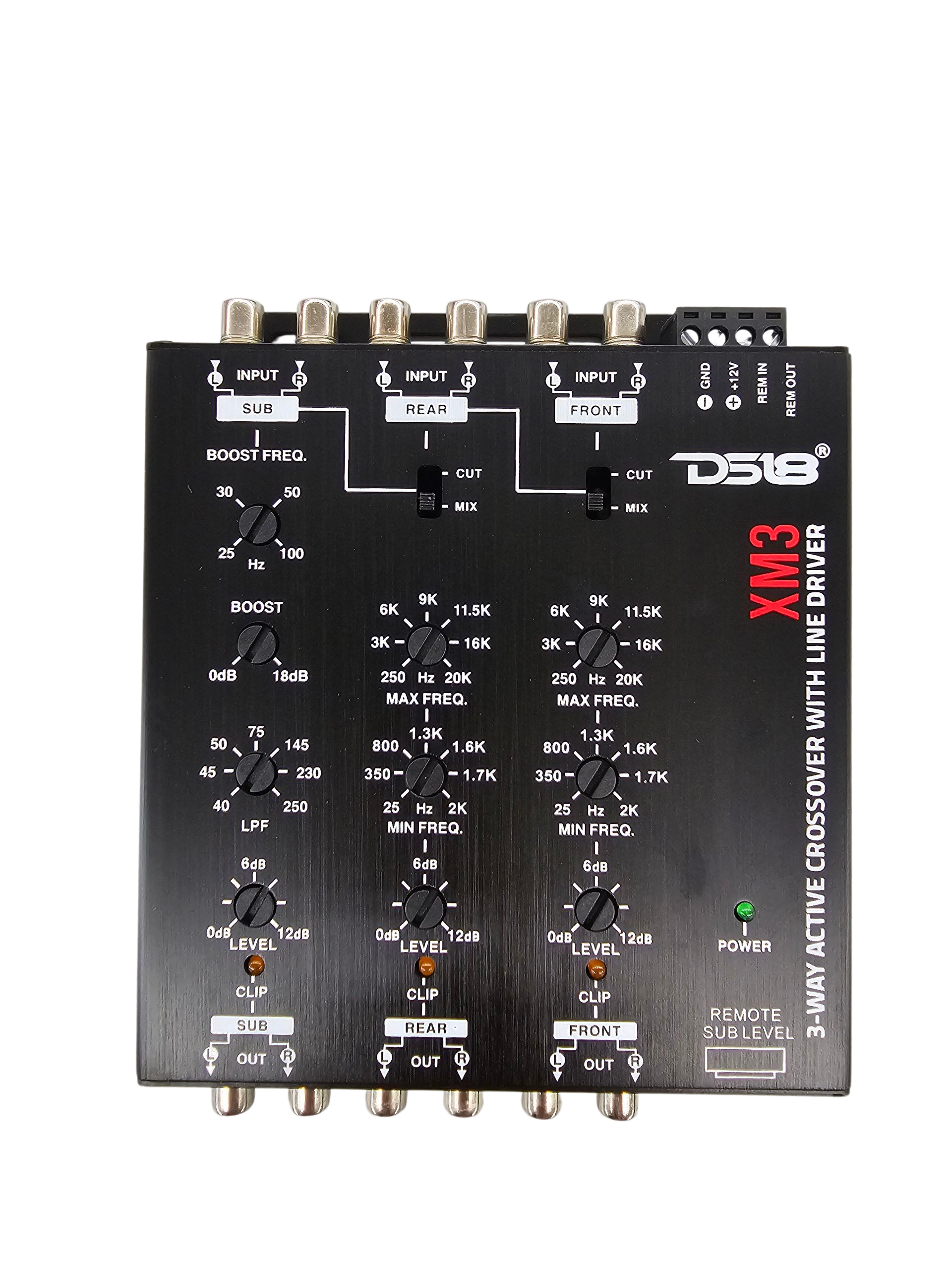

DS18 SOUND 2/3 WAY ELECTRONIC CROSSOVER W/ REMOTE CONTROL
- SIGNAL TO NOISE RATION: >102db
- TOTAL HARMONIC DISTORTION (1kHz, 1VRMS): 0.01%
- CROSSOVER SLOPE: 12 db/OCTAVE BUTTERWORTH
- FRONT / REAR HPF FREQUENCY CUT-OFF: 25Hz TO 2kHz
- FRONT / REAR LPF FREQUENCY CUT-OFF: 250Hz TO 20kHz
- SUBWOOFER LPF FREQUENCY CUT-OFF: 40Hz TO 250Hz
- BASS BOOST: 0 TO 18dB
- BASS BOOS FREQUENCY: 25Hz TO 100Hz
- LOW-LEVEL INPUT VOLTAGE: UP TO 11 VOLTS
- MAXIMUM PRE-OUTPUT (14.4V): UP TO 11 VOLTS
- OPERATION VOLTAGE: 9 TO 15 VDC
CROSSOVER SPECIFICATIONS
- REMOTE SUBWOOFER LEVEL CONTROL: METAL CASE WITH CLIP INDICATOR
- POWER, GROUND AND REMOTE FAST CONNECTOR
- TIFFANY RCA INPUT AND OUTPUT CONNECTORS
- INPUT MODES: 3/2/1 WAY SELECTABLE
- LED INDICATORS: POWER / CLIP
- DELAYED REMOTE OUTPUT
