Description

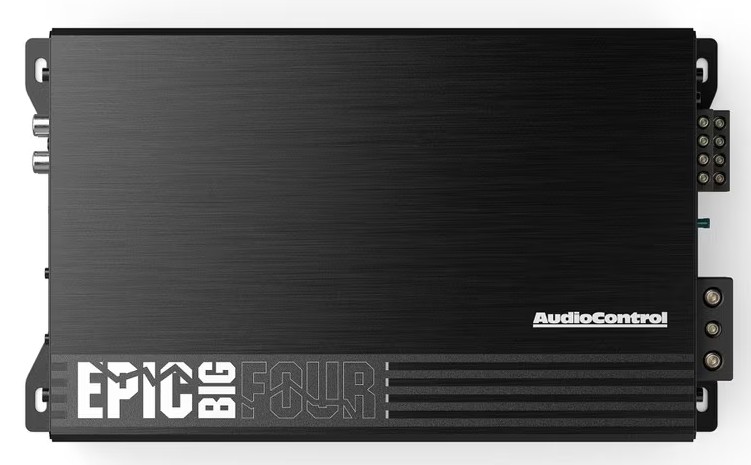

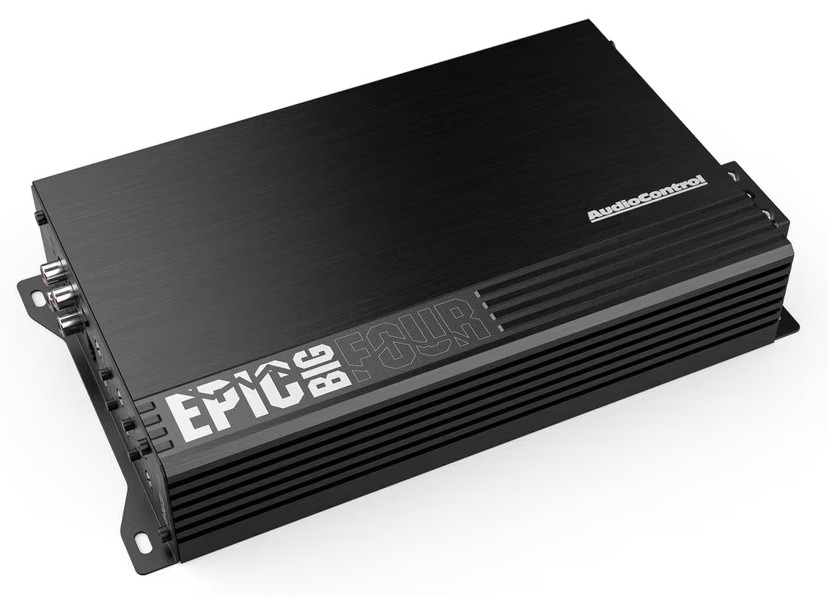

EPIC Series Amplifiers EPICBIGFOUR 4-Channel Amplifier, 1400W RMS
The AudioControl EPIC Series 4-Channel 1400 Watt RMS Amplifier delivers top-quality sound in a compact, thermally efficient design, all at an unbeatable price. Engineered with a high-current Class D design, it’s 2Ω stable, ensuring maximum power output while maintaining efficiency. With a smart auto-reset protection circuit and solid power/speaker terminals secured by hex screws, the EPIC Series amplifier offers reliable, exceptional sound quality in a rugged, space-saving package.
The Epicenter Link provides a direct connection for power, ground, and remote turn-on to The Epicenter bass restoration processor, streamlining the installation process and maintaining a clean wiring aesthetic.
FEATURES
• Compact High-Power Class D Amplifier
• High-Current Design – 2Ω Stable
• 4 x 200 Watts @ 4 ohms
• 4 x 350 Watts @ 2 ohms
• 2 x 650 Watts @ 4 ohms Bridged
• Smart Auto-Reset Protection Circuit

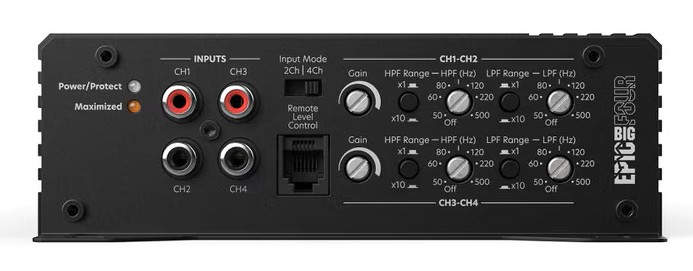

• 12 dB/octave Linkwitz-Riley Variable High Pass & Low Pass Filters

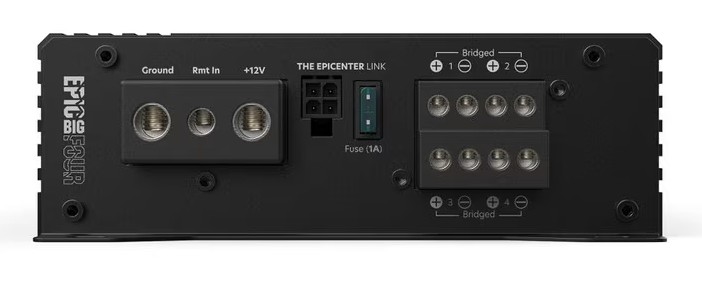

• Solid Power/Speaker Terminals with Hex Screws
SPECIFICATIONS
INPUTS
- Line-Level Inputs: 500mV – 12V RMS
OUTPUTS
- Continuous Power (RMS) @ 14.4V
-
4 x 200 Watts @ 4 ohms
-
4 x 350 Watts @ 2 ohms
-
2 x 650 Watts @ 4 ohms Bridged
-
WEIGHTS & DIMENSIONS
- DIMENSIONS: 6.1″ W x 10.56″ L x 2.01″ H
PERFORMANCE
- Frequency Response (+/- 1 dB): 10 Hz – 22 kHz
- S/N Ratio: 89 dBa, Ref 200 Watts @ 4 ohms
- Power / Ground Wire Gauge: 4 AWG
- Recommended Fuse Rating: 150 Amps
- High Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 5000 Hz
- Low Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 5000 Hz
- Speaker Terminal Wire Gauge: 8 AWG
IN THE BOX: EPICBIGFOUR, Wrench, Screws, Manual, Warranty
