Description

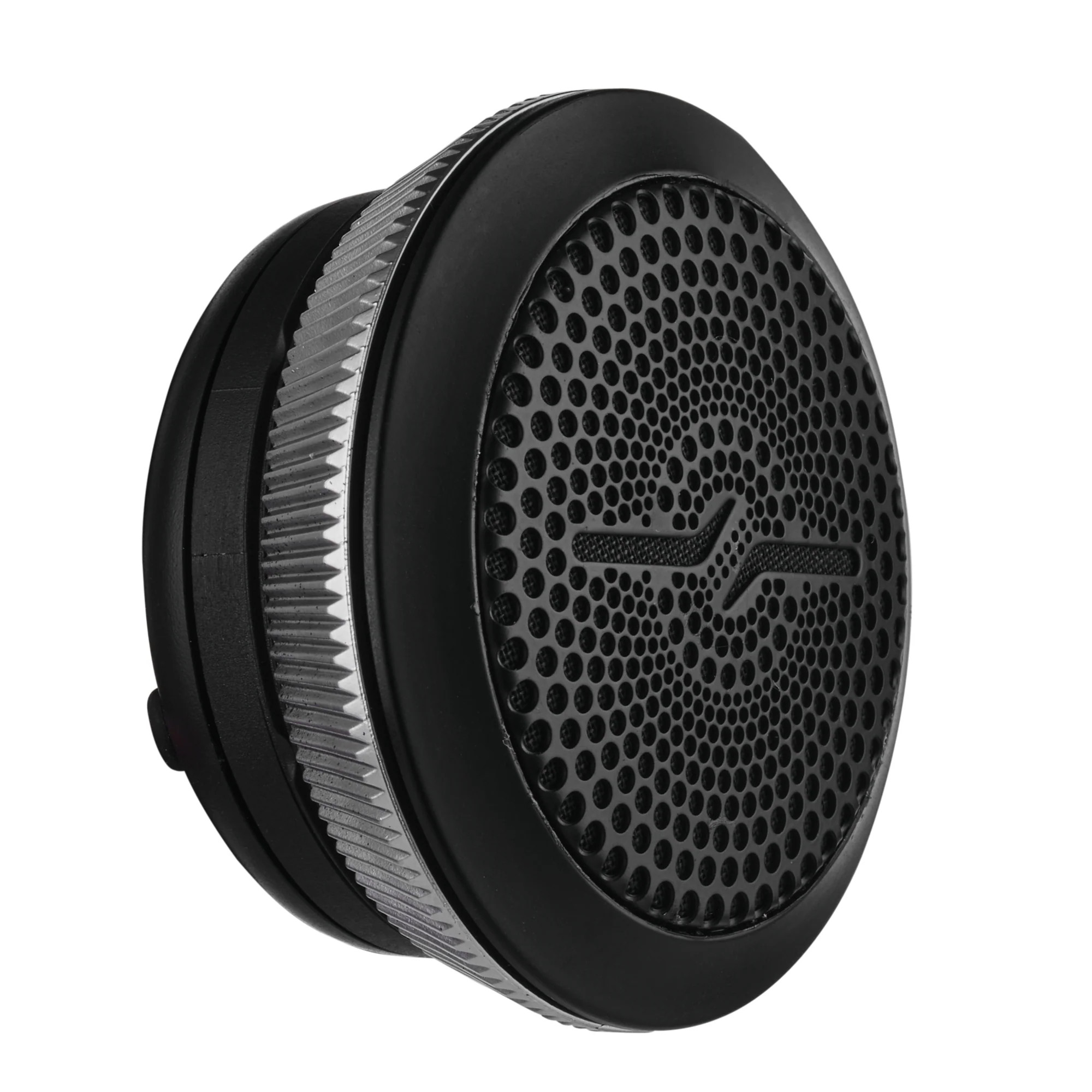

NVY 2.5" Bullet Tweeter With 1" PEN Voice Coil & Neodymium Magnet | 100W RMS 4-Ohm BLACK
- General Specifications
- Nominal Diameter: 2.5" / 65mm
- Nominal Impedance: 4 Ohms
- AES Power Handling: 50W
- Program Power Handling: 100W
- Peak Power Handling: 200W
- Sensitivity (1w/1m): 102 dB
- Frequency Response: 2kHz-20kHz
- Recommended High-Pass Crossover: 4kHz
- Pair
- Body / Features
- Filter (Bass Blocker): 2.2uf/50v
- Body Material: ABS
- Bullet Material: ABS
- Terminal Type: Wires
- Motor
- Voice Coil Diameter: 1" / 25.4mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Diaphragm Material: PEN
- Magnet Material Neodymium
- Magnet Size / Weight: 0.61 Oz
- Measurement
- Overall Diameter: 2.56" / 65mm
- Overall Depth: 1.4" / 35.5mm
- Front Mount Baffle Cutout: 2.2" / 55mm
- Mounting Depth: 1.1" / 28.5mm
