Description

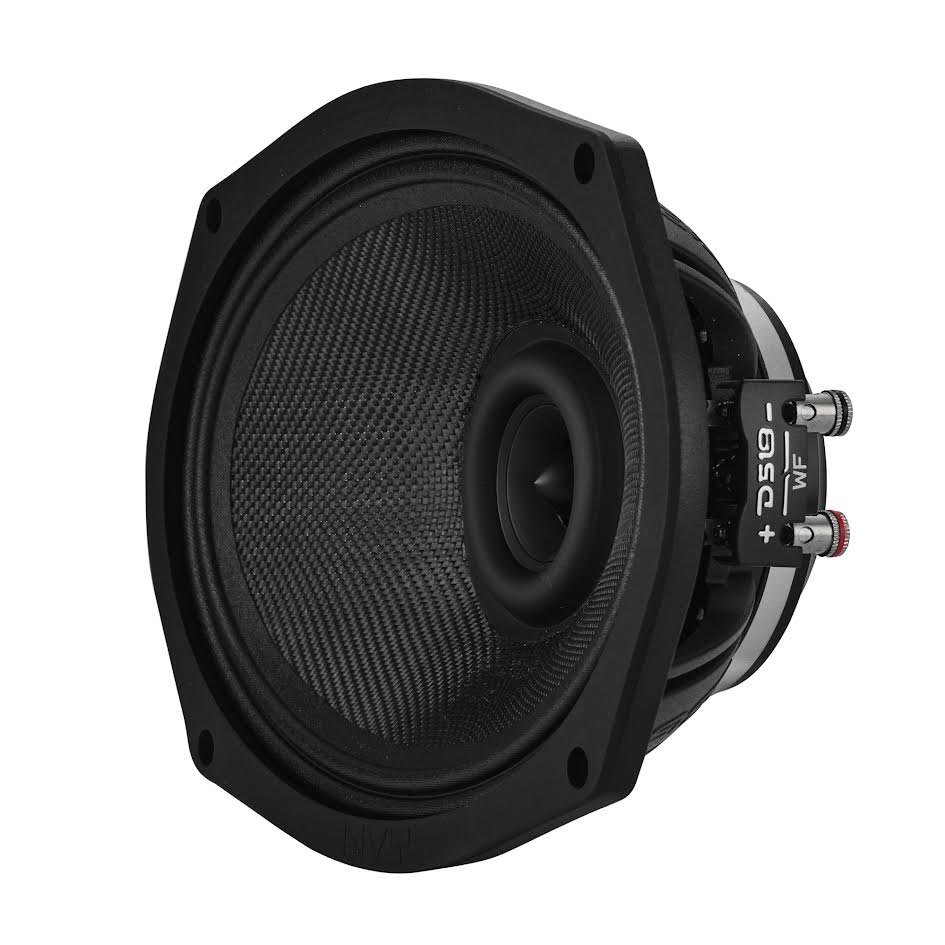

NVY 6x9" 2-Way Coaxial Loudspeaker with Kevlar Cone and Neodymium Magnet | 200W RMS 4-Ohm
- Specifications
- Nominal Diameter: 6x9" / 152x228mm
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 200W
- MAX Power Handling: 400W
- Sensitivity: (1w/1m) 97 dB
- Frequency Response: 40Hz - 20kHz
- Recommended High-Pass Crossover: 80Hz
- Number of Ways: 2-Way
- Water-Resistant Rating: IP65
- Cone Shape: Curvilinear
- Speaker Terminals: Dual Push 16ga (TW/WF)
- Pair
- Woofer Specifications
- Voice Coil Diameter: 2” / 50.6 mm
- Voice Coil Former Material: Fiber Glass
- Winding Material: CCAW
- Cone Material: Kevlar
- Surround Material: Cloth
- Basket Material: Aluminum
- Basket Color/Finish: Black Corrugated
- Magnet Material: Neodymium
- Magnet Weight: 8.8 Oz
- Thiele & Small Parameters
- Equivalent Volume Vas: 8.61L / 0.3ft3
- Excursion (one way) Xmax: 1.2mm
- Free Air Resonance Fs: 127Hz
- Mechanical Factor Qms: 8.676
- Electrical Factor Qes: 0.606
- Total Factor Qts: 0.566
- Moving Mass Mms: 6.92g
- Mechanical Compliance Cms: 0.150 mm/N
- BL Factor BL: 7.67
- Diaphragm Area Sd: 225.43 Cm2
- DC Resistance Re: 3.2 Ohms
- Tweeter Specifications
- Nominal Diameter: 1.35" / 34mm
- Voice Coil Diameter: 1" / 25.4mm
- Voice Coil Material: Kapton
- Winding Material: CCAW
- Diaphragm Material: Aluminum
- Magnet Material: Neodymium
- Magnet Weight: 0.44 Oz
- Measurements
- Overall Diameter: 6.5x9.2" / 164x234mm
- Overall Depth: 3.5" / 90mm
- Front Mount Baffle Cutout: 5.7x8.6" / 145x218mm
- Mounting Depth: 3.1" / 79.5mm
- Motor Diameter: 3.6" / 92mm
