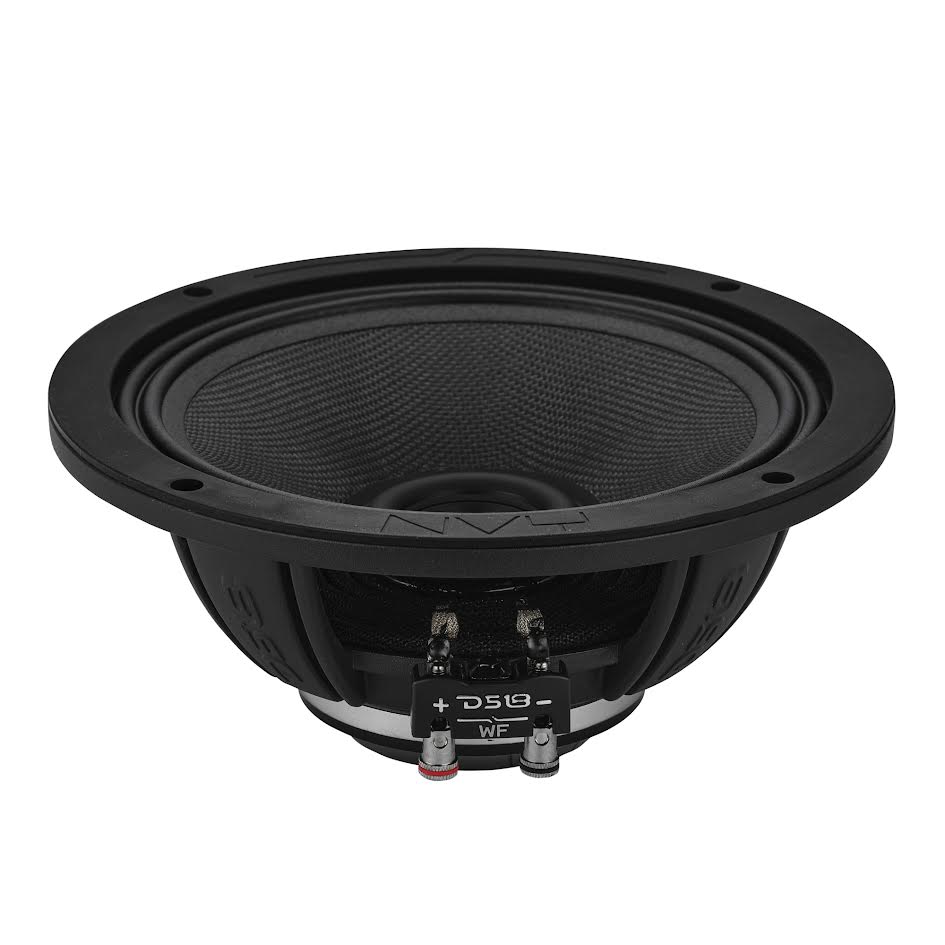

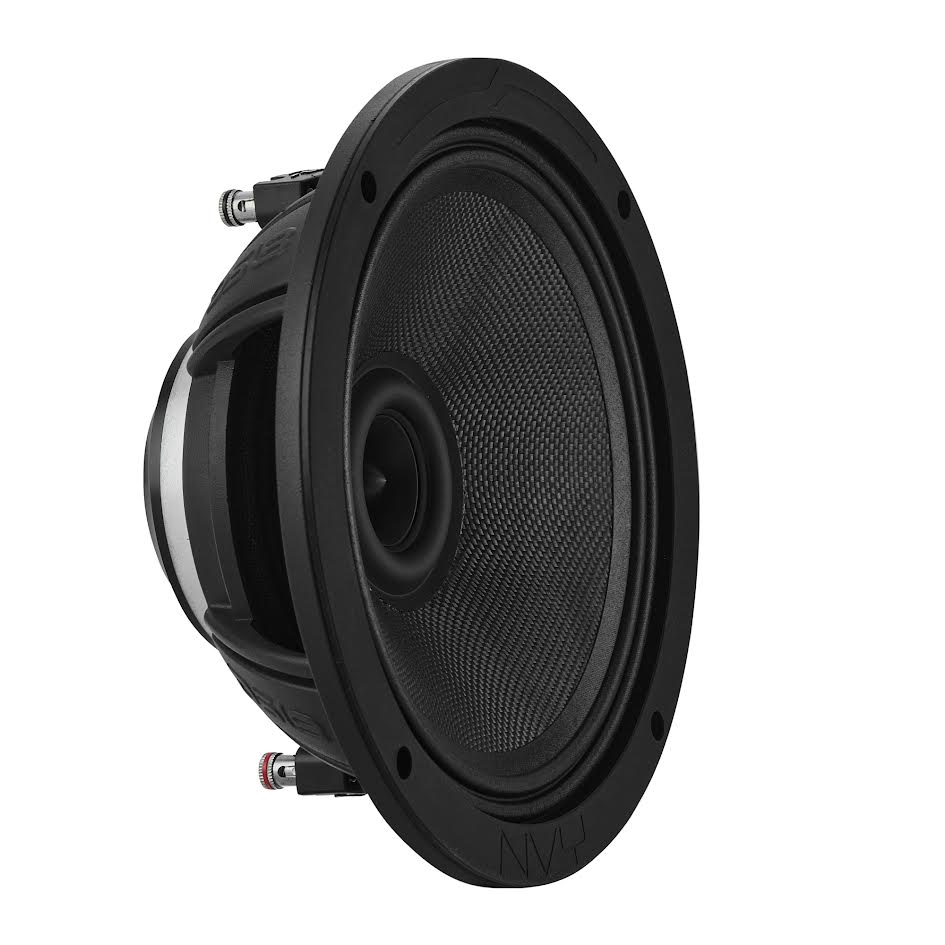

NVY 8" 2-Way Coaxial Loudspeaker with Kevlar Cone and Neodymium Magnet | 200W RMS 4-Ohm
- Specifications
- Nominal Diameter: 8" / 203mm
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 200W
- MAX Power Handling: 400W
- Sensitivity (1w/1m): 97.5 dB
- Frequency Response: 40Hz - 20kHz
- Recommended High-Pass Crossover: 85Hz
- Number of Ways: 2-Way
- Water-Resistant Rating: IP65
- Cone Shape: Curvilinear
- Speaker Terminals: Dual Push 16ga (TW/WF)

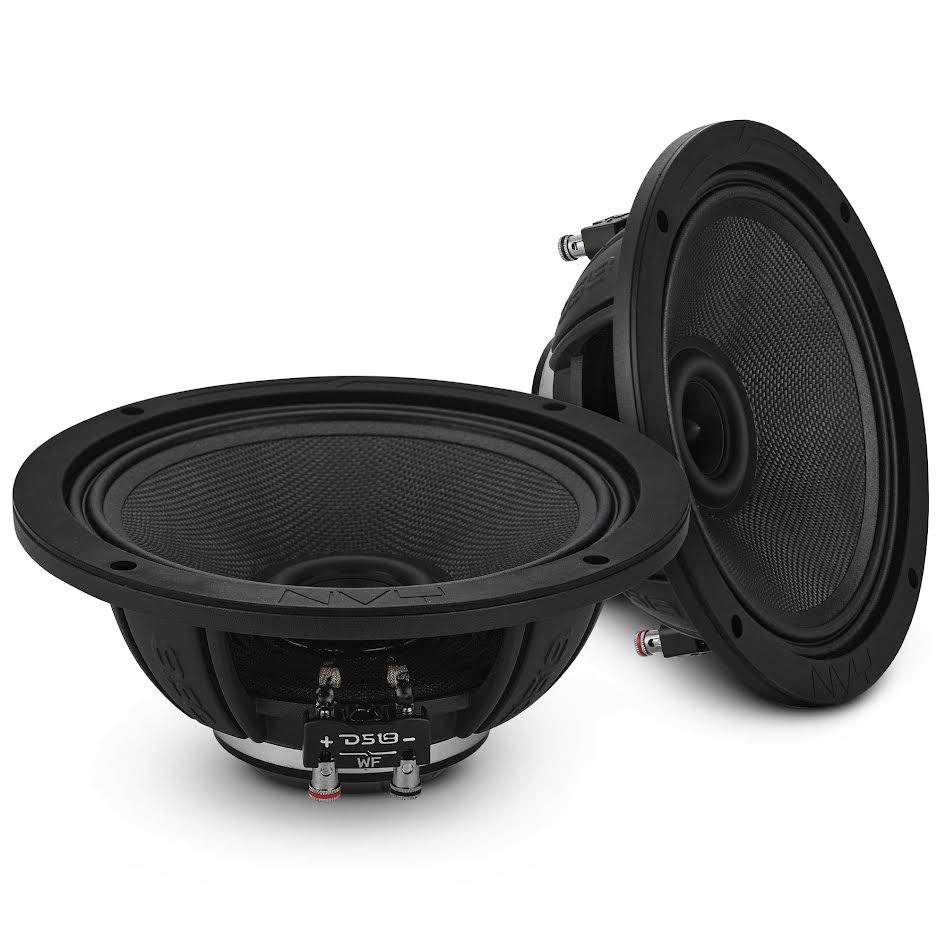

- Pair
- Woofer Specifications
- Voice Coil Diameter: 2” / 50.6 mm
- Voice Coil Former Material: Fiber Glass
- Winding Material: CCAW
- Cone Material: Kevlar
- Surround Material: Cloth
- Basket Material: Aluminum
- Basket Color/Finish: Black Corrugated
- Magnet Material: Neodymium
- Magnet Weight: 8.8 Oz
- Thiele & Small Parameters
- Equivalent Volume Vas: 15L / 0.529ft3
- Excursion (one way) Xmax: 1.2mm
- Free Air Resonance Fs:: 92Hz
- Mechanical Factor Qms 6.836
- Electrical Factor Qes: 0.382
- Total Factor Qts: 0.362
- Moving Mass Mms: 15.263g
- Mechanical Compliance Cms: 0.230 mm/N
- BL Factor BL: 8.25
- Diaphragm Area Sd: 213.82 Cm2
- DC Resistance Re: 3.2 Ohms
- Tweeter Specifications
- Nominal Diameter: 1.35" / 34mm
- Voice Coil Diameter: 1" / 25.4mm
- Voice Coil Material: Kapton
- Winding Material: CCAW
- Diaphragm Material: Aluminum
- Magnet Material: Neodymium (N38H)
- Magnet Weight: 0.44 Oz
- Measurements
- Overall Diameter: 8.3" / 210mm
- Overall Depth: 3.6" / 91.5mm
- Front Mount Baffle Cutout: 7" / 178mm
- Mounting Depth: 3.2" / 82mm
- Motor Diameter: 3.6" / 92mm
