Description

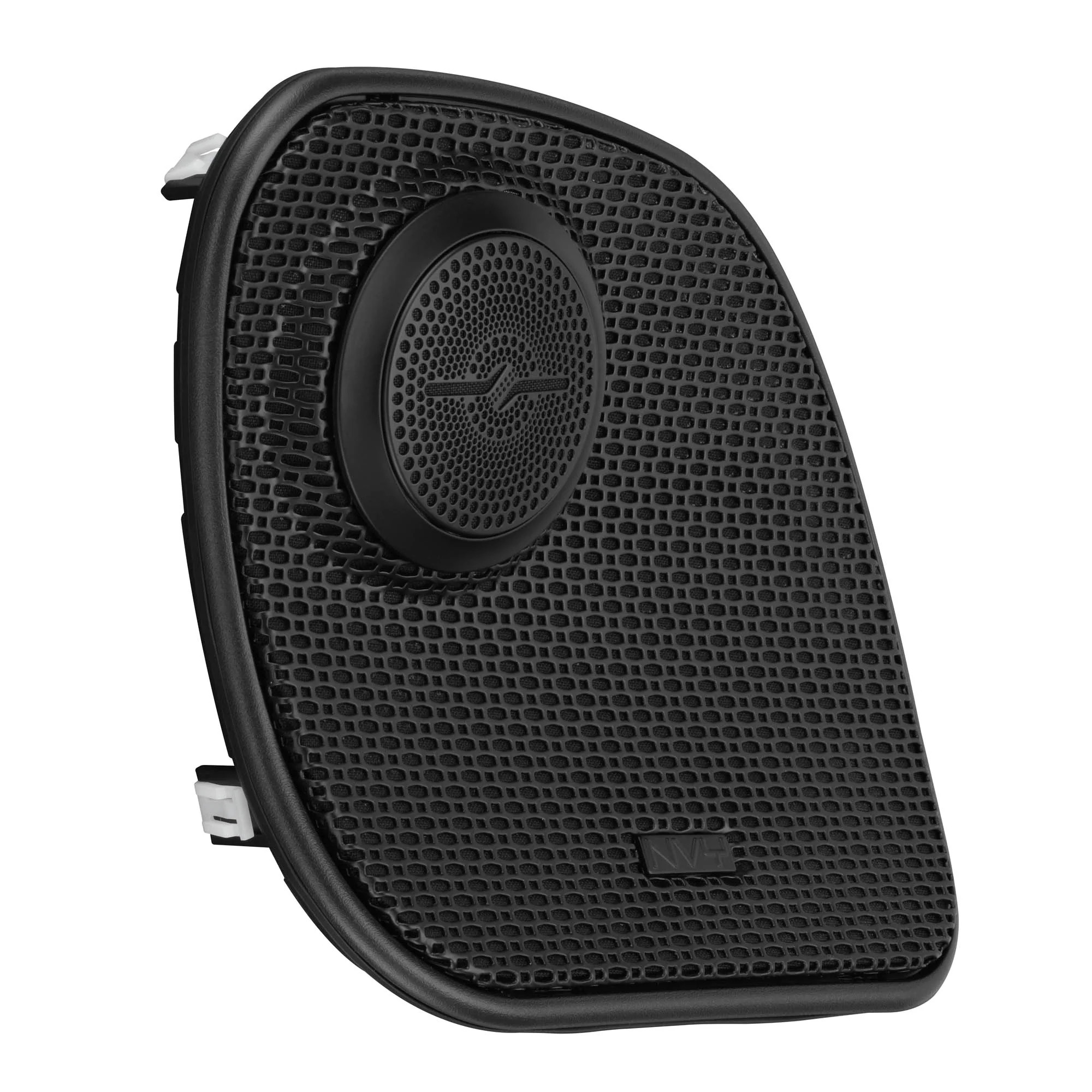

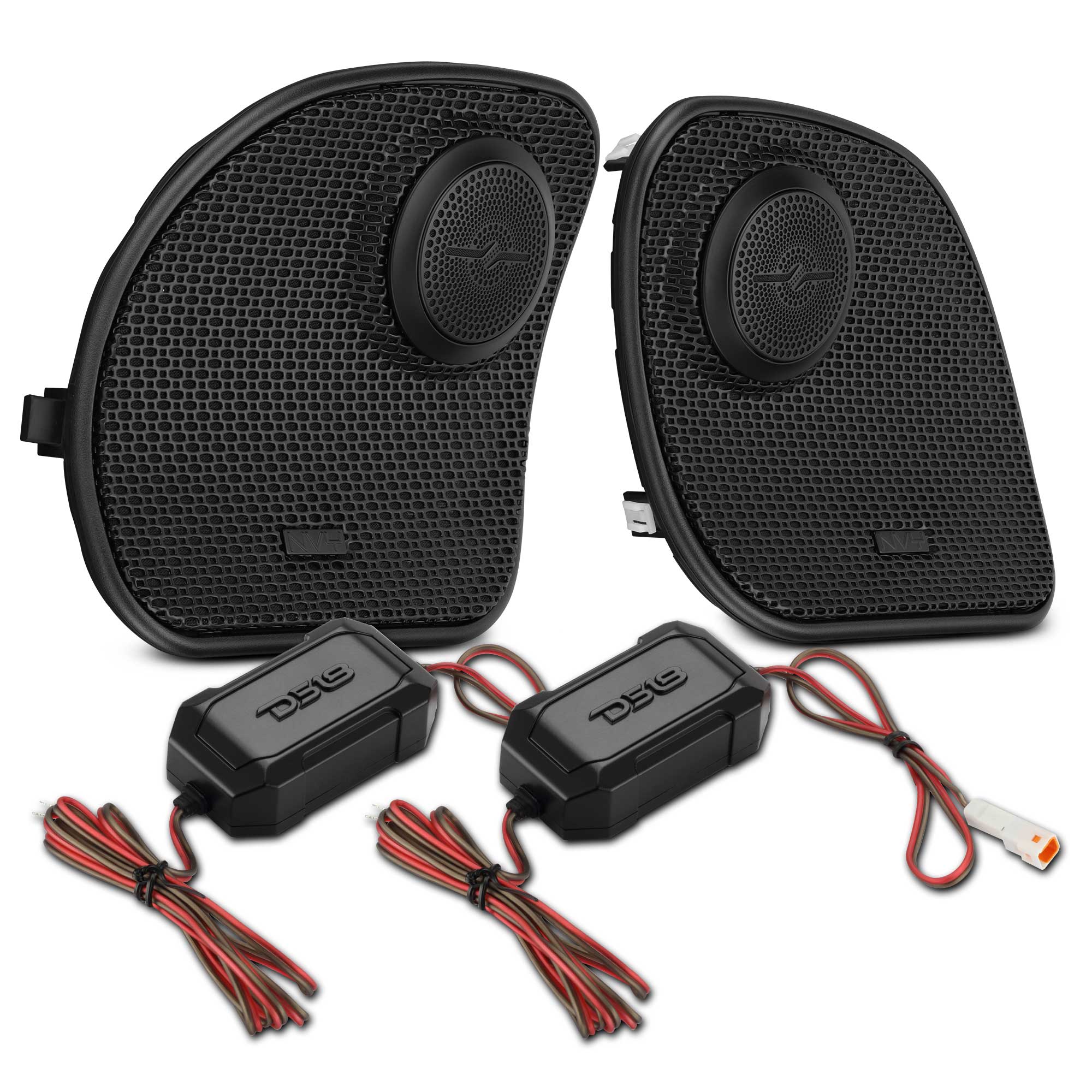

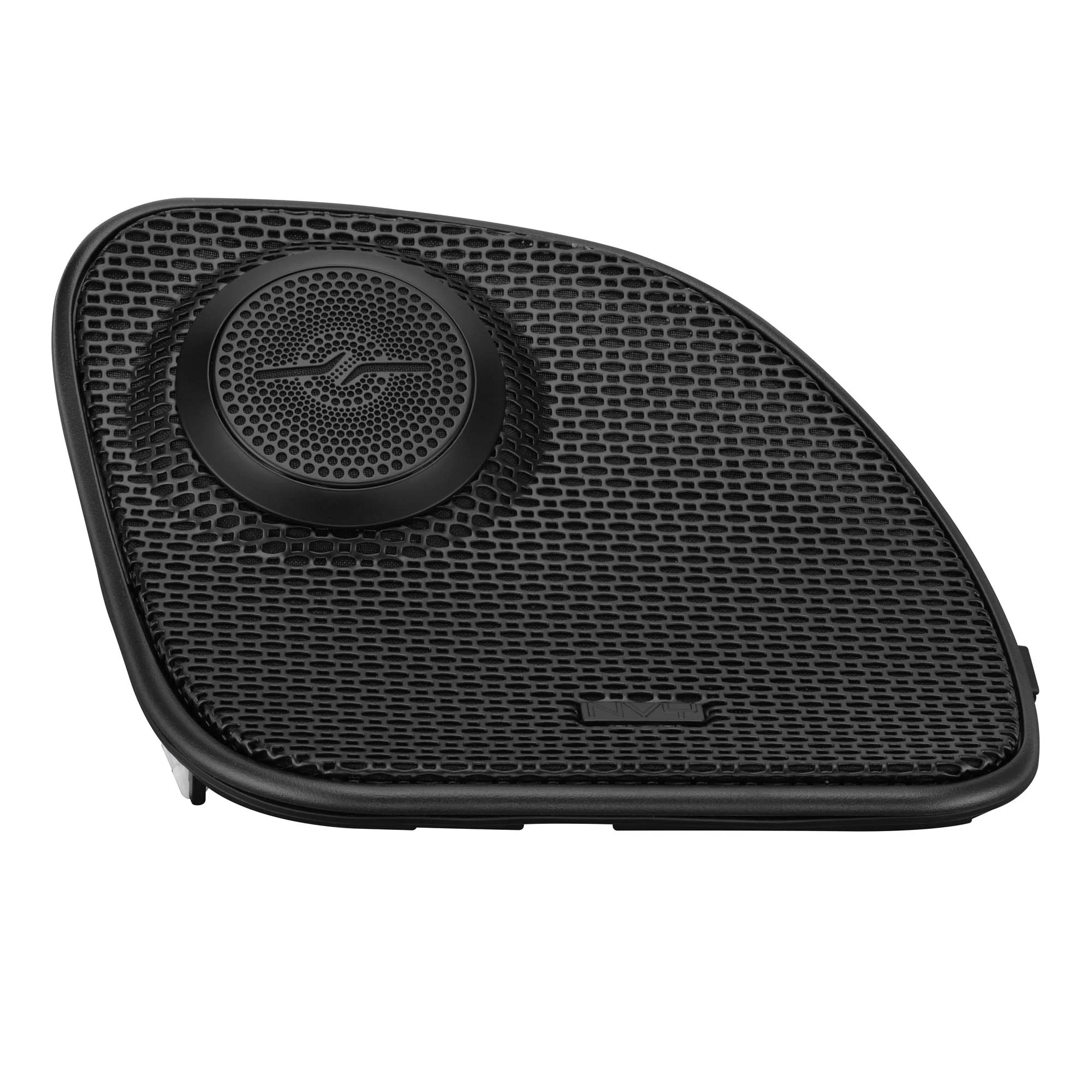

NVY AUDIO Harley-Davidson Road Glide OEM Front Grille Upgrade with Bullet Tweeters & Crossovers (2014-2023)
Easy Installation
The NVY-HDGRGTW.1423LD fits directly into your Road Glide’s factory clip locations. Snap-on design, included rubber gaskets, and mounting clips make the process quick and clean.
Built for the Ride
Each grille is constructed from durable black plastic-sprayed iron mesh with a waterproof cotton backing. UV-resistant materials and IP65-rated weather protection defend against harsh weather conditions.
- Tweeter Specifications
- Nominal Diameter: 2.5 in / 65 mm
- Nominal Impedance: 4 Ohms
- AES Power Handling: 50 W
- Program Power Handling: 100 W
- Peak Power Handling: 200 W
- Sensitivity (1W/1m): 102 dB
- Frequency Response: 2 kHz – 20 kHz
- Recommended High Pass Crossover: 4 kHz
- Configuration: Pair
- Body features
- Filter (Bass Blocker): 2.2 µF / 50 V
- Bullet Material: ABS
- Terminal Type: Wires
- Body Material: ABS
- Body Color: Black
- Faceplate Color: Black
- Motor
- Voice Coil Diameter: 1 in / 25.4 mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Diaphragm Material: PEN
- Magnet Material: Neodymium
- Magnet Weight: 0.61 oz
- Tweeter Measurements
- Overall Diameter: 2.56 in / 65 mm
- Overall Depth: 1.4 in / 35.5 mm
- Front Mount Baffle Cutout: 2.2 in / 55 mm
- Mounting Depth: 1.1 in / 28.5 mm
- Grille Measurements
- Overall Length: 6.3 in / 162 mm
- Overall Width: 7.6 in / 192 mm
- Overall Depth: 1.8 in / 46 mm
- Crossover Measurements
- Overall Length: 2.75 in / 70 mm
- Overall Width: 1.5 in / 38 mm
- Overall Height: 0.9 in / 23 mm
