Description
STINGER 2014-2018 CHEVY SILVERADO/GMC SIERRA 1500 | 2015-2019 SILVERADO/SIERRA 2500 & 3500 HORIZON12 FULL INTEGRATION KIT
Take your truck to the next level with a real-time information display built for everyday driving and with towing in mind. It’s designed to handle the elements, featuring an optically bonded screen that resists dust, dirt, and moisture.
Personalize your setup with a dynamic multi-zone interface—add your most-used widgets, customize backgrounds and colors to match your style. Stay confident while towing with support for four camera inputs, compatible with both AHD and standard resolutions—perfect for monitoring trailers, blind spots, and rear views.
Whether you're hauling heavy loads, hitting the trails or heading out on the highway, this display delivers rugged reliability, smart functionality, and a fully customizable experience.
HORIZON12 Features
- 12.8-inch, 1920x1080 Full HD touchscreen with anti-glare, anti-reflective & anti-fingerprint film protection
- Optically bonded screen for moisture and dust resistance
- IP65 rated touchscreen* (*Radio Chassis is not IP rated).
- Wireless (and wired) Apple CarPlay® and Wireless (and wired) Google Android AutoTM
- SiriusXM-ReadyTM (SiriusXM Connect Vehicle Tuner and Subscription required)
- Built-in HD Radio tuner
- Accessory Control to control up to four accessories on-screen (SwitchHub recommended)
- 4.5Vrms 8ch RCA audio outputs with subwoofer control
- Toslink (Optical) Variable Audio Output
- 15 Band Adjustable EQ with 6 user presets for each audio source
- 1 HDMI rear input
- 2 USB-A rear inputs, 1.5A output; 1 USB-C rear input for wired CarPlay and Android Auto, 3A charging
- Handsfree Bluetooth® 5.1 A2DP, supports dual phone connections
- Built-in microSD card slot for optional iGO Navigation
- Fast Wake-Up Enabled
- 4 AHD/CVBS Camera Video inputs with trigger activation
- Mic Audio input from rear camera

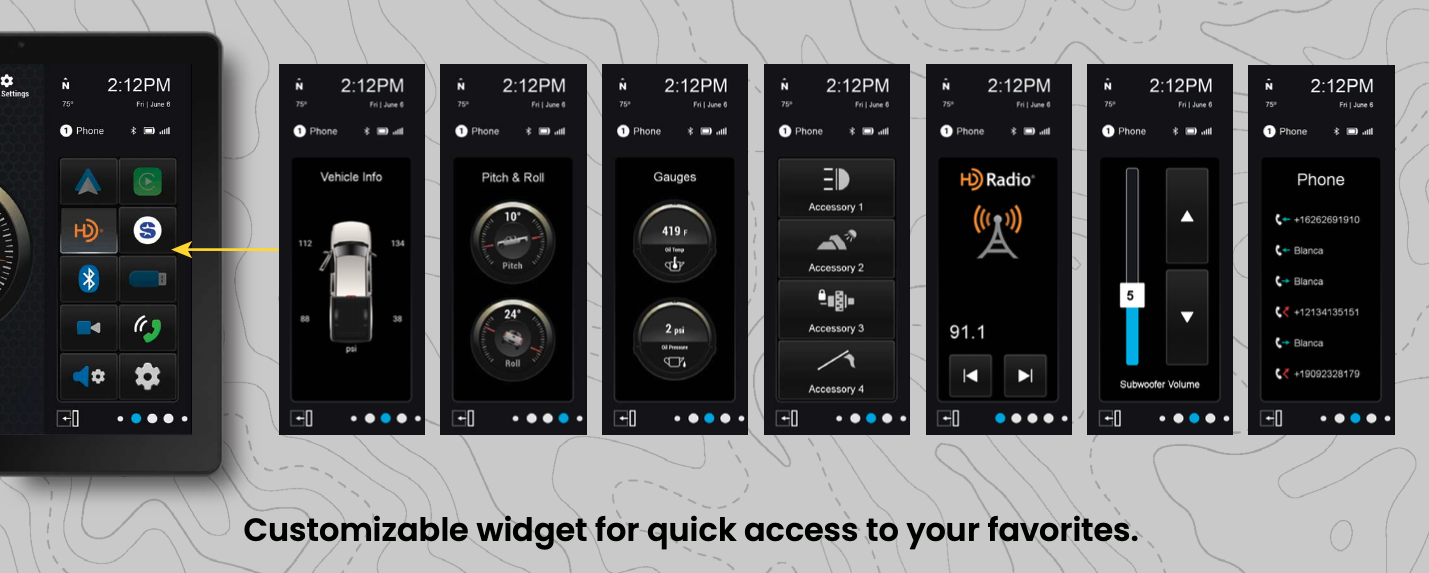

- Customizable illumination colors, display backgrounds, and multi-zone user interface (combine the most useful controls and select your favorite widgets)
KEY FEATURES

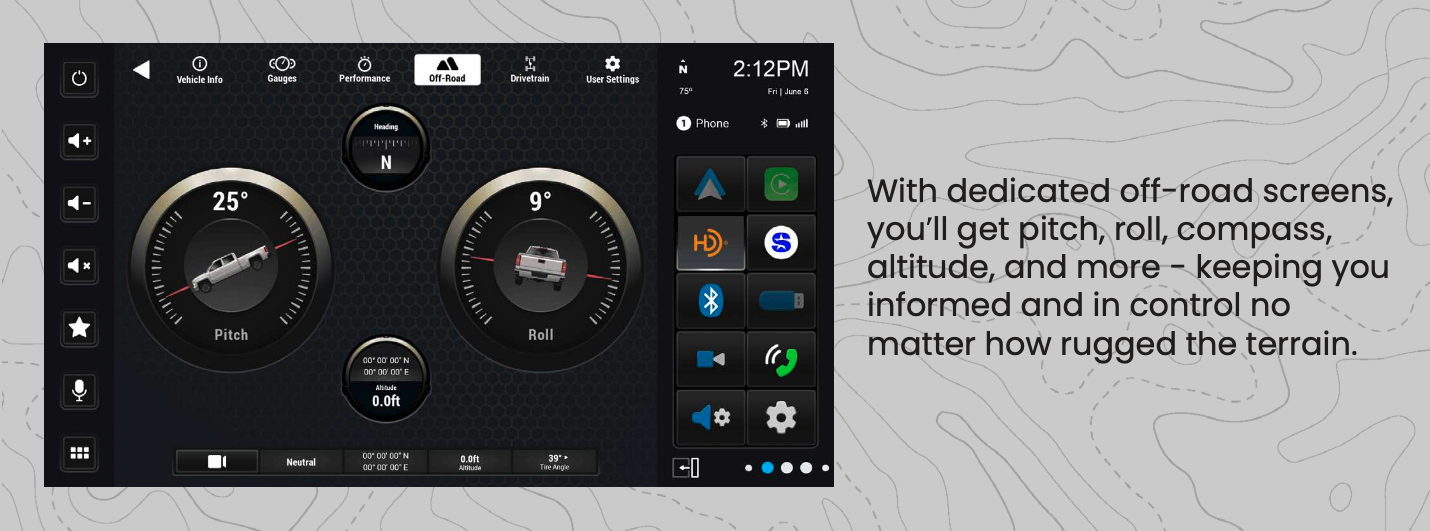

- On-screen gauges to monitor vehicle vitals temperature
- OEM Safety: front parking assist, rear parking assist, reverse camera (if equipped), optional dynamic and static parking lines
- Complete feature retention: warning chimes, steering wheel mounted radio controls, and factory amplifier (if equipped)
- Vehicle-to-radio connectivity: vehicle speed, illumination, reverse, and parking brake signals
- Complete plug-and-play system: no vehicle modifications needed!
INTEGRATED KIT INCLUDES EVERYTHING NEEDED FOR THE INSTALLATION
- Flush mounted plastics with a convenient built-in volume knob
- GM6A-SRX RadioPRO Advanced vehicle integration module for GM vehicles (Compatible with BOSE or non-BOSE)
- Complete plug-and-play installation harnesses
- Adapters for AM/FM radio and SirusXM (SXV Module Required)
- External chime speakers
- HORIZON12 infotainment system
