Description

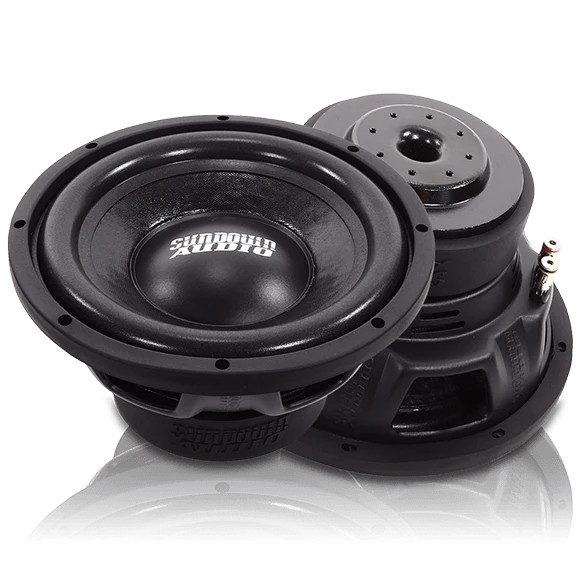

SUNDOWN AUDIO LCS-10 v.2 D4 (300-watts) SUBWOOFER
FEATURES
- Xmax = 14mm one-way by 70% BL
- RMS Power = 300-watts
- Vented magnetic gap
- Vented Pole piece with chamfered edges for increased air powered voice coil cooling
- Custom tooled & vented, extra thick stamped steel frame
- Black Aluminum 2” voice coil former for superior heat dissipation
- High Temperature 4-Layer copper voice coil wire
- High Quality Push Terminals
- Stitched-On Flat Tinsel Leads to prevent fatigue and failure
- Optimized for small, ported enclosures
LCS V.2 10" / 12"
| T/S SPECS | LCS V.2 10″D4 | LCS V.2 12″D4 |
|---|---|---|
| RE (Ohms) | 7.140 | 6.9 |
| FS (Hz) | 34.642 | 33.442 |
| VAS (L) | 27.182 | 52.522 |
| Qes | 0.500 | 0.548 |
| Qms | 3.377 | 3.684 |
| Qts | 0.436 | 0.477 |
| Le (mH) | coming soon... | 3.15 |
| BL (NA) | 19.313 | 20.073 |
| Mms (Grams) | 120.124 | 152.328 |
| Cms (uM/N) | 175.713 | 14.869 |
| Sens (dB @ 1w/1m) | 85.4 | 87.4 |
