Description

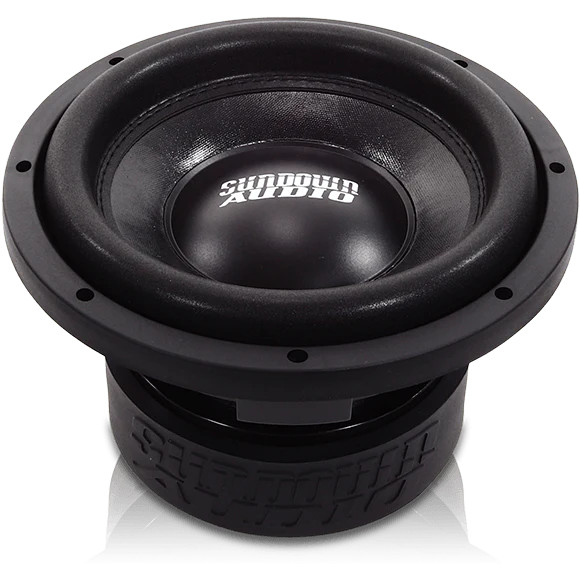

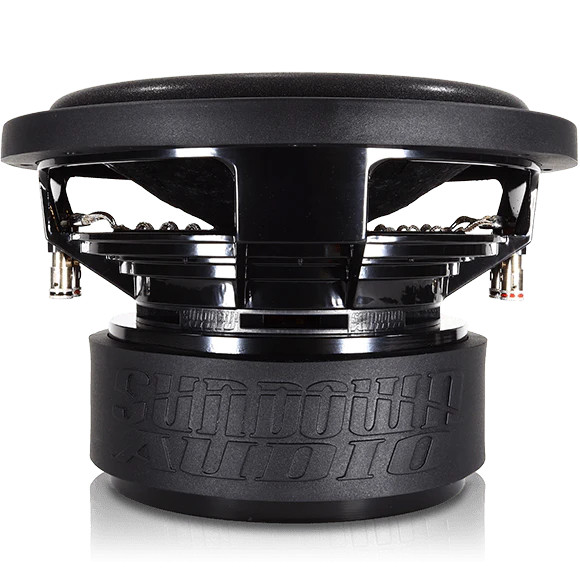

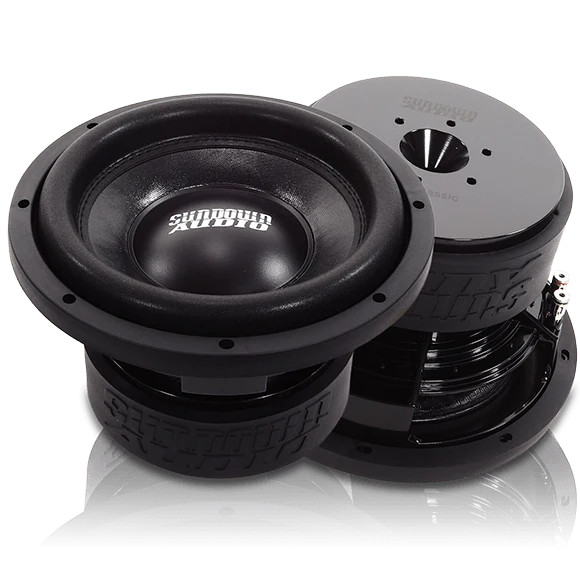

SUNDOWN AUDIO SA "Classic" 10" D4 (Black Motor)(750W)
FEATURES
- Xmax = 19mm one-way by 70% BL
- RMS Power = 750-watts
- Vented magnetic gap
- Optimized high-velocity pole vent
- Innovative high-velocity vented frame spacer ring
- Black Aluminum 2.5” voice coil former for superior heat dissipation
- High Temperature copper voice coil wire
- Large aluminum faraday ring (Magnet ID)
- Spring Loaded Terminals
- Stitched-On “XL” Tinsel Leads to prevent fatigue and failure
- High strength cast aluminum frame
- Optimized for small ported, sealed, & band-pass enclosures
- These features combine to create the optimized coil ventilation system.
SPECIFICATIONS
| T/S SPECS | SA CLASSIC 10" D2 | SA CLASSIC 10" D4 |
|---|---|---|
| RE (Ohms) | 4.29 | 7.08 |
| FS (Hz) | 35.4 | 36.6 |
| VAS (L) | 10.13 | 10.66 |
| Qes | 0.52 | 0.54 |
| Qms | 5.41 | 5.30 |
| Qts | 0.48 | 0.49 |
| Le (mH) | 3.41 | 4.71 |
| BL (NA) | 20.40 | 24.82 |
| Mms (Grams) | 230 | 205 |
| Cms (uM/N) | 87.8 | 92.4 |
| Sens (dB @ 1w/1m) | 81.0 | 81.6 |
ENCLOSURE SPECIFICATIONS
SA CLASSIC 10"
| Sealed Enclosure | 0.5 cu ft |
| Ported Enclosure | 1.0 cu ft |
| Recommended Tuning | 35Hz |
| Recommended Port Area | 15 sq in |
| Displacement | 0.1 cu ft |
| Depth | 6″ |
| Outside Diameter | 10.5″ |
| Cut-Out | 9.25″ |
| Physical Dimensions | Download |
