Description

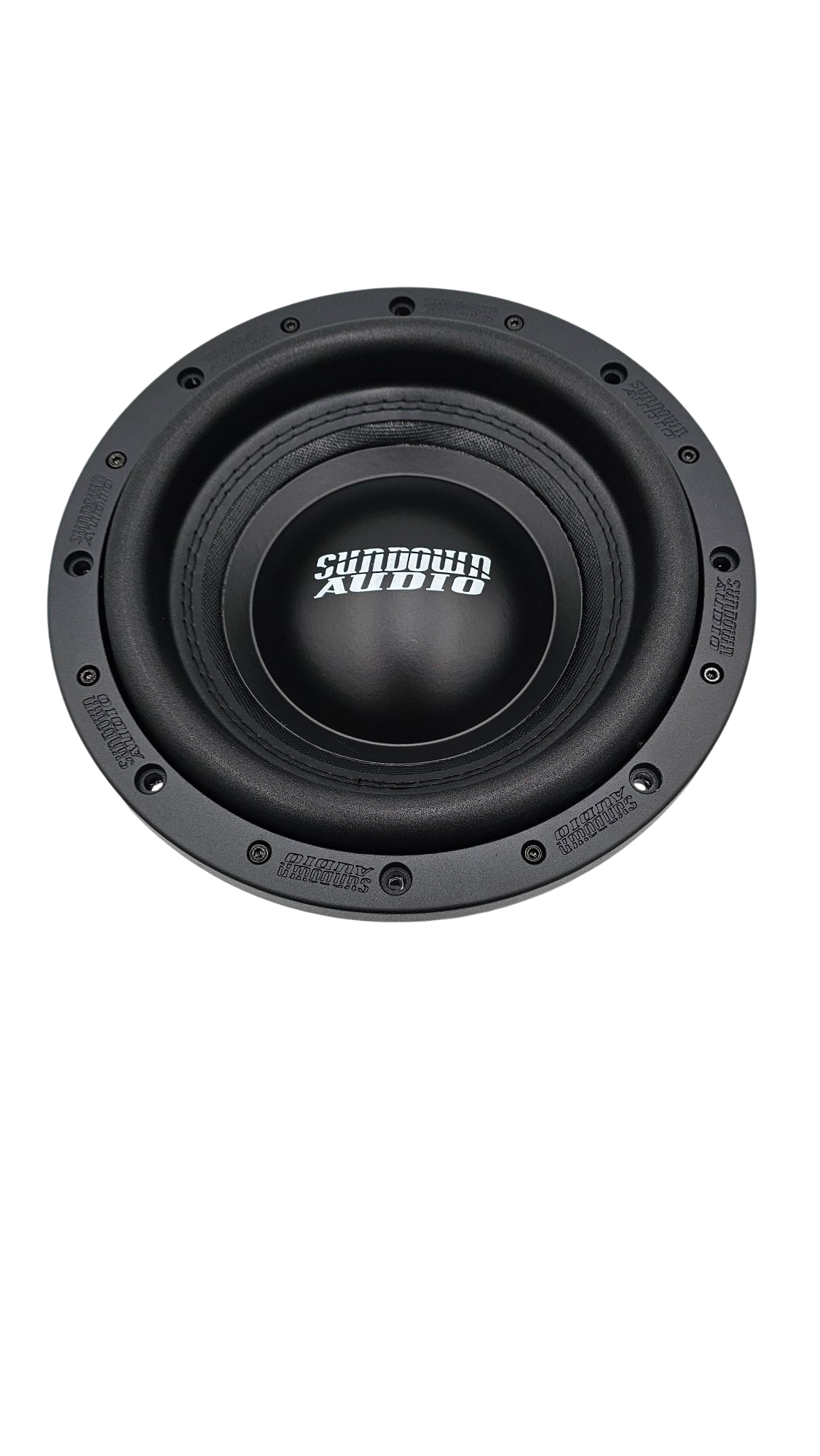

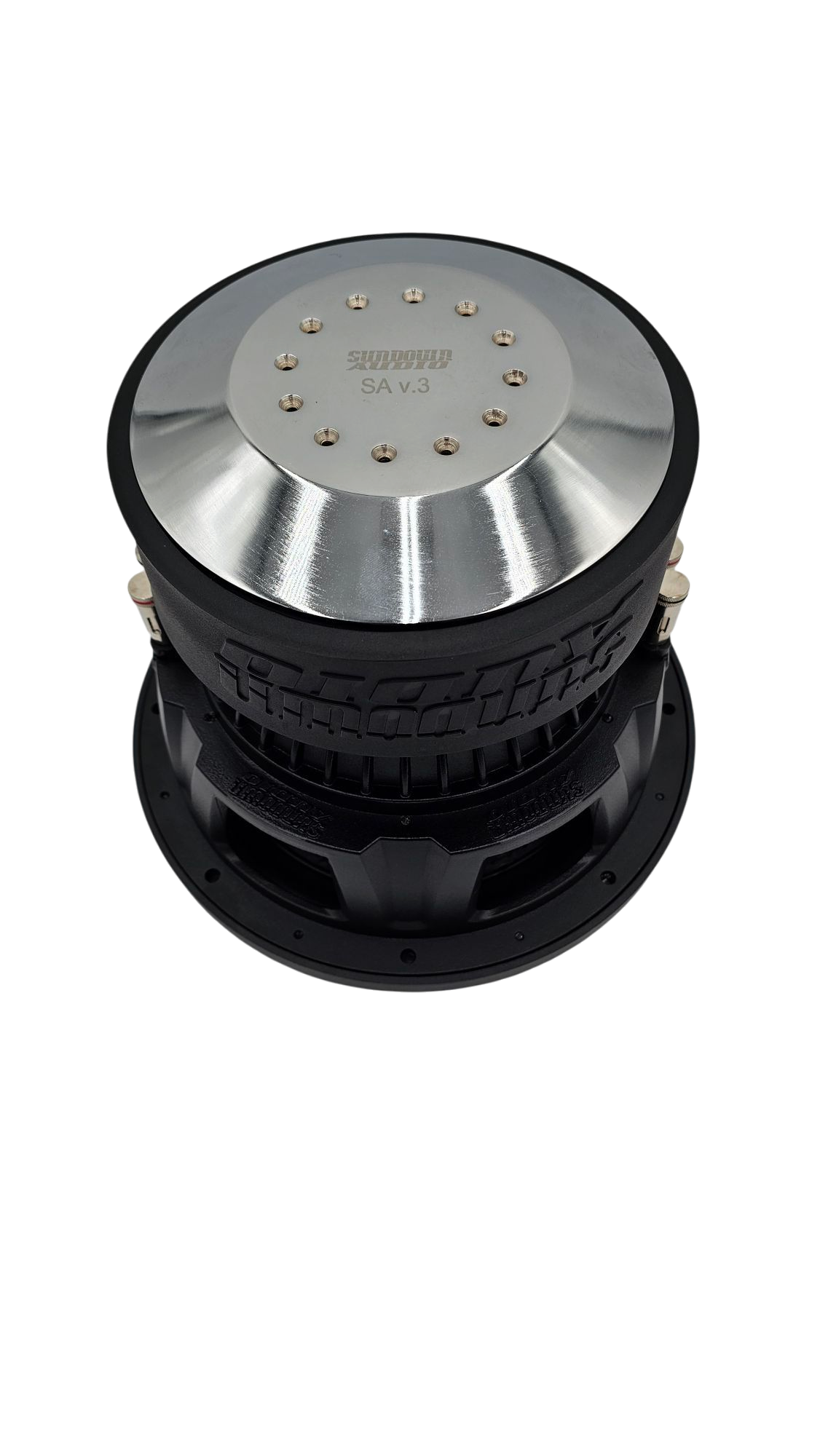

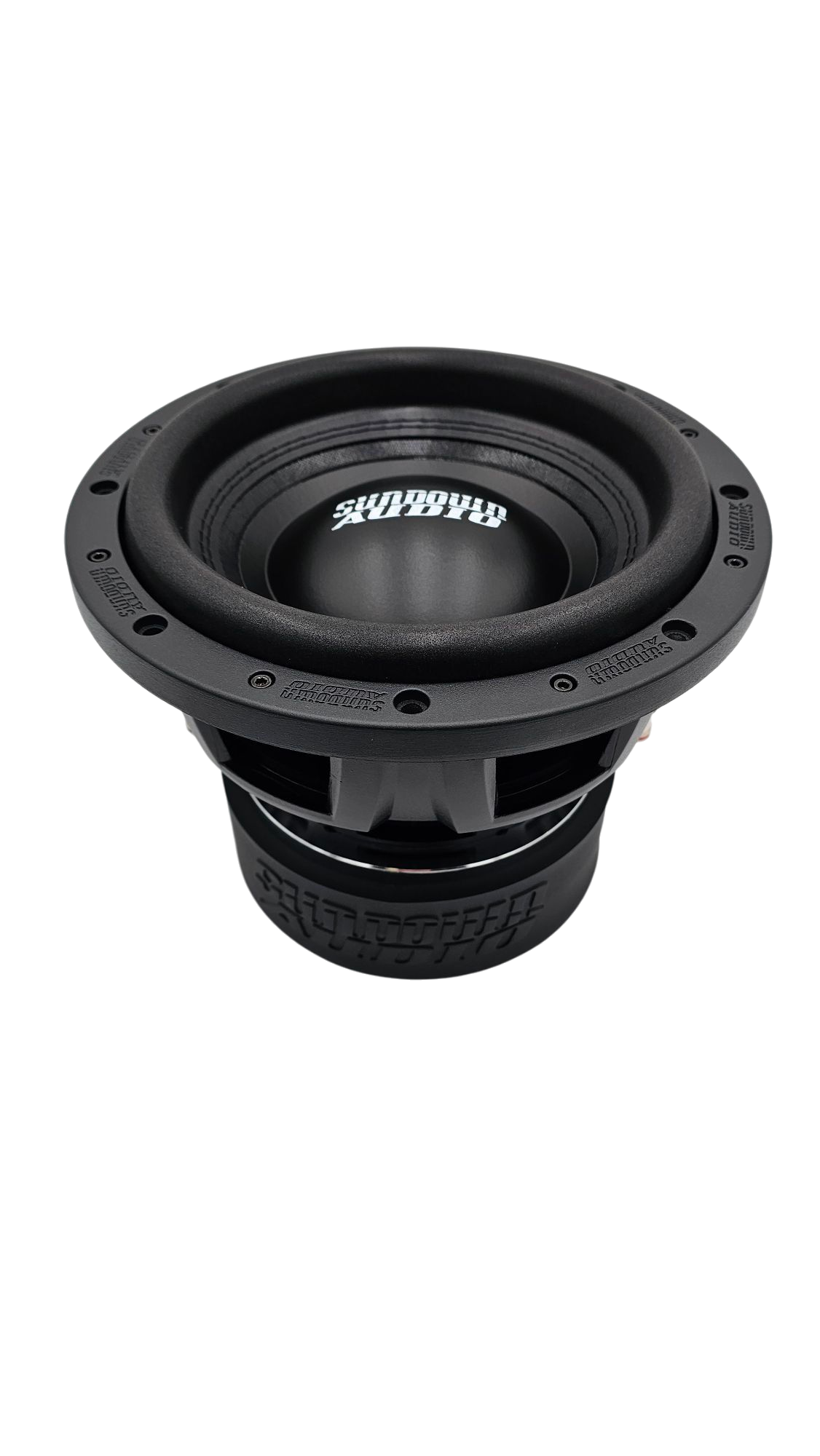

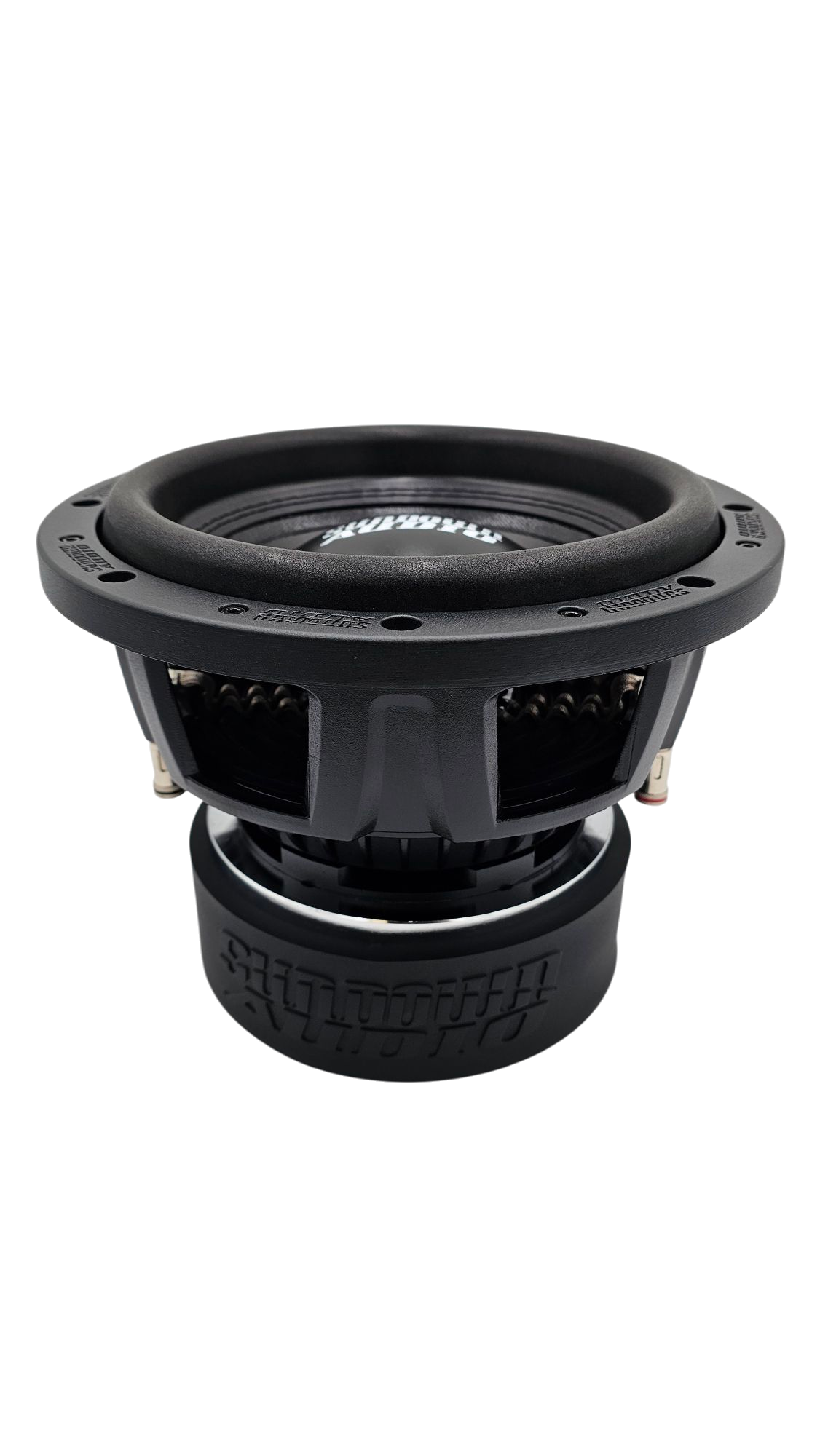

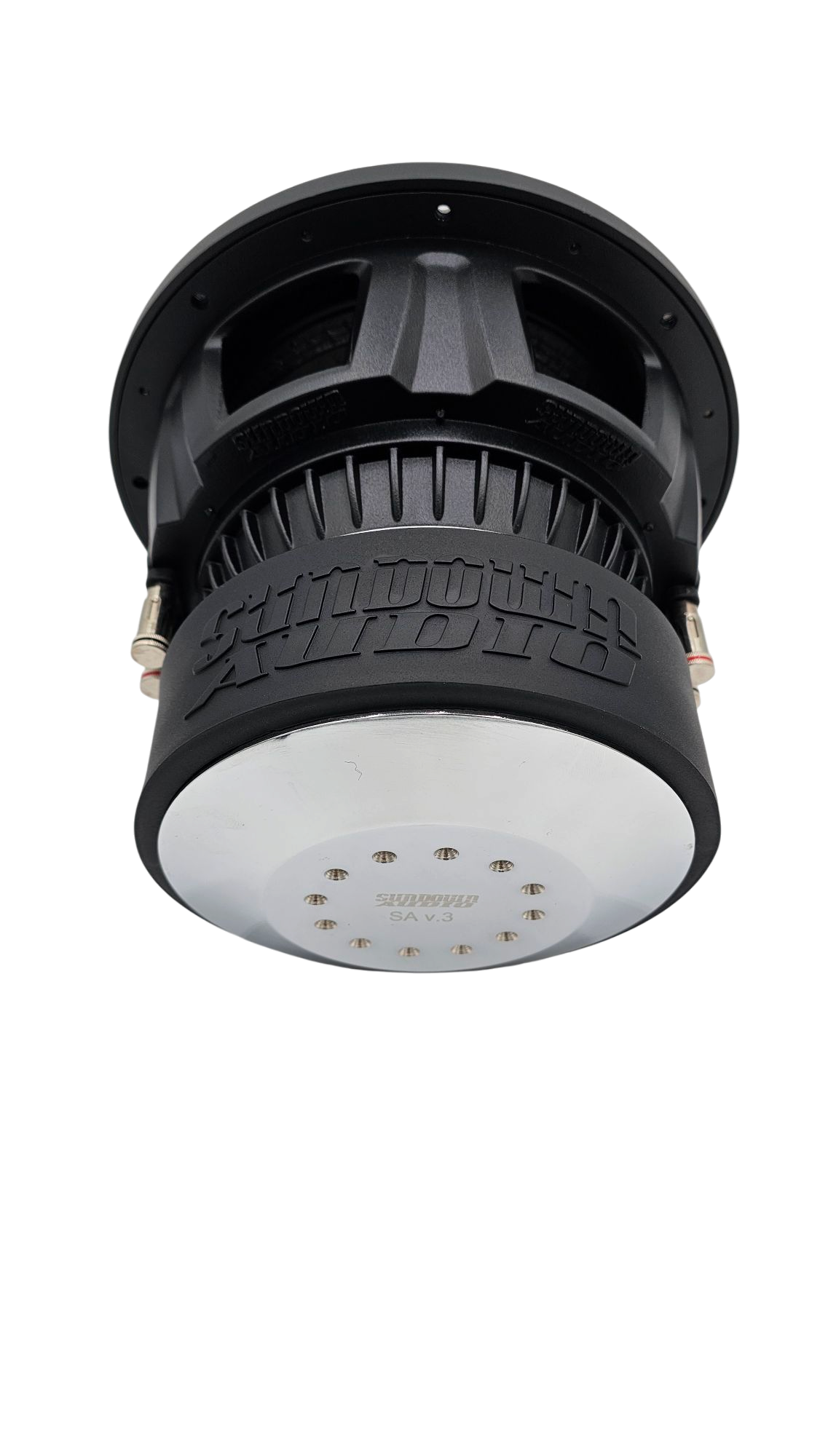

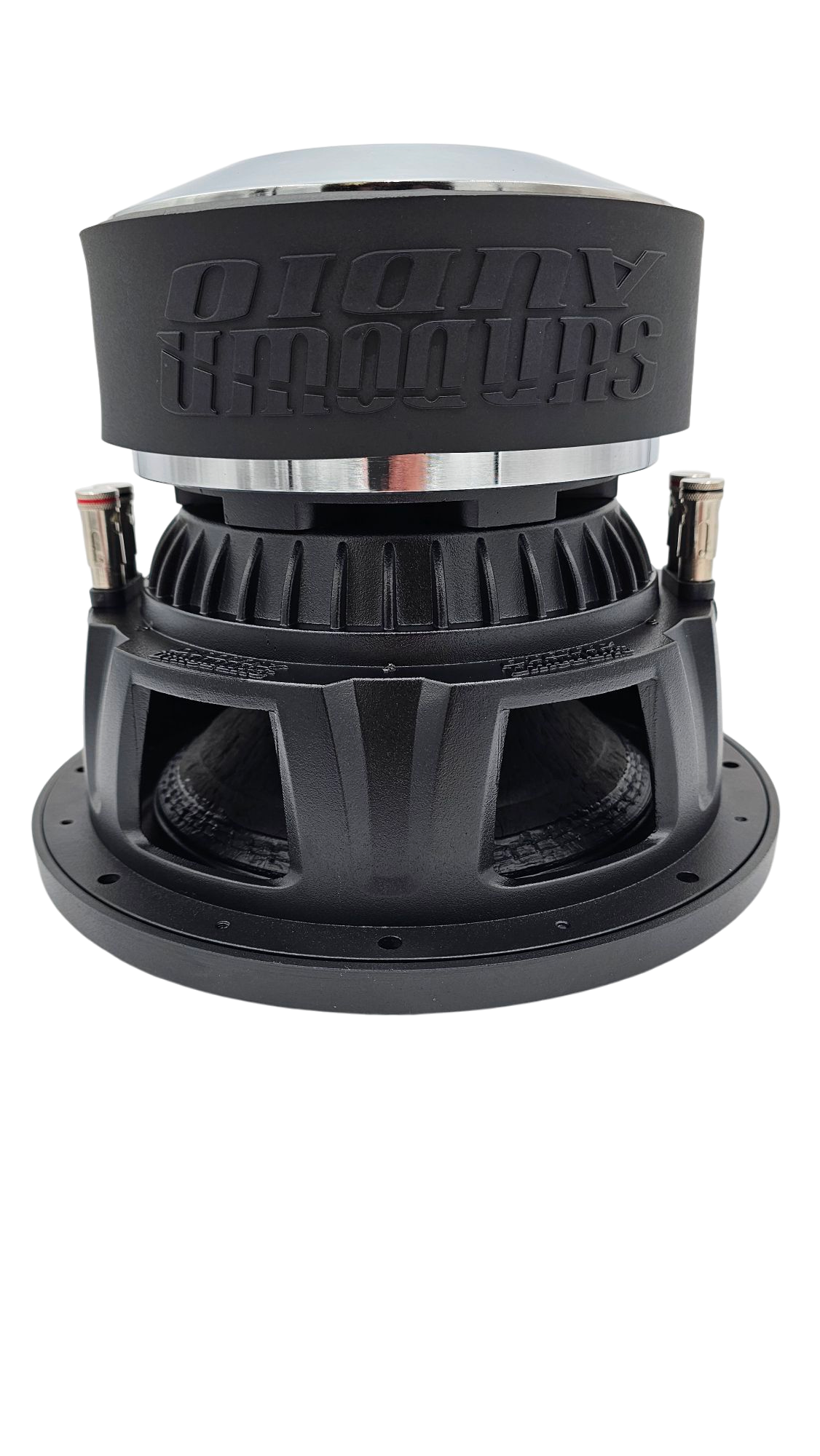

SUNDOWN AUDIO SA "CLASSIC" VERSION 3 10" 750W RMS, 1500W MAX DUAL 4 OHM VOICE COIL SUBWOOFER
- RMS 750 watts
- Dual 4 ohm voice coils
- Optimized for small ported, sealed, & band-pass enclosures
- Large aluminum Faraday ring for smooth acoustic response
- High strength cast aluminum frame
- Low distortion motor construction
- High-temperature voice coil wire

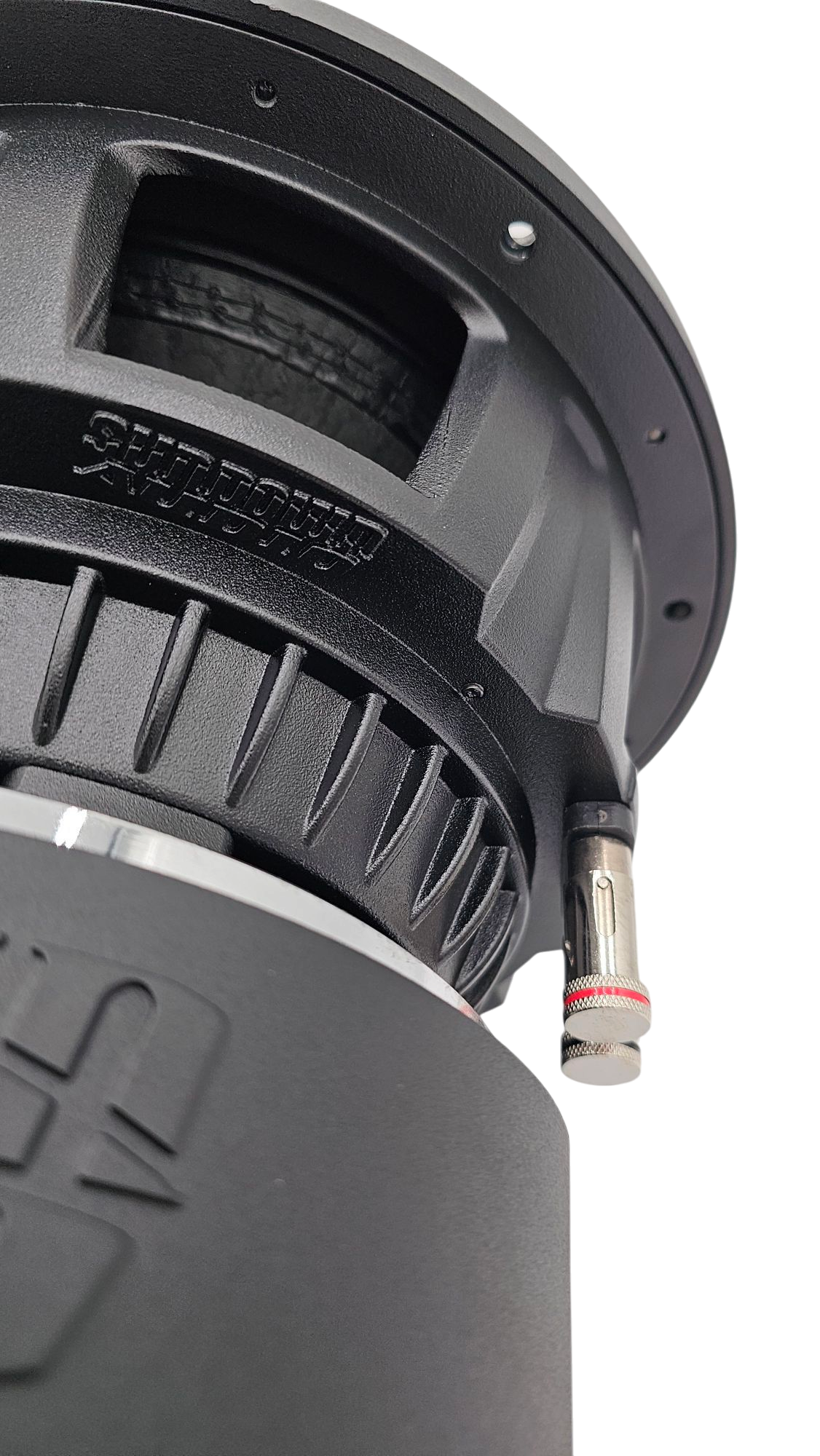

- Spring-loaded terminals
- Stitched-on “XL” tinsel lead wires
Specifications
| RE (Ohms) | 4.29 | 7.08 |
| FS (Hz) | 35.4 | 36.6 |
| VAS (L) | 10.13 | 10.66 |
| Qes | 0.52 | 0.54 |
| Qms | 5.41 | 5.30 |
| Qts | 0.48 | 0.49 |
| Le (mH) | 3.41 | 4.71 |
| BL (NA) | 20.40 | 24.82 |
| Mms (Grams) | 230 | 205 |
| Cms (uM/N) | 87.8 | 92.4 |
| Sens (dB @ 1w/1m) | 81.0 | 81.6 |
| Xmax | 19mm | 19mm |
| T/S SPECS | SA CLASSIC 10" D2 | SA CLASSIC 10" D4 |
|---|
Enclosure Specifications
SA CLASSIC 10"
| Sealed Enclosure | 0.5 cu ft |
| Ported Enclosure | 1.0 cu ft |
| Recommended Tuning | 35Hz |
| Recommended Port Area | 15 sq in |
| Displacement | 0.1 cu ft |
| Depth | 6″ |
| Outside Diameter | 10.5″ |
| Cut-Out | 9.25″ |
| Physical Dimensions | Download |
