Description

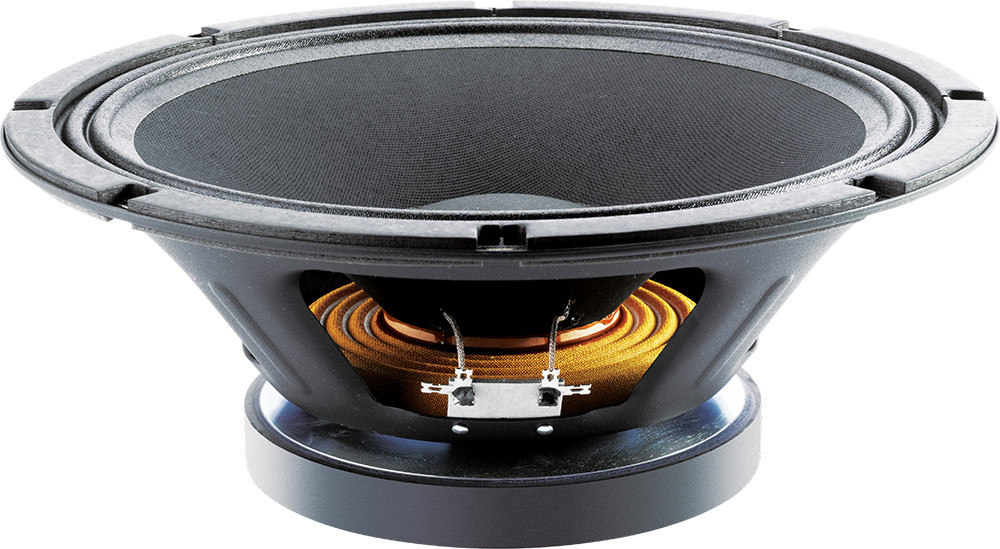

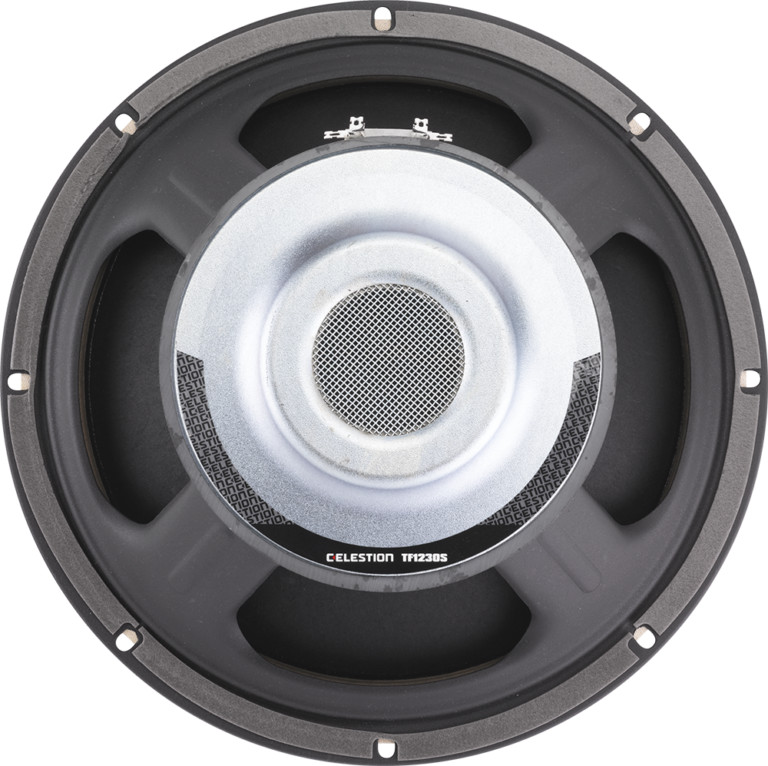

12-inch pressed steel chassis, ferrite magnet bass/mid driver
Specifications
600W
Continuous power rating
96dB
Sensitivity
3in
Voice coil diameter
Nominal diameter
305mm / 12in
Power rating
300W
Continuous power rating
600W
EIA power rating
450W
Rated impedance
8Ω
Sensitivity
96dB
Frequency range
50-4000Hz
Chassis type
Pressed steel
Magnet type
Ferrite
Magnet weight
1.7kg / 60oz
Voice coil diameter
75mm / 3in
Voice coil material
Edgewound copper clad aluminium
Former material
Polyimide
Cone material
Kevlar loaded paper
Surround material
Cloth-sealed
Suspension
Single
Gap height (Hg)
8mm / 0.31in
VC winding height (Hvc)
17mm / 0.67in
Parameters
Sd
530.93cm2 / 82.29in2
Fs
60.30Hz
Mms
51.08g / 1.8oz
Qms
3.28
Qes
0.422
Qts
0.374
Re
5.98Ω
Vas
54.41l / 1.92ft3
BI
16.56Tm
Cms
0.14mm/N
Rms
5.91kg/s
Le (at 1kHz)
0.98mH
Xmax
4.5mm / 0.18in
Mounting Information
Overall diameter
317.5mm / 12.5in
Overall depth
137mm / 5.4in
Cut-out diameter
283mm / 11.14in
Mounting hole dimensions
13x6.5mm / 0.51x0.26in
Number of mounting holes
8
Mounting hole PCD
299mm / 11.77in
Unit weight
4.3kg / 9.5lb
Packed Dimensions & Weight
Single pack size W x D x H
330mm x 330mm x 150mm / 13in x 13in x 5.9in
Single pack weight
5.5kg / 12.0lb
Frequency Response and Impedance Curves
Topmost curve: Frequency response on axis | Secondary curve: Frequency response at 45° off axis
Power rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
Continuous power rating: Defined as 3dB greater than the AES rating.
Sensitivity: Measured on axis at 1W, 1m in 2π anechoic environment.
Parameters: Measured after unit subjected to pre-conditioning signal.
Xmax: Hvc-Hg/2
