Description

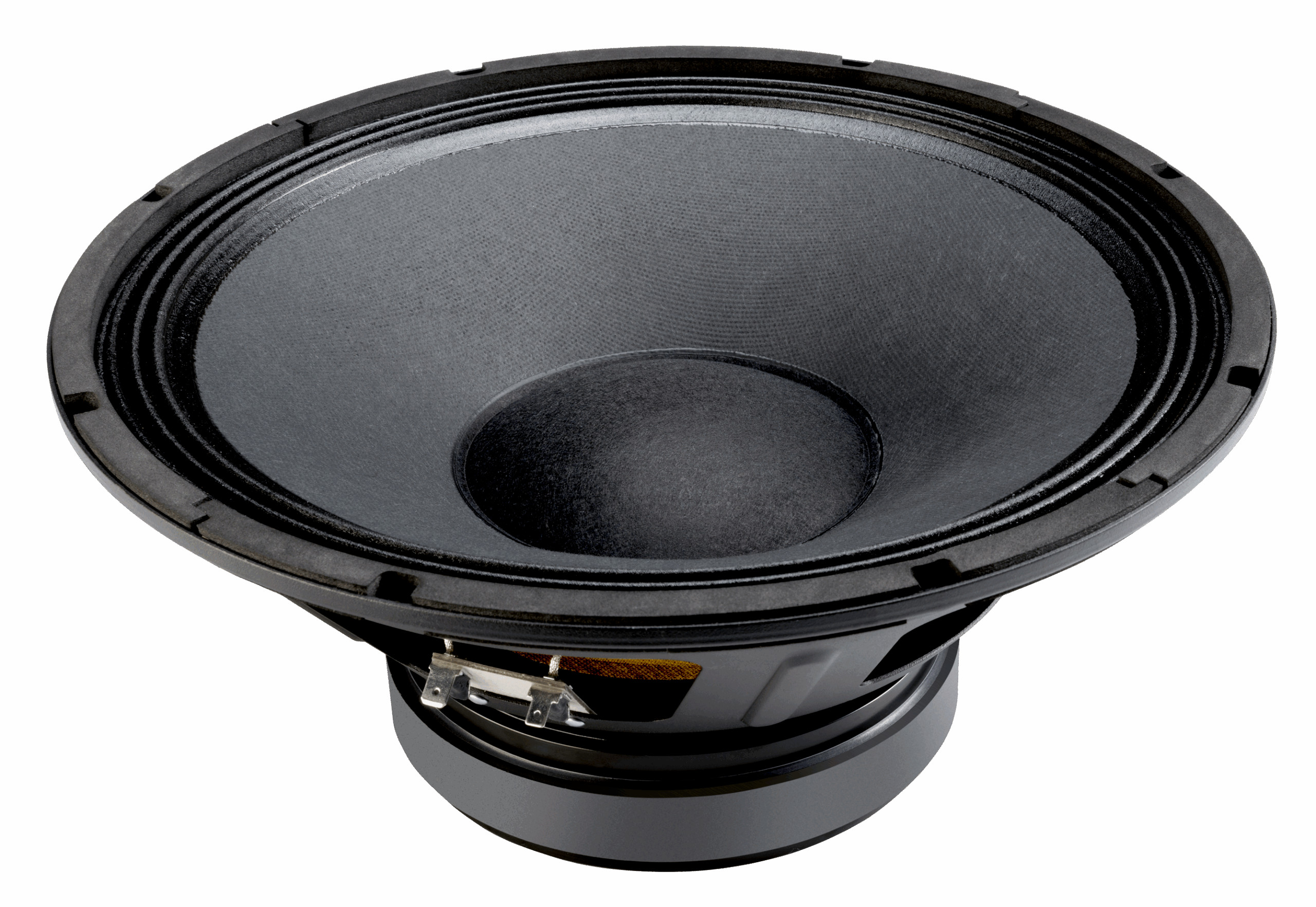

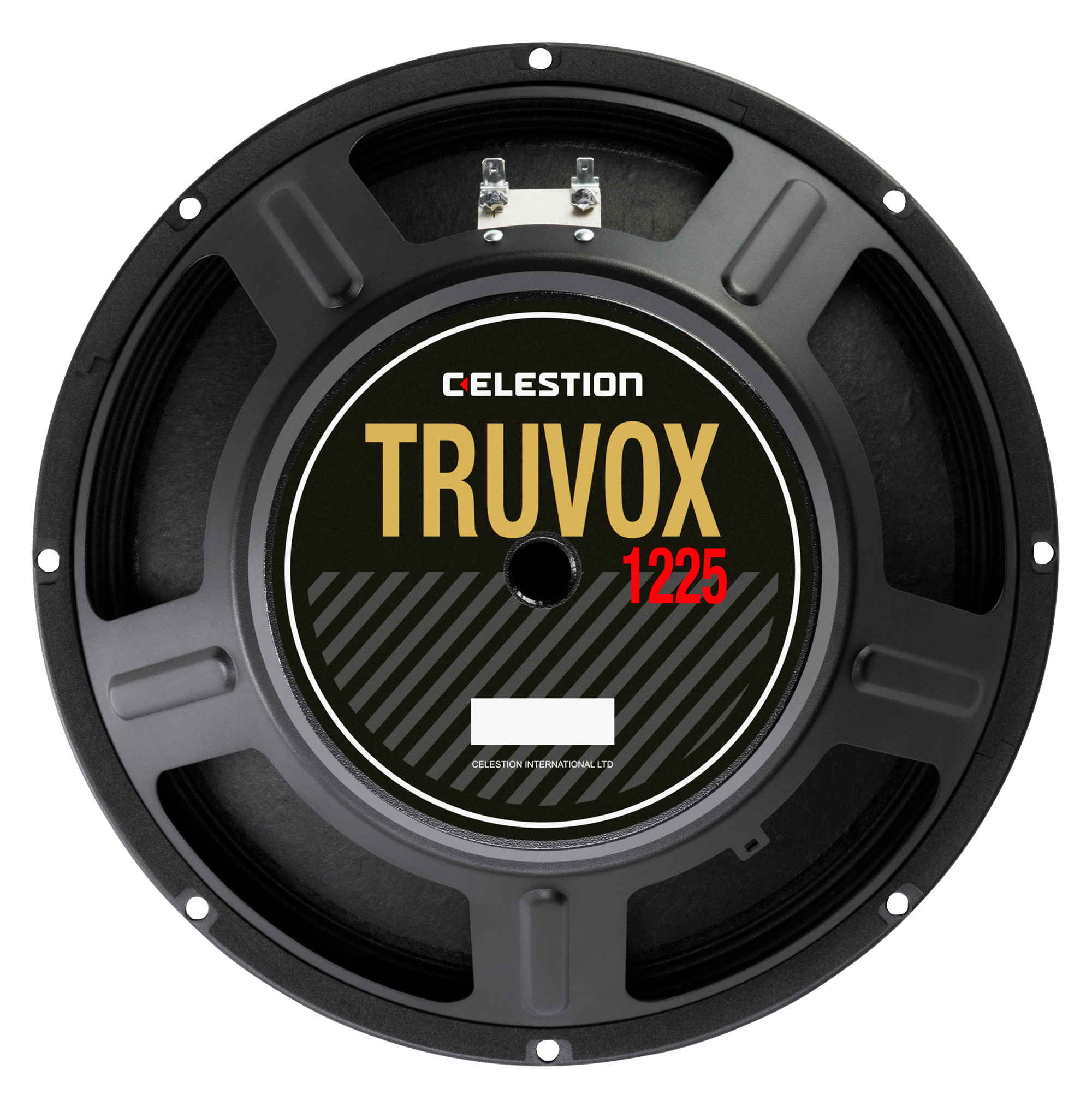

12-inch pressed steel chassis, ferrite magnet mid/bass driver
- Excellent drop-in replacement/upgrade model for 12in mid/bass applications
- FEA optimised magnet assembly
- Triple roll surround for superior performance stability
- Glass fibre reinforced cone for added durability
- Robust pressed steel chassis with front and rear mounting gaskets
Specifications
600W
Continuous power rating
96dB
Sensitivity
2.5in
Voice coil diameter
Nominal diameter
305mm / 12in
Power rating
300W
Continuous power rating
600W
Rated impedance
8Ω
Sensitivity
96dB
Frequency range
50Hz - 4000Hz
Chassis type
Pressed Steel
Magnet type
Ferrite
Magnet weight
1.42kg / 50oz
Voice coil diameter
64mm / 2.5in
Voice coil material
Copper clad aluminium
Former material
Polyimide
Surround material
Cloth-sealed
Suspension
Single
Gap height (Hg)
9.5mm / 0.37in
VC winding height (Hvc)
14.3mm / 0.56in
Parameters
Sd
530.93cm2 / 82.29in2
Fs
60.3Hz
Mms
51.39g/1.81oz
Qms
7.389
Qes
0.681
Qts
0.623
Re
6.38Ω
Vas
54.15l/1.91ft3
BI
13.51Tm
Cms
0.14mm/N
Rms
2.63kg/s
Le (at 1kHz)
0.68mH
Xmax
4.75mm / 0.19in
Mounting Information
Overall diameter
305.6mm / 12.03in
Overall depth
131.4mm / 5.17in
Cut-out diameter
284.5mm / 11.2in
Mounting hole dimensions
6.4mm / 0.25in Ø
Number of mounting holes
8
Mounting hole PCD
294.4mm / 11.6in
Unit weight
4.7kg / 10.4lb
Packed Dimensions & Weight
Single pack size W x D x H
334mm x 345mm x 157mm / 13.1in x 13.6in x 6.2in
Single pack weight
5.2kg / 11.5lb
Frequency Response and Impedance Curves
