Description

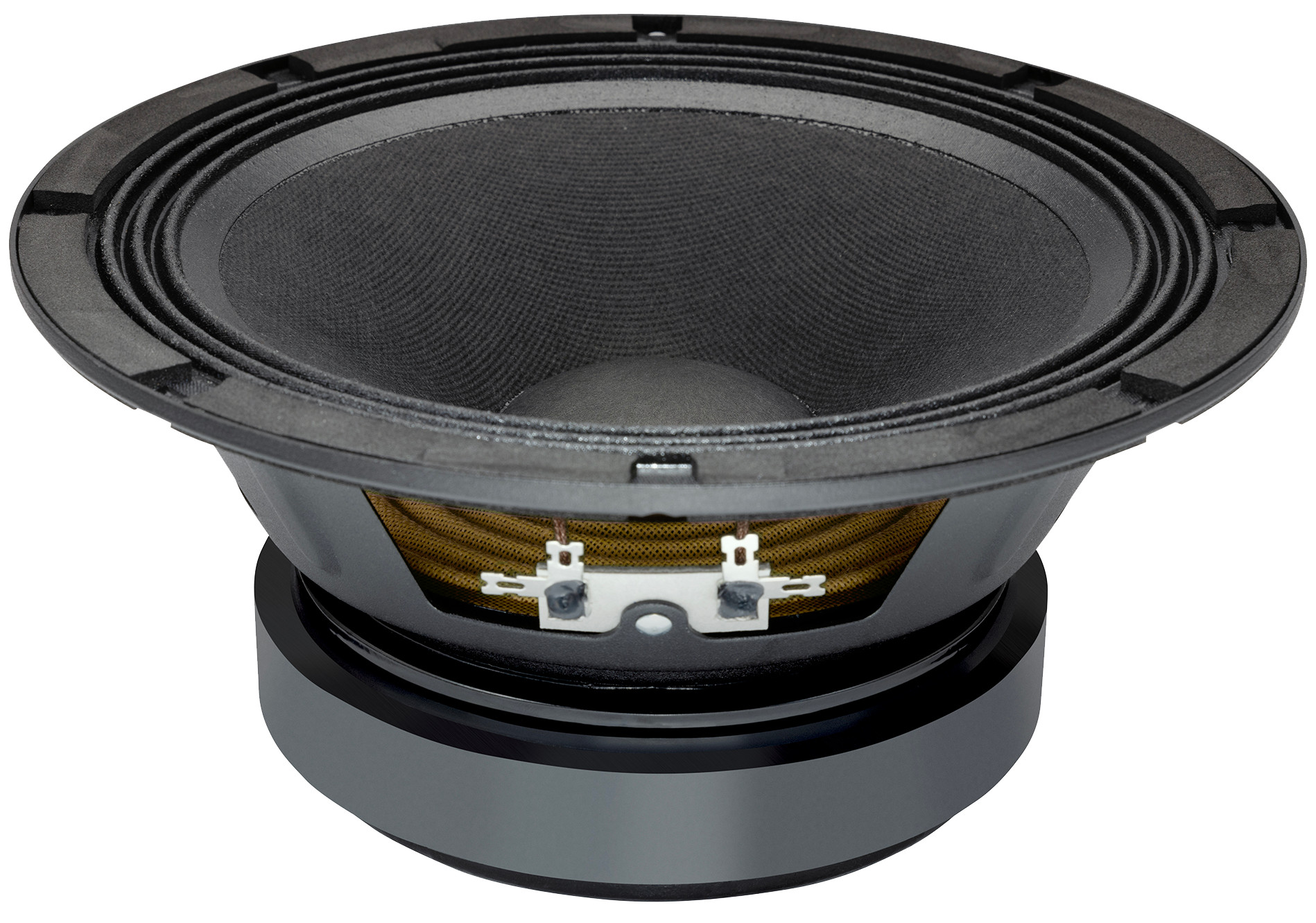

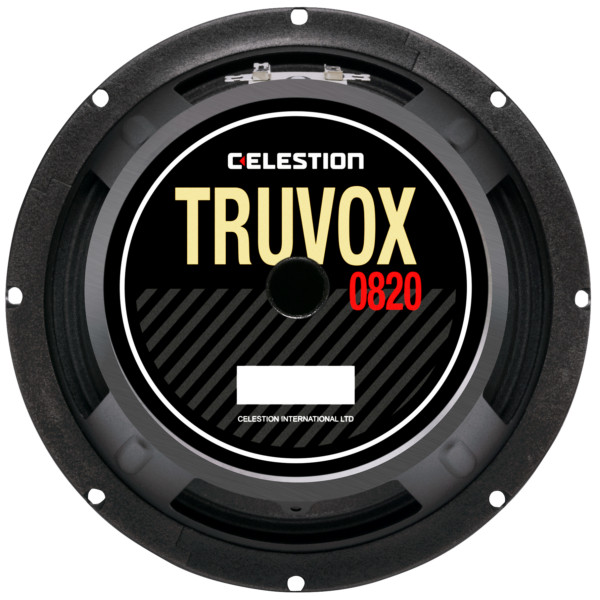

8-inch pressed steel chassis, ferrite magnet mid/bass driver
- Lightest weight in product class
- Excellent drop-in replacement/upgrade model for 8in mid/bass applications
- FEA optimised magnet assembly
- Triple roll surround
- Robust pressed steel chassis with front and rear mounting gaskets
Specifications
500W
Continuous power rating
96dB
Sensitivity
2in
Voice coil diameter
Nominal diameter
200mm / 8in
Power rating
250W
Continuous power rating
500W
Rated impedance
8Ω
Sensitivity
96dB
Frequency range
70-6000Hz
Chassis type
Pressed steel
Magnet type
Ferrite
Voice coil diameter
50mm / 2in
Voice coil material
Copper
Former material
Polyimide
Cone material
Cellulose
Surround material
Cloth-sealed
Suspension
Single
Gap height (Hg)
8mm / 0.31in
VC winding height (Hvc)
14mm / 0.55in
Parameters
Sd
226.98cm2 / 35.18in2
Fs
74.1Hz
Mms
19.49
Qms
6.304
Qes
0.417
Qts
0.390
Re
6.06Ω
Vas
17.25l / 0.61ft3
BI
11.51Tm
Cms
0.24mm/N
Rms
1.50kg/s
Le (at 1kHz)
0.543mH
Xmax
5mm / 0.2in
Mounting Information
Overall diameter
208.5mm / 8.21in
Overall depth
94mm / 3.7in
Cut-out diameter
184mm / 7.24in
Mounting hole dimensions
5.5x9.4mm / 0.22x0.37in
Number of mounting holes
8
Mounting hole PCD
193-201mm / 7.6-7.9in
Unit weight
3kg / 6.6lb
Frequency Response and Impedance Curves
