Description

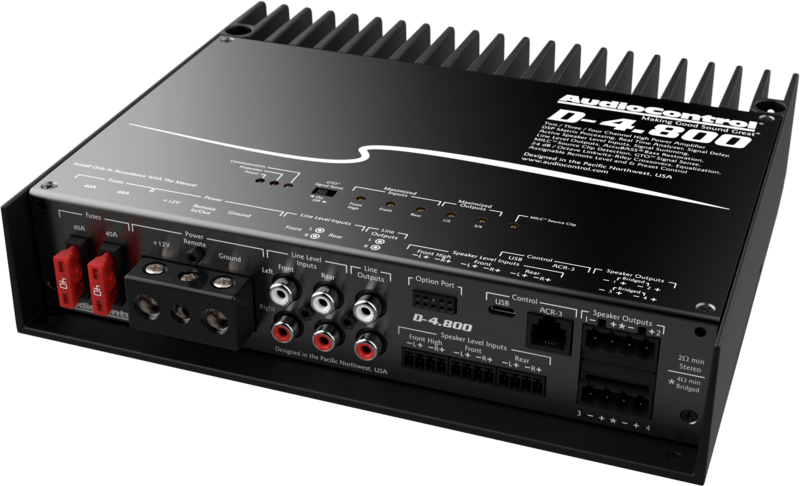

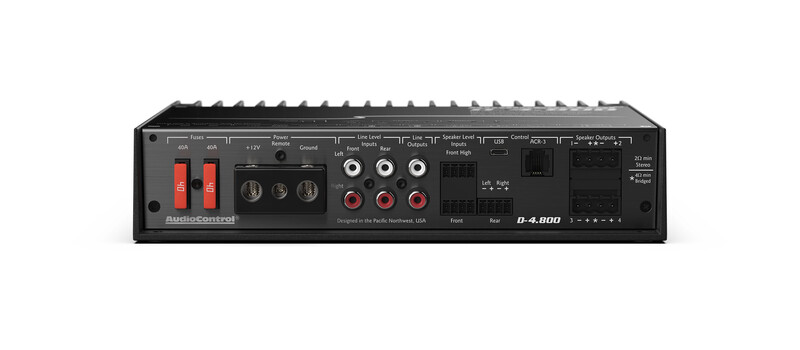

AUDIOCONTROL D-4.800 4/3/2 Channel Amplifier with Matrix DSP
Features:
- Built-in DSP
- Configurable as 4/3/2 channel amplifier
- 4 x 200 watts @ 2 ohms
- 4 x 125 watts @ 4 ohms
- 400 watts @ 4 ohms bridged
- AccuBASS® Processing
- MILCTM Maximum Input Level Control (Patent Pending)
- GTOTM Signal Sense
- Active speaker-level inputs (6 channels) for OEM integration
- 4 preamp inputs
- 2 assignable preamp outputs
- Solid One-Piece Aluminum Chassis
- Input and Output RTA for precise and informed tuning
- Input and Output Delay
- 12 and 24 dB/octave Linkwitz-Riley crossovers
- 30 band equalizer
- Optional AC-BT24 Bluetooth Streamer/Programmer
- DM Smart DSP app available in downloads for Mac/PC or…
Specifications:
Inputs
Preamp Inputs: 4 balanced
Preamp Input Voltage Range: 250 mV – 8 Vrms
Speaker Level Inputs: 6
Speaker Level Input Voltage Range: 3 V – 40 Vrms
Outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ω – 125 W x 4 RMS
2 Ω – 200 W x 4 RMS
Bridged 4 Ω – 400 W RMS
Preamp Outputs: 2
Maximum Preamp Output: 8.5 V RMS
Performance
Frequency Response: 20 Hz – 24 kHz
Signal to Noise: 102 dBA, Ref 200 W @ 2 Ohm
THD+N: < 0.1%
Power / Ground Wire Gauge: 8 to 3 AWG wire
Fuse Rating: 2 x 40 A
Weights & Dimensions
Dimensions: 9.0″W x 8.0″D x 2.1″H
Weight: 5.0 lbs. (2.3kg)
What's in the box: D-4.800, Speaker Connectors, Fuses, Manual, Warranty
