Description

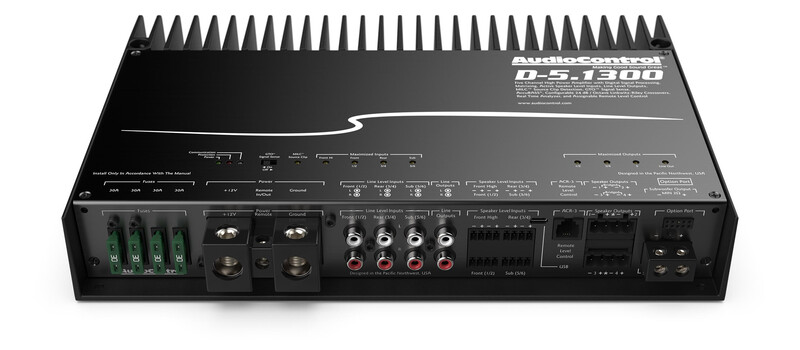

AUDIOCONTROL D-5.1300 5 Channel Matrix DSP Amplifier
Features:
- Built-in DSP
- Configurable as 5 or 3 channel amplifier
- 4 x 200 watts + 1 x 500 watts @ 2 ohms
- 4 x 100 watts + 1 x 300 watts @ 4 ohms
- 400 watts @ 4 ohms bridged
- AccuBASS® Processing
- MILCTM Maximum Input Level Control (Patent Pending)
- GTOTM Signal Sense
- Independent Linkwitz-Riley Alignment crossovers
- Summable active speaker-level inputs (8 channels) for OEM integration
- 6 preamp inputs
- PFM Subsonic Filter
- Solid One-Piece Aluminum Chassis
- Input and Output RTA for precise and informed tuning
- Input and Output Delay
- 12 and 24 dB/octave Linkwitz-Riley crossovers
- 30 band equalizer with auto EQ
- Optional ACR-3 remote for preset recall and level control
- Optional AC-BT24 Bluetooth Streamer/Programmer
- DM Smart DSP app available in downloads for Mac/PC or…
Specifications:
Inputs
Preamp Inputs: 6 balanced
Preamp Input Voltage Range: 500 mV – 6 Vrms
Speaker Level Inputs: 8
Speaker Level Input Voltage Range: 3 V – 40 Vrms
Outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ω – 100 W x 4 + 300 W x 1
2 Ω – 200 W x 4 + 500 W x 1
Bridged 4 Ω – 400 W RMS
Preamp Outputs: 2
Maximum Preamp Output: 8.5 V RMS
Performance
- Frequency Response: 20 Hz – 22 kHz
- Signal to Noise: 102 dBA, Ref 200 W @ 2 Ohm
- THD+N: < 0.1%
- Power / Ground Wire Gauge: 8 to 3 AWG wire
- Fuse Rating: 4 x 30 A
Weights & Dimensions
Dimensions: 12.0″W x 8.0″D x 2.1″H
Weight: 7.2 lbs. (3.3 kg)
What's in the box: D-5.1300, Speaker Connectors, Fuses, Manual, Warranty
