Description

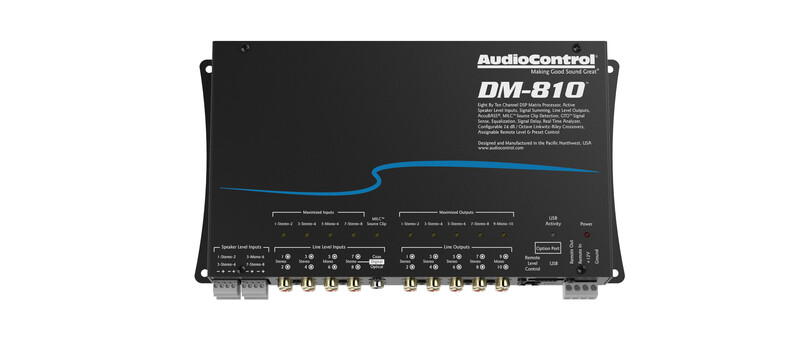

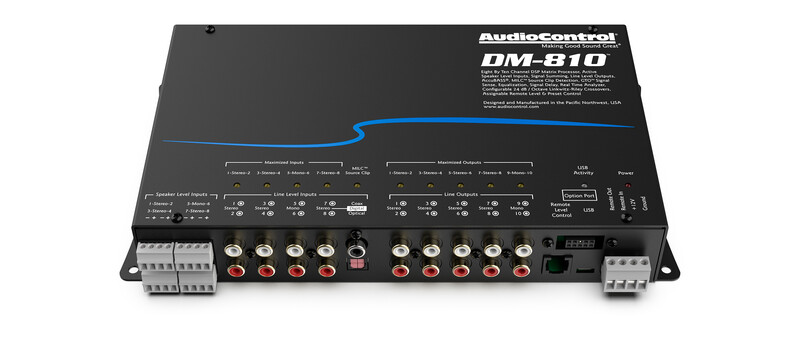

AUDIOCONTROL DM-810 Matrix DSP 8in/10out
Features:
- Input and Output RTA for precise and informed tuning
- GTOTM Signal Sensing
- MILCTM Clip Detection
- AccuBASS®
- Signal Summing
- Signal Delay
- 12 and 24 dB/octave crossovers
- 30 band equalizer
- Optional ACR-3 remote for preset recall and level control
- Optional AC-BT24 Bluetooth Streamer/Programmer
- DM Smart DSP app available in downloads for Mac/PC or…
Specifications:
Inputs
Preamp Input Channels: 8
Digital Inputs: 1 x Toslink and Coax
Input Impedance Preamp / Speaker-level: 20 kΩ / 7 kΩ
Outputs
Preamp Outputs Channels: 10
Maximum Output Level: 10 Vrms
Output Impedance: 150 Ω
Performance
Total Harmonic Distortion: 0.01%
Frequency Response: 20 Hz to 24 kHz
Crossover Frequency: variable
Crossover Type: 12 and 24 dB/octave Linkwitz-Riley
Control
12 VDC Remote In
12 VDC Remote Out (always active when the unit is on)
General
Power Supply: High Headroom PWM Switching
Current Draw: 1A
Recommended Fuse Rating: 3A
Weights & Dimensions
Dimensions: 10.5”W x 5.7”D x 1.6”H
Weight: 2.6lbs (1.2kg)
What's in the box: DM-810, Power and Speaker Connectors, Manual, Warranty
